CAIS Self-supporting kit 73x61x3,5 for a sliding gate with a passage width of 4,5m, perforated Fe profile, KIT ENZO SB 03
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€421.66 including VAT
| Weight |
|---|
| 48 kg |
Description of CAIS Self-supporting kit 73x61x3,5 for a sliding gate with a passage width of 4,5m, perforated Fe profile, KIT ENZO SB 03
Component set KIT ENZO SB 03 for manufacturing a cantilever sliding gate with a clear opening width of up to 4.5 m/450 kg. All components except the C-profile are galvanized.
| Set CAIS-ENZO-SB-03 contains: | ||||
|---|---|---|---|---|
|
1 × | C-profile 73x61x3.5 mm with holes for screw fastening, Fe, 6 m | CAIS-STAGE-SB-6 | |
|
Guide C-profile screwed to the bottom of the gate, which allows the gate to run on carriages anchored in the concrete foundation. Unfinished, raw steel.
|
Details
|
|||
|
2 × | SPEED S trolley with eight bearing rollers | CAIS-SPEED-S | |
|
Galvanized steel trolley with 8 metal wheels. |
Details
|
|||
|
1 × | Bottom ramp – for C-profile 73x61x3.5 | CAIS-RUN-S | |
|
The bottom guide ramp for a sliding gate slides into the C-profile and is secured to it with a clamping plate. When the gate closes, the ramp engages with the bottom stop to relieve the load on the gate. |
Details
|
|||
|
1 × | Bottom end stop for C-profile 73x61x3.5 | CAIS-LAST-S | |
|
Run-off pocket mounted at the bottom of the gate stop post. Relieves the compressive and tensile forces acting on the roller carriages when the gate is closed. |
Details
|
|||
|
1 × | Top guide with two rollers for sliding gates | CAIS-FRS2 | |
|
Gate guide for vertical stabilization of the gate in the transverse direction. |
Details
|
|||
|
1 × | C-Profile End Cap 73x61x3.5 | CAIS-PILOT-SN | |
|
The end cap for a sliding gate C-profile is fitted at the beginning and, if required, at the end of the guide C-profile. It slides into the C-profile and is secured to it with a clamping plate. |
Details
|
|||
|
1 × | 73x61x3.5 C-profile end cap with ramp mounting | CAIS-PILOT-SR | |
|
The CAIS PILOT SR end cap for the sliding gate C-profile is installed at the beginning of the guide C-profile. The end cap attaches to the CAIS RUN S gate stop. |
Details
|
|||
|
1 × | Installation manual for a cantilever gate kit |
Download
|
|
|
Installation manual with illustrated wiring diagrams and instructions for programming and pairing remote controls. |
||||
Set of screws and rivet nuts for mounting
Advantages and features of the CAIS ENZO SB 03 kit
- Easy assembly thanks to well-thought-out details, and quick installation by bolting the C-profile to the structure, eliminating the need to weld the C-profile.
- Mounting screws and rivet nuts are included for securing the C-profile to the structure through the holes in the C-profile, spaced at least 400mm apart.
- The untreated, uncoated steel C-profile, serial-numbered and 100% tested with the gate rollers, is precision-made.
- High-quality bearings in the gate rollers. The centers of the roller wheels are drilled, not laser-cut.
- Tested from -37°C to +50°C
- German steel. Japanese robots, made in the Czech Republic
Example of how the CAIS ENZO SB 03 kit can be used to build a cantilever sliding gate

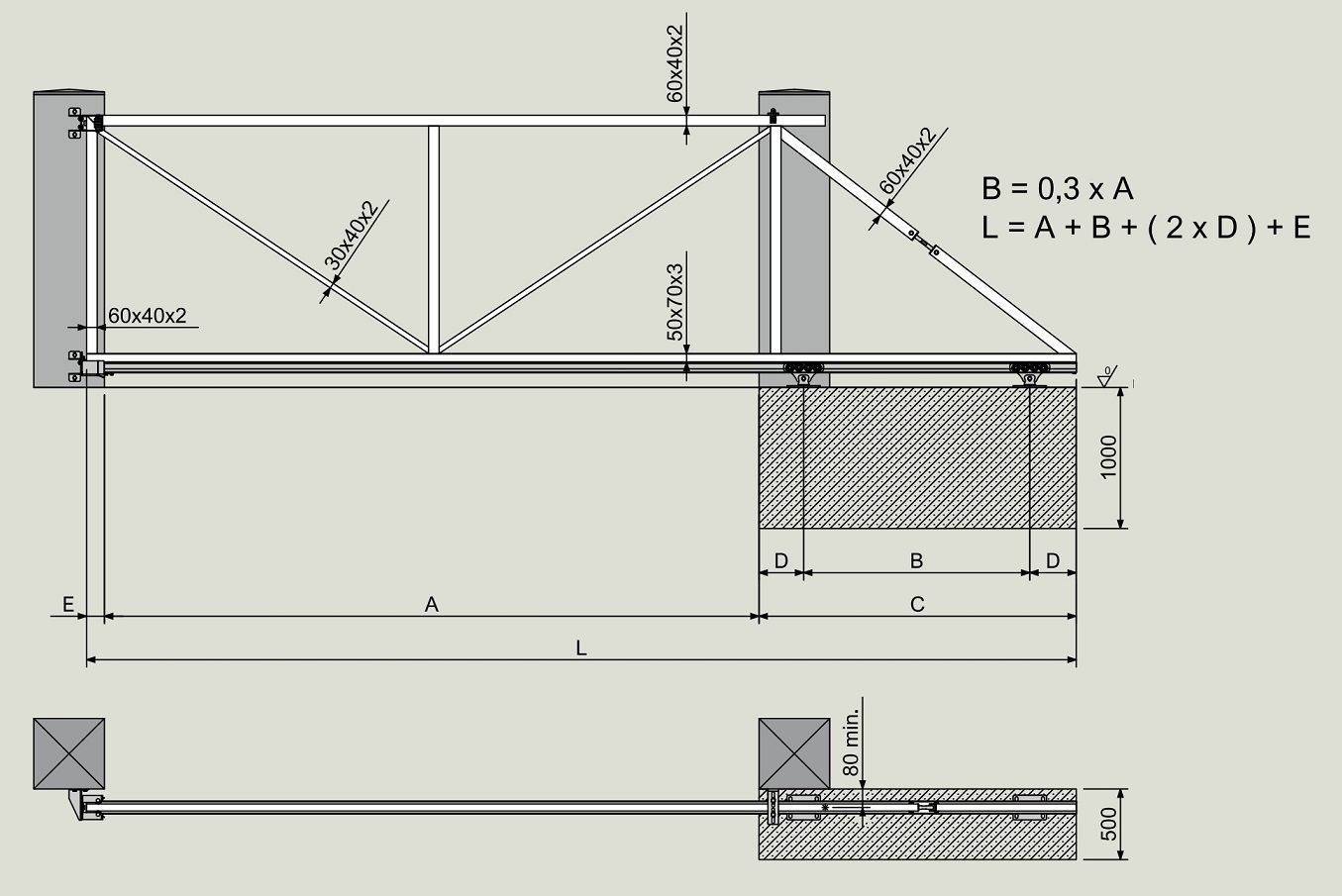

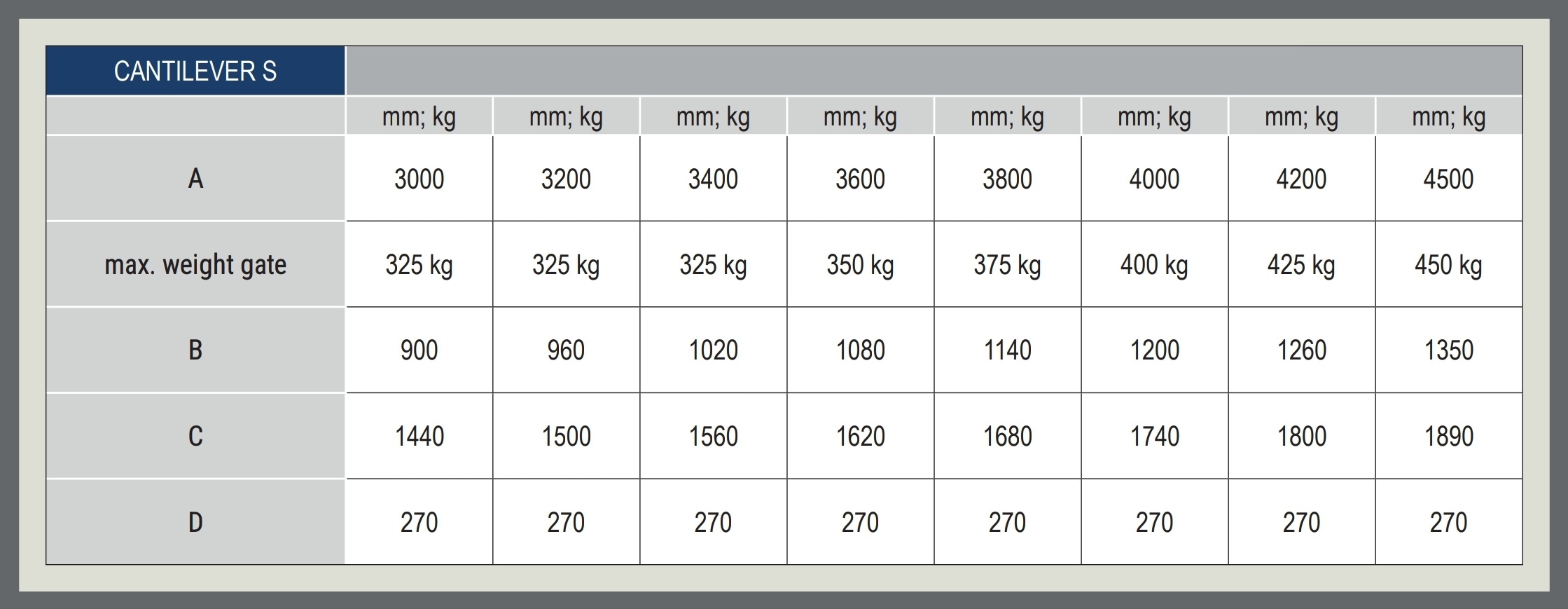

The kit is suitable for a clear opening width of up to 4.5 m and a total gate weight of 450 kg. The following drawing shows dimensions for illustrative clear opening widths, along with suggested structural profiles. The table below lists the dimensions for each clear opening width of the cantilever sliding gate.
Cross-section of the gate with rollers and guide
Preparation before installation:
Original manufacturer code: CAIS KIT ENZO SB 03 1710051
