CAIS CONNECT 60 4.0/1.3 - complete set for a 4 m-clearance cantilever gate, 1.3 m high, 1700801
| Product availability: | within 7 days | We usually dispatch goods within 7 days. |
|---|
within 7 days
€2,419.59 including VAT
| Weight |
|---|
| 139 kg |
Description of CAIS CONNECT 60 4.0/1.3 - complete set for a 4 m-clearance cantilever gate, 1.3 m high, 1700801
Complete CAIS CONNECT 60 4.0/1.3 set for building a cantilever sliding gate with a height of 1.3 m for a 4 m clear opening. Once assembled, the gate has a total length of 5.6 m, with a 4 m clear opening and a 1.6 m tail section behind the gate.
The gate consists of three sections, which are pre-prepared, in the frame structure, where the nuts are already riveted in place, and can be easily assembled in just 60 minutes without welding. All components are bolted together.. The gate can be configured to open to either the left or the right.
All parts are galvanized, ensuring high corrosion resistance. The gate can be left galvanized or painted afterward in a colour of your choice.
For the gate, you can use any infill, with a total weight of up to 125 kg.
For the CAIS CONNECT 60 4.0/1.3 set, you can also purchase a gate post CAIS TOWER 1.3 of the same height.
| Set CAIS-CONNECT60-1.3 contains: | ||||
|---|---|---|---|---|
|
1 × | CAIS CONNECT60 4.0/1.3 gate frame | CAIS-CONNECT60-1.3-R | |
|
Standalone gate frame for the CAIS CONNECT 60 kit. |
Details
|
|||
|
2,8+2,8 m | C-profile 73x61x3.5mm with holes for bolting, Zn | CAIS-STAGE-SZ | |
|
The C-guide profile for sliding gates is fitted to the underside of a cantilever sliding gate (usually by welding). |
Details
|
|||
|
2 × | Trolley with eight bearing rollers, SPEED SE | CAIS-SPEED-SE | |
|
Galvanized steel trolley with 8 metal wheels. |
Details
|
|||
|
1 × | Bottom ramp – for C-profile 73x61x3.5 | CAIS-RUN-S | |
|
The bottom guide ramp for a sliding gate slides into the C-profile and is secured to it with a clamping plate. When the gate closes, the ramp engages with the bottom stop to relieve the load on the gate. |
Details
|
|||
|
1 × | Bottom end stop for C-profile 73x61x3.5 | CAIS-LAST-S | |
|
Run-off pocket mounted at the bottom of the gate stop post. Relieves the compressive and tensile forces acting on the roller carriages when the gate is closed. |
Details
|
|||
|
1 × | 73x61x3.5 C-profile end cap with ramp mounting | CAIS-PILOT-SR | |
|
The CAIS PILOT SR end cap for the sliding gate C-profile is installed at the beginning of the guide C-profile. The end cap attaches to the CAIS RUN S gate stop. |
Details
|
|||
|
1 × | C-Profile End Cap 73x61x3.5 | CAIS-PILOT-SN | |
|
The end cap for a sliding gate C-profile is fitted at the beginning and, if required, at the end of the guide C-profile. It slides into the C-profile and is secured to it with a clamping plate. |
Details
|
|||
|
1 × | Adjustable CAIS DIAGON 60 tensioner | CAIS-DIAGON-60 | |
|
The CAIS DIAGON 60 adjustable tensioner is used to adjust the tension between two gate profiles. |
Details
|
|||
|
1 × | Gate side guide | CAIS-JRS30 | |
|
Side guide with a galvanized finish and a plastic-coated roller with a diameter of 31 mm. |
Details
|
|||
|
1 × | Holder for CAIS PARK CSM stop | CAIS-PARK-CSM | |
|
CAIS PARK CSM bracket designed for mounting a bottom or top stop. The bracket is secured by screwing it to a wall or post. |
Details
|
|||
|
1 × | Adjustable stop with CAIS DOCKER O bracket | CAIS-DOCKER-O | |
|
Adjustable gate stop CAIS DOCKER O with a bracket for mounting to a wall or gate post. |
Details
|
|||

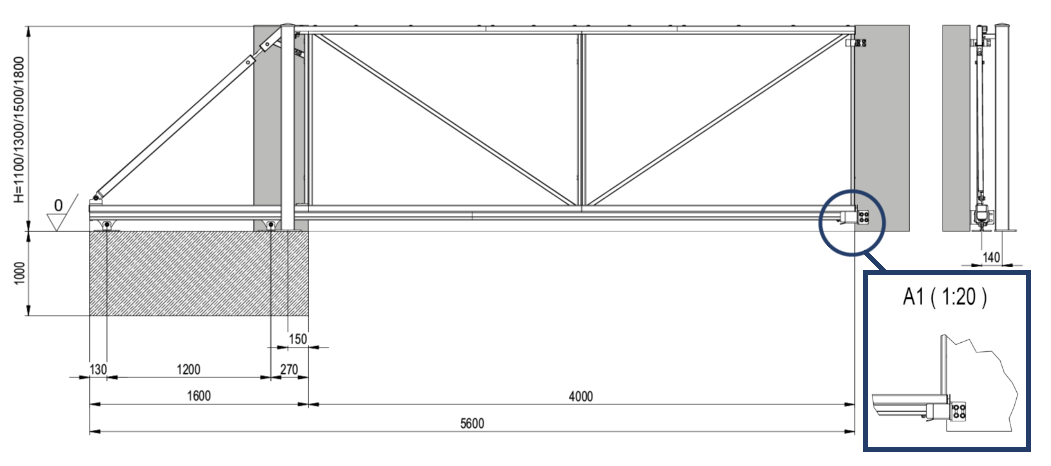

Gate dimensions:

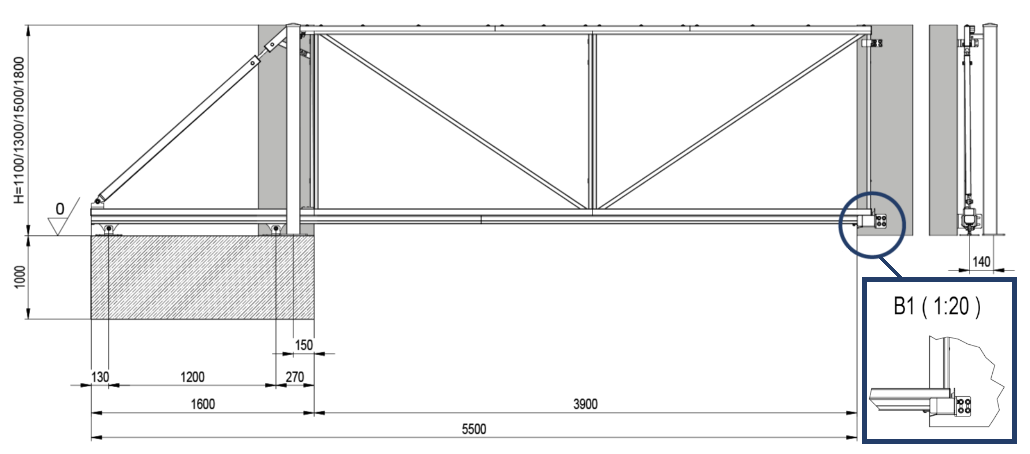

| For a 4 m passage width | For a 3.9 m passage width |
|---|---|
 |
 |

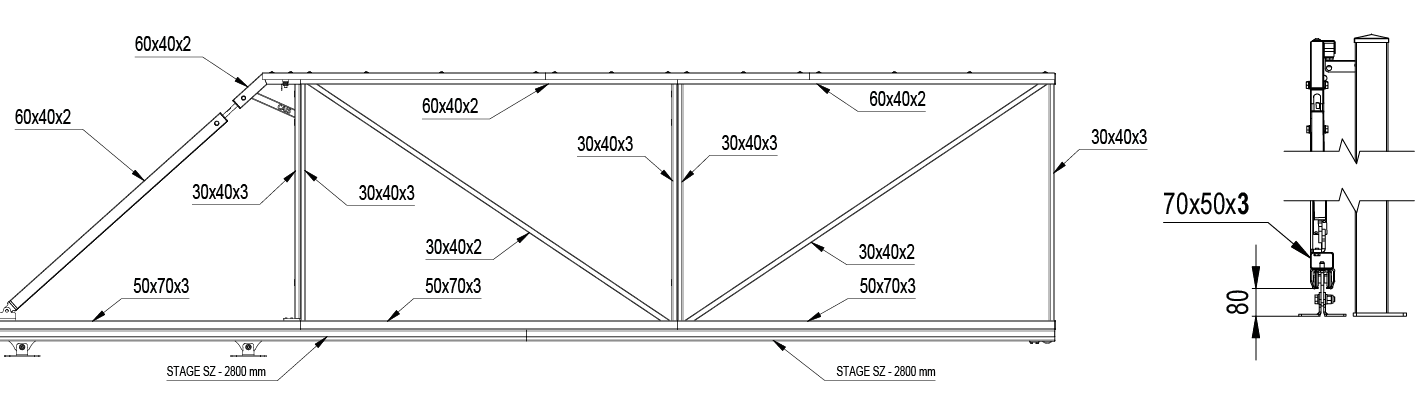

Layout of the profiles used:
Video guide to installing the CAIS CONNECT 60 gate:
