CAIS Cantilever Sliding Gate Kit 73x61x3.5 for a Clear Opening Width of 4.5 m, Perforated Fe Profile, KIT DINO SBE 02
| Product availability: | within 3 days | We usually ship the goods within 3 days. |
|---|
within 3 days
€381.89 including VAT
| Weight |
|---|
| 45 kg |
Description of CAIS Cantilever Sliding Gate Kit 73x61x3.5 for a Clear Opening Width of 4.5 m, Perforated Fe Profile, KIT DINO SBE 02
CAIS Component Set DINO SBE 02 for building a cantilever sliding gate with a clear opening width of up to 4.5 m/325kg. All components except the C-profile are galvanized.
| Set CAIS-DINO-SBE-02 contains: | ||||
|---|---|---|---|---|
|
1 × | C-profile 73x61x3.5 mm with holes for screw fastening, Fe, 6 m | CAIS-STAGE-SB-6 | |
|
Guide C-profile screwed to the bottom of the gate, which allows the gate to run on carriages anchored in the concrete foundation. Unfinished, raw steel.
|
Details
|
|||
|
2 × | Trolley with eight bearing rollers, SPEED SE | CAIS-SPEED-SE | |
|
Galvanized steel trolley with 8 metal wheels. |
Details
|
|||
|
1 × | Bottom ramp – for C-profile 73x61x3.5 | CAIS-RUN-S | |
|
The bottom guide ramp for a sliding gate slides into the C-profile and is secured to it with a clamping plate. When the gate closes, the ramp engages with the bottom stop to relieve the load on the gate. |
Details
|
|||
|
1 × | Bottom end stop for C-profile 73x61x3.5 | CAIS-LAST-S | |
|
Run-off pocket mounted at the bottom of the gate stop post. Relieves the compressive and tensile forces acting on the roller carriages when the gate is closed. |
Details
|
|||
|
1 × | C-Profile End Cap 73x61x3.5 | CAIS-PILOT-SN | |
|
The end cap for a sliding gate C-profile is fitted at the beginning and, if required, at the end of the guide C-profile. It slides into the C-profile and is secured to it with a clamping plate. |
Details
|
|||
|
1 × | 73x61x3.5 C-profile end cap with ramp mounting | CAIS-PILOT-SR | |
|
The CAIS PILOT SR end cap for the sliding gate C-profile is installed at the beginning of the guide C-profile. The end cap attaches to the CAIS RUN S gate stop. |
Details
|
|||
|
1 × | Installation manual for a self-supporting kit |
Download
|
|
|
Installation manual with illustrated wiring diagrams and instructions for programming and pairing remote controls. |
||||
Set of screws and rivet nuts for mounting
Advantages and features of the CAIS DINO SBE 02 kit
- Easy to assemble thanks to carefully considered details, and quick to install by bolting the C-profile to the structure, eliminating the need to weld the C-profile.
- Mounting screws and rivet nuts are included for attaching the C-profile to the structure through the holes in the profile, spaced at least 400 mm apart.
- The untreated raw-steel C-profile has a serial number and is 100% tested with the rollers for exceptional precision.
- High-quality bearings in the roller carriages. The centers of the carriage rollers are drilled, not laser-cut.
- Tested from -37°C to +50°C
- German steel. Japanese robots. Made in the Czech Republic.
Example of the suitability of the kit for building a CAIS DINO SBE 02 cantilever sliding gate

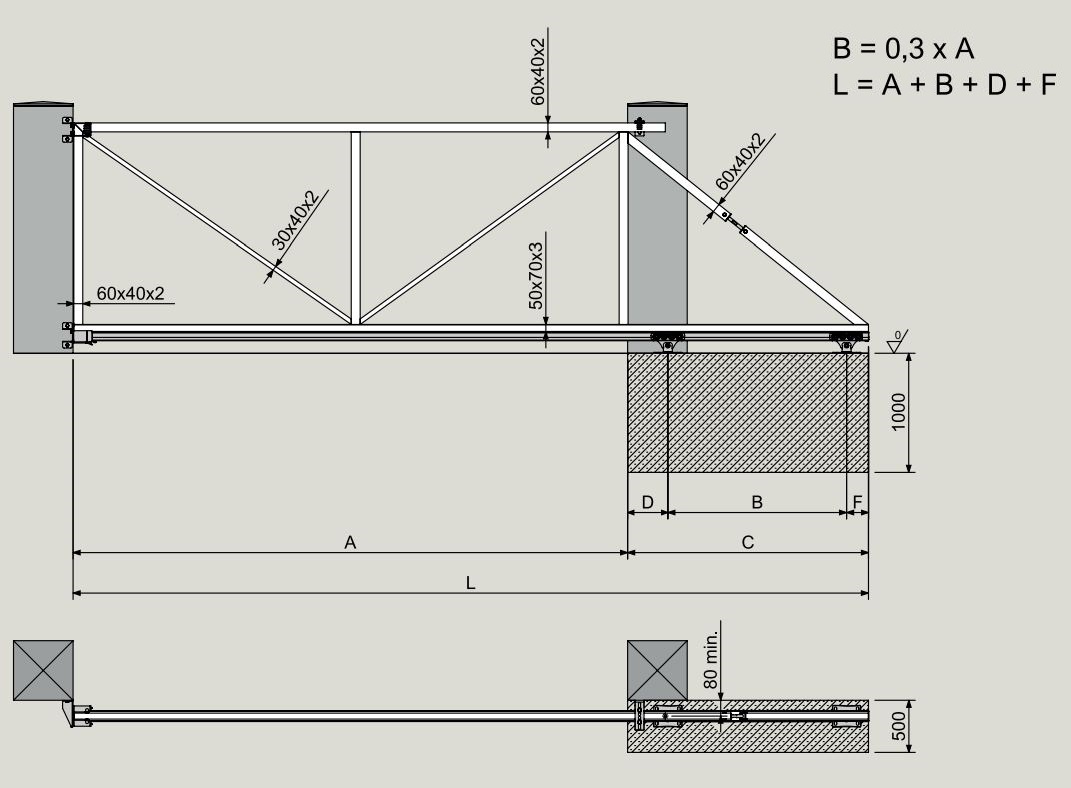

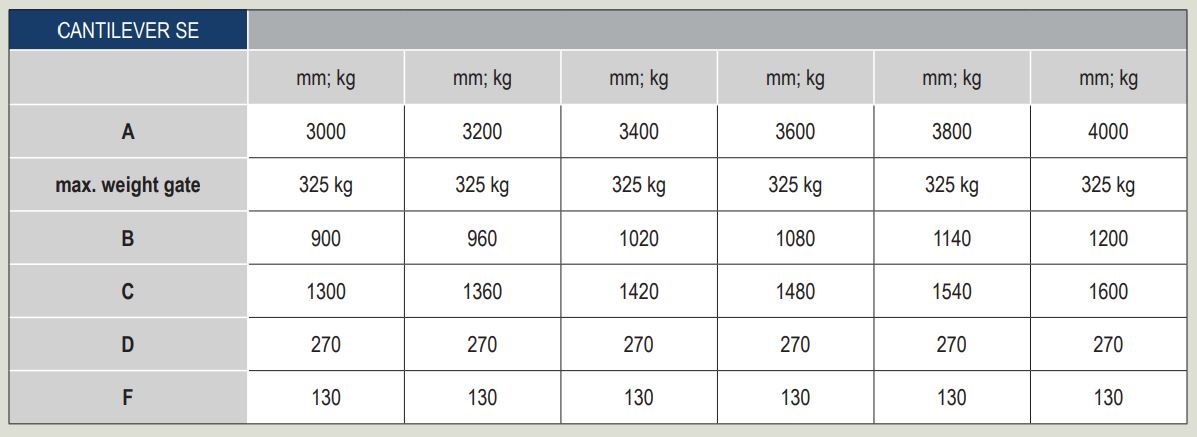

The kit is suitable for a clear opening width of up to 4.5 m and a total gate weight of 325 kg. The following drawing shows the dimensions for example clear opening widths, along with suggested structural profiles. The table below lists the dimensions for each clear opening width of a cantilever sliding gate.

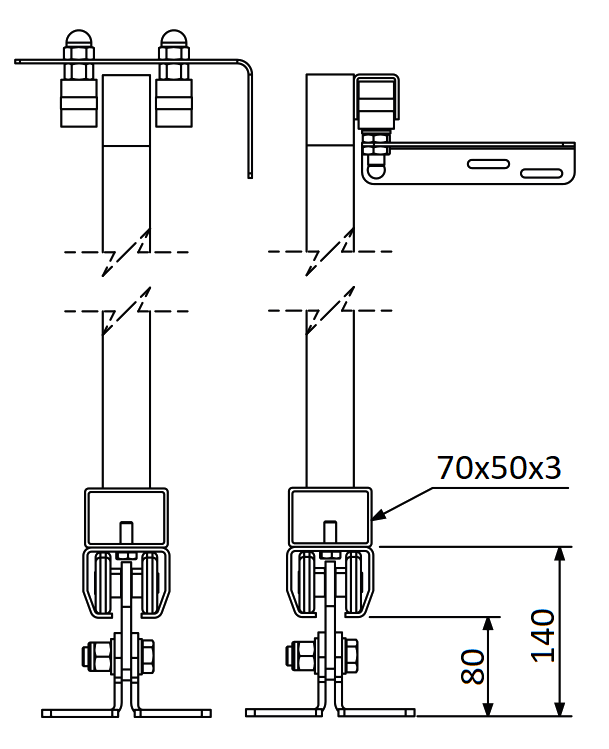

Cross-section of the gate with roller carriages and guide:
Original manufacturer code: CAIS KIT DINO SBE 02 1710047
