DIY telescopic sliding gate - Senica
Components used:

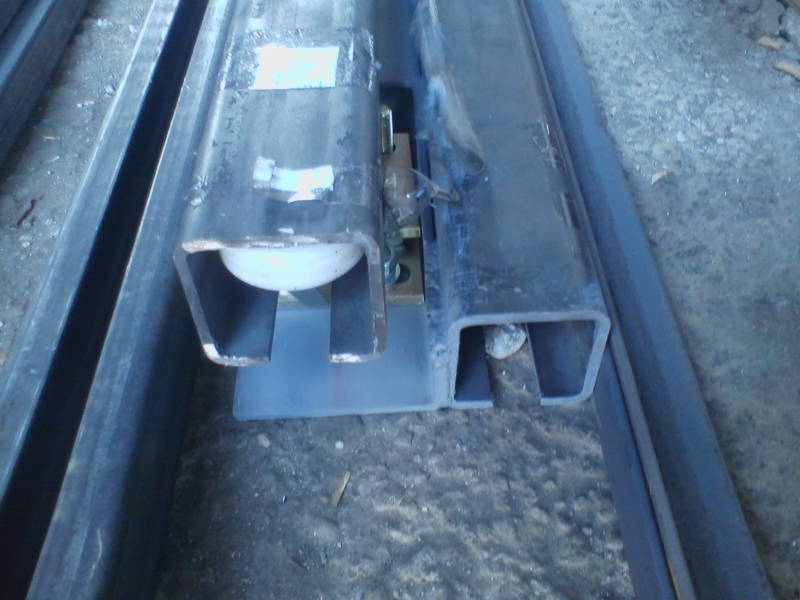

CP-80-6 (2x) - C-profile 80x80x5 mm, Fe

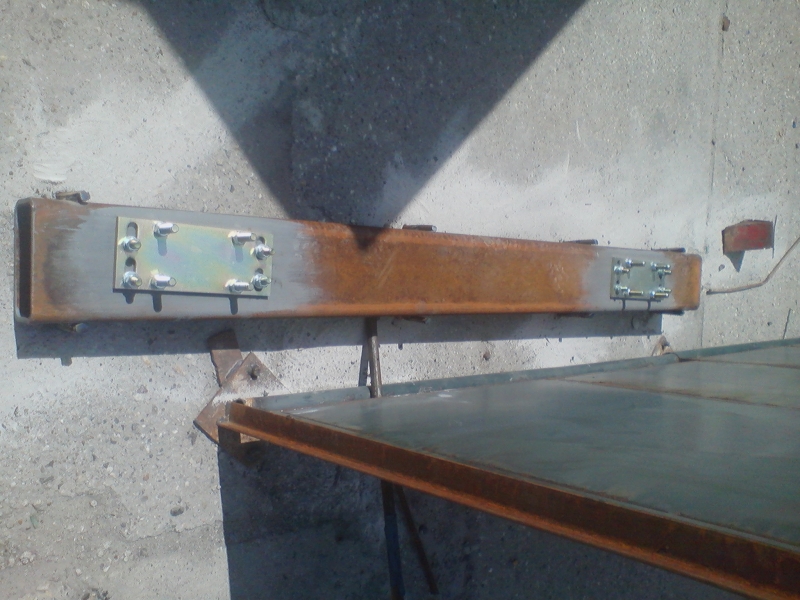

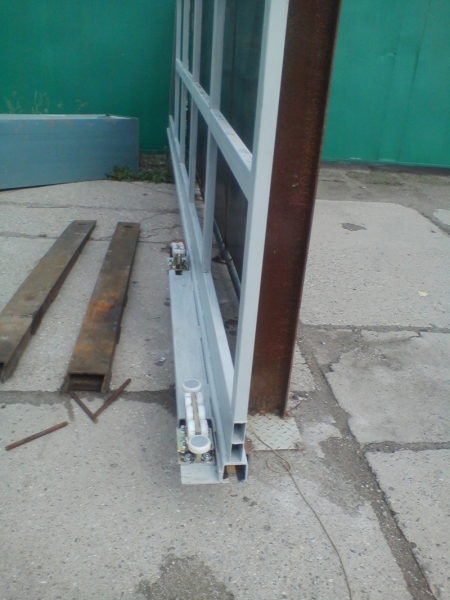

V-15-1 (2x) - Adjustable swing trolley, 10 rollers with mounting plate B
V-07-1 (2x) - Adjustable swing trolley, 8 rollers with mounting plate
SN-2-80 - Bottom guide ramp with stop
DK-1-90 - Run-in pocket - bottom stop

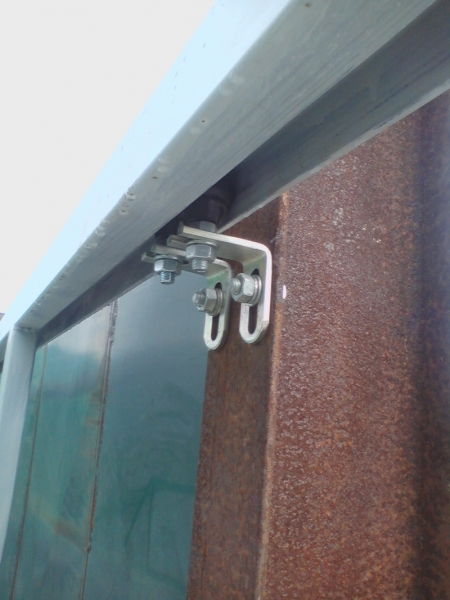

BR-43G (4x) - Side guide with rubber-coated roller
D-1 - Internal stop for C-profile
ZH-04 - Hook lock for sliding gates D
ZC-19 - Square end cap
New!
We currently offer the complete mechanism for a telescopic gate. It is suitable for both cantilever and track-mounted gates. Instructions for telescopic gates and technical support are also available.

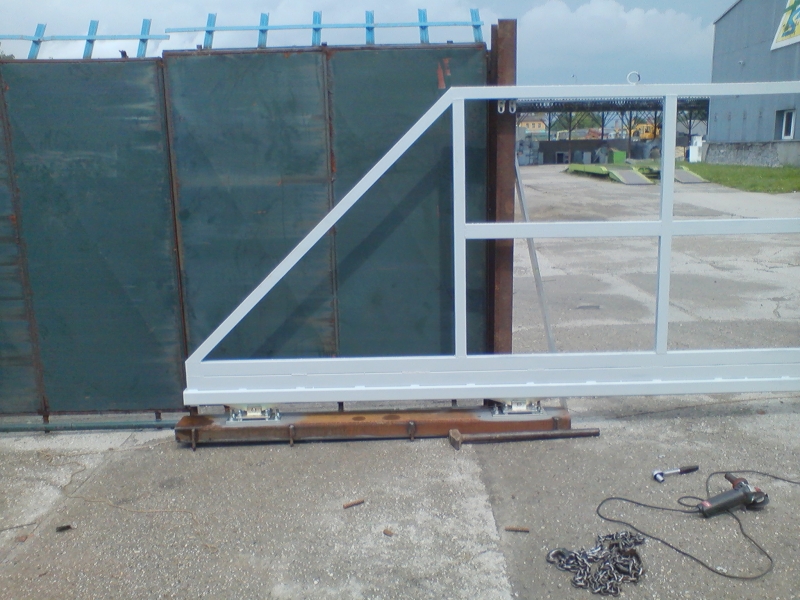

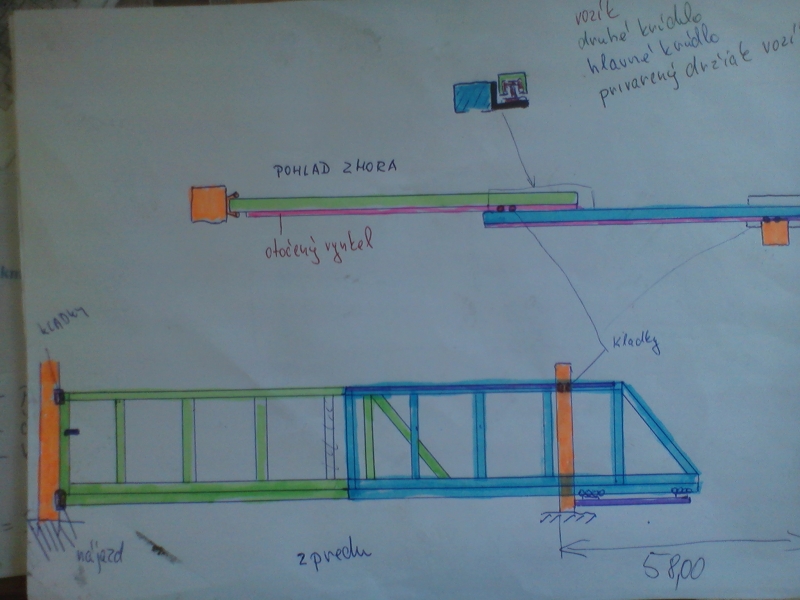

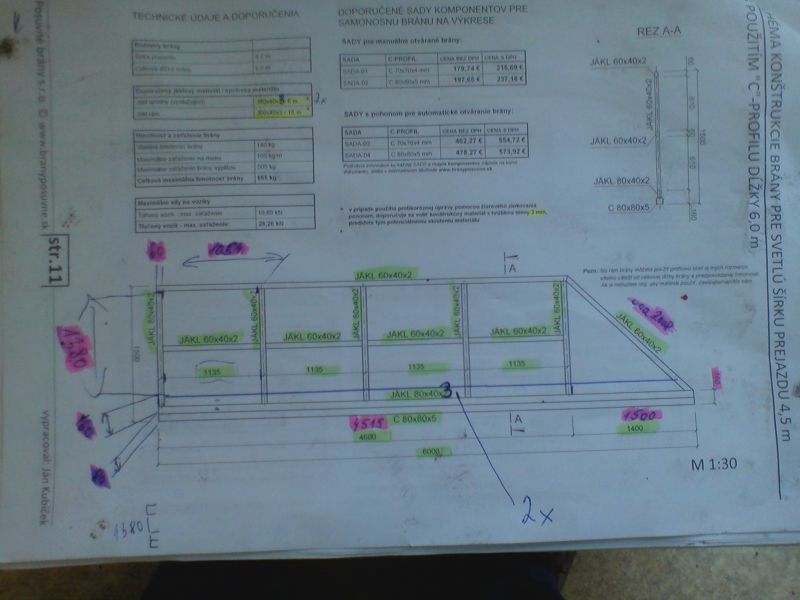

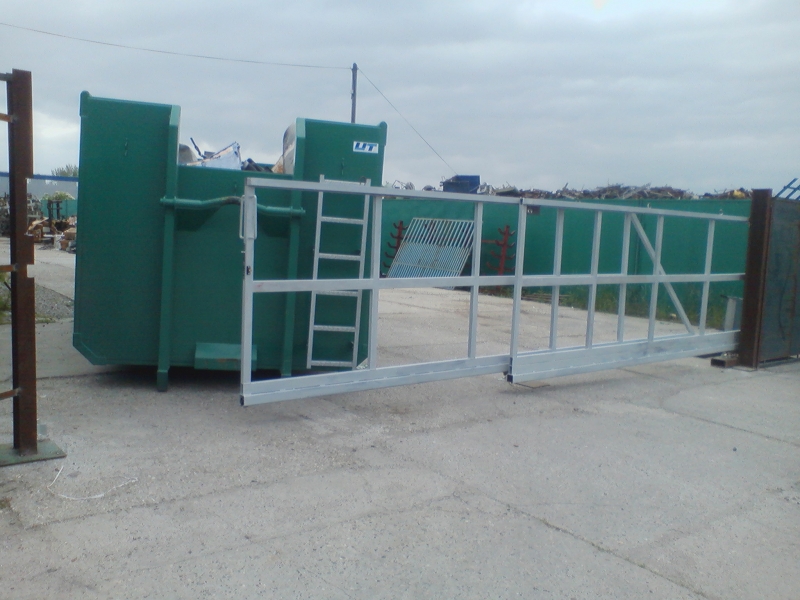

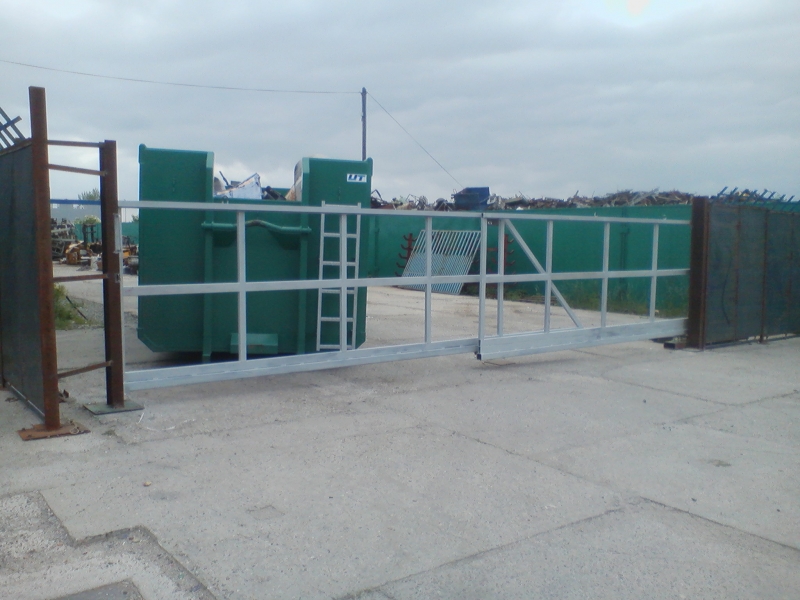

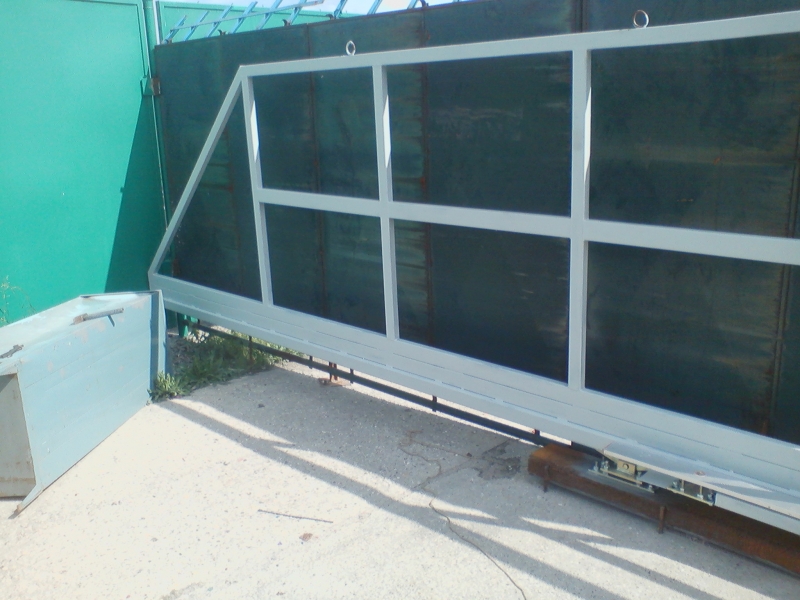

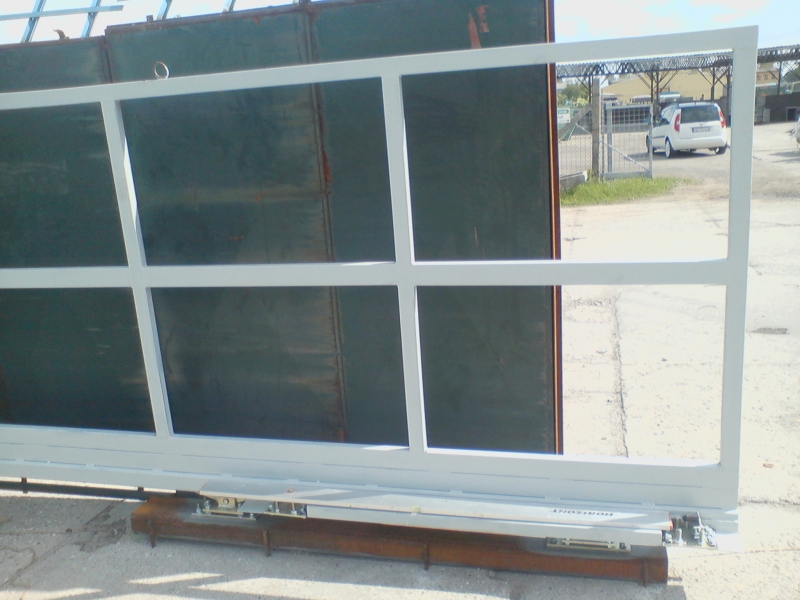

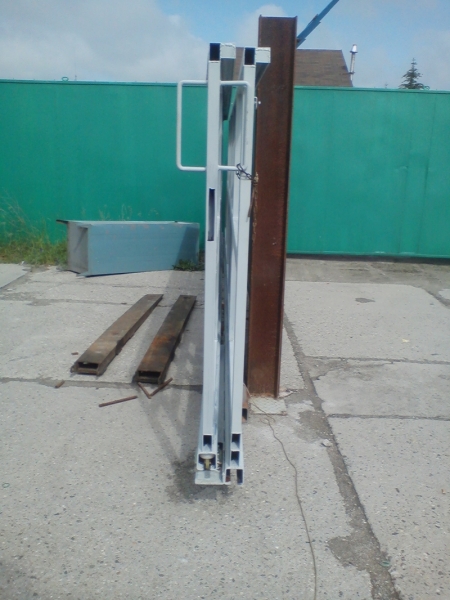

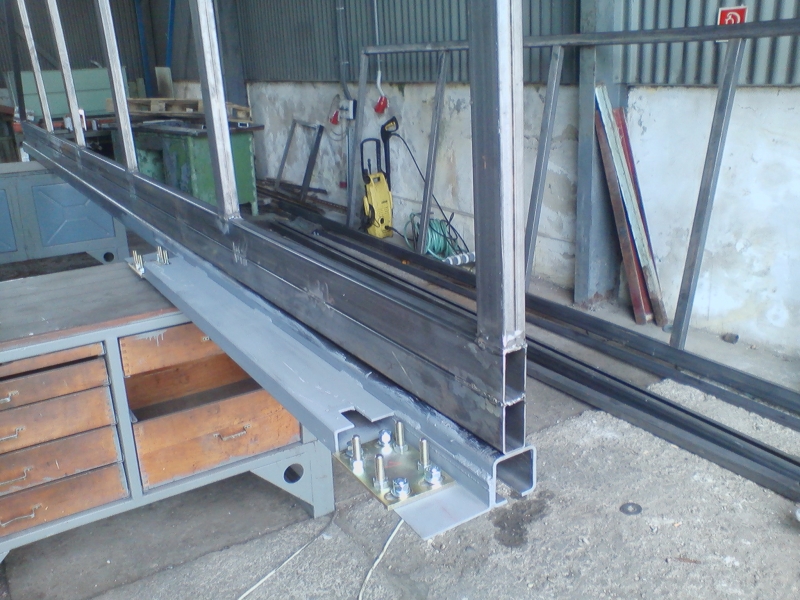

Telescopic cantilever sliding gate built as a DIY project. It consists of two sections that cover a total opening width of 9m. The gate leaves are connected by BR43-G side guides, which run in an L-profile. The gate is opened manually. If you decide to automate it in the future, a simple mechanism can be fitted to the bottom of the gate; this requires a steel cable and two bearings. This mechanism will transfer the drive force from one section of the gate to the other. The section farther from the drive will then move at twice the speed of the section closer to the drive.
