Telescopic sliding gate – two-section – Kálnica

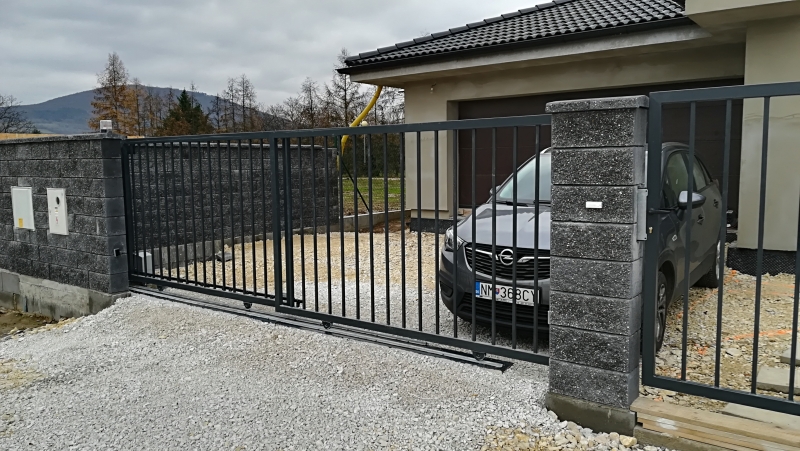

If there is little room on the property for the gate to slide back, the solution is a telescopic track-mounted sliding gate. Both sections of the gate move simultaneously using a steel cable and two pulleys that transfer force from one gate leaf to the other.

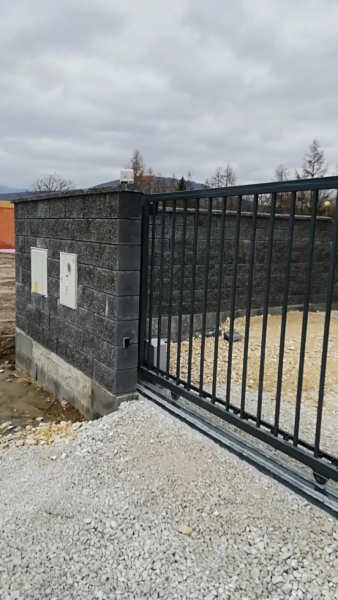

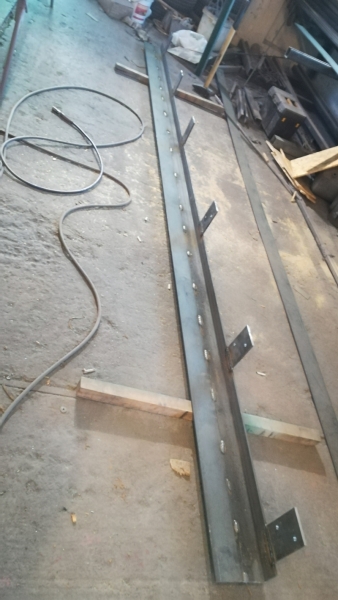

You may also notice that the gate retracts into an area where the track extends beyond the concrete foundation. This issue has been solved with an additional support base that replaces the missing foundation.
New!
We now offer the complete mechanism for a telescopic gate. It is suitable for both cantilever and track-mounted gates. Instructions for telescopic gates and technical support are also available.
Components used:
KLB-KZ16-U090 - 4 pcs. 90 mm recessed wheel for welding, for U16 track
KLB-KOL16-US-ZN6 - 2 pcs. 6 m Zn screw-down track for sliding gates, U16 profile
VVR-3-G 1 pc. Top guide with two adjustable rollers
KLB-KS-V080 2 pcs. 80 mm standalone wheel for V-track
NL-LA3 - 10 pcs. 3 mm stainless steel cable, 7 × 7 strands
BR-43G 4 pcs. Side guide with rubber-coated plastic roller, 43 mm diameter

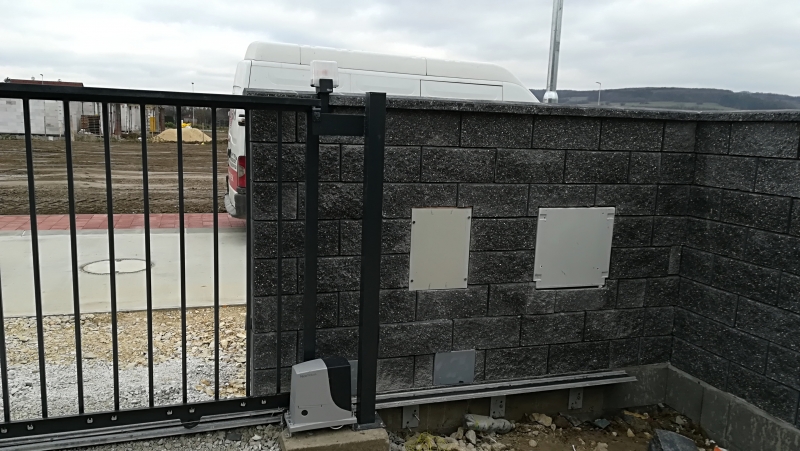

NICE-RB600-F NICE Robus drive kit for sliding gates up to 600 kg
