DIY sliding gate installation - Senec
Components used:
CP-80 (7m) C-profile 80x80x5 mm, Fe
V-02-1 Adjustable swing trolley with 5 rollers and mounting plate
SN-1-80 Bottom guide
DK-1-90 End stop catch – bottom stop
BR-43G Side guide
ZC-19 Square end cap
UB-1-40G Top stop with rollers

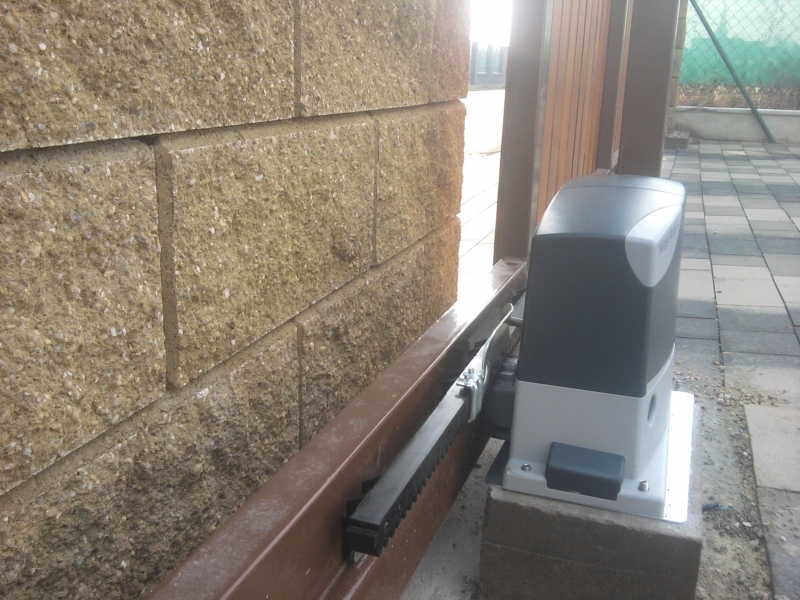

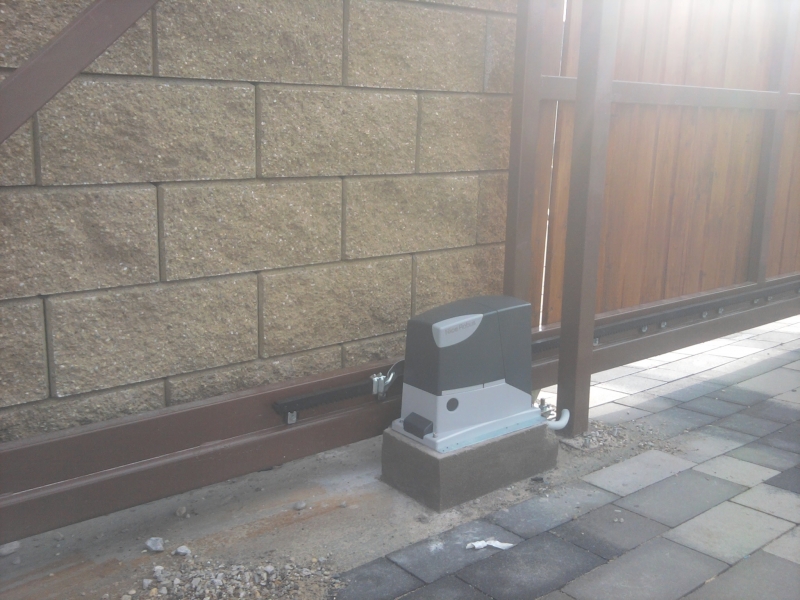

NICE-RB400-KIT NICE Robus RB400 drive set
LZ-1-1 (6m) Plastic-coated toothed rack with metal core
JOKL-80x40x2 (7m) RHS 80x40x2
JOKL-60x40x2 (20m) RHS 60x40x2
JOKL-40x20x2 (6m) RHS 40x20x2
JOKL-L50x30x4 (6m) L-profile 50x30x4
SH-01-2 Plain steel post for direct concreting, 60x60x2mm

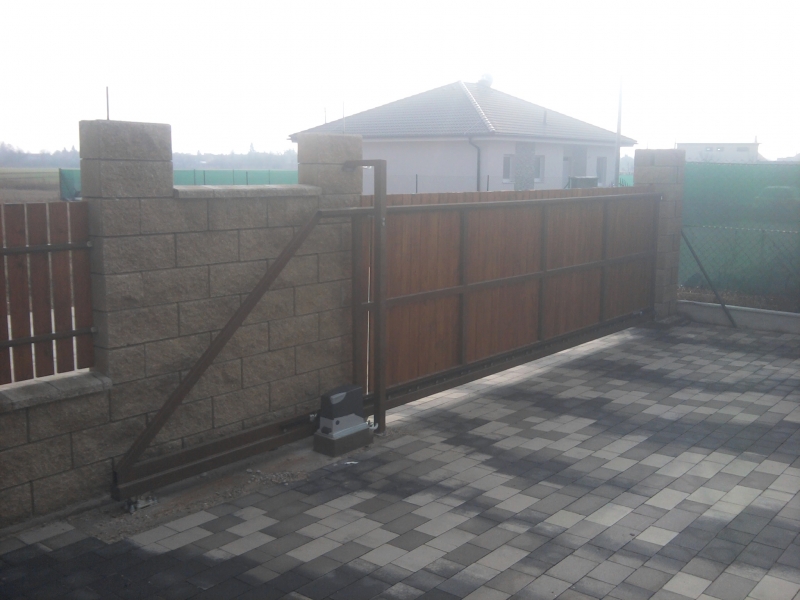

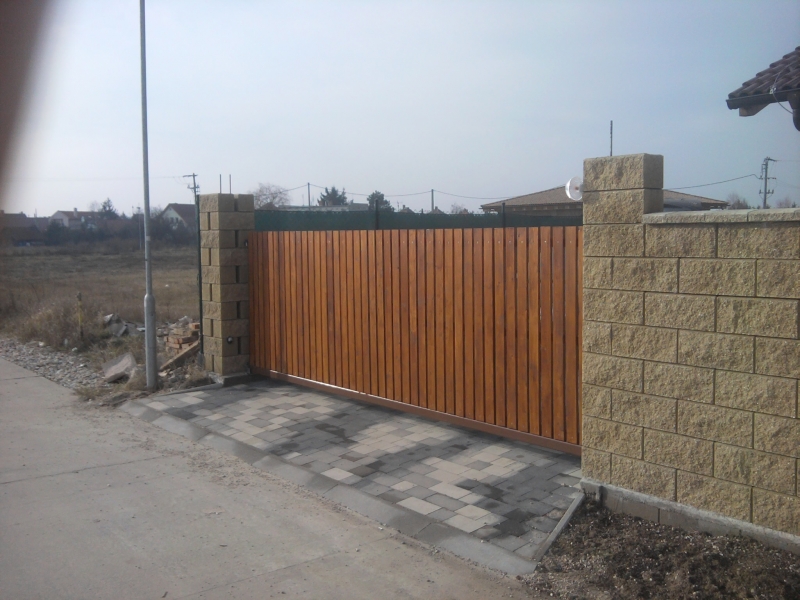

A very well-crafted cantilever gate structure with a clear opening width of 5m. The automation used is NICE Robus 400 with accessories.
