DIY sliding gate installation - Veľké Kostolany
Components used:
SADA-01 Kit for building a cantilever sliding gate for an opening up to 4.5 m wide, with side guide and nylon rollers
ZH-06 Hook lock for F sliding gates

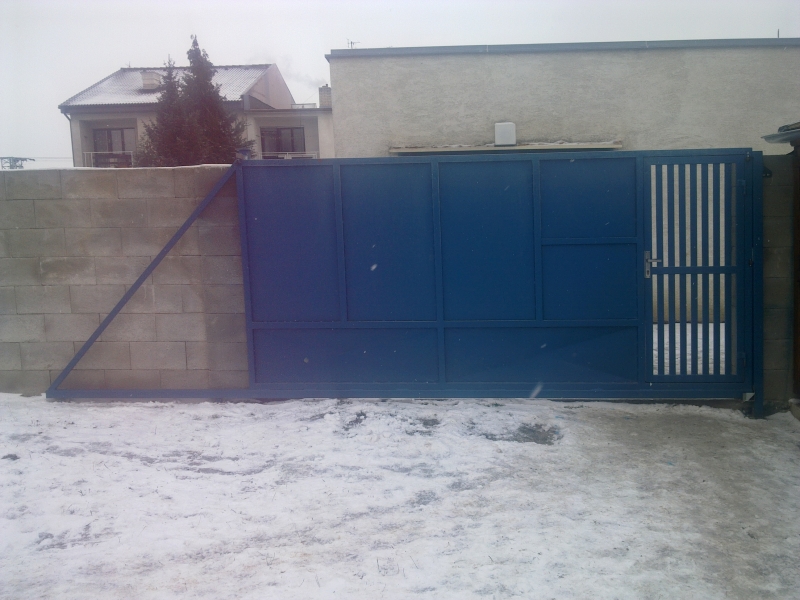

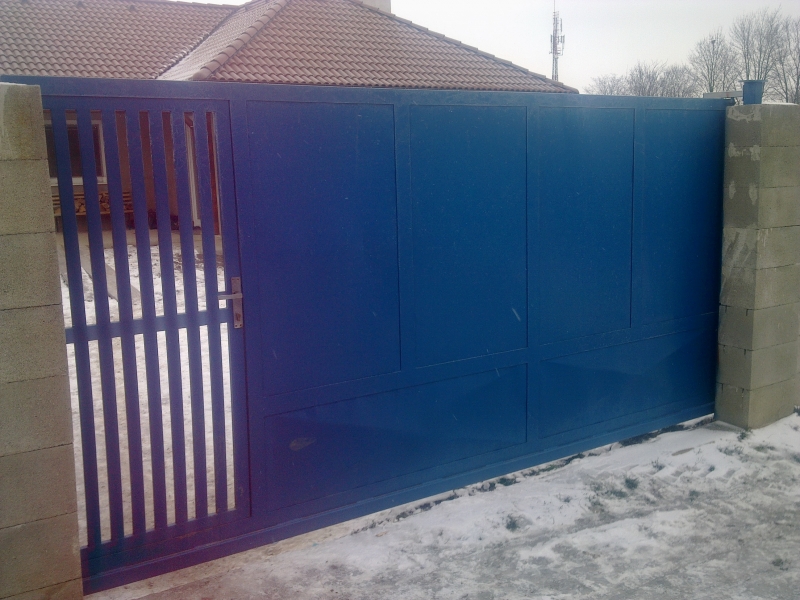

Cantilever gate with an “integrated pedestrian gate.” During installation, the customer simply fitted a smaller pedestrian-gate leaf into the gate frame and secured it with hinges. This provided pedestrian access where space was limited without compromising the required opening width. A minor drawback is that with this solution, you will always have to step over the bottom C-profile when using the pedestrian gate. There is another solution: if you don’t want to “insert” a pedestrian gate into the cantilever gate, you can set the function “partial opening”, which lets you use the remote control to open the gate 1 m for pedestrian access. All NICE operators have the partial opening function. Nice Road 400 can open the gate by 1 m; operators NICE Robus (400, 600, 1000) offer a wider range of settings—they can open the gate from 1 m to 4 m in 50 cm increments.
