Stainless steel roof hook with adjustable top for mounting solar panels with bottom mounting
| Product availability: | within 3 days | We usually ship the goods within 3 days. |
|---|
SOL-SH-ZK3
within 3 days
within 3 days
€5.47 excluding VAT
€6.73 including VAT
€6.73 including VAT
| Weight |
|---|
| 0,60 kg |
Description of Stainless steel roof hook with adjustable top for mounting solar panels with bottom mounting

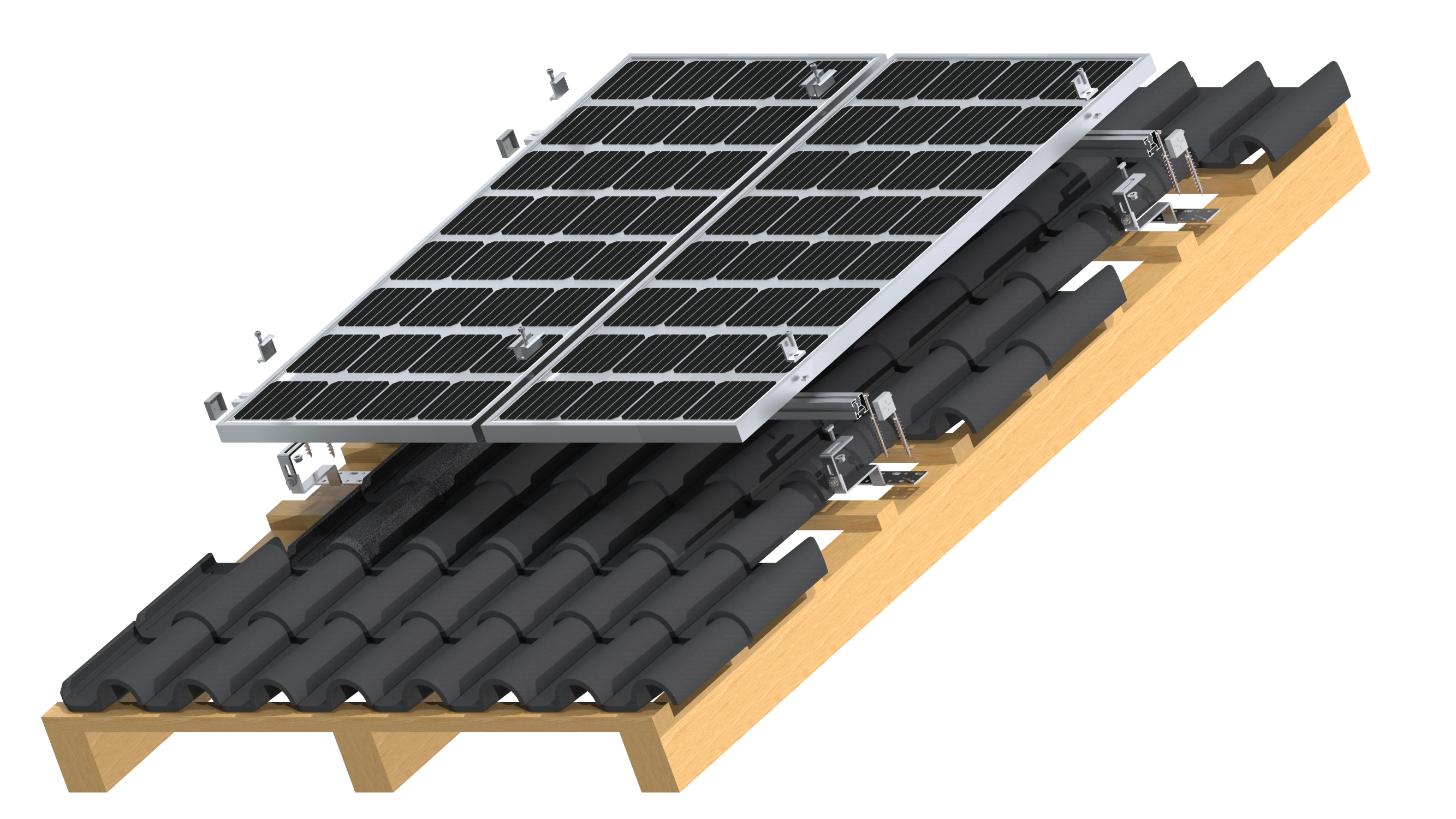

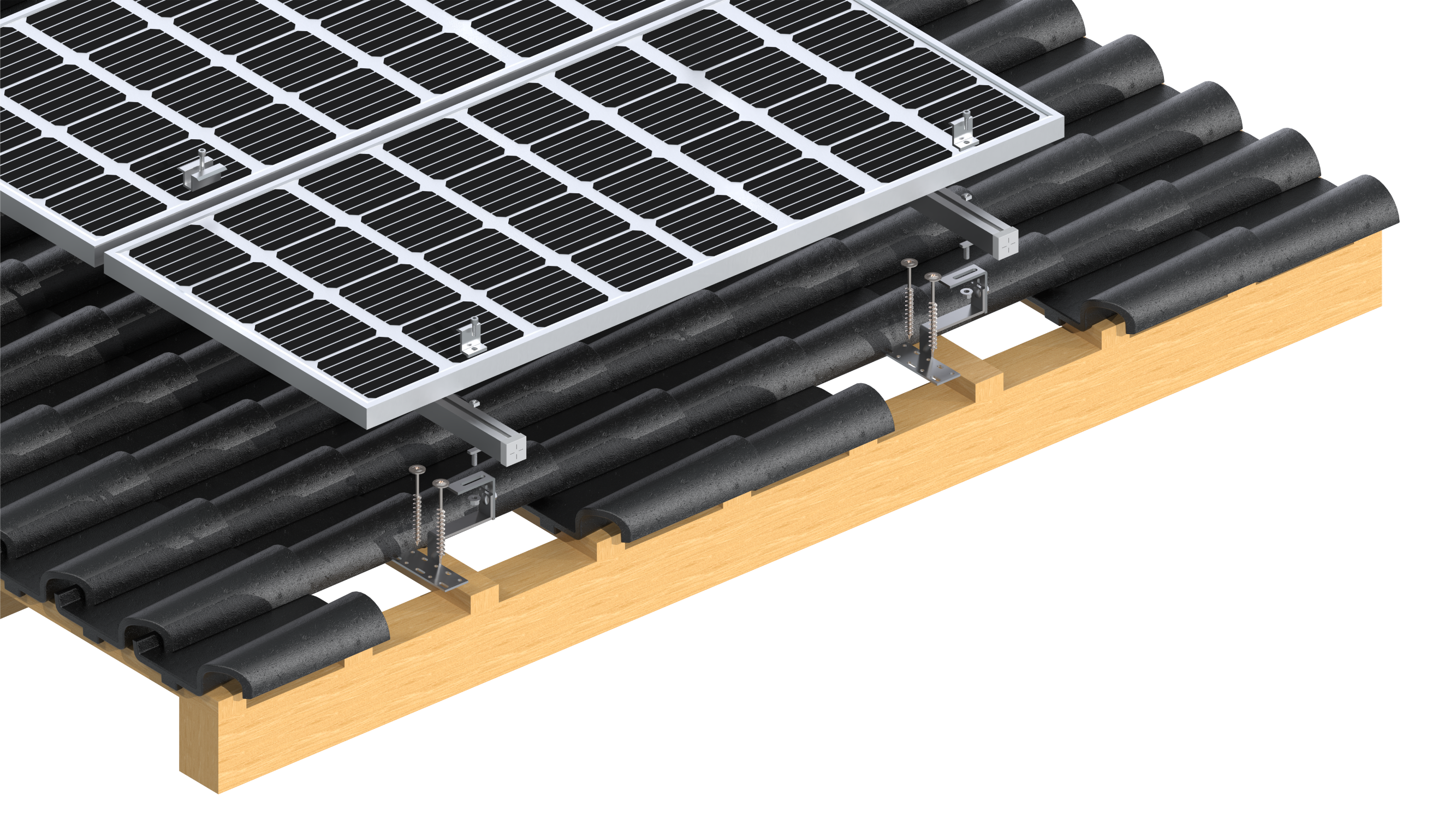

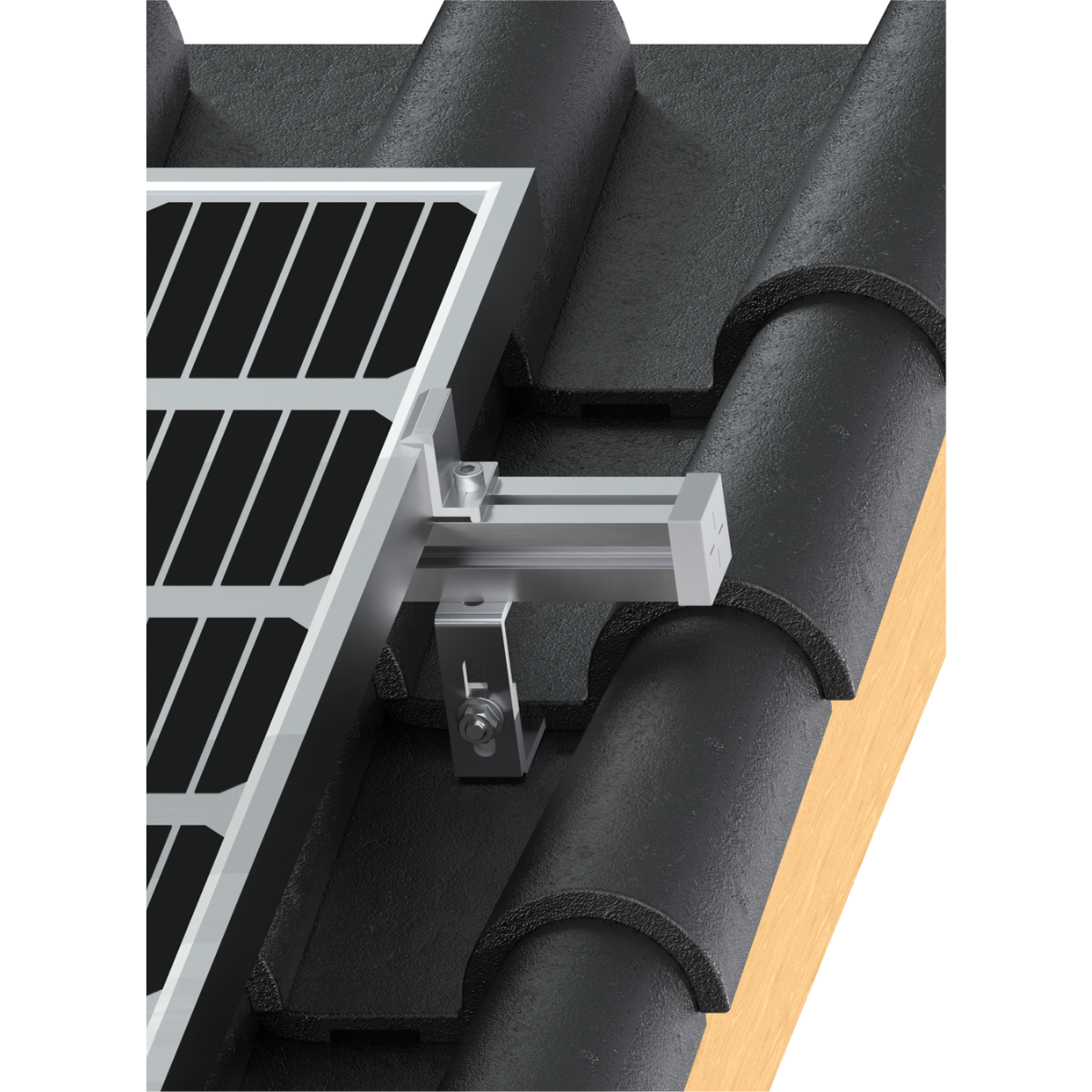

Roof hook with adjustable top section for mounting a solar panel is made of A2 stainless steel. Suitable for curved roof coverings (concrete or ceramic). The hook is suitable for securing a solar panel mounting structure with bottom mounting.

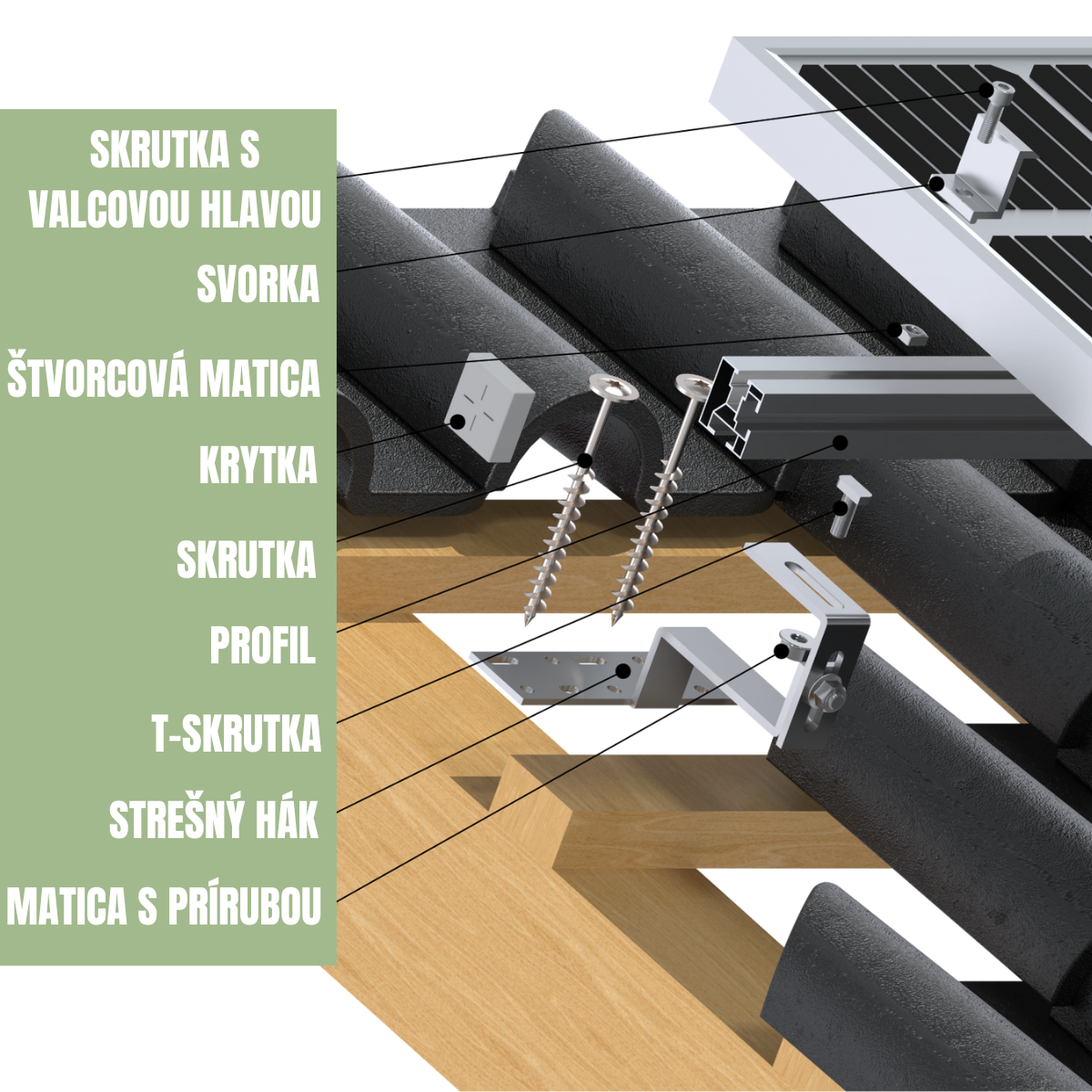

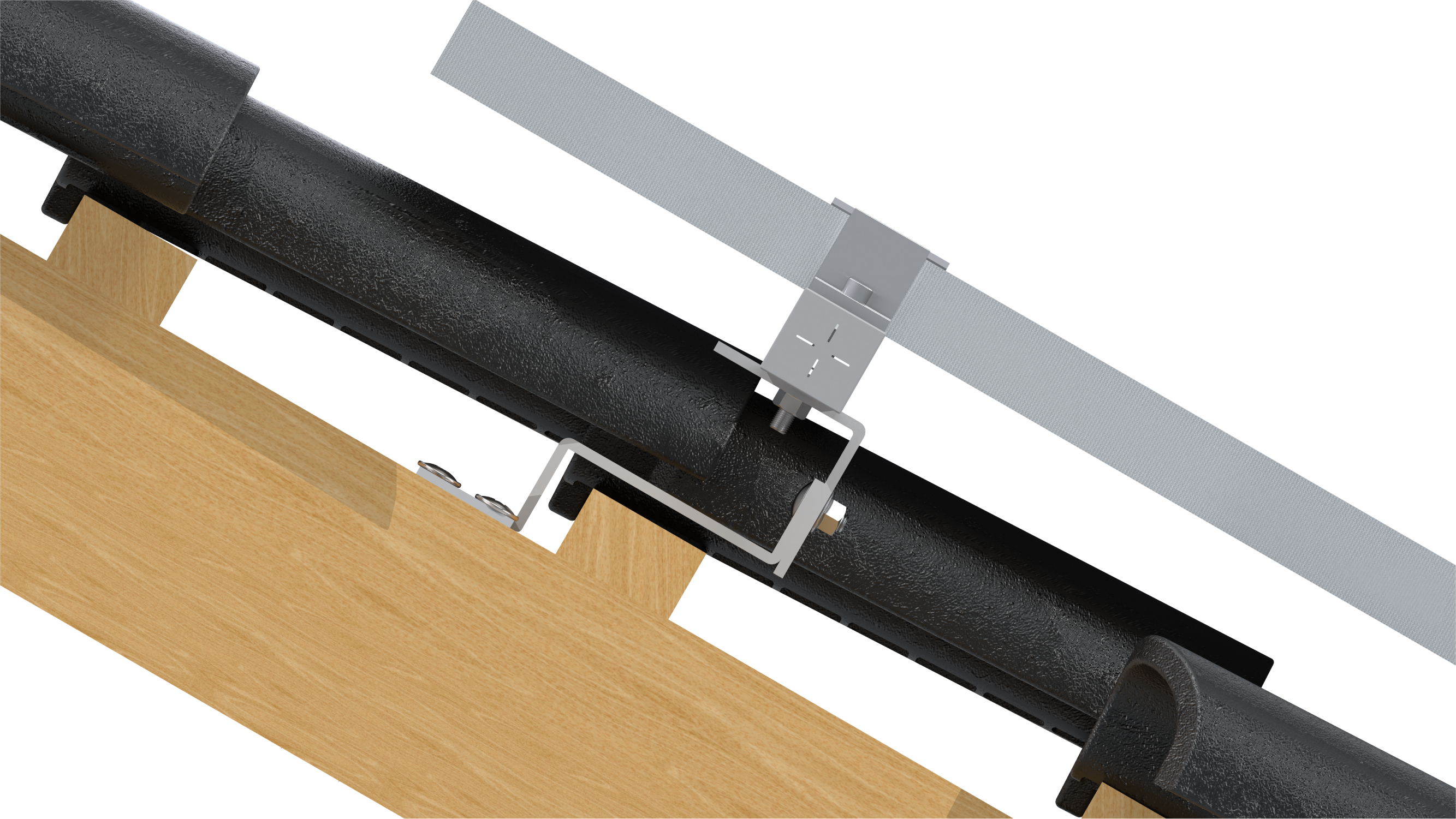

The lower part of the roof hook is fastened to the timber roof structure beneath the tiles using pan-head screws with a diameter of Ø8 mm. At the top, it is fastened using a T-bolt to the profile and secured with a flange nut. The profile is then fitted with a square nut and a socket-head screw to secure the clamp that holds the solar panel. The protruding end of the profile is fitted with a cap.
