Stainless steel roof hook for mounting solar panels with side fastening
| Product availability: | within 3 days | We usually ship the goods within 3 days. |
|---|
SOL-SH-ZK2
within 3 days
within 3 days
€5.34 excluding VAT
€6.57 including VAT
€6.57 including VAT
| Weight |
|---|
| 0,52 kg |
Description of Stainless steel roof hook for mounting solar panels with side fastening
Roof hook, made of A2 stainless steel and designed for curved roof tiles. The hook is suitable for attaching the solar panel mounting structure with side mounting.
The lower part of the roof hook is attached to the wooden roof structure beneath the tiles using pan-head screws with a diameter of Ø8 mm. The upper part is attached to the profile using a T-bolt and secured with a profile using a T-bolt and secured with a flange nut. The following are then secured to the profile using a square nut and a socket head screw secures the clamp, which holds the solar panel.

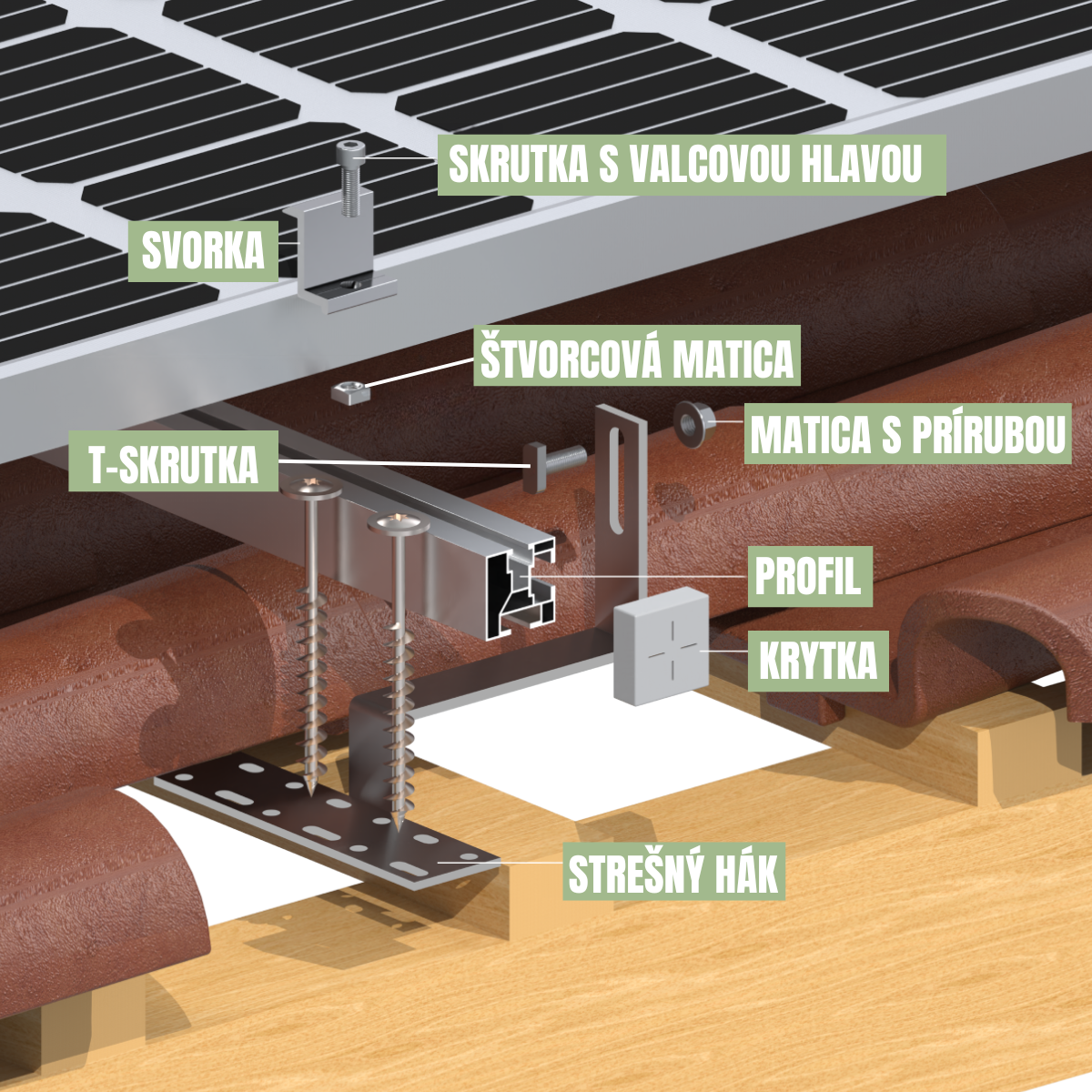

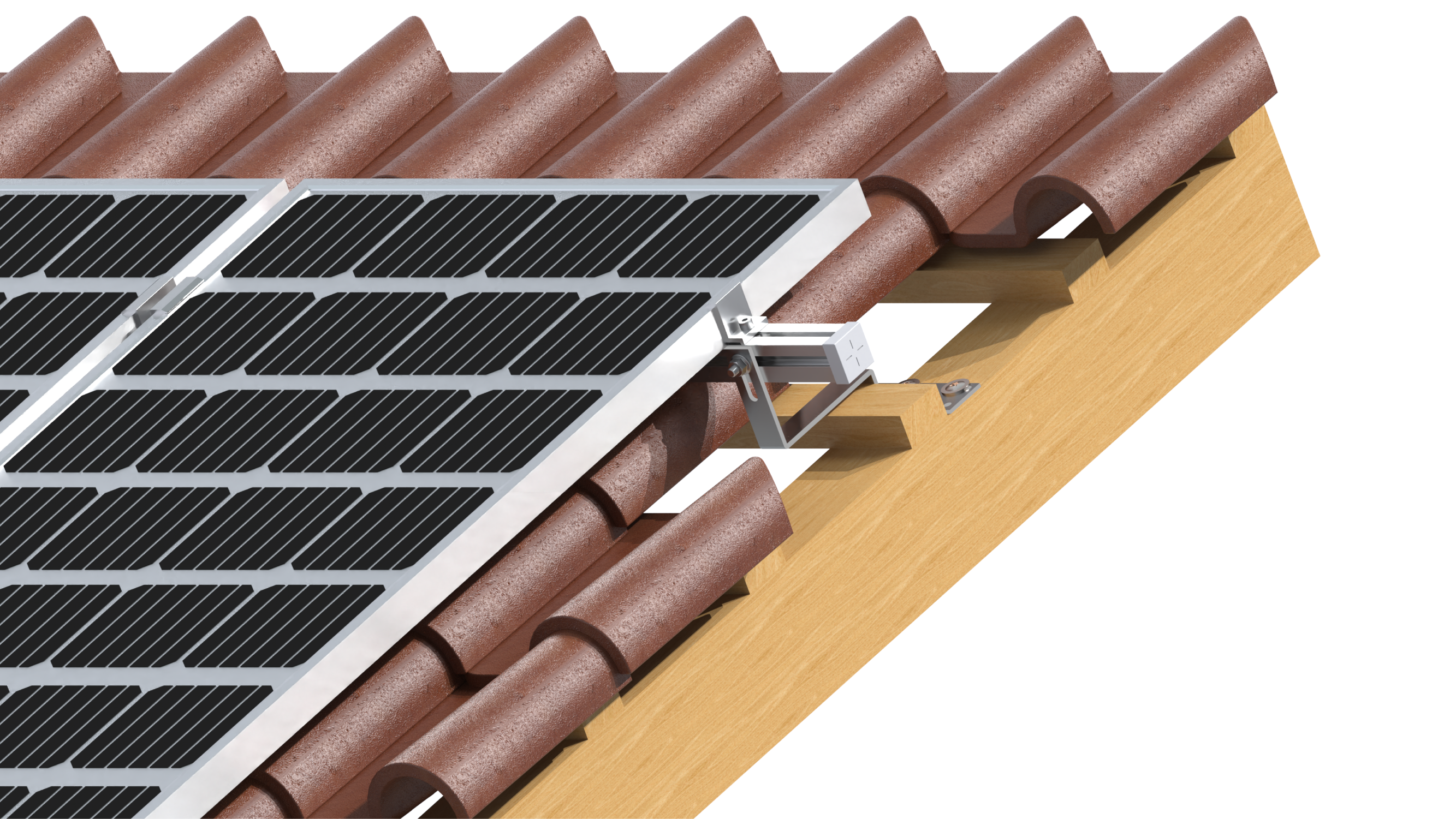

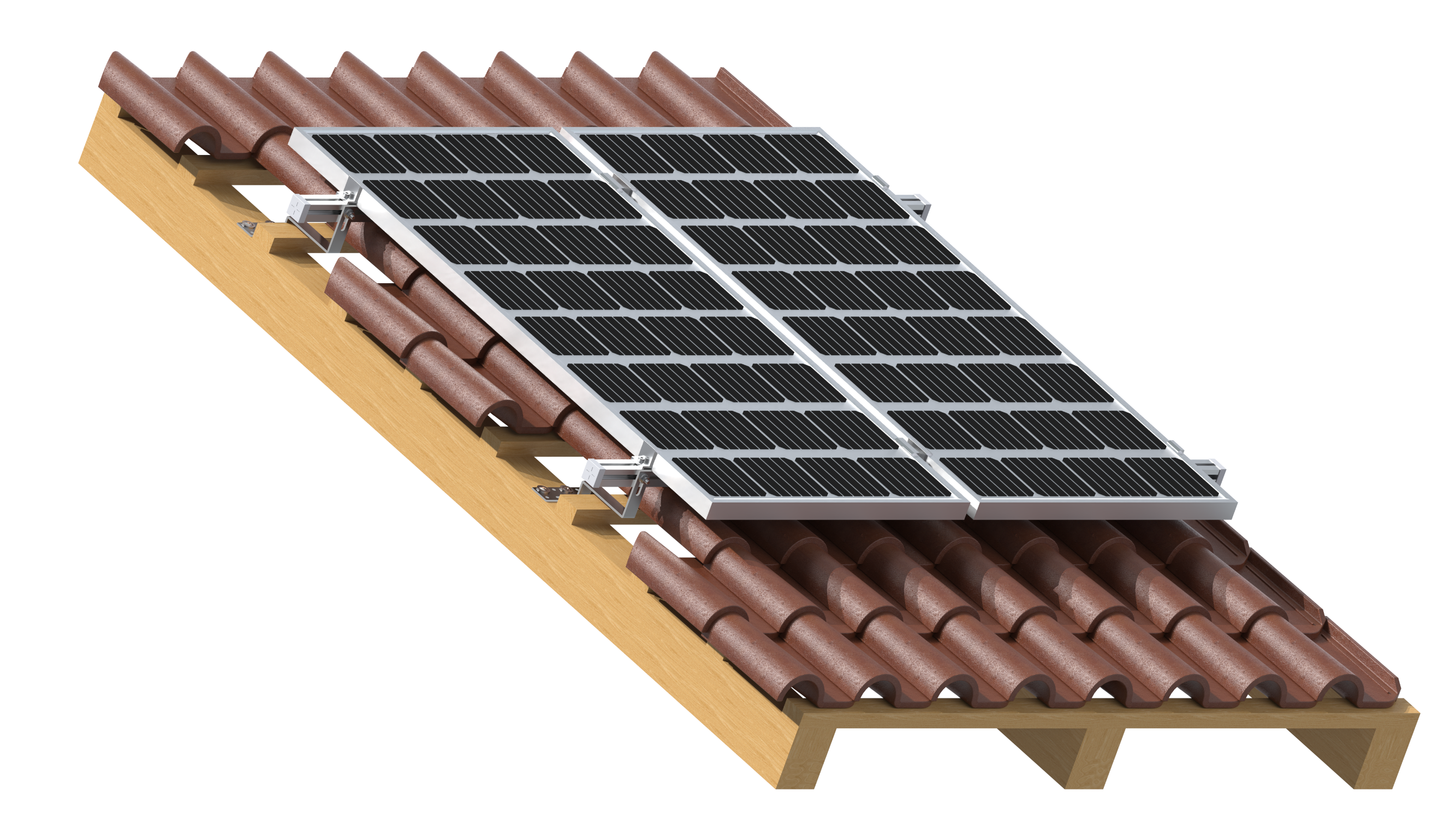

Example of installing a roof hook, profile, clamp, and accessories for a solar panel:
