Stainless steel roof hook for mounting solar panels, with bottom fixing
| Product availability: | within 4 days | We usually dispatch orders within 4 days. |
|---|
SOL-SH-ZK1
within 4 days
within 4 days
€5.51 excluding VAT
€6.78 including VAT
€6.78 including VAT
| Weight |
|---|
| 0,53 kg |
Description of Stainless steel roof hook for mounting solar panels, with bottom fixing
Roof hook for curved roof tiles (concrete or ceramic) is a structural component for bottom-mounting solar panels. It is made of A2 stainless steel.
The roof hook is fastened at the bottom to the timber roof structure beneath the tiles using pan-head screws with a diameter of Ø8 mm. At the top, it is attached to the profile using the T-bolt and secured with a flange nut. The clamp is then secured to the profile using a square nut and a cylindrical-head screw, which holds the solar panel. A cap is placed on the protruding end of the profile..

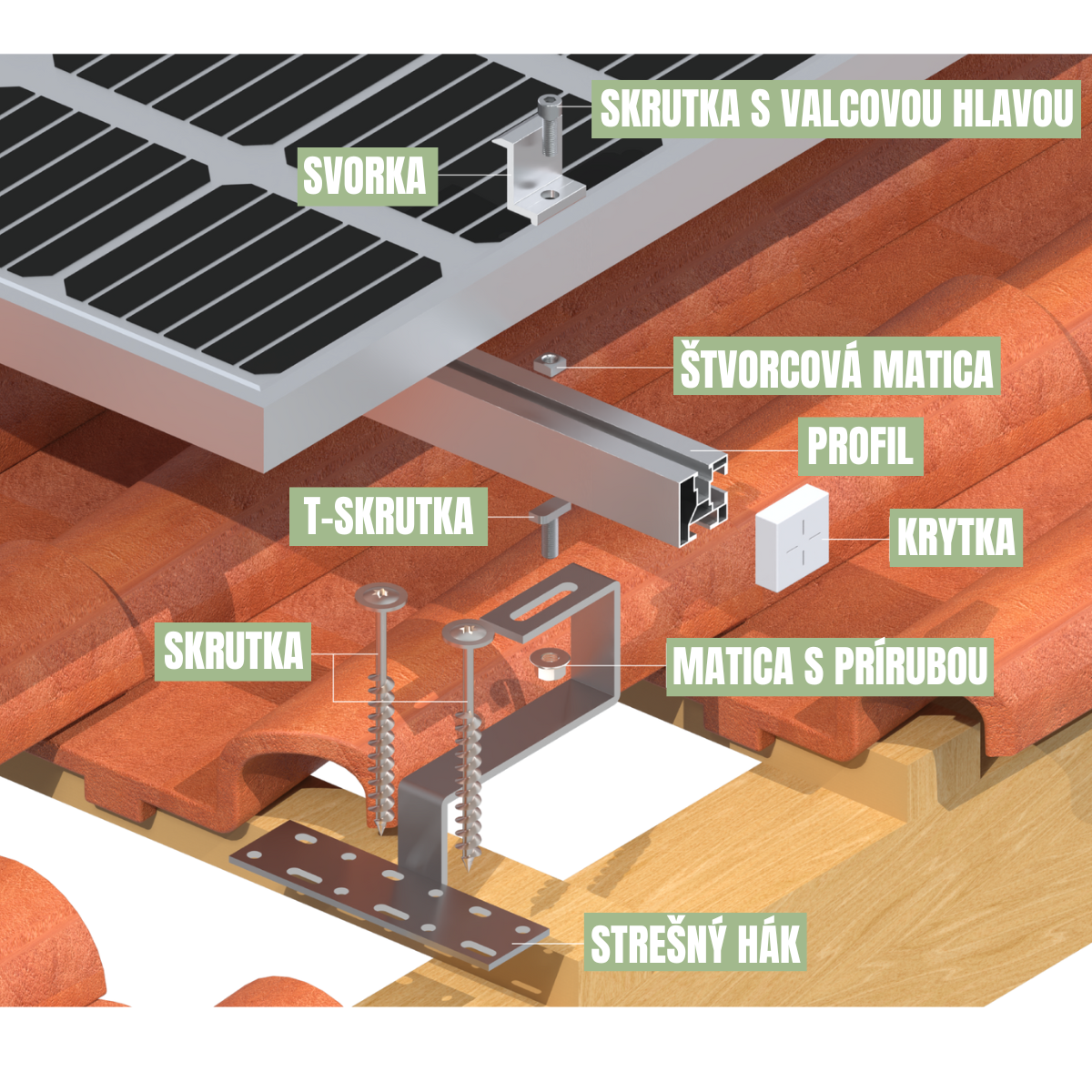

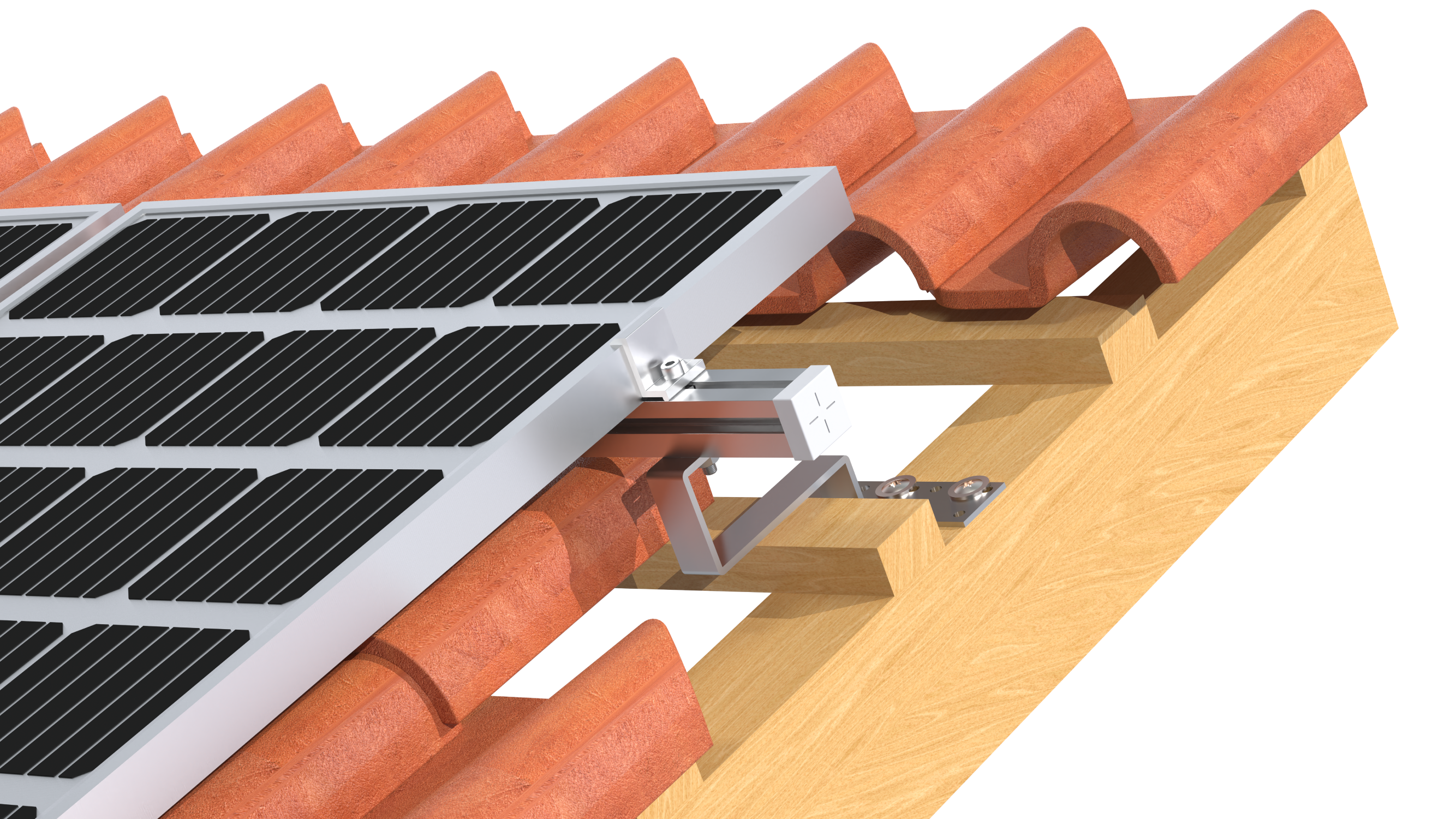

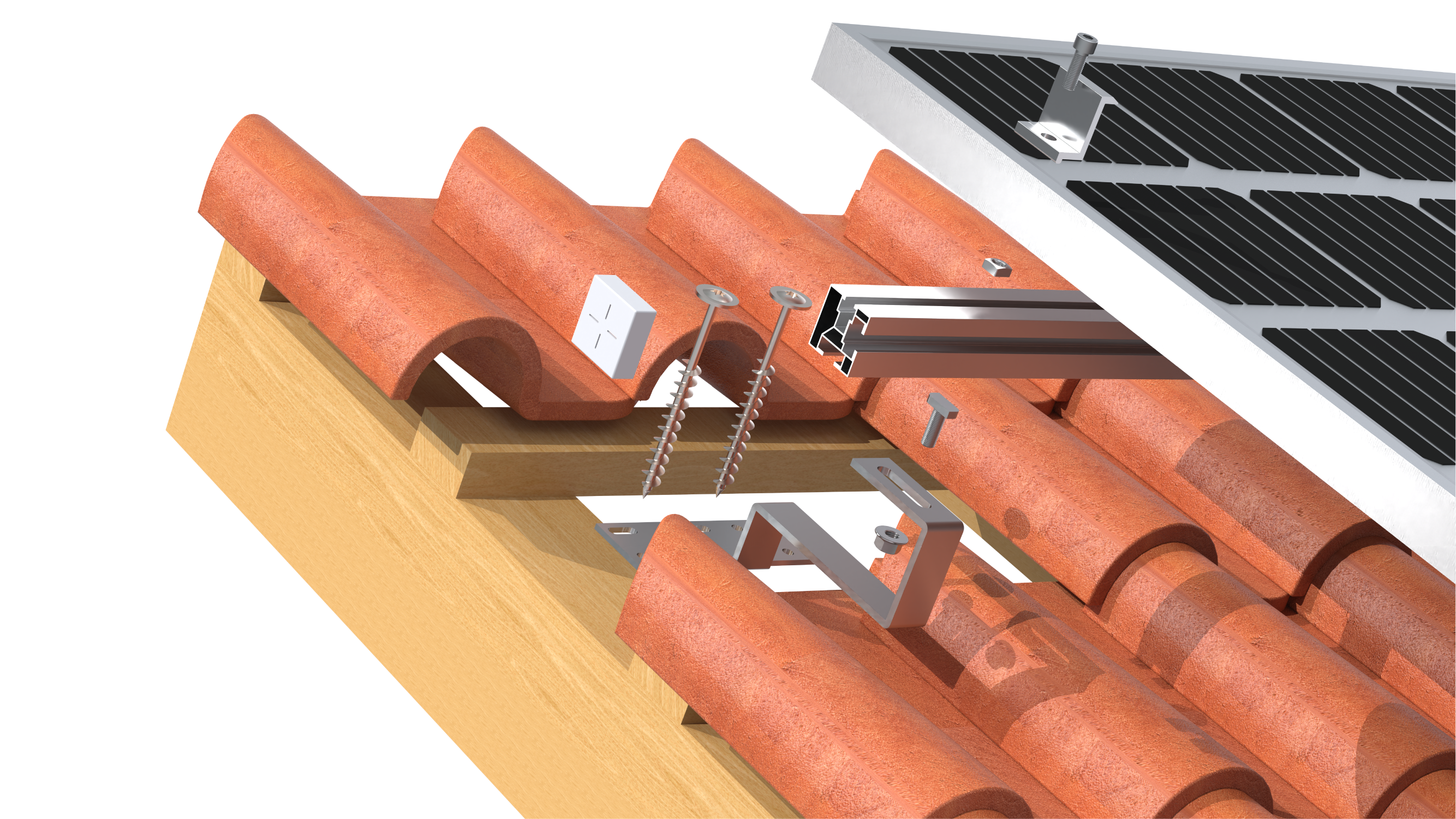

Example of installing the roof hook and mounting the solar panel:
