Stainless steel roof hook for metal roofing made from pressed and crushed stone, Gerard/“beaver-tail” tile type


Product availability: within 3 days

We usually ship the goods within 3 days.

Stainless steel roof hook for metal roofing made from pressed and crushed stone, Gerard/“beaver-tail” tile type Stainless steel roof hook for metal roofing made from pressed and crushed stone, Gerard/“beaver-tail” tile type
SOL-SH-BS2
within 3 days
€22.13 excluding VAT
€27.21 including VAT

 pcs
Weight
0,60 kg

Description of Stainless steel roof hook for metal roofing made from pressed and crushed stone, Gerard/“beaver-tail” tile type

Roof hook designed for metal roofing with a pressed and crushed stone surface, such as Gerard or beavertail tiles. The hook is designed for roof structures with battens spaced to match the roofing dimensions.

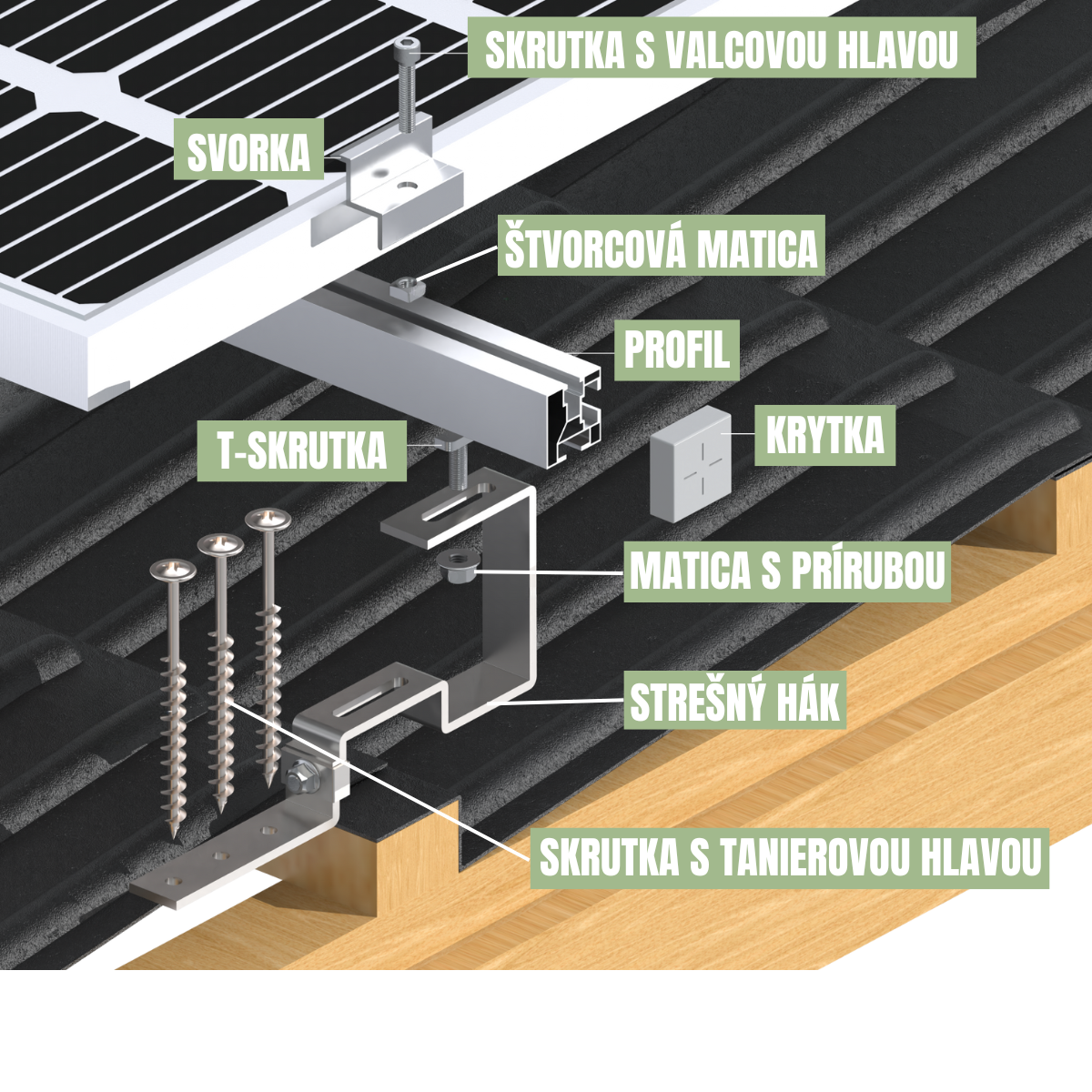

The lower part of the roof hook is fastened to the wooden roof structure beneath the tile using pan-head screws with a diameter of Ø8 mm. At the top, it is attached to the profile using a T-bolt profile using a profile and secured with a flange nut. The clamp is then secured to the profile using a square nut and a cylindrical-head screw to secure the clamp, which holds the solar panel. A cap is fitted to the protruding end of the profile. cap.

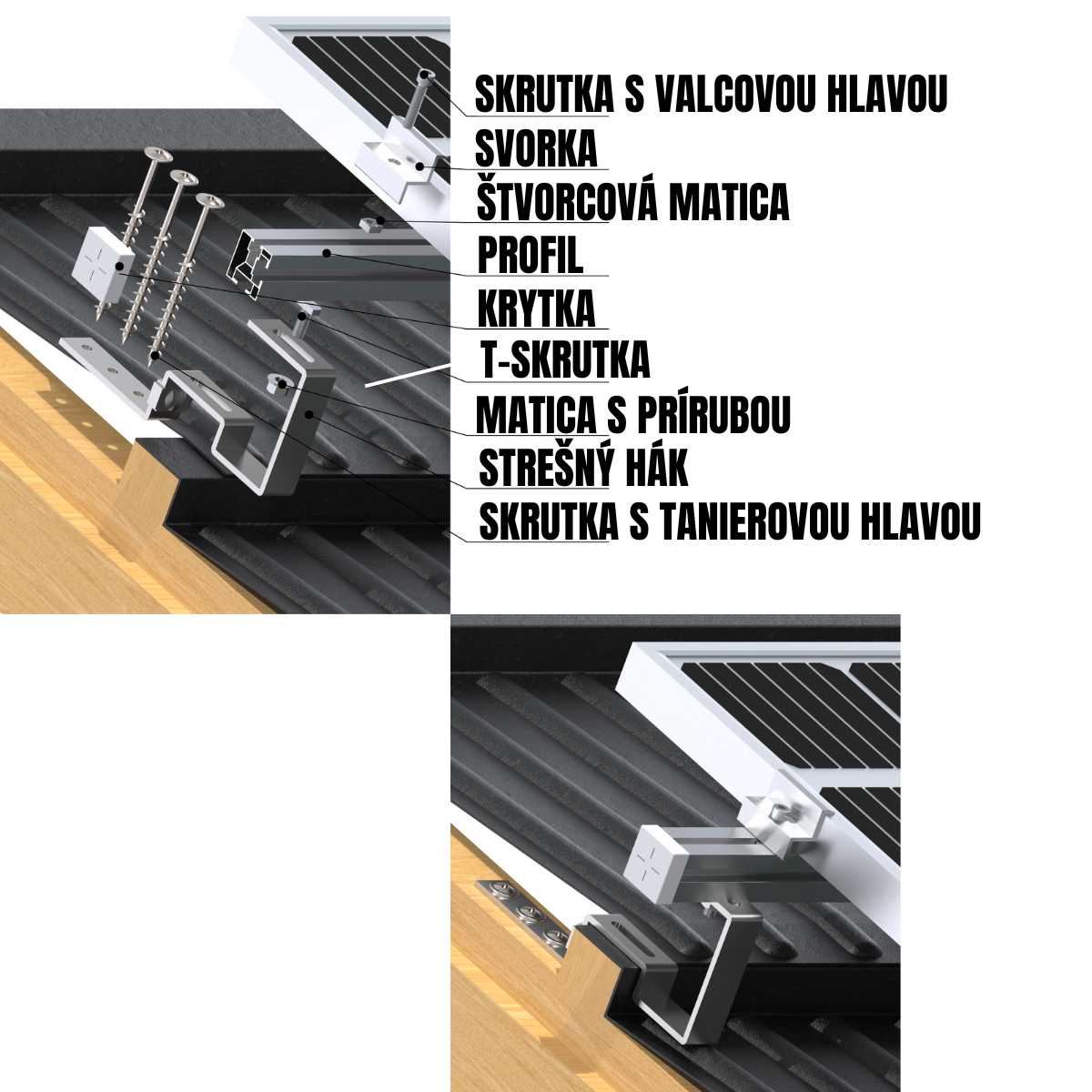

Example of installing a roof hook designed for metal roofing such as Gerard or beaver-tail tiles:
