Stainless steel roof hook for flat roofing, with closure for the side grooves of concrete and tiled roofs
| Product availability: | within 3 days | We usually ship the goods within 3 days. |
|---|
within 3 days
€23.04 including VAT
| Weight |
|---|
| 1,05 kg |
Description of Stainless steel roof hook for flat roofing, with closure for the side grooves of concrete and tiled roofs
Roof hook designed for flat roof tiles. Its shape protects the tiles, thanks to the raised closures on the side channels of concrete and clay tile roofs.
The hook is installed beneath the side channel, where it protects the tile from damage or breakage and from the effects of rainy weather. It also eliminates adverse stress between adjacent elements. It can be used with improved closures for side-channel tiles and with smooth-surface beaver-tail tiles.

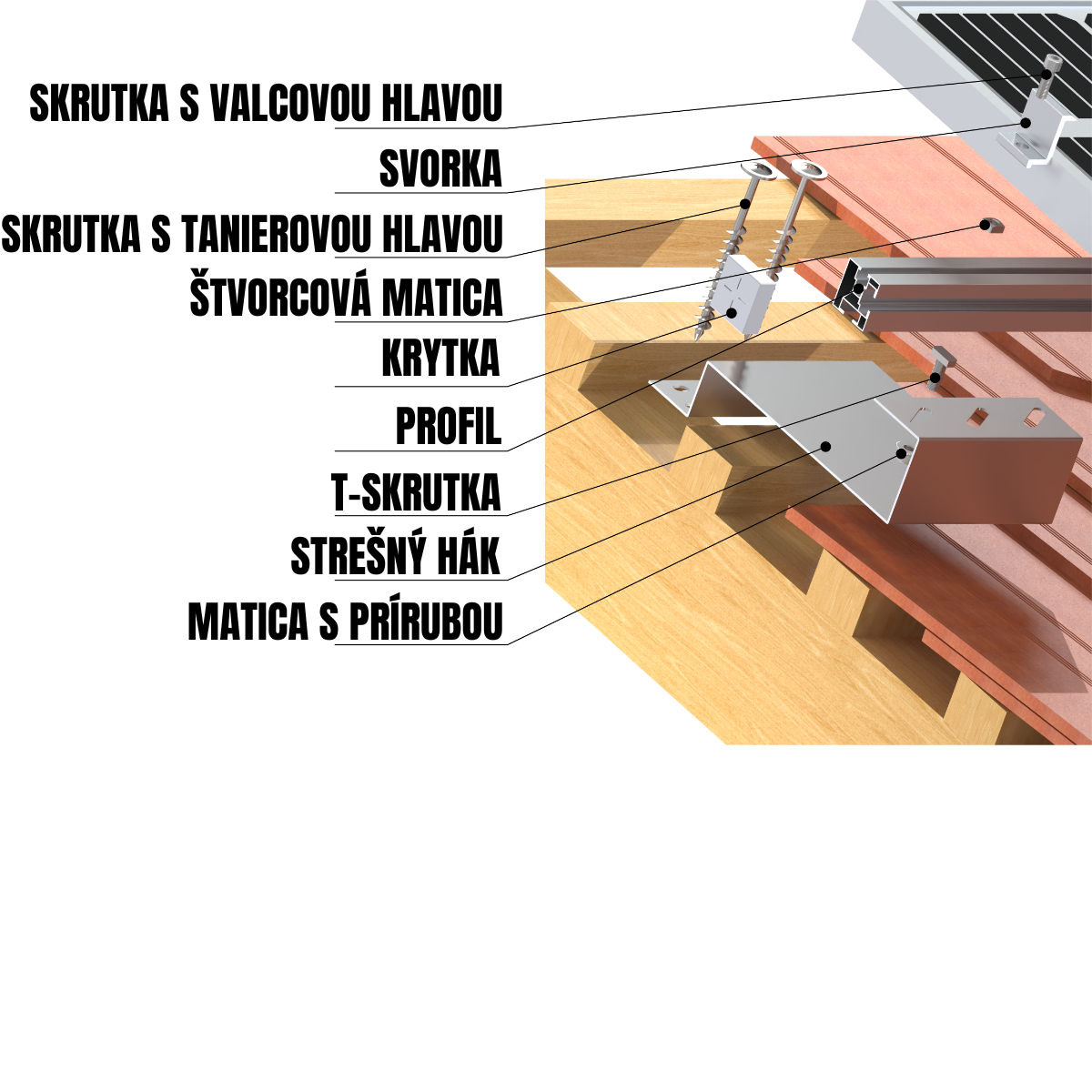

At the bottom, the roof hook is fastened to the wooden roof structure beneath the tile using pan-head screws with a diameter of Ø8 mm. At the top, it is fastened with a T-bolt to the profile and secured with a flange nut. The profile is then fitted with a square nut and a cylinder-head screw to secure the clamp, which holds the solar panel. The protruding end of the profile is fitted with a cap.

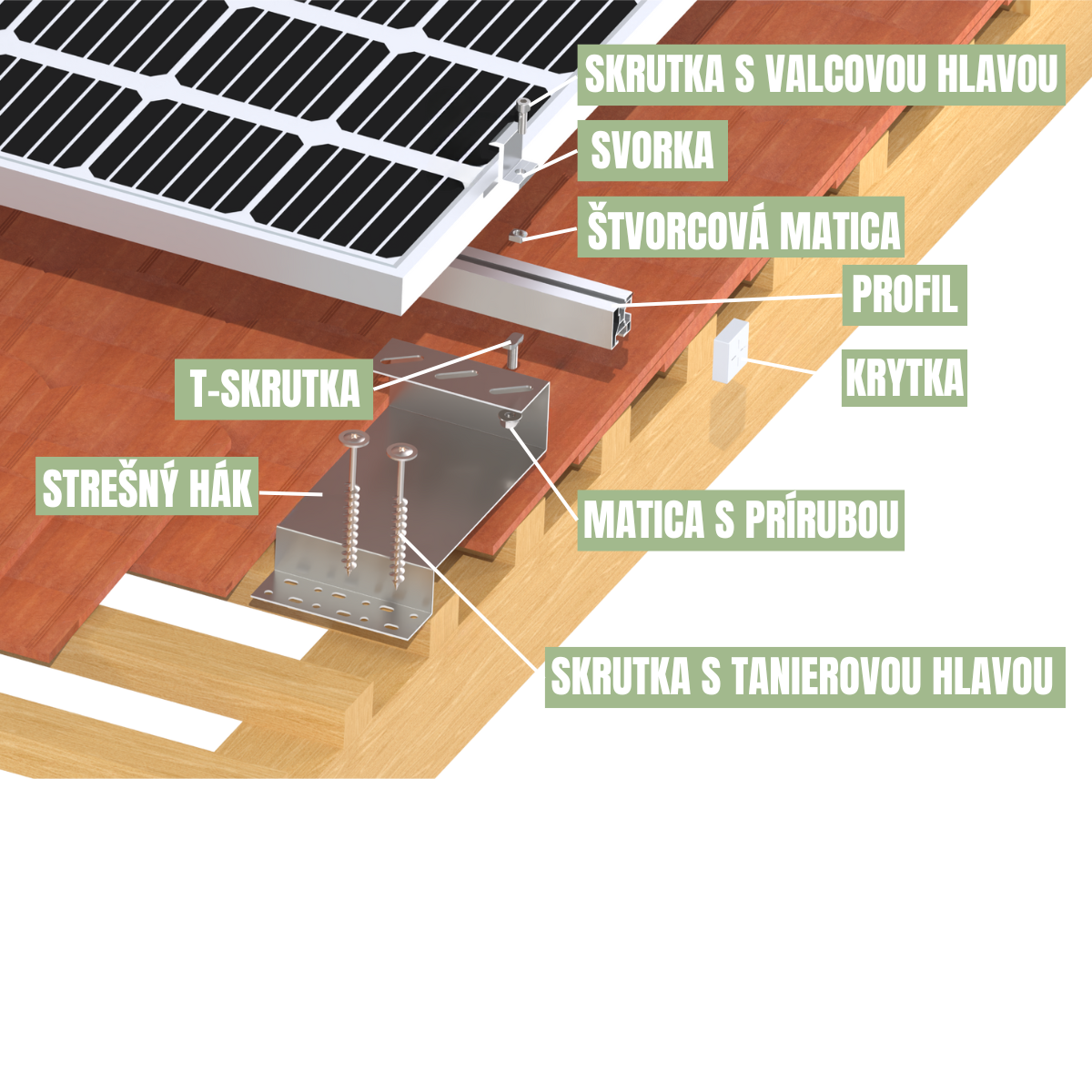

Example of installing a roof hook under the side groove with a closed profile:
