Stainless steel roof hook for flat ceramic roofs, with bottom fastening
| Product availability: | within 3 days | We usually ship the goods within 3 days. |
|---|
SOL-SH-BS1
within 3 days
within 3 days
€8.06 excluding VAT
€9.91 including VAT
€9.91 including VAT
| Weight |
|---|
| 0,49 kg |
Description of Stainless steel roof hook for flat ceramic roofs, with bottom fastening
The A2-grade stainless steel roof hook is suitable for flat roofs with ceramic tiles, including beaver-tail, curved and segmented tiles.

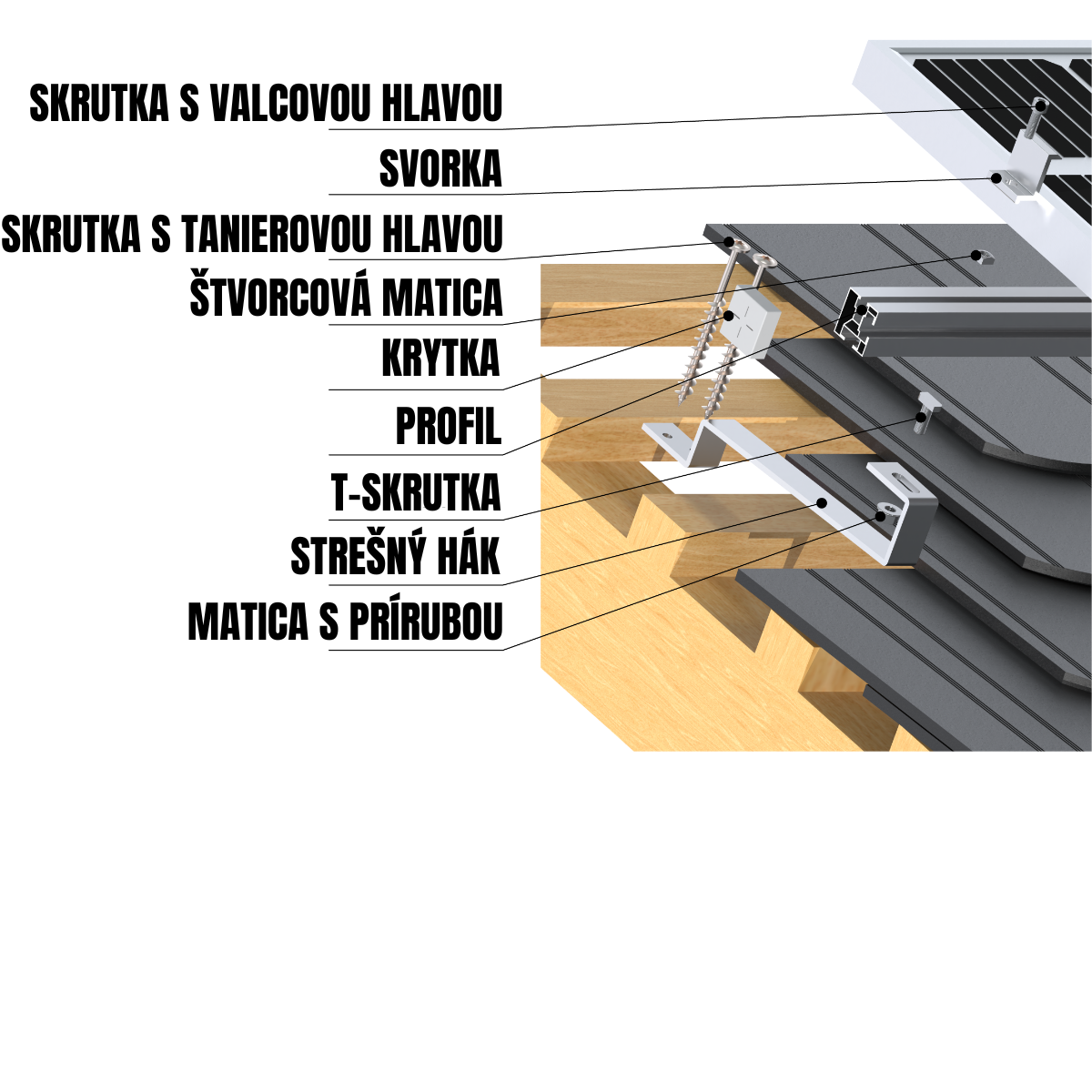

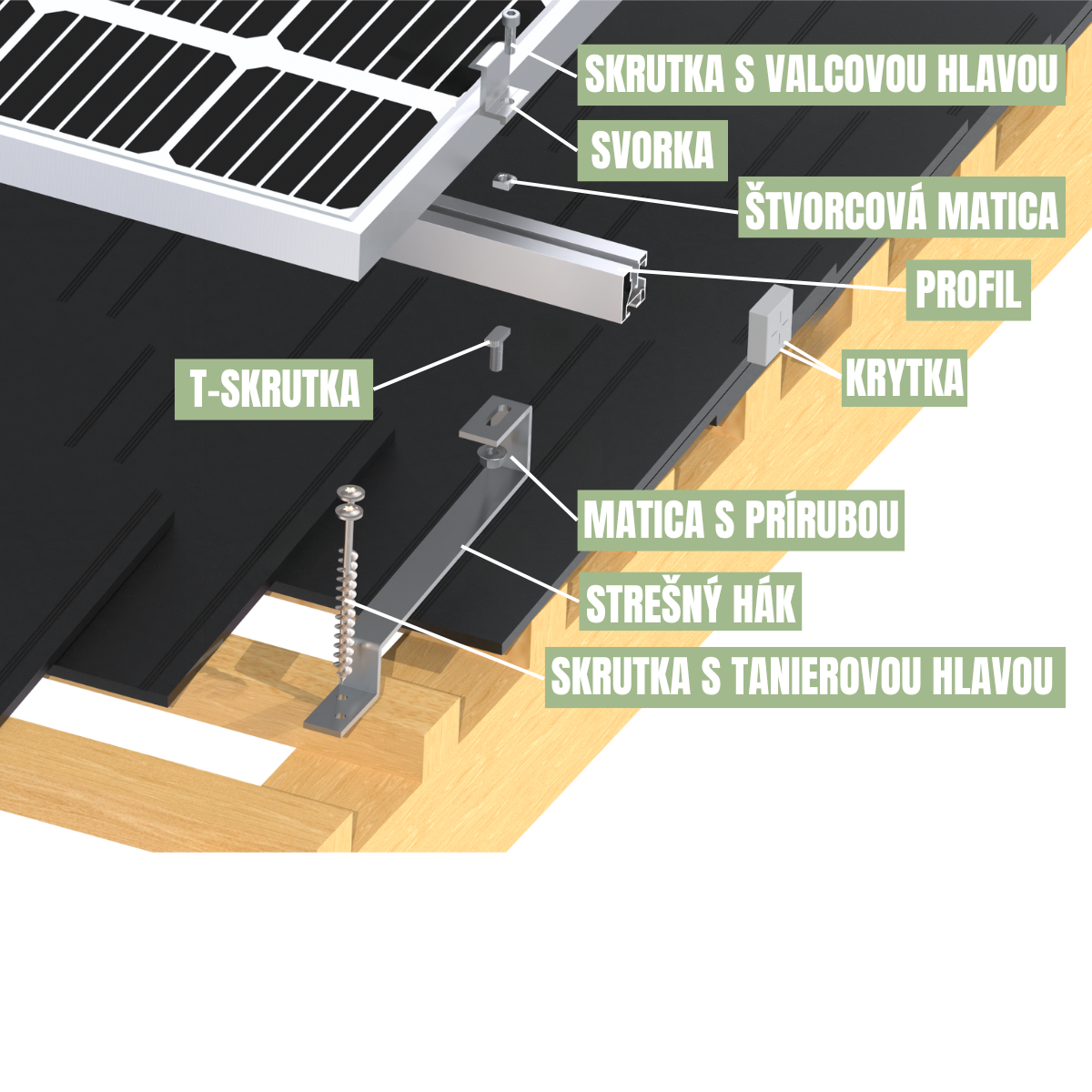

The solar panel is mounted from underneath. The lower part of the roof hook is fastened to the wooden roof structure beneath the tile using pan-head screws with a diameter of Ø8 mm. At the top, it is fastened using a T-bolt to the profile and secured with a flange nut. The profile is then fitted with a square nut and a socket-head screw to secure the clamp, which holds the solar panel. The protruding end of the profile is fitted with a cover.

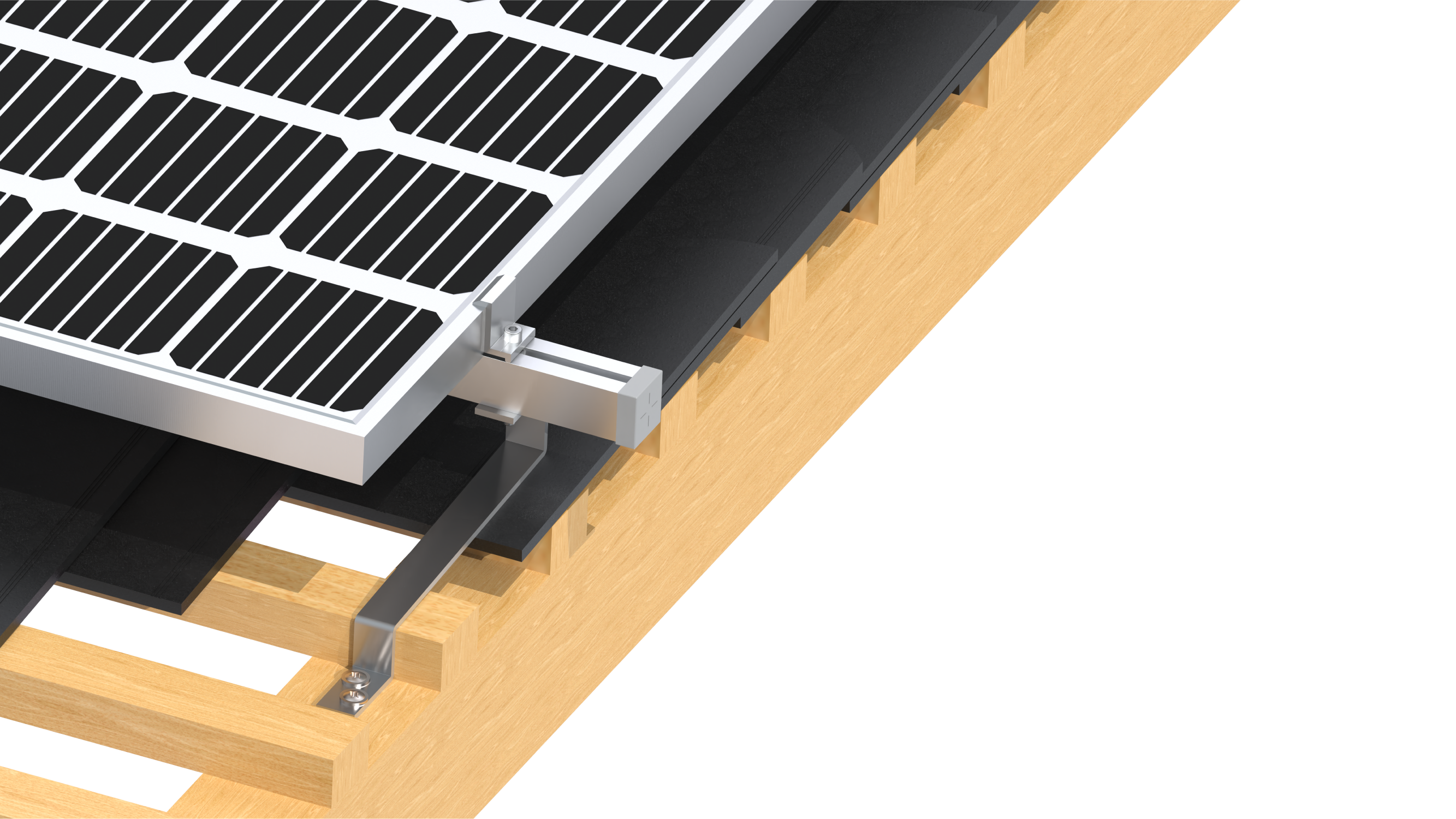

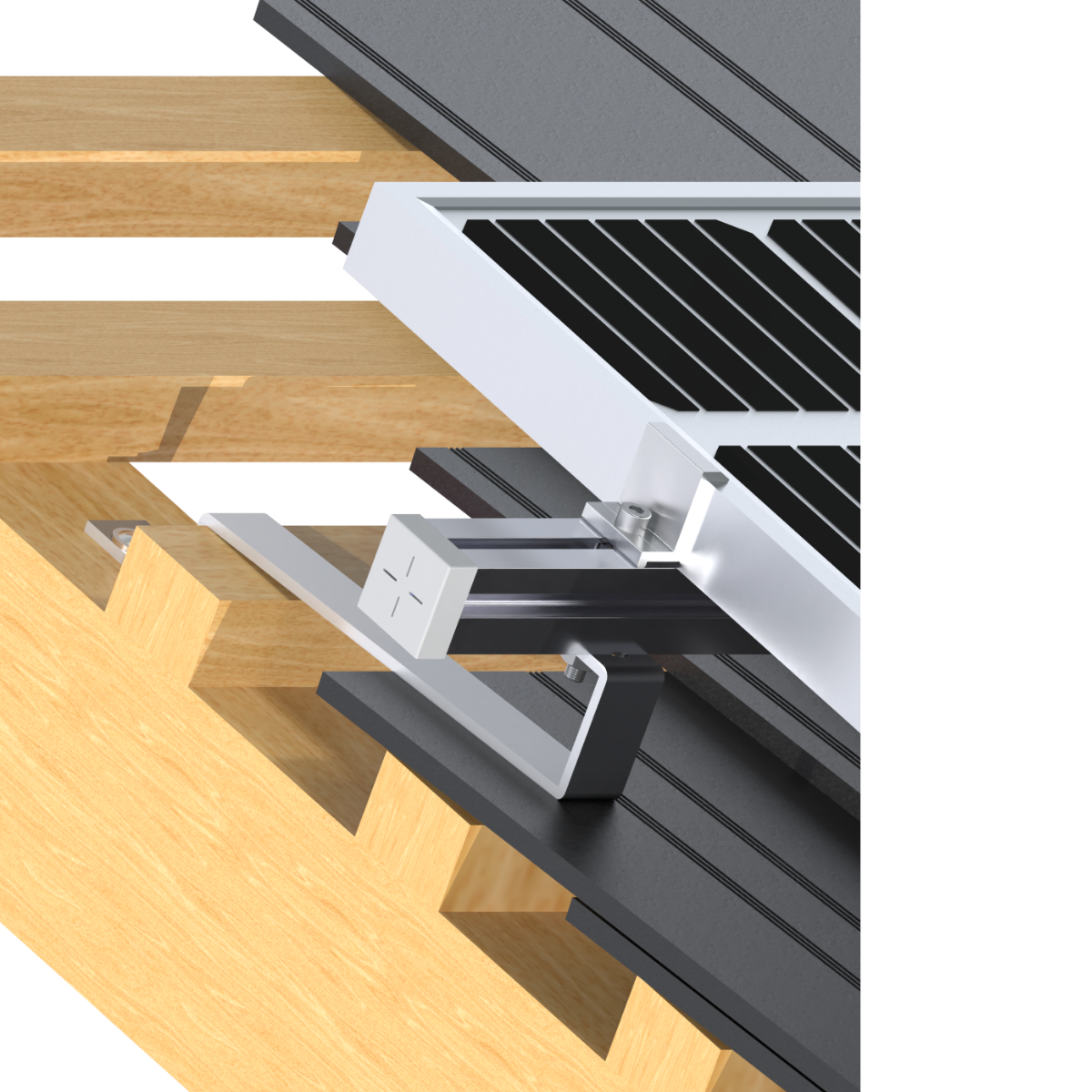

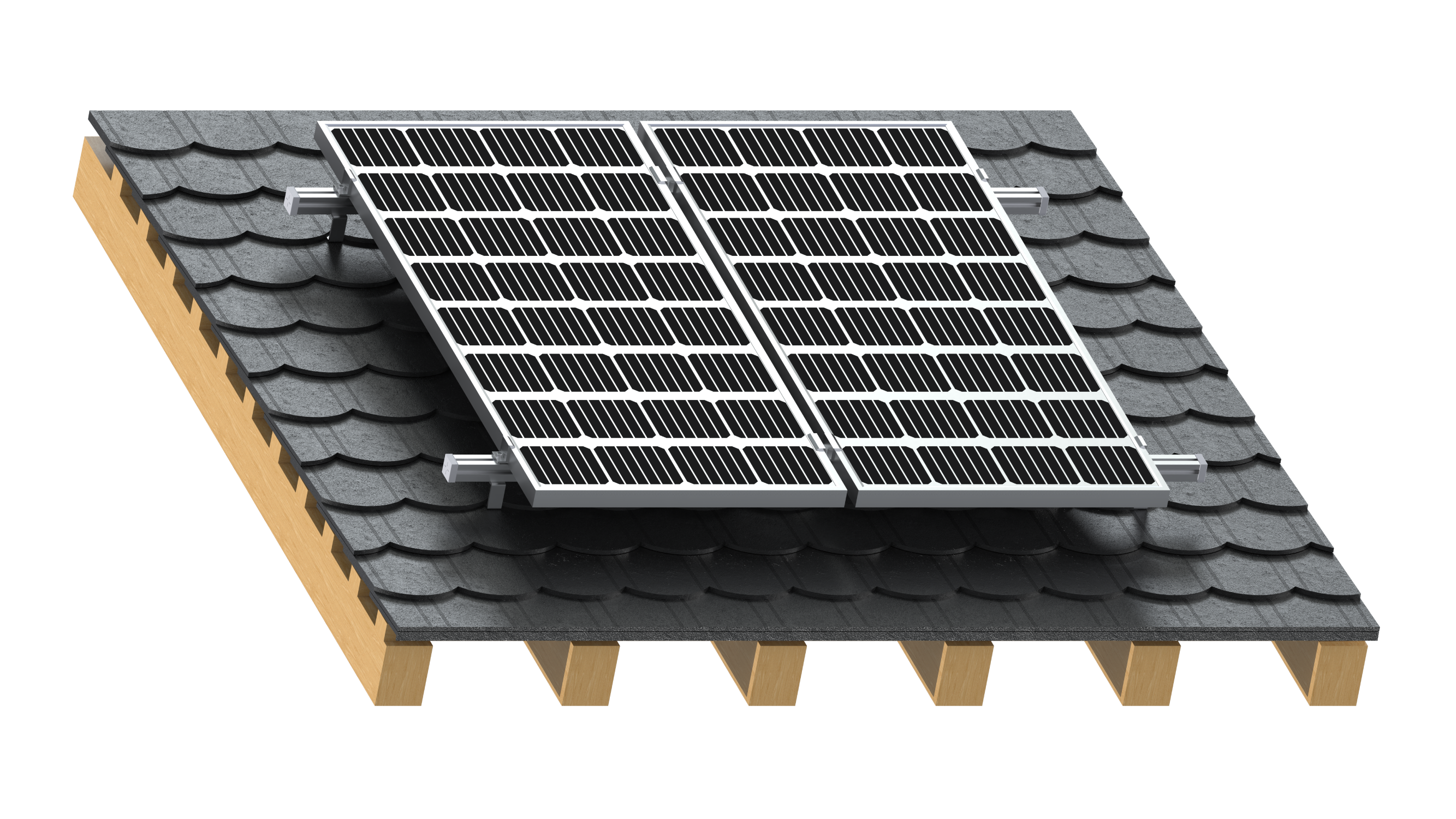

Example of installing a roof hook with a solar panel mounted underneath, for flat roofs:
