Stainless steel roof hook, adjustable at 3 points, for mounting solar panels, with bottom attachment
| Product availability: | within 3 days | We usually ship the goods within 3 days. |
|---|
within 3 days
€7.85 including VAT
| Weight |
|---|
| 0,60 kg |
Description of Stainless steel roof hook, adjustable at 3 points, for mounting solar panels, with bottom attachment

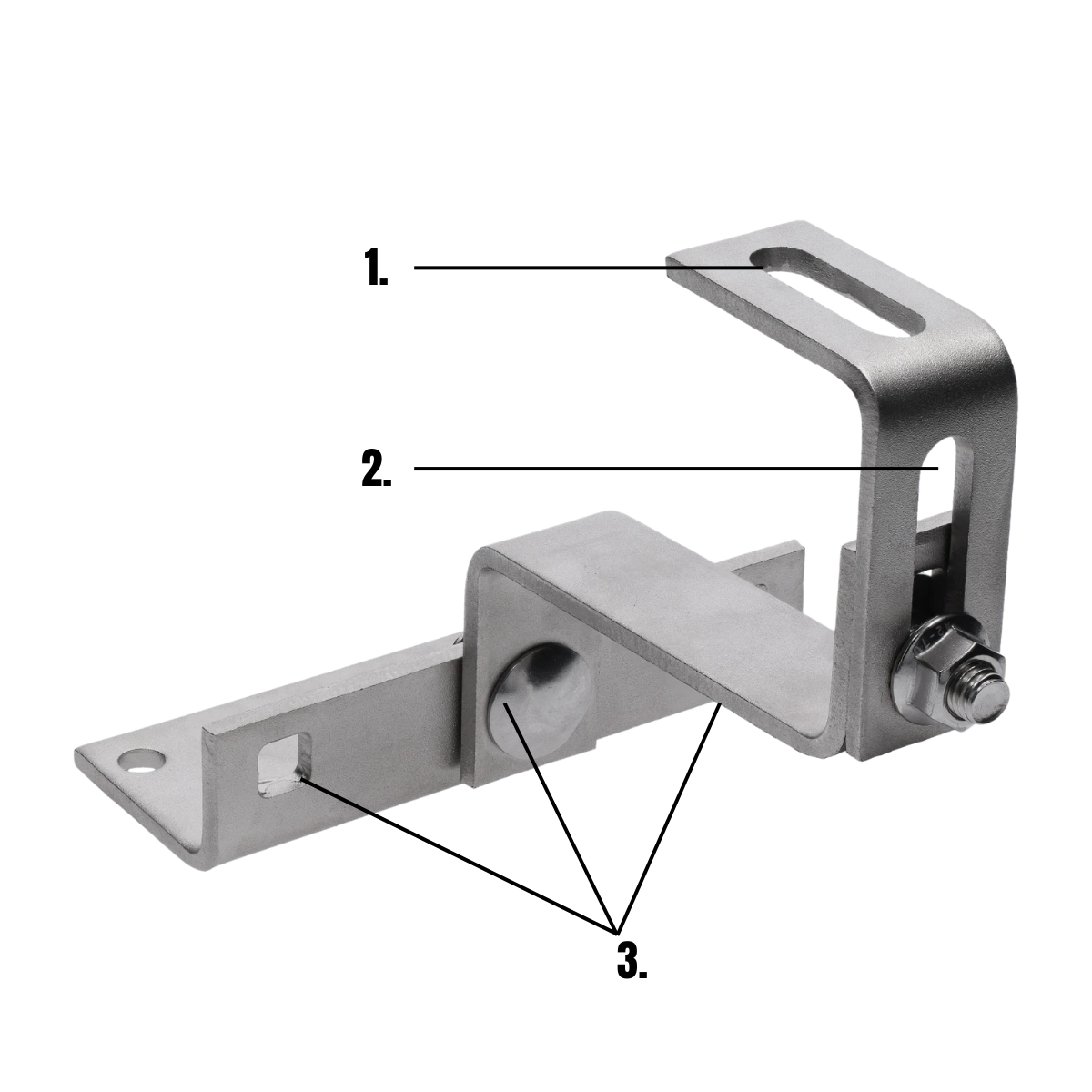

Roof hook with adjustment at 3 points – at the top, where it is attached to the profile using a T-bolt; in the middle, where the height can be adjusted using a slot and screw; and at the bottom, where there are three holes along its length.

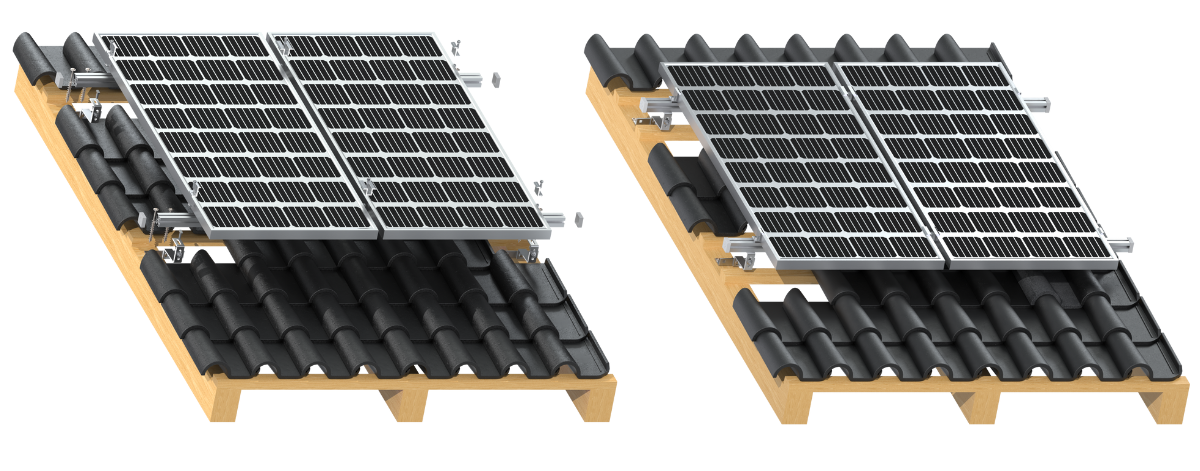

The roof hook is made of A2 stainless steel. Suitable for curved roof tiles (concrete or clay). The hook is suitable for mounting solar panel structures with bottom mounting.

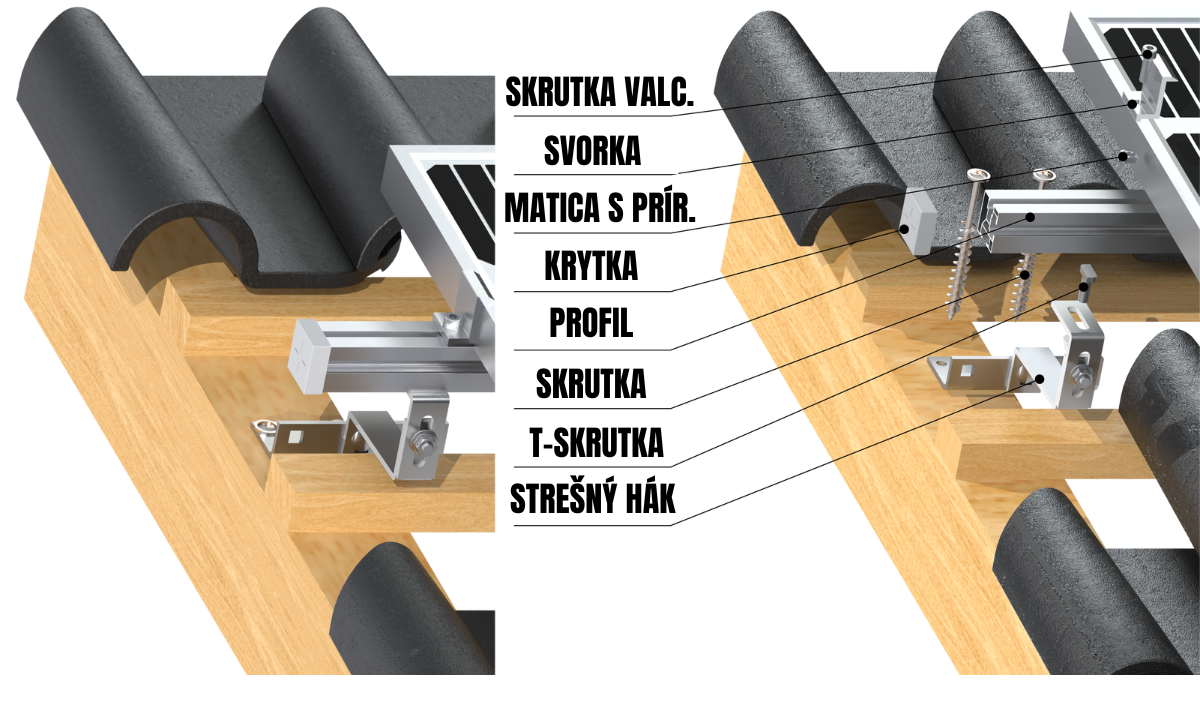

At the bottom, the roof hook is attached to the wooden roof structure beneath the tiles using pan-head screws with a diameter of Ø8 mm. At the top, the roof hook is attached by the T-bolt to the profile and secured with a flanged nut. The profile is then fitted with a square nut and a socket head screw to secure the clamp, which holds the solar panel. The protruding end of the profile is fitted with a cap.
