Stainless steel combination screws with M10 thread


Product availability: within 3 days

We usually ship the goods within 3 days.

Stainless steel combination screws with M10 thread Stainless steel combination screws with M10 thread
S-V-M10x200
within 3 days
€1.65 excluding VAT
€2.03 including VAT

 pcs
A
[mm]		 B
[mm]		 C
[mm]		 D
[mm]		 Weight
200 68 13 109 84,00 g
S-V-M10x250
within 3 days
€2.11 excluding VAT
€2.59 including VAT

 pcs
A
[mm]		 B
[mm]		 C
[mm]		 D
[mm]		 Weight
250 78 30 132 0,11 kg
S-V-M10x300
within 3 days
€2.59 excluding VAT
€3.18 including VAT

 pcs
A
[mm]		 B
[mm]		 C
[mm]		 D
[mm]		 Weight
300 100 48 142 0,13 kg

Description of Stainless steel combination screws with M10 thread

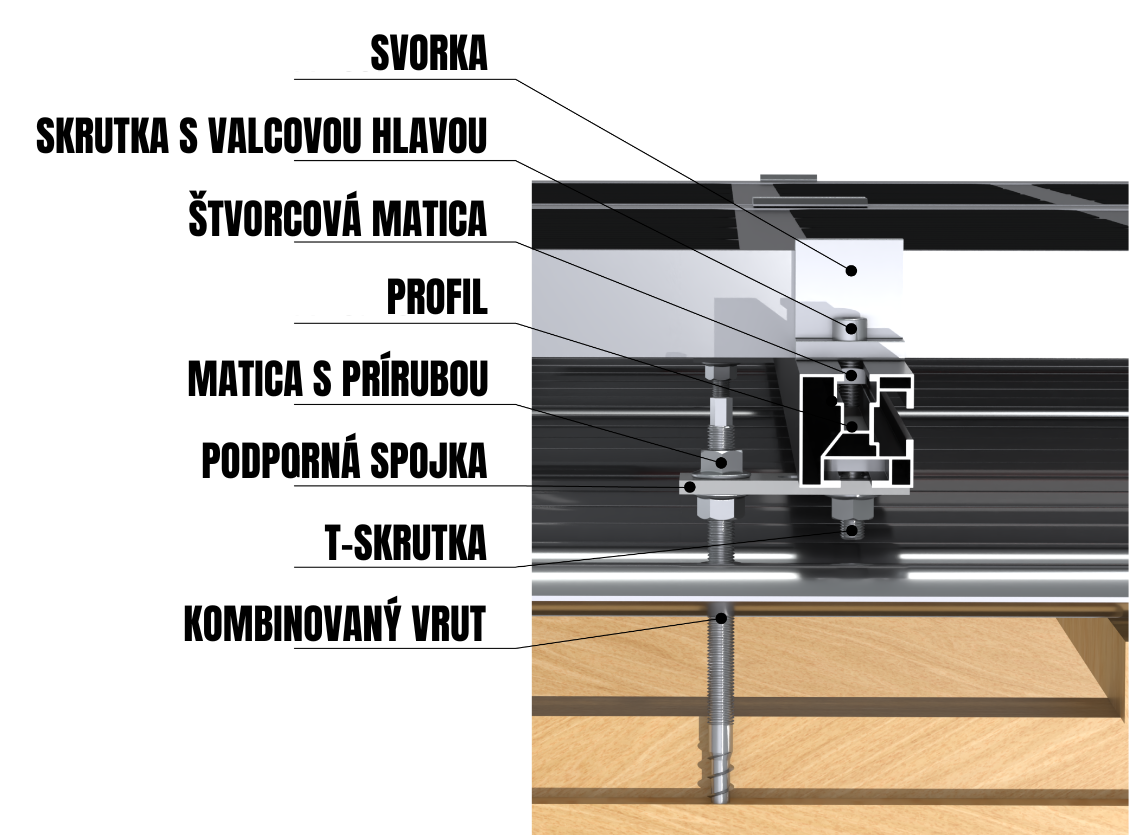

Stainless steel combination screws are used in solar panel structures in combination with an EPDM washer, flange nuts and a support connector. The lower part of the screw is suitable for installation in wood, while the upper part is secured with a nut. The EPDM washer acts as insulation and a seal for the part of the screw anchored in the wooden roof structure. Support connector is attached to the T-bolt using a profile, to which the clamp secures the solar panel.

This profile anchoring solution is height-adjustable and easy to adjust, making it suitable for situations where a roof hook cannot be used.

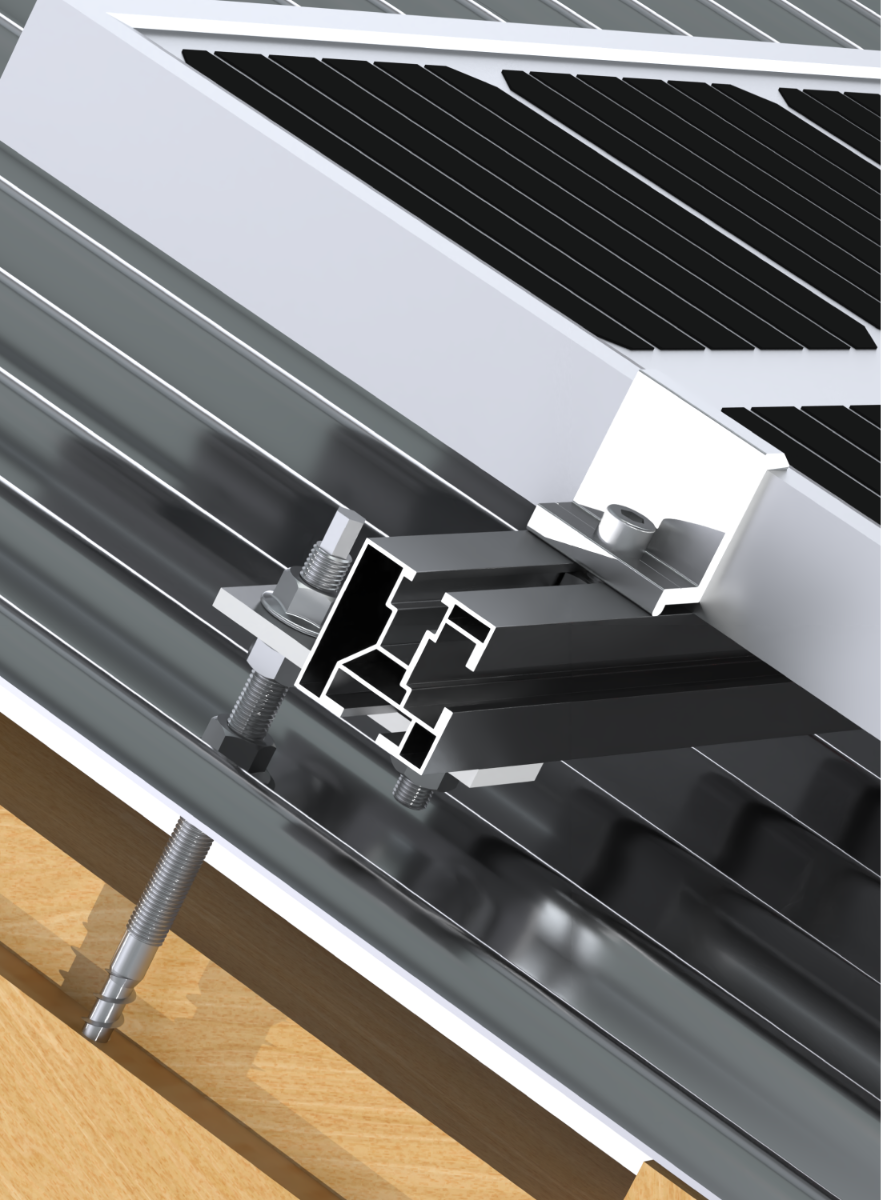

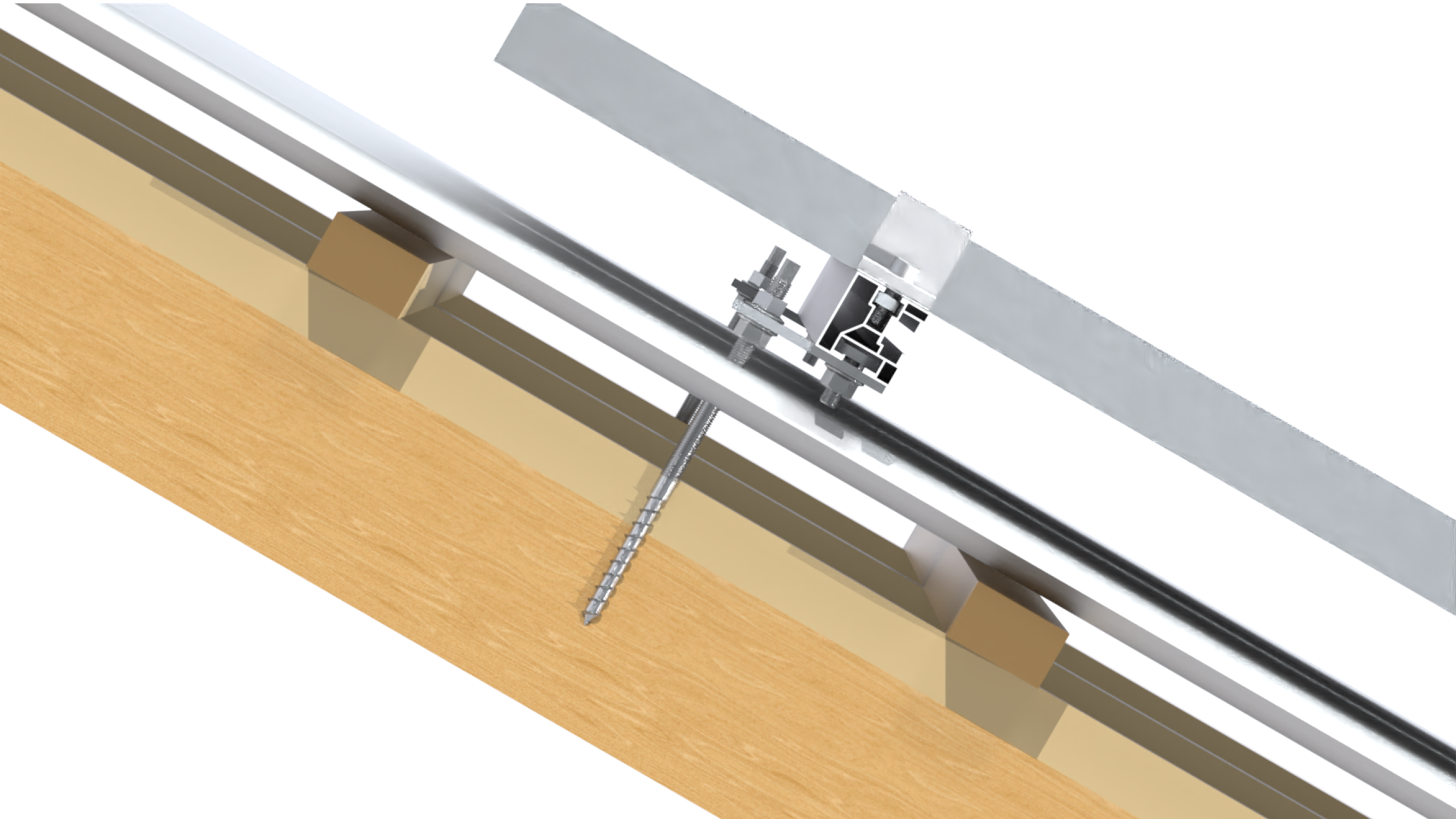

Examples of using combination screws when installing solar panels:
