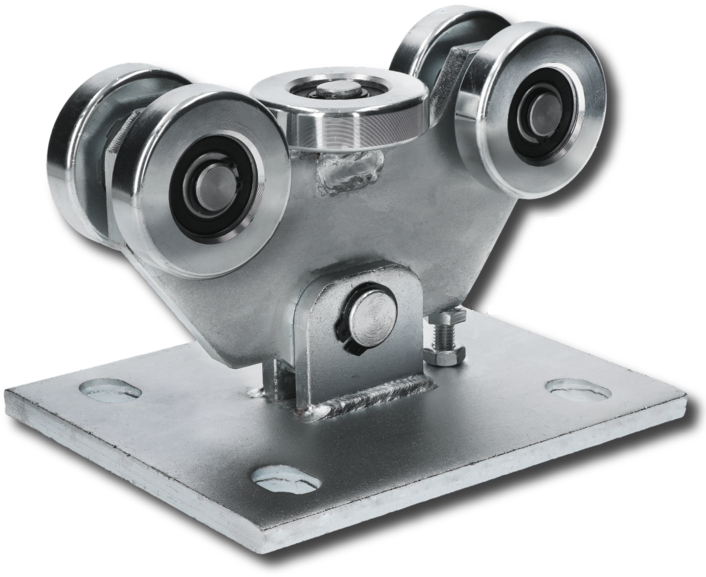

Sliding gate carriage with 5 rollers for 68x68x3 C-profile
Zn| Product availability: | within 7 days | We usually dispatch goods within 7 days. |
|---|
within 7 days
€65.72 including VAT
| Weight |
|---|
| 1,10 kg |
Description of Sliding gate carriage with 5 rollers for 68x68x3 C-profile
Trolley for cantilever sliding gates with a passage width of up to 4m and a weight of up to 180 kg.
- Variant V-02-7 fits 68x68x3mm stainless steel C-profile.
The trolley's rocking movement ensures the gate's weight/pressure is evenly distributed across all the trolley's bearing rollers at every point during gate movement. The trolley includes an M8 nut for adjusting the rocking movement.
Option to purchase trolleys at a discounted Set of components for building a cantilever gate. All discounted kits for cantilever gates.
Dimensions of the trolley mounting holes and bolts
| Code | For C-profile | Mounting holes | Bolts | Adjustment screw |
|---|---|---|---|---|
| V-02-7 | 68x68x3 | 4 pcs. 17×24 | not included | M8 |
ANCHORING THE CANTILEVER GATE SUPPORT TROLLEYS:
The support trolleys can be anchored:
- to threaded rods which you cast directly into the foundation
- to threaded rods chemically bonded into an already cured concrete foundation
- to hammer-in anchors into an already cured concrete foundation
The narrowest dimension of the holes in the mounting plates is 17mm, and they are anchored using M16. All methods are suitable; it depends on which one you have had the best experience with.

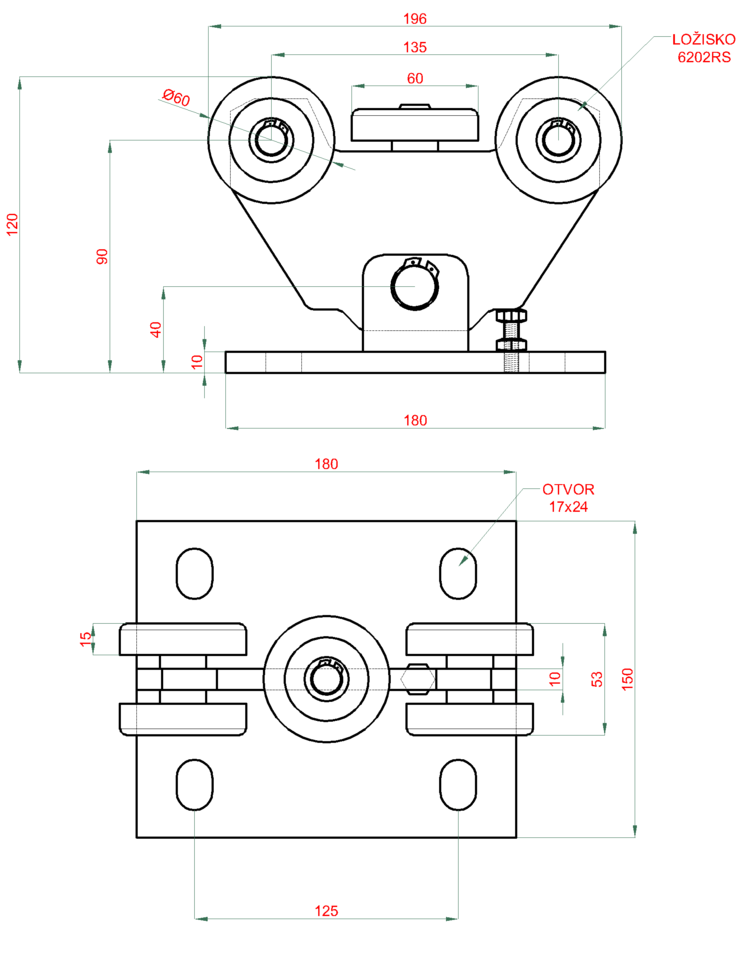

Drawing of trolley V-02-7:
360°:
