NICE XBA8 - built-in traffic light for the M-Bar, L-Bar barrier


Product availability: In stock

We normally dispatch goods within 24 hours.

NICE XBA8 - built-in traffic light for the M-Bar, L-Bar barrier NICE XBA8 - built-in traffic light for the M-Bar, L-Bar barrier
NICE-XBA8
in stock
€116.47 excluding VAT
€143.25 including VAT

 pcs
Weight
0,20 kg

Description of NICE XBA8 - built-in traffic light for the M-Bar, L-Bar barrier

NICE XBA8 is an electronic device that uses signaling via green and red LEDs. It can be used as a signal light (traffic light), depending on the settings of the control unit to which it is connected.

The device is compatible only with the control units for NICE M-BAR and NICE L-BAR.

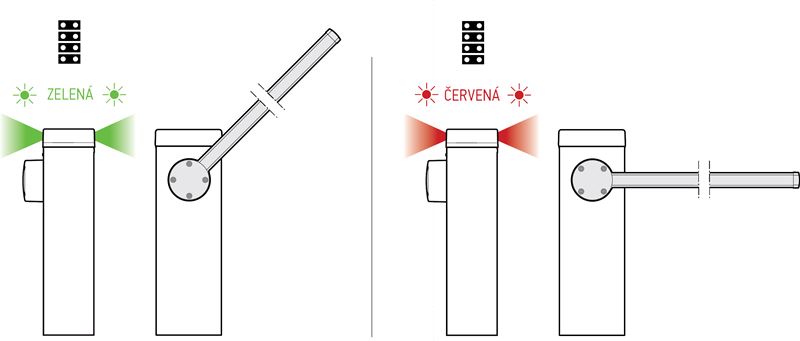

The traffic light operates in two modes, depending on how the jumpers are set:

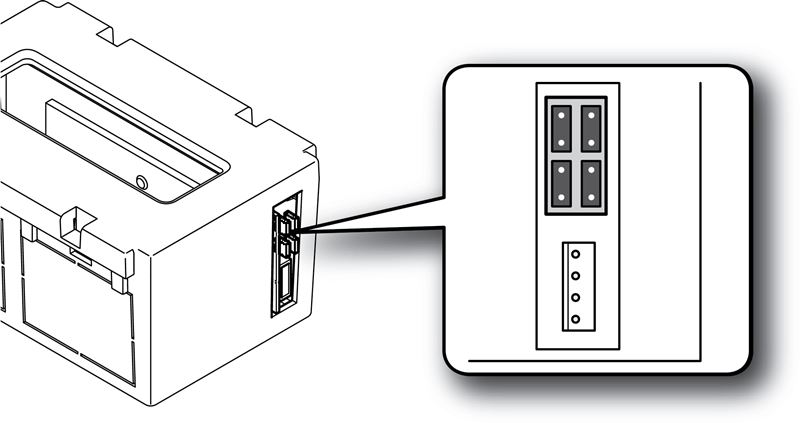

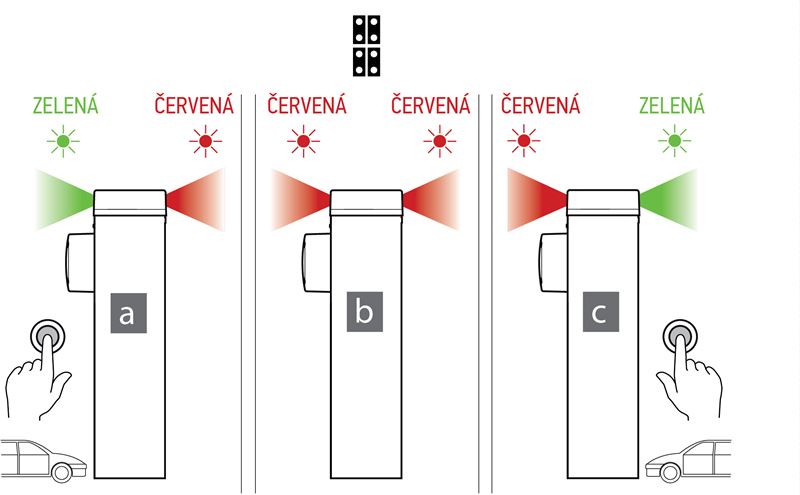

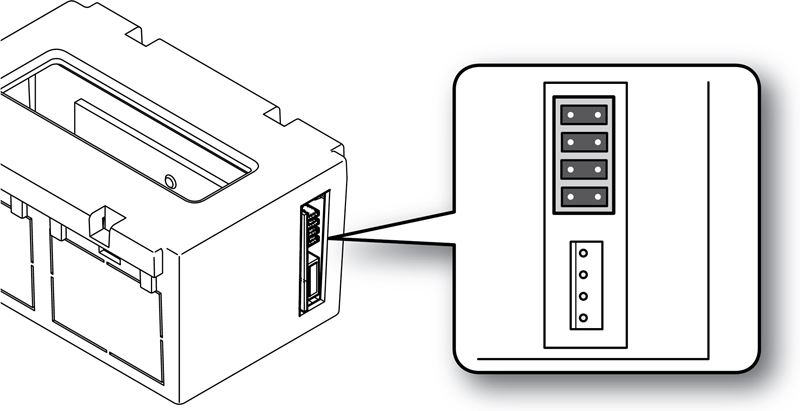

Configuration I (default) Configuration II (optional)
The "One-way traffic light", "Red" or "Green" function should be enabled on the control unit. The "Two-way traffic light" function should be enabled on the control unit.



Installing the NICE XBA8 traffic light

1. Before installation

Make sure the surface is clean; if not, clean it. Set the jumpers to the required operating mode.

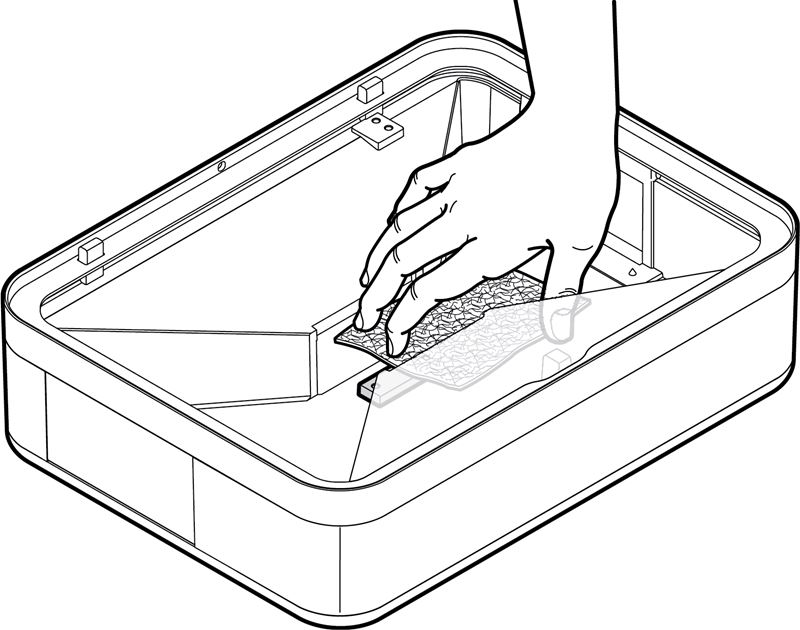

Make sure the surface is clean; if not, clean it.

Warning:

  • Disconnect the barrier from the power supply before changing the jumper connections.
  • Incorrect jumper connections—i.e. connections other than those specified in the manual—may permanently damage the device.
  • Before handling the jumpers, make sure you are not carrying a static charge. To discharge any static electricity, touch a grounded metal object first.

2. Fitting

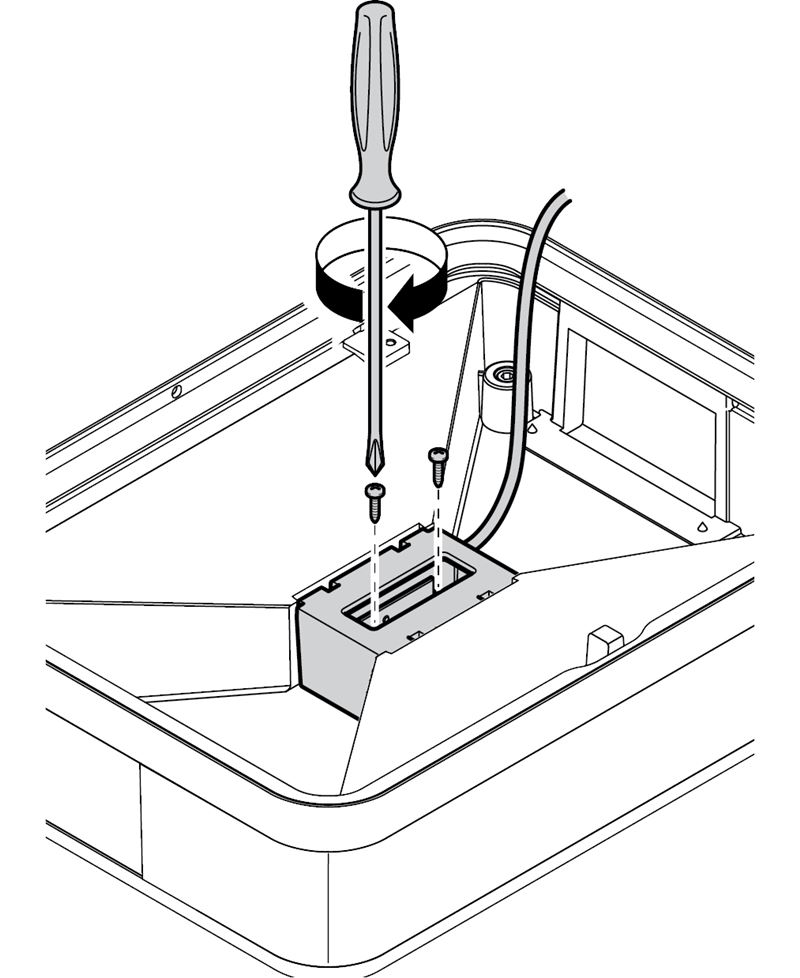

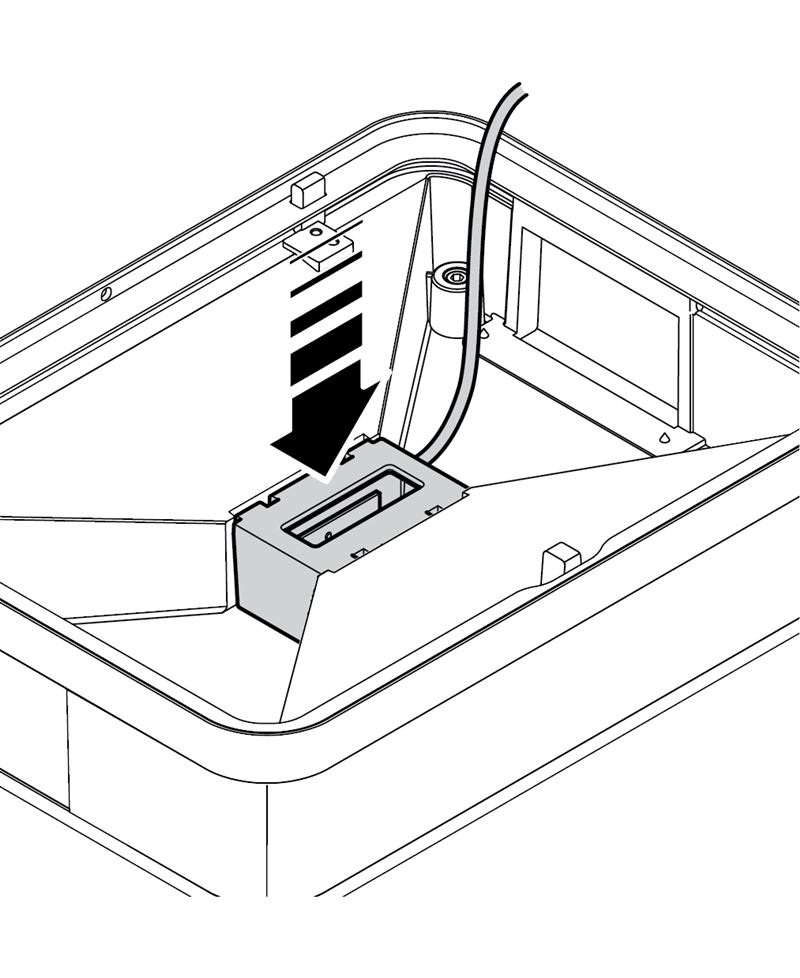

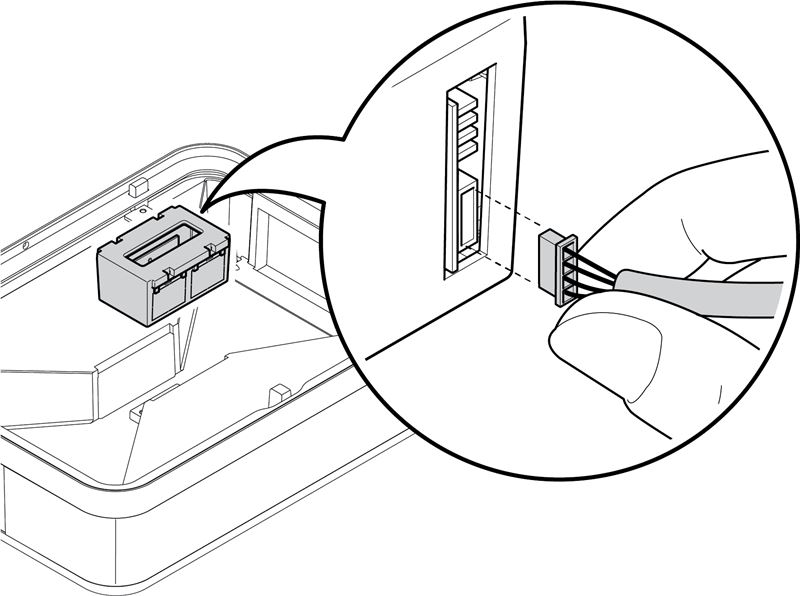

Connect the power connector. Insert the device into the barrier housing. Tighten using the supplied screws.
Connect the power connector. Insert the device into the barrier housing. Tighten using the supplied screws.

3. Electrical connections

Important: All electrical connections and wiring must be carried out with the barrier disconnected from the power supply.

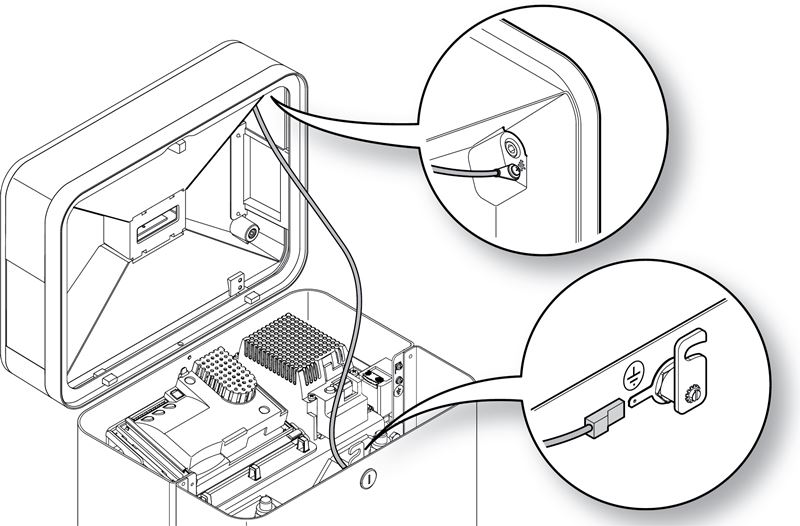

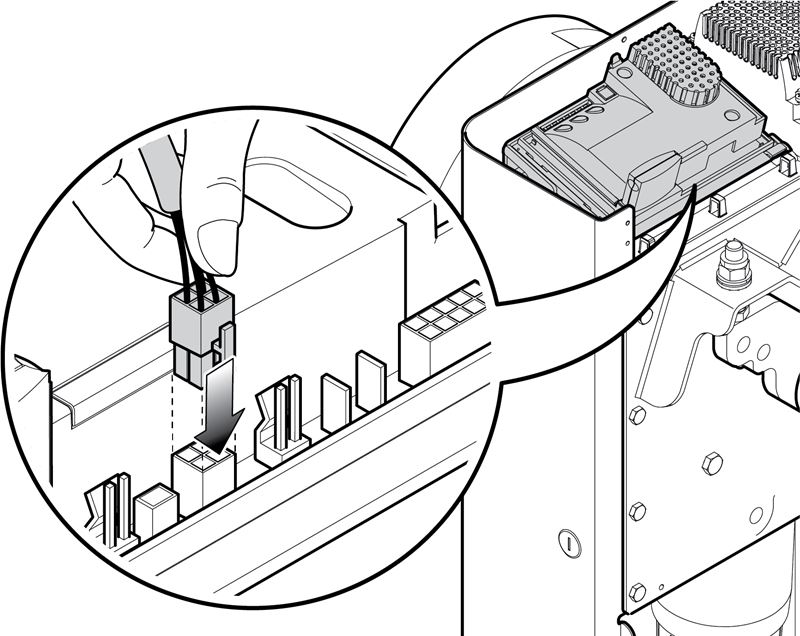

Connect the connector to the control unit. Ground the device.
For the S-Bar barrier For M-Bar and L-Bar barriers
Not compatible. Connect the connector to the control unit of the M-Bar and L-Bar barrier. Ground the device.

Technical specifications of the NICE XBA8 traffic light

Power supply 24V (13-40V)
Current consumption
  • < 290 mA with two active LEDs
  • 310 mA with four active LEDs
LED lifespan approx. 80,000 hours
LED type 4 high-power 1W LEDs
Insulation class III
Operating temperature from -20°C to +50°C
Dimensions 93x64x45
Weight 105g
