LOCINOX operator for pedestrian swing gates, with sliding arm, VENUS S, black
| Product availability: | within 7 days | We usually dispatch goods within 7 days. |
|---|
within 7 days
€1,340.52 including VAT
| Weight |
|---|
| 3,50 kg |
Description of LOCINOX operator for pedestrian swing gates, with sliding arm, VENUS S, black
Locinox Venus is a gate operator designed for pedestrian swing gates, allowing step-free access and hygienic opening of doors, making it suitable for doctors’ offices, clinics or medical centres. It is also a suitable solution for hotels, parks, resorts, care homes and other outdoor facilities that require step-free access and high quality with a long service life.. It is also suitable for swing gates on private properties, providing convenient step-free access. Thanks to its high-quality construction, the operator is designed for outdoor use, but is also suitable for indoor use.
Sliding-arm operator is a suitable solution when the gate and post are aligned.
Compact operator with simple installation, for posts with a minimum profile of 80mm.
The control unit has 3 built-in inputs and 3 outputs, so you can connect the device to motion sensors, to open the gate using a button, or to lighting, or alternatively to a card reader and many other devices.
Examples of motion sensors that can be connected to the operator include relay photocells or a microwave motion detector.
When combined with other devices, the operator can also function as an electronic intercom or another automated gate-opening system. For example, you can connect an external receiver to the operator and control it using remote controls, which can be the same ones used to open the main gate.
The gate operator is designed for pedestrian gates up to 140 cm wide and weighing up to 100kg.
The gate operator has an integrated control unit, with a torque of 150 Nm, a steel gearbox and an anodised aluminium cover..
The reversible motor ensures a high level of safety when pedestrians pass through the gate, as it can be pushed open by hand with little force when disengaged.
Easy installation of the Venus operator is ensured by the Quick-Fix.
The compact design is vandal-resistant, with an integrated warning light and automatic obstacle detection with reverse function to provide your entrance gate with the safety it needs.
Input power: 115V AC ±10% (60Hz) to 230V AC ±10% (50Hz).
The 24V DC brushless motor provides a long service life and intensive-use capability,, with a reverse function for easy manual operation—in combination with a lock.
Safe, quiet and complete gate closure is a key benefit of this operator, whose design makes it suitable for all types of pedestrian swing gates.
Technical specifications:
| Max. gate width | up to 140 cm |
|---|---|
| Max. gate weight | up to 100 kg |
| Post profile | min. 80mm |
| Motor torque | 150 Nm |
| Input power |
115V AC ±10% (60Hz) to 230V AC ±10% (50Hz) |
| Motor voltage | 24V DC |
| Protection rating | IP 54 |

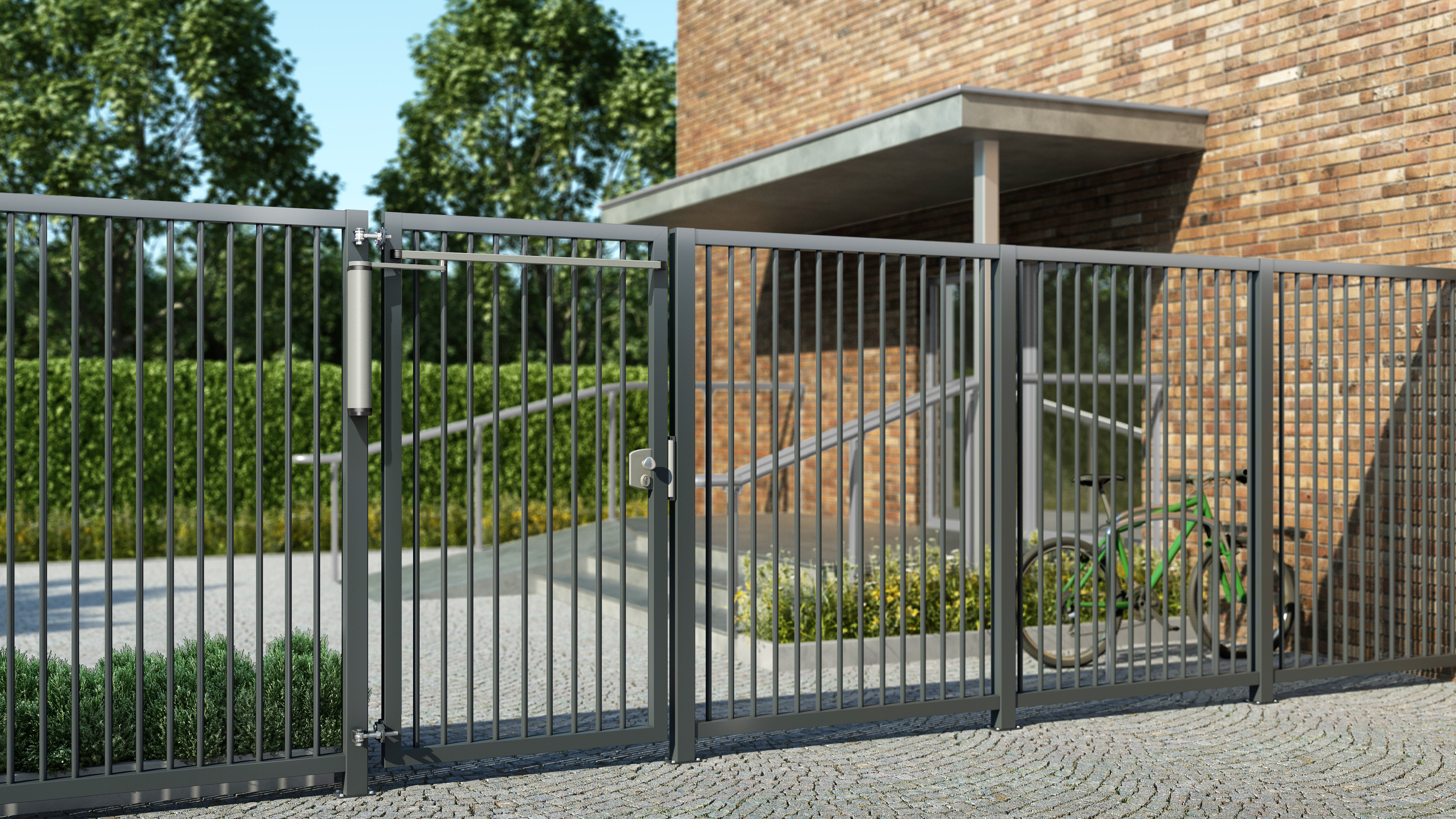

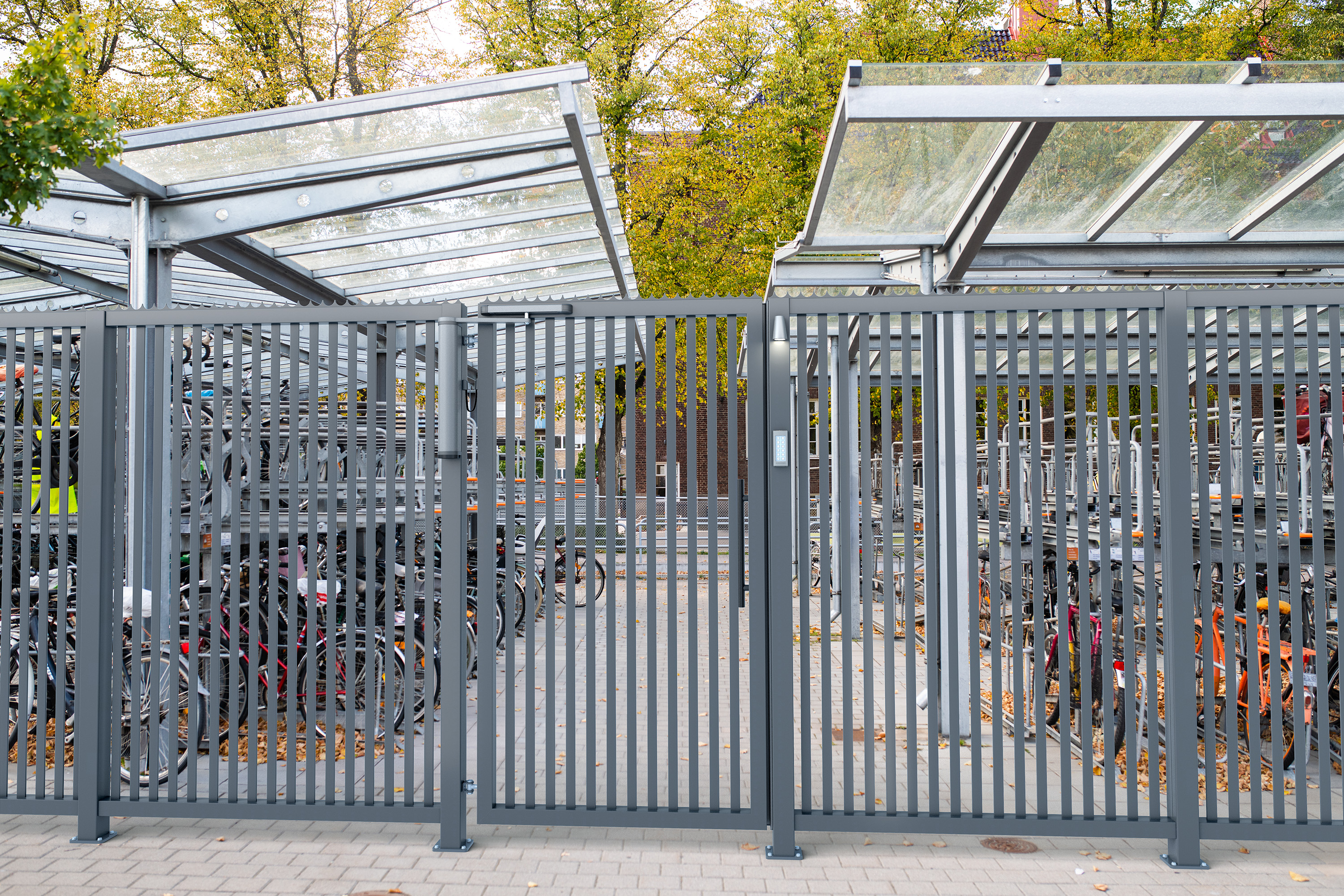

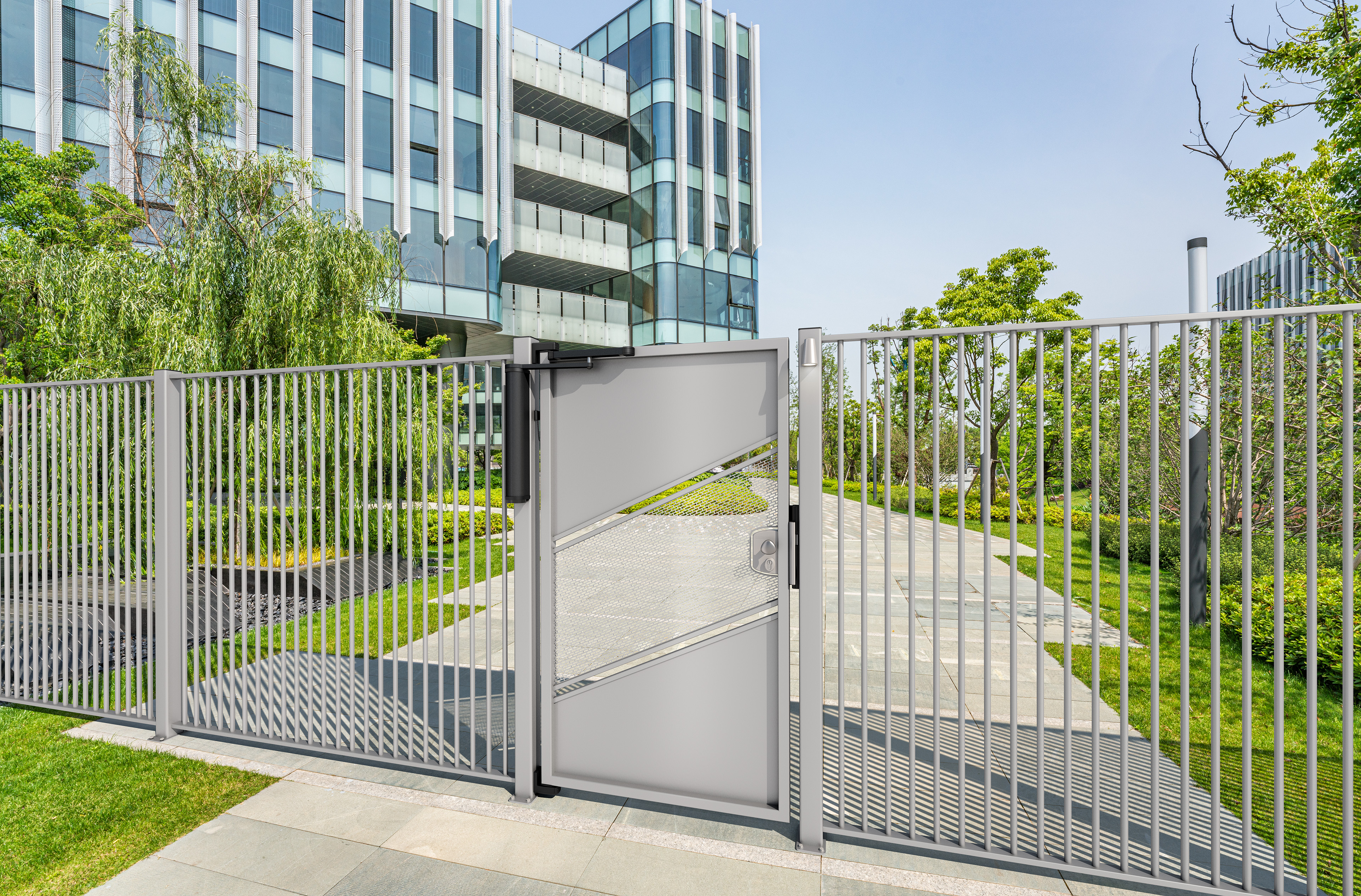

Example of using the Locinox Venus drive:
Example of how the Locinox Venus drive works:
