LOCINOX operator for pedestrian swing gates, with an arm up to 180°, VENUS G, black
| Product availability: | within 7 days | We usually dispatch goods within 7 days. |
|---|
within 7 days
€1,340.52 including VAT
| Weight |
|---|
| 3,50 kg |
Description of LOCINOX operator for pedestrian swing gates, with an arm up to 180°, VENUS G, black
Locinox Venus is an operator designed for pedestrian swing gates, which provides step-free access and hygienic opening of doors, making it suitable for medical practices, clinics, or healthcare centers. It is also a suitable solution for hotels, parks, resorts, retirement homes, and other outdoor facilities that require step-free access and high quality with a long service life. It is also suitable for swing gates on private properties, providing convenient step-free access. Thanks to its high-quality construction, the operator is designed for outdoor use, but is also suitable for indoor use.
An operator with an arm opening up to 180° is a suitable solution when the gate and post are positioned in line with each other.
Compact operator with simple installation, for posts with a minimum profile size of 80mm.
The control unit has 3 built-in inputs and 3 outputs, so you can combine the device with motion sensors, a gate opening push button, or sensors for lights, or with a card reader and many other devices.
Examples of motion sensors that can be used with the operator include relay photocells or a microwave motion detector.
When combined with other devices, the operator can also function as an electronic door entry system or another automated gate-opening system. For example, you can connect an external receiver to the operator and control it with remote controls, which can be the same ones used to open the main gate.
The swing gate operator is designed for pedestrian gates up to 140 cm wide and weighing up to 100kg.
The gate operator features an integrated control unit, with a torque of 150 Nm, a steel gearbox, and an anodized aluminum cover.
The reversible motor ensures a high level of safety for pedestrians passing through the gate, as it can be pushed open by hand without applying much force when disengaged.
Easy installation of the Venus operator is ensured by the Quick-Fix.
The compact design is vandal-resistant, with an integrated warning light and automatic obstacle detection with reverse function provides your entrance gate with the safety it needs.
Input power: 115V AC ±10% (60Hz) to 230V AC ±10% (50Hz).
The 24V DC brushless motor provides a long service life and supports intensive use, with a reverse function for easy manual operation—in combination with a lock.
Safe, quiet, complete gate closure is one of the advantages of this operator, whose design is suitable for all types of pedestrian swing gates.
Technical specifications:
| Max. gate width | up to 140 cm |
|---|---|
| Max. gate weight | up to 100 kg |
| Post profile size | min. 80mm |
| Motor torque | 150 Nm |
| Input power |
115V AC ±10% (60Hz) to 230V AC ±10% (50Hz) |
| Motor voltage | 24V DC |
| Protection rating | IP 54 |

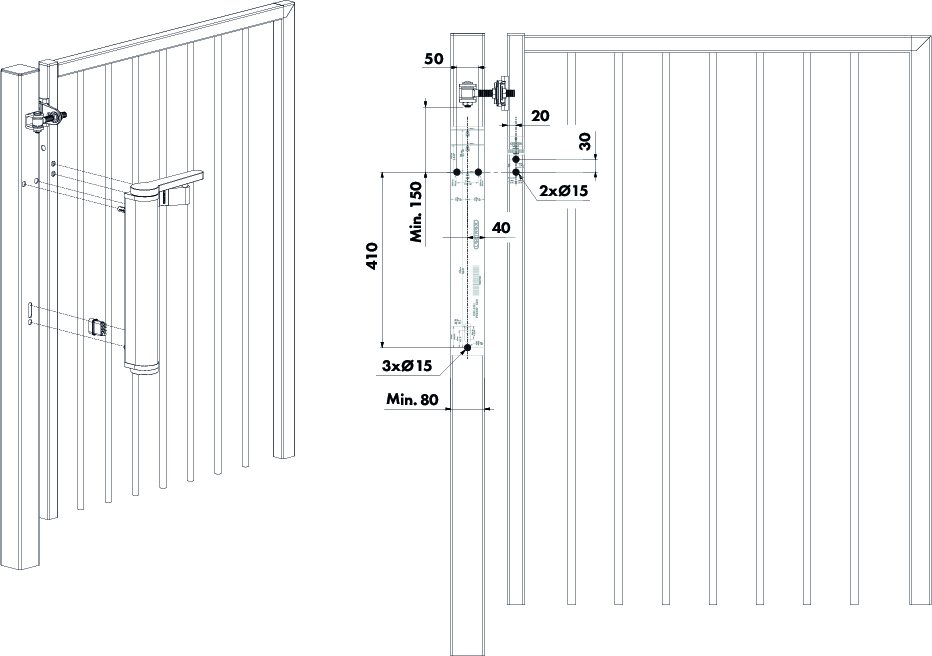

LOCINOX VENUS DRIVE INSTALLATION EXAMPLE:
