LOCINOX operator for pedestrian swing gates, up to 140 cm/100 kg, with articulated arm, VENUS A
| Product availability: | within 7 days | We usually dispatch goods within 7 days. |
|---|
within 7 days
€1,317.06 including VAT
| Weight |
|---|
| 3,50 kg |
Description of LOCINOX operator for pedestrian swing gates, up to 140 cm/100 kg, with articulated arm, VENUS A
Locinox Venus is an operator designed for pedestrian swing gates, which provides step-free access and hygienic opening of doors, making it suitable for doctors’ offices, clinics, or medical centers. It is also a suitable solution for hotels, parks, leisure centers, retirement homes, and other outdoor facilities requiring step-free access and high quality with a long service life. It is also suitable for swing pedestrian gates on private properties, providing convenient step-free access. Thanks to its high-quality construction, the operator is designed for outdoor use, but is also suitable for indoor use.
An operator with an articulated arm is a suitable solution when the post is offset from the gate or aligned with it.
Compact operator with simple installation, for posts with a minimum profile size of 80mm.
The control unit has 3 built-in inputs and 3 outputs, so you can connect the device to motion sensors, a gate opening button, or sensors for lights, or even a card reader and many other devices.
Examples of motion sensors that can be connected to the operator include relay photocells or a microwave motion detector.
When used with other devices, the operator can also function as an electronic entry system or another automated gate-opening system. For example, you can connect an external receiver to the operator and control it using remote controls, which can be the same ones used to open the main gate.
The gate operator is designed for pedestrian gates up to 140 cm wide and weighing up to 100kg.
Gate operator with an integrated control unit and a torque of 150 Nm, a steel gearbox, and an anodized aluminum cover.
The reversible motor ensures a high level of safety as pedestrians pass through the gate, since it can be pushed open by hand without much effort when disengaged.
Easy installation of the Venus operator is ensured by the Quick-Fix.
Its compact, vandal-resistant design, integrated warning light, and automatic obstacle detection with reverse function provide the security your entrance gate needs.
Input power: 115V AC ±10% (60Hz) to 230V AC ±10% (50Hz).
The 24V DC brushless motor provides a long service life and supports intensive use, with a reverse function for easy manual operation, when used with a lock.
Safe, quiet, and complete gate closure is one of the operator’s benefits, and its design is suitable for all types of pedestrian swing gates.
Technical specifications:
| Max. gate width | up to 140 cm |
|---|---|
| Max. gate weight | up to 100 kg |
| Post profile size | min. 80mm |
| Motor torque | 150 Nm |
| Input power |
115V AC ±10% (60Hz) to 230V AC ±10% (50Hz) |
| Motor voltage | 24V DC |
| Protection rating | IP 54 |

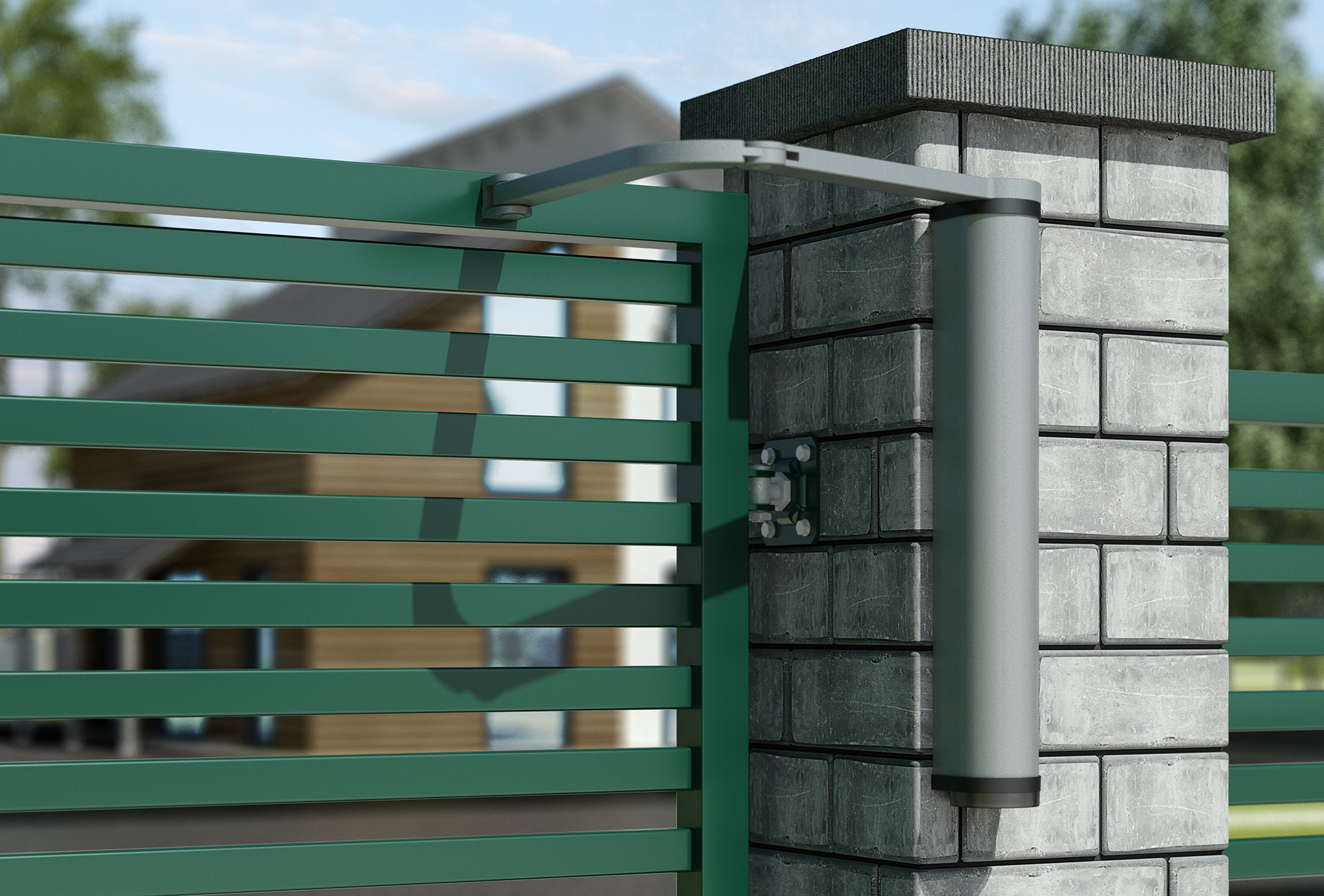

Example of using the Locinox Venus operator:
Example of installing the Locinox Venus operator:
