Kit for making a self-supporting sliding gate up to 4.5 m AL 83x79x11
TOP AL| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€675.79 including VAT
| Weight |
|---|
| 45 kg |
Description of Kit for making a self-supporting sliding gate up to 4.5 m AL 83x79x11
Note: The SET is more cost-effective than buying the individual components compared with buying the individual components. We can customize the contents of the SET on request and deduct an appropriate discount. If you have a specific request or would like some advice, contact us.
| The set includes: | SADA-39 | ||
|---|---|---|---|
 |

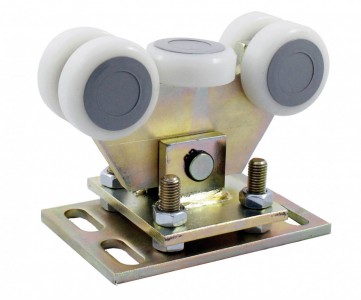

2 × | Adjustable swing carriage, 5 rollers | V-02-3 |
|
You can choose nylon or metal rollers. Nylon rollers support heavy gate loads, prevent wear on the C-profile, and ensure quiet operation. Nylon and metal rollers are the same price |
Detail  |
||
 |

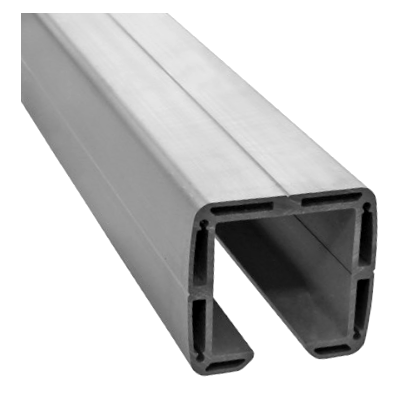

1 × 6 m | Aluminium C-profile 83x79x11 mm, AL | CP-AL-83x79 |
|
A heavy-wall aluminium C-shaped guide profile welded to the underside of the gate, allowing it to run on carriages anchored in a concrete foundation. |
Detail |
||
 |
1 × | Bottom guide ramp | SN-347M |
|
The guide wheel is fitted at the start of the C-profile and rolls into the bottom stop mounted on the receiving post, relieving the gate when closed. |
Detail |
||
 |
1 × | Receiver pocket – bottom stop | DK-1-80 |
|
The receiver pocket is mounted at the bottom of the receiving post. It relieves the push and pull forces acting on the carriages when the gate is closed. |
Detail |
||
 |
2 × | C-profile end cap | SK-20M |
|
The end cap for a sliding gate's C-profile is fitted at the start and, if required, at the end of the guide profile. It slides into the C-profile and is secured with screws. |
Detail |
||
