Kit for making a 2 m x 1.2 m aluminium fence panel, 160x16 mm slats, unfinished
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€295.10 including VAT
| Weight |
|---|
| 21 kg |
Description of Kit for making a 2 m x 1.2 m aluminium fence panel, 160x16 mm slats, unfinished
Aluminium fence infill designed for those who want to build it themselves a low-maintenance modern fence. It uses a modular aluminium system that allows quick installation using screws, with no welding required. The set is suitable as infill for a fence, gate, wicket gate or other structures. Dimensions of slats: 160 x 16 x 2000 mm. Fence panel dimensions: 2 x 1.2 metres. >>Download the installation manual>>.
Adjustable width: The profiles can be easily cut to size. This lets you adjust the width of the fence panel to suit your needs.
Adjustable height: you can also choose the spacing between the slats. A guide groove is marked on the U-profile to show where to screw in the slat. You can choose the layout of the slats and the spacing between them.
The standard spacing between slats for this panel is 2 cm (for a total height of 1.2 m). Increasing the spacing between the infill slats can give you a panel height of up to 1.5 m. This flexibility lets you adapt the infill profiles to your requirements.
Advantages
- Complete set – no need to worry about component compatibility.
- Lightweight and long-lasting.
- A low-maintenance modern fence.
- Versatile use – the fence panel is suitable as infill for a gate, fence or other structure.
- You can install it using standard tools.
- Easy installation – the slats are screwed directly into the grooves in the U-profile.
- Design flexibility – the untreated fence can be anodised, left with its raw appearance or painted to suit your individual requirements.
- Saves time and money.
- The set includes all the components needed for one fence panel measuring 1.2 m (height) × 2 m (width).
Important: This set is supplied unassembled, as separate aluminium profiles and fasteners. It is not a ready-assembled fence panel.
| Set SADA-AL-PV8-2x1.2 contains: | ||||
|---|---|---|---|---|
|
6 × | Aluminium fence slat 160x16 mm, rectangular shape, 2 metres | AL-PV8-2 | |
|
Aluminium slat for filling a fence, gate, wicket gate or other structure. Unfinished. Can be anodised or painted. |
Details
|
|||
|
1 × | Aluminium U-shaped mounting profile, unfinished, 20.5 mm wide, 3 m | AL-UP1-3 | |
|
The U-shaped aluminium mounting profile for fence slats is suitable for installation between posts on a gate, fence or other structure, or between low walls. The profile has an external width of 20.5 mm, a projection of 23 mm and a length of 2 m. The outside of the profile has recessed grooves for precise screw positioning. |
Details
|
|||
|
1 × | DIN 7982 screw, A2, 3.5x19 mm – pack of 50 pcs | S-7982-1 | |
|
Stainless steel self-tapping screw (E14S3.5, DIN 7982) for fastening aluminium slats to mounting profiles. It is compatible with the infill profile, U-profile and UT profile. Each pack contains 50 pieces. |
Details
|
|||

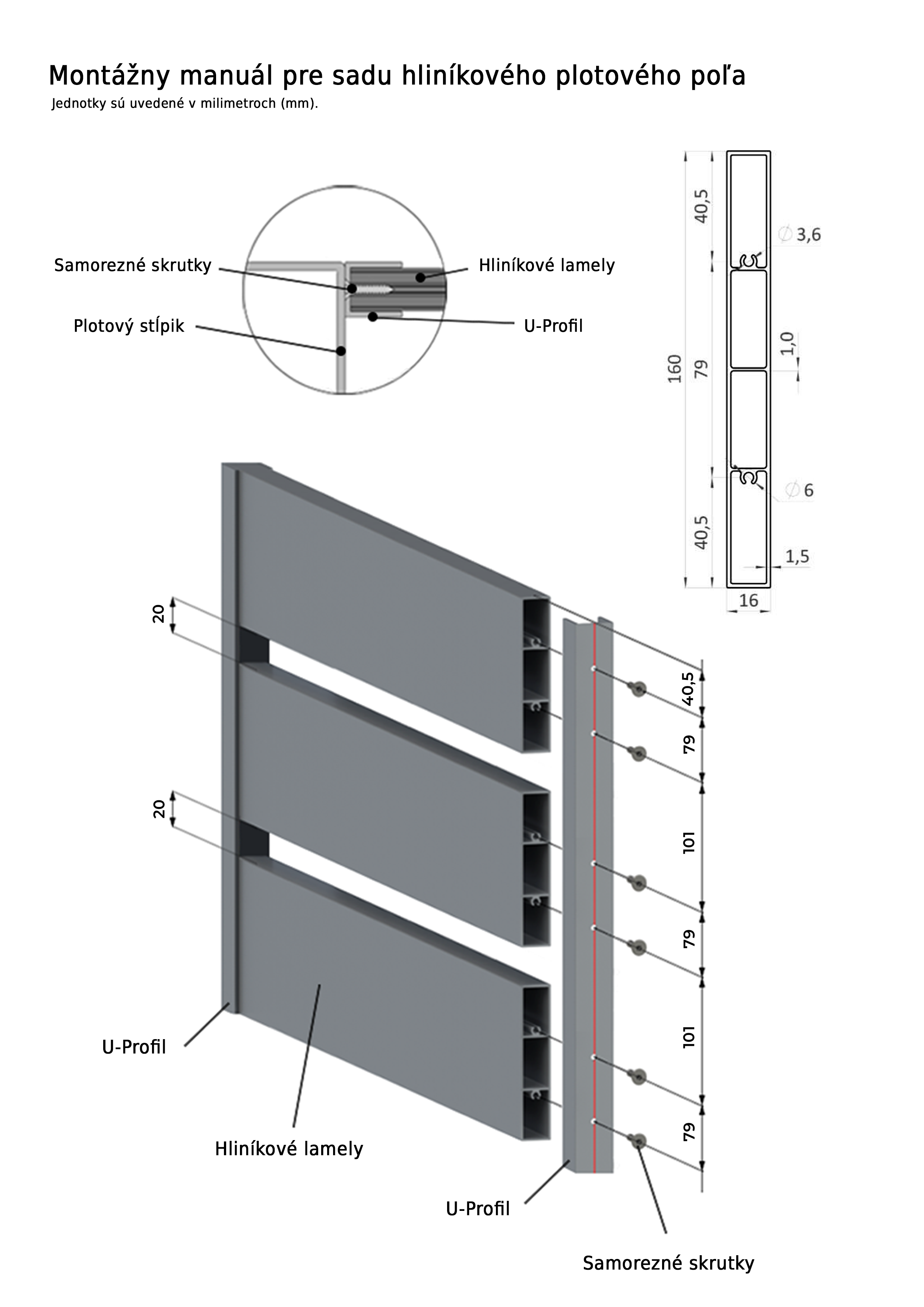

.png "Manual for the 2x1,2 fence panel kit (160x16 rectangular slats)")
|
1 × | Manual for the 2x1,2 fence panel kit (160x16 rectangular slats) |
Download
|
|
|
Installation manual with illustrated wiring diagrams and instructions for programming and pairing remote controls. |
||||
Installation
You can easily install it yourself with our kit. The U-shaped mounting profile has a groove running along the entire length of its side, making it easier to position the slats precisely. The slats also make installation easier, as they have precisely positioned mounting holes for securely fastening them to the U-profile with self-tapping steel screws.
- Length of the mounting profiles: Cut the U-profile into two pieces, each 120 - 150 cm long.
- Spacing between the fence slats: Following the installation instructions (mounting holes in the slats), mark the spacing on the U-profile and drill holes for the screws.
- Fastening the aluminium slats: Position the U-profiles along the sides and the slats perpendicular between them, then securely fasten everything together with self-tapping steel screws.
How to install a fence panel
The U-profiles are to fence posts or to profiles in a gate or wicket gate frame, and are installed using screws, preferably with a countersunk head. If the post or gate frame is also made of aluminium, the fence panel can also be installed by welding.
When anchoring the fence panel to a low wall we recommend using a chemical anchor and threaded rods. Finally, use screw caps on the nuts and ends of the threaded rods, or paint them over (you can also use a metal marker in the desired colour).
Fence panel visualisation
Material and Finish
The slats and profile are made of durable, untreated aluminium, making them ideal for any finish to suit your individual needs. The self-tapping screws are made of stainless steel. All components of the fence panel are corrosion-resistant.
Important information before purchase
- This product is intended for DIY installation.
- The U-shaped mounting profile must be cut into two pieces, each 120 - 150 cm long.
- Structural profiles (posts, gate frame) are not included.
| Material: | aluminium (slats, profiles), stainless steel (screws) |
|---|---|
| Finish: | unfinished |
| Structure dimensions: | 1.2 m (height) × 2 m (width) |
| Dimensions of the slats: | 160 × 16 × 2000 mm |
