Kit for building a self-supporting stainless steel sliding gate up to 4.5 m, INOX 58x58x3
INOX| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€810.41 including VAT
| C-channel dimensions | Weight |
|---|---|
| 58×58×3 | 38 kg |
Description of Kit for building a self-supporting stainless steel sliding gate up to 4.5 m, INOX 58x58x3
All components in the set are stainless steel.
Note: The SET compared with the individual components is discounted. We can adjust the contents of the SET on request and deduct an appropriate discount. If you have a specific request or would like some advice, contact us.
| Set includes: | SADA-27 | ||
|---|---|---|---|
 |

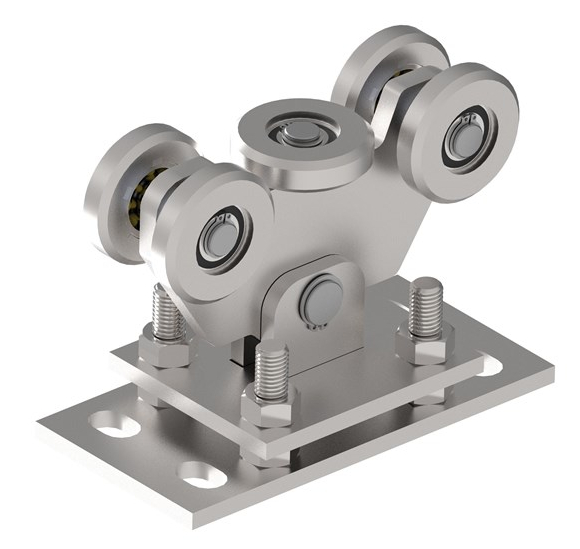

2 × | Stainless steel five-bearing-roller carriage with base plate | V-02-12-INOX |
|
Carriage made of stainless steel with five stainless steel bearing rollers. |
Detail  |
||
 |
6 m | Stainless steel C-profile 58x58x3mm | CP-INOX-58 |
|
A stainless steel C-shaped guide profile welded to the underside of the gate, allowing it to run on carriages anchored in a concrete foundation. |
Detail |
||
 |
1 × | Stainless steel bottom catcher | SN-1-58-INOX |
|
The guide roller is fitted to the beginning of the C-profile and rolls into the bottom catcher mounted on the stop post, relieving the gate when closed. |
Detail |
||
 |

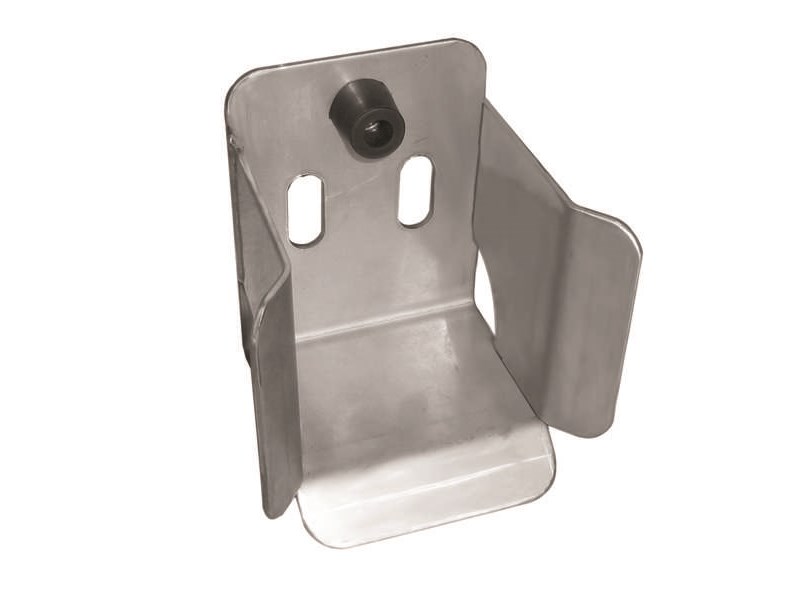

1 × | Stainless steel bottom stop | DK-1-58-INOX |
|
A catcher socket fitted at the bottom of the stop post. It relieves the compressive and tensile forces acting on the carriages when the gate is closed. |
Detail |
||
 |

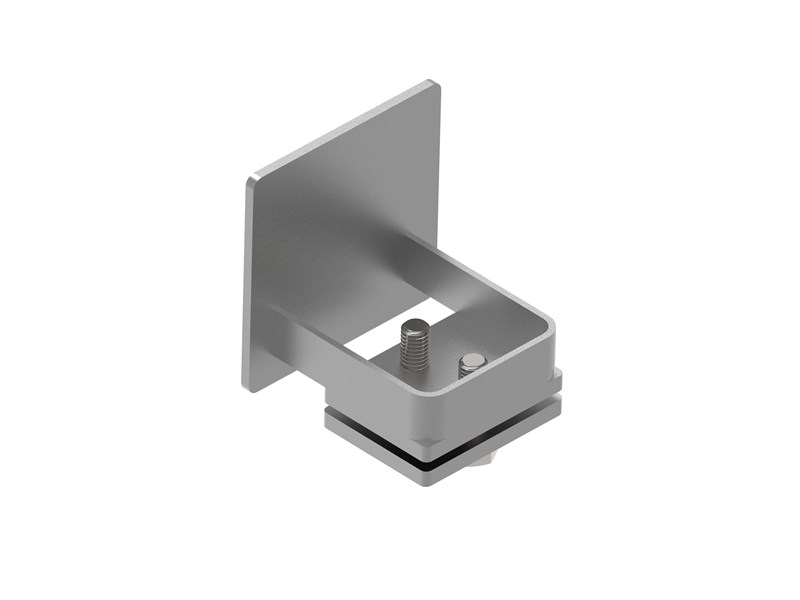

1 × | Stainless steel C-profile end cap | SK-1-58-INOX |
|
The end cap for a sliding gate's C-profile is fitted at the beginning and, if required, at the end of the guide C-profile. It slides into the C-profile and is secured to it with a pressure plate tightened with two screws. |
Detail |
||
