Kit for assembling a 2 m x 1.2 m aluminium fence panel, 100x16 mm slats, unfinished
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€221.29 including VAT
| Weight |
|---|
| 16 kg |
Description of Kit for assembling a 2 m x 1.2 m aluminium fence panel, 100x16 mm slats, unfinished
Aluminium fence infill designed for those who want to build it themselves and build a low-maintenance modern fence. It uses a modular aluminium system that allows quick assembly using screws, with no welding required. The set is suitable as infill for a fence, gate, wicket gate, and other structures. Fence panel dimensions: 2 x 1.2 metres. >>Download the installation manual>>.
Adjustable width: The profiles can be easily cut to size. This lets you adjust the width of the fence panel to suit your needs.
Adjustable height: You can also choose the spacing between the slats. A guide groove is marked on the U-profile for screwing in the slat. You can choose the arrangement of the slats and the spacing between them.
The standard spacing between slats for this panel is 5 cm (for an overall height of 1.2 m). By increasing the spacing between the infill slats, you can also achieve a height of 1.5 m. This flexibility lets you adapt the infill profiles to your specific requirements.
Benefits
- Complete set — no need to worry about component compatibility.
- Lightweight and long-lasting.
- Low-maintenance modern fence.
- Versatile use — the fence panel is suitable as infill for a gate, fence, or other structure.
- You can assemble it with standard tools.
- Easy assembly — the slats are screwed directly into the grooves of the U-profile.
- Design freedom — the fence can be left unfinished, anodised, kept in its raw finish, or painted to suit your individual needs.
- Saves time and money.
- The set includes all the components needed for one fence panel measuring 1.2 m (height) × 2 m (width).
Important: This set is supplied flat-packed as separate aluminium profiles and fasteners. It is not a pre-assembled fence panel.
| Set SADA-AL-PV3-2x1.2 contains: | ||||
|---|---|---|---|---|
|
8 × | Aluminium fence slat, 100x16 mm, rectangular, unfinished, 2 m | AL-PV3-2 | |
|
Aluminium slat, suitable for use as infill for a fence, gate or any other space. The slat is rectangular, 100 mm high, 16 mm wide and 2 metres long. The slat is hollow and has mounting holes on the sides for fixing screws. |
Details
|
|||
|
1 × | Aluminium U-shaped mounting profile, unfinished, 20.5 mm wide, 3 m | AL-UP1-3 | |
|
The U-shaped aluminium mounting profile for fence slats is suitable for installation between posts on a gate, fence or other structure, or between low walls. The profile has an external width of 20.5 mm, a projection of 23 mm and a length of 2 m. The outside of the profile has recessed grooves for precise screw positioning. |
Details
|
|||
|
1 × | DIN 7982 screw, A2, 3.5x19 mm – pack of 50 pcs | S-7982-1 | |
|
Stainless steel self-tapping screw (E14S3.5, DIN 7982) for fastening aluminium slats to mounting profiles. It is compatible with the infill profile, U-profile and UT profile. Each pack contains 50 pieces. |
Details
|
|||
.png)
|
1 × |
Download
|
||
|
Installation manual with illustrated wiring diagrams and instructions for programming and pairing remote controls. |
||||
Installation
You can install it yourself with our kit. The mounting U-channel has a groove running along the entire length of its side, making it easier to position the slats precisely. The slats also make installation easier, as they have precisely positioned mounting holes for secure fastening to the U-channel with self-tapping steel screws.
- Length of the mounting profiles: Cut the U-channel into two pieces, each 120 - 150 cm long.
- Spacing between the fence slats: Using the installation instructions (the mounting holes in the slats) as a guide, mark the spacing on the U-channel and drill holes for the screws.
- Fastening the aluminum slats: Position the U-channels along the sides, place the slats perpendicular between them, and fasten everything securely with self-tapping steel screws.
How to install a fence panel
The U-channels are to fence posts using using screws, ideally with a countersunk head. If the post or gate frame is also made of aluminum, the fence panel can also be installed by welding.
When anchoring the fence panel to a masonry wall we recommend using a chemical anchor and threaded rods. Finally, use screw caps on the nuts and ends of the threaded rods, or paint them over (alternatively, use a metal marker in the desired color).

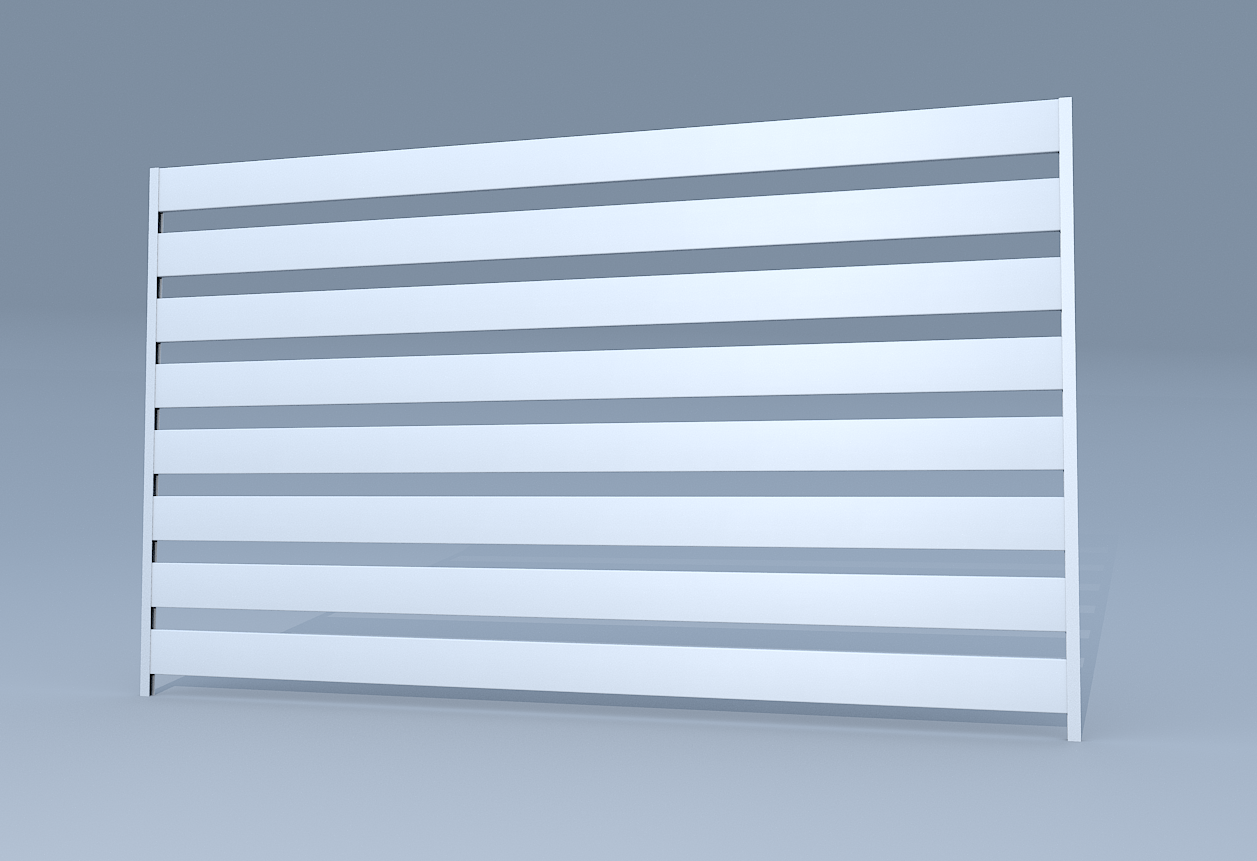

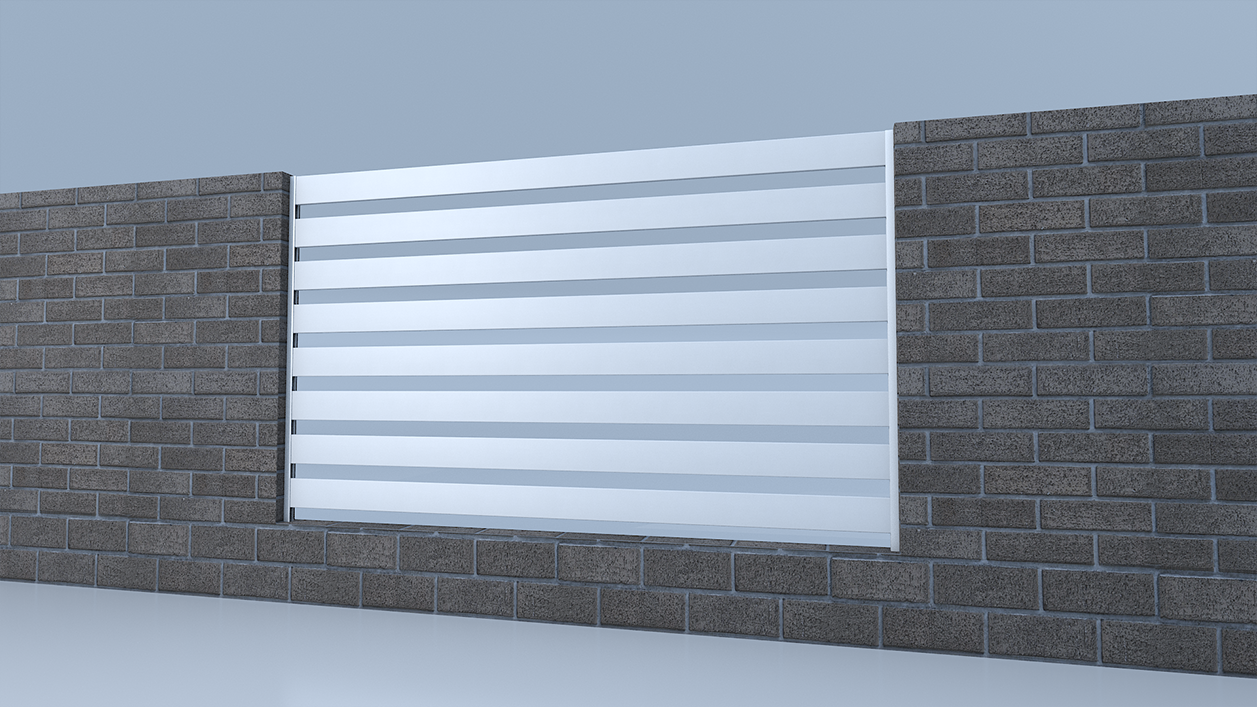

Fence panel visualization
Material and surface finish
The slats and profile are made of durable, unfinished aluminum with no surface coating, making them ideal for any surface finish to suit your individual needs. The self-tapping screws are made of stainless steel. All components of the fence panel are corrosion-resistant.
Important information before purchase
- This product is intended for DIY installation.
- The mounting U-channel must be cut into two pieces, each 120 - 150 cm long.
- Structural profiles (posts, gate frame) are not included.
360° VIEW OF THE ALUMINUM FENCE PANEL:
360° VIEW OF THE DISASSEMBLED ALUMINUM FENCE PANEL:
| Material: | aluminum (slats, profiles), stainless steel (screws) |
|---|---|
| Surface finish: | unfinished |
| Structure dimensions: | 1.2 m (height) × 2 m (width) |
