KEY Sub SUB-44CR - four-channel remote control for KEY operators with rolling code, red
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
In stock
€36.75 including VAT
| Weight |
|---|
| 50,00 g |
Description of KEY Sub SUB-44CR - four-channel remote control for KEY operators with rolling code, red
Four-channel (i.e. four-button) remote control from the Sub compatible with all KEY drives using the ROLLING rolling code and blue LED signal transmission indicator. With this remote control, you can operate four KEY devices, or use a receiver to KEY RXM23 also operate a device from another brand.
Please note: the LED on the KEY Sub SUB-44CR remote control lights up blue, which means the remote supports the ROLLING rolling code. If your remote control lights up red, it is the remote control KEY Sub SUB-44, which supports fixed code. Or, if the LED lights up green, it is a copying remote control, the KEY Sub SUB-44N.
Product contents the KEY Sub SUB-44CR
- remote control with blue LED
- CR2032 lithium battery (replacement)
- KEY Sub SUB-44CR remote control manual
Technical specifications of the remote control the KEY Sub SUB-44CR
| Frequency: | 433,92 MHz |
|---|---|
| Number of channels: | 4 buttons, blue LED |
| Power supply: | 3V DC; CR2032 lithium battery |
| Remote control range: |
approx. 100 m outdoors |
| Signal encoding: | ROLLING |
| Current consumption: | 8mA |
| Operating temperature: | -10°C to 55°C |
| Protection rating: | IP67 |
| Dimensions: | 72×42×11 mm (width × depth × height) |
| Weight: | 36g |
How to pair the remote control the KEY Sub SUB-44CR with a KEY
Refer to the manual for the receiver you want to pair the remote control with. To pair the remote control with an external KEY RXM23 receiver, see instructions for adding the remote control to and deleting it from the receiver's memory.
Photo gallery of the remote control the KEY Sub SUB-44CR

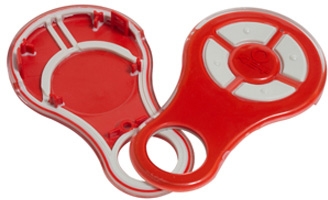

KEY SUB-44R remote controls can be supplied to order with coloured covers in various colours, or you can order the replaceable covers on their own right here.

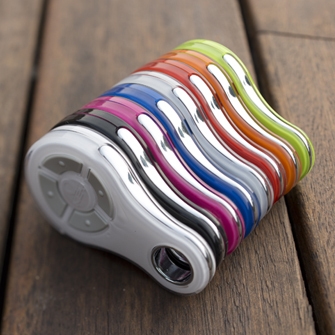

| Colour options for KEY Sub remote controls | The remote controls have replaceable covers |
|---|---|
 |
 |
Replacing the battery in the remote control the KEY Sub SUB-44CR

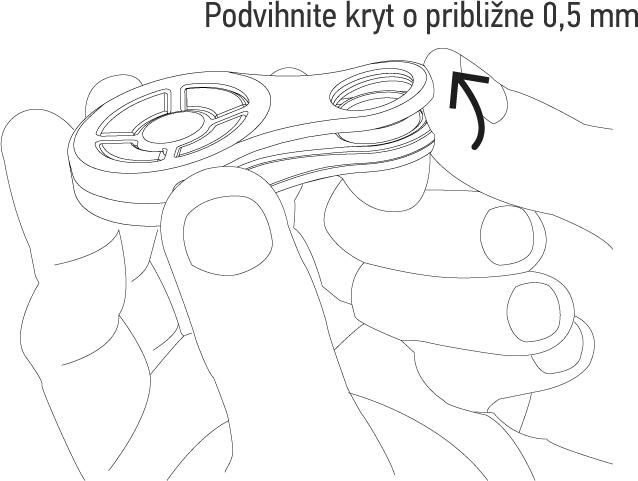

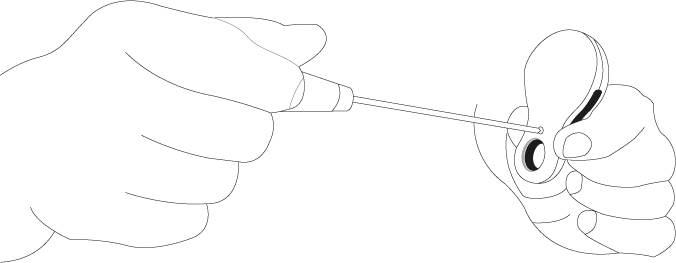

| 1. Unscrew the screw on the back | 2. Lift the bottom of the cover by approximately 0.5mm |
|---|---|
 |
 |

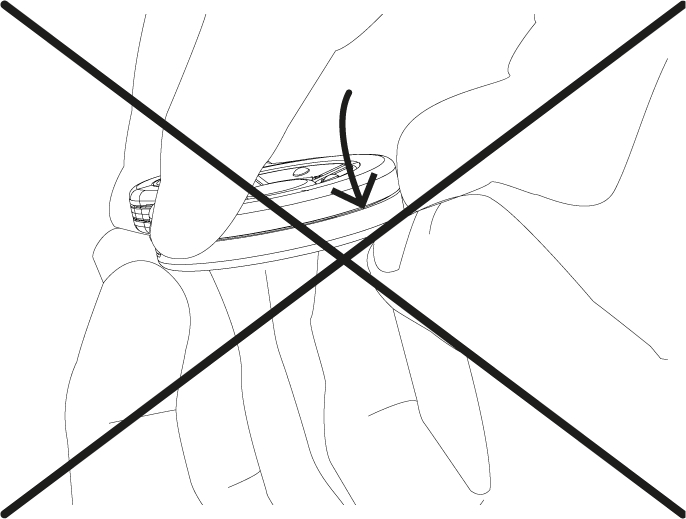

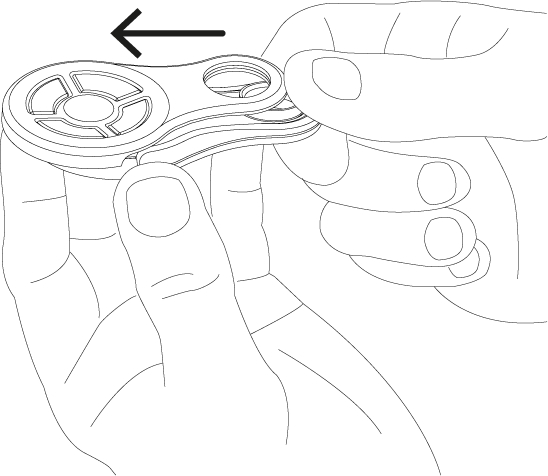

| 3. Gently push the cover upwards | 4. Do not press on the top part of the cover |
 |
 |

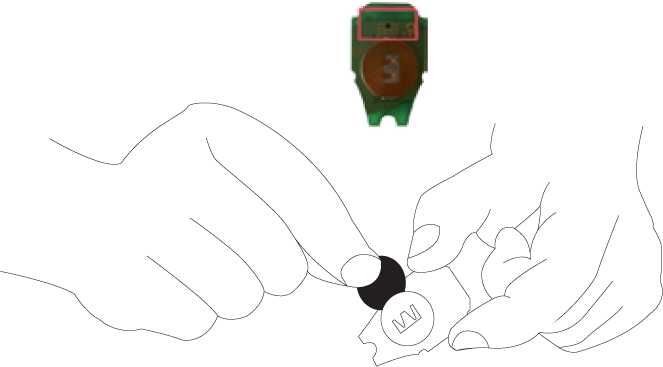

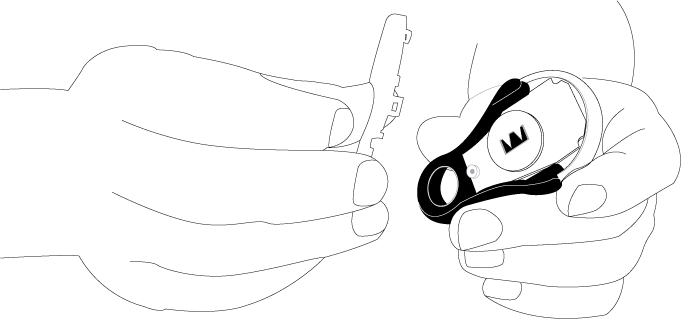

| 5. Separate the two parts of the cover | 6. Replace the battery on the circuit board |
 |
 |

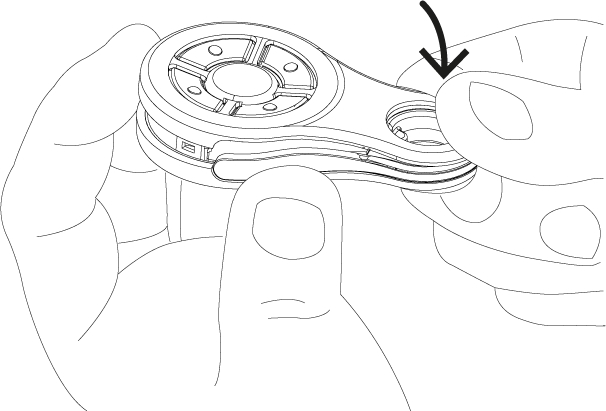

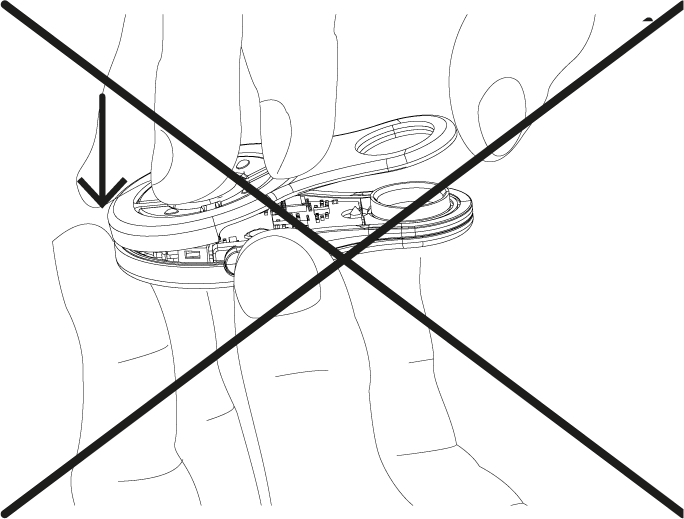

| 7. Position the bottom part of the cover and join the two parts together | 8. Do not start joining the parts at the top; start at the bottom |
 |
 |

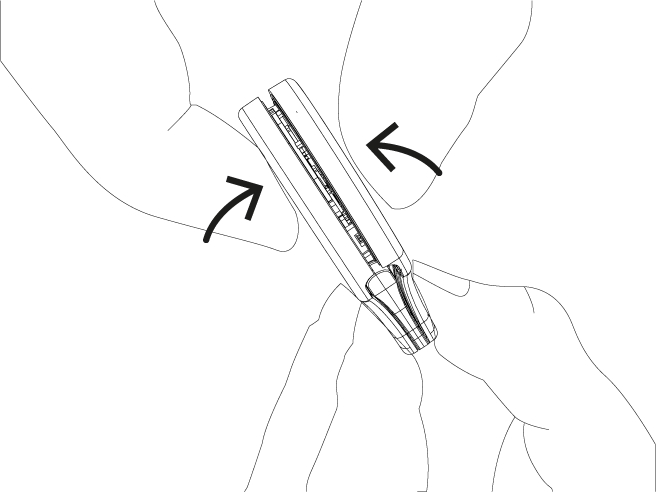

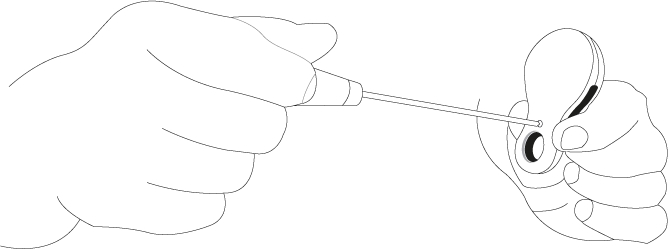

| 9. Snap the top parts of the covers together | 10. Screw the screw back into the rear |
 |
 |
The four-channel remote control is designated by the manufacturer as 900SUB-44CR, 900KSUB44CR, or KSUB44CR.
