Intelligate IG350 kit for building a cantilever gate with an extra-short overhang
NEW| Product availability: | within 7 days | We usually dispatch goods within 7 days. |
|---|
within 7 days
€3,805.84 including VAT
| Weight |
|---|
| 60 kg |
Description of Intelligate IG350 kit for building a cantilever gate with an extra-short overhang
Is there not enough space on your property for the overhang of a conventional cantilever sliding gate? The Intelligate system is designed specifically for situations where the space beside the gate opening is too short to accommodate a standard gate overhang. >>Download the installation manual>>.
With the Intelligate IG350 system, an overhang of just 40 cm is sufficient for the clear gate opening width. A conventional cantilever gate with a 4-meter opening would require an overhang of approximately 1.5 to 2 meters. With the Intelligate system, you save more than a meter of space.
| The kit includes: | IG350 kit | |||
|---|---|---|---|---|
 |
1 × | Complete INTELLIGATE 350 trolley system for MGD C-profile | IG350 | |
 |
1× | Aluminium C-profile MGD 5400mm | MGD1-LS | |
 |
1 × | Mounting bracket for drives | MK-IG | |
 |
1 × | MGD C-profile end stop | MGD1-EDR | |
 |
1 × | MGD C-profile end cap | MGD1-ED | |
 |
1 × | Lower stop | NALS | |
 |
1 × | Top stop with rollers | NELGR-60 | |
| Installation manual | ||||

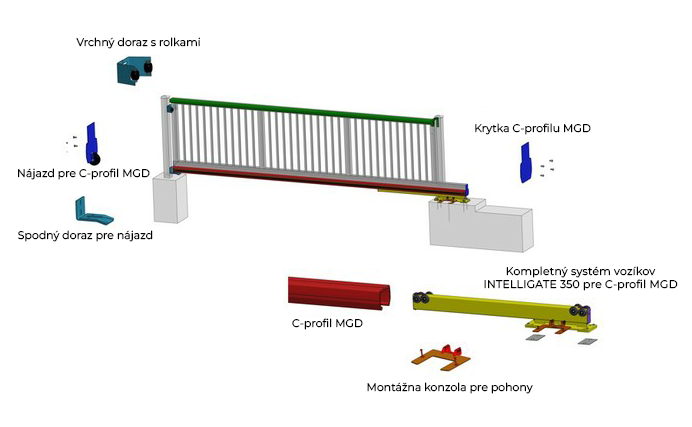

Component layout in the structure:
Example:
If the gate has a clear opening width of 4000 mm, the space required to open it fully with the Intelligate system is 4400 mm (4000 mm opening/gate + 400 gate overhang).
Dimensions:
- GL: overall length
- DL: clear opening width
- GP: base plate length
- EL: support arm length
- Effective EL: effective clamping length
- H: top edge of the guide rail (=200 mm)
- Max. gate weight: maximum gate weight including the rail
- Max. weight/m: maximum weight per metre including the rail (5 kg/m)
Warning:
- The running gear must be secured with four anchors, each with a minimum clamping force of 25 kN.
- This clamping force is achieved using a bonded-in M12 threaded rod tightened to 60 Nm.
- Before tightening the anchors, fill the gap between the base plate and the foundation with grout.
How can I order this item?
Choose the option that suits you:
- order online: use the buy button to add the goods to your shopping cart (you will find the buy button here in the product variants table).
- order by email: place your order at [email protected]
