Galvanised ground anchor for 42.4 mm tube
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€21.06 including VAT
| Weight |
|---|
| 0,98 kg |

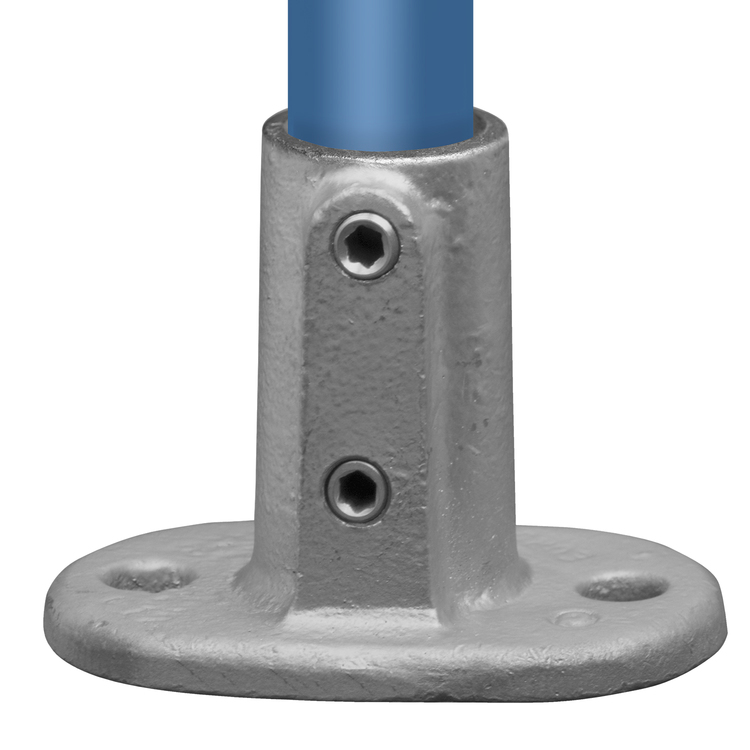

Description of Galvanised ground anchor for 42.4 mm tube
Galvanized ground anchor for tubes, designed to support a vertical tube and anchor a structure. The anchor can be used, for example, as a base flange for a railing.
The anchor’s vertical wall is wider at the Allen-key fastening points, which provides a stronger joint and more secure anchoring of the structure. Fastening to the horizontal base flange should be appropriate for the applied load. The anchor is secured to the ground using 2 holes with a diameter of 14.5 mm.
The inner diameter of the hole for the tube in the anchor is 1 mm larger than the tube diameter. The product is designed for a 42.4 mm tube (1¼”), which fits exactly.
Connectors slide onto the profile at the joint and are secured with an Allen screw (3/8" - 9.52 mm). Without welding you can create a strong joint.
Tube connectors or pipe connectors are suitable for building more robust 2D and 3D structures, such as a pallet racking system or railing. Other possible uses for profile connectors include DIY construction of a shelving unit, stand, barrier, or even a frame for an advertising banner, modular tube railing and many more.
Example of using a ground anchor for pipes:
Examples of use for profile connectors:
Same connector shape for a different pipe diameter
How can I order this item?
Choose the option that suits you:
- order online: use the buy button to add the goods to your shopping cart (you will find the buy button here in the product variants table).
- order by email: place your order at [email protected]
