Folding mechanism for a double-leaf gate up to 4 m, with the gate opening to 180°
| Product availability: | within 7 days | We usually dispatch goods within 7 days. |
|---|
within 7 days
€1,219.40 including VAT
| Weight |
|---|
| 22 kg |
Description of Folding mechanism for a double-leaf gate up to 4 m, with the gate opening to 180°
The folding mechanism is a revolutionary patented solution for swing gates that maximizes the clear opening. Ideal for tight spaces, where thanks to easy installation and quality, you can make access more convenient.
Component set for a swing gate with a two-part folding leaf that opens fully to 180°, to increase the clear opening.
The folding mechanism is designed for a swing gate with a drive-through width of up to 4m. When using two sets you can fold in an accordion style a swing gate with a drive-through width of up to 8 m.
A two-part folding swing gate that opens to 180° is especially useful when you park your car directly behind the gate, when a slope starts just beyond it, or wherever another obstacle prevents the installation of a conventional single-leaf gate. Thanks to the mechanism, you can save up to half the space that would otherwise be taken up by the arc traced by the gate leaf as it moves.
The folding mechanism is designed for automation with an underground drive, with a minimum rotation of 180°. The drive must take at least 60 seconds to rotate to the 180° position to prevent elastic effects between the gate leaves.
The components in this set are professionally manufactured and ensure maximum strength and gate operating speed.
This folding mechanism is suitable for both residential and industrial use. The cover elements improve safety.
The components in the set are galvanized and the connecting hinges for the second gate leaf are made of aluminum.
| Set KB-SM-180-1 contains: | ||||
|---|---|---|---|---|
|
1 × | Folding joint with 180° rotation for attachment to a post | VC7201-60 | |
|
180° folding joint, for connecting a folding gate to a post. |
Details
|
|||
|
1 × | Motion unit for double folding up to 180° | VC7202-060 | |
|
Primary drive unit for a double-folding gate up to 180°. |
Details
|
|||
|
1 × | Folding sliding arm | VC7203-060 | |
|
Fold-down sliding arm for 180° opening. |
Details
|
|||
|
1 × | Folding joint for connecting gate leaves. | VC7205-060 | |
|
Folding joint for connecting gate leaves. |
Details
|
|||
|
2 × | Double-leaf aluminium hinge | VL4500-140-V | |
|
Double-leaf aluminium hinge for connecting gate leaves |
Details
|
|||
|
1 × | Upper 180° hinge with a weld-on plate | VC7204-060 | |
|
Top hinge with 180° opening and a plate for welding to the gate frame. |
Details
|
|||
|
1 × | Protective cover | VC7105-060 | |
|
Protective cover for the folding mechanism |
||||
|
1,9 m | Guide profile for folding gates, 1.9 m | VA5401-002 | |
|
Guide profile |
Details
|
|||

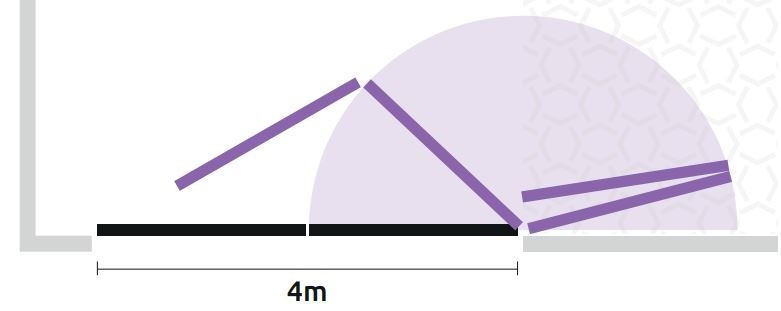

HOW THE FOLDING MECHANISM WORKS:

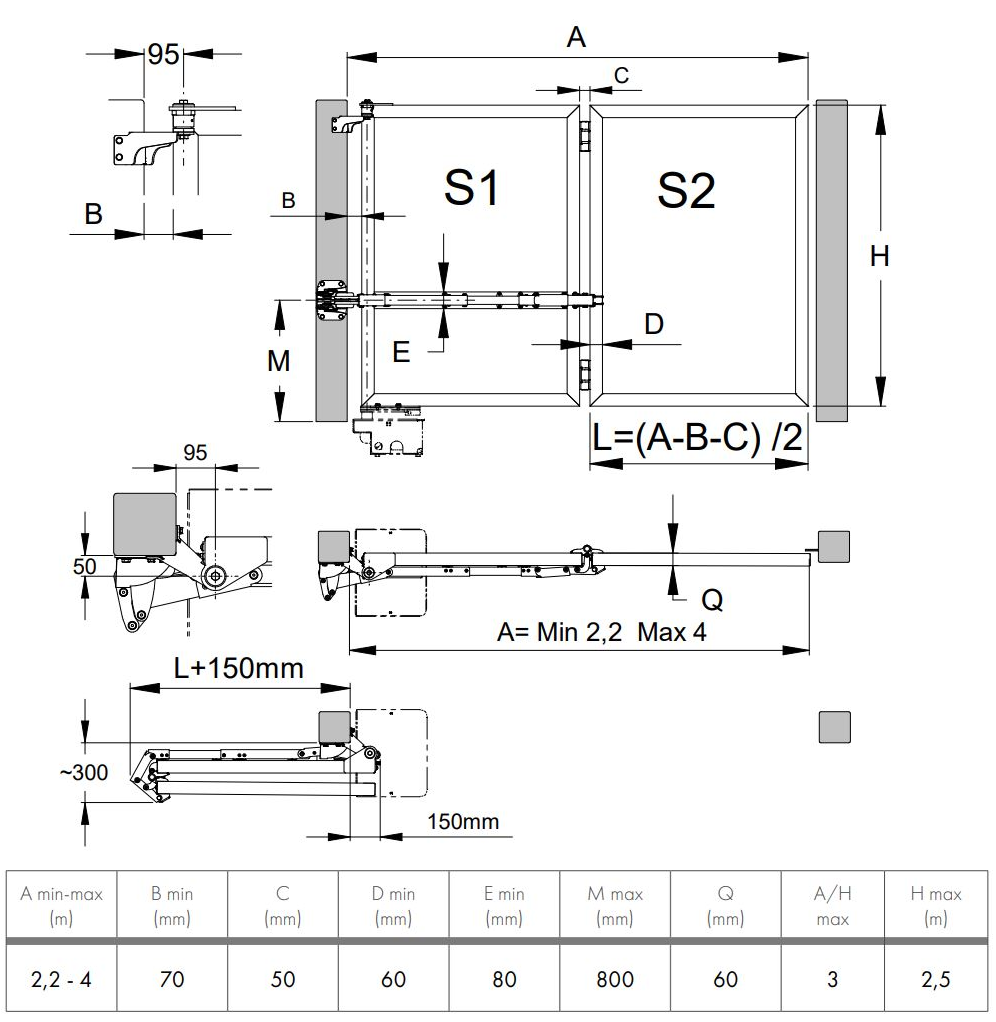

USAGE LIMITS:
Using the calculation shown in the image below, you can determine whether the mechanism is suitable for your situation.

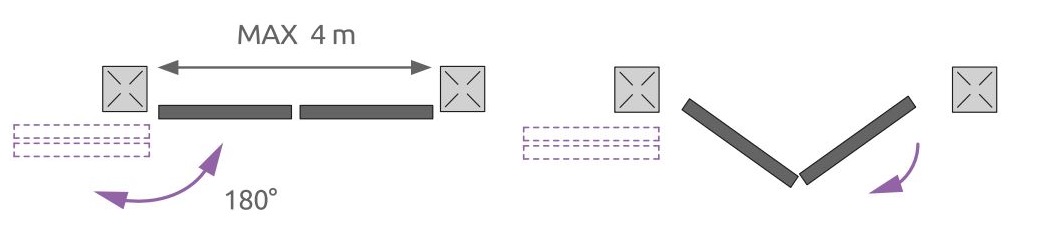

Example of use:
