CAME Top TOP-432EE - two-channel remote control for CAME drives
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€23.15 including VAT
| Weight |
|---|
| 50,00 g |
Description of CAME Top TOP-432EE - two-channel remote control for CAME drives
|
Remote control CAME Top TOP-432EE is a fully compatible replacement for the CAME Top TOP-432EV. |
Two-channel (i.e. two-button) remote control from the Top family, compatible with all CAME drives featuring fixed-code transmission and a blue LED indicator for the transmitted signal. With this remote control, you can operate two CAME devices, or use the CAME RE432 CAME receiver to operate a device from another brand. Pairing instructions.
What's included CAME Top TOP-432EE
- remote control with blue LED
- 1 × CR2032 lithium battery (replacement)
- manual for the CAME Top TOP-432EE
Technical specifications of the CAME Top TOP-432EE remote control
| Frequency: | 433.92 MHz |
|---|---|
| Number of channels: | 2 buttons |
| Power supply: | 3V DC; 1 × CR2032 lithium battery |
| Remote control range: |
approx. 50-150 m outdoors |
| Signal coding: | fixed code |
| Current consumption: | 12mA |
| Operating temperature: | -20°C to 55°C |
| Dimensions: | 32×68×13 mm (W×D×H) |
| Weight: | 16g |
How to pair the CAME Top TOP-432EE remote control with a CAME drive
Refer to the relevant manual for the receiver you want to pair the remote control with. To pair the remote control with an external CAME RE432 receiver, see the instructions for adding the remote control to and deleting it from the receiver's memory.
If you already have a paired remote control, follow these steps to duplicate it:

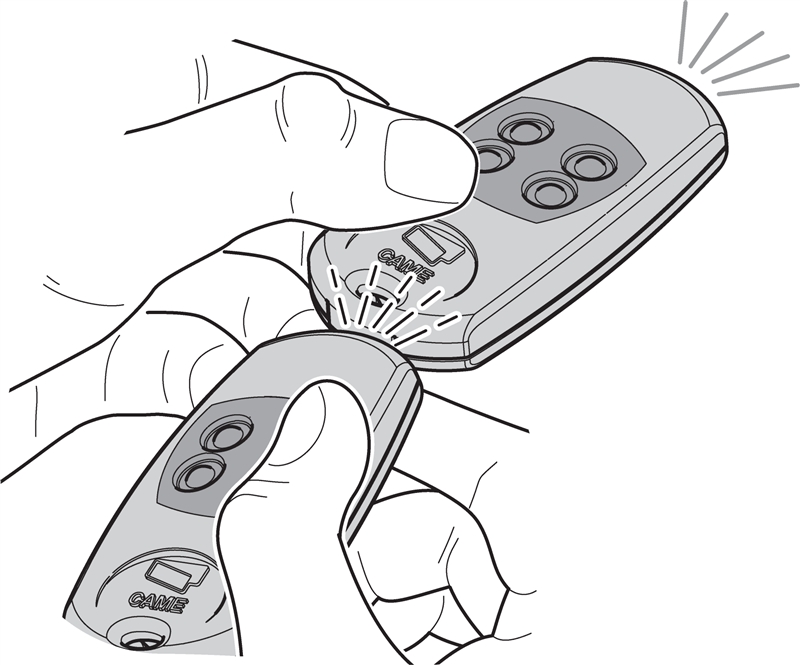

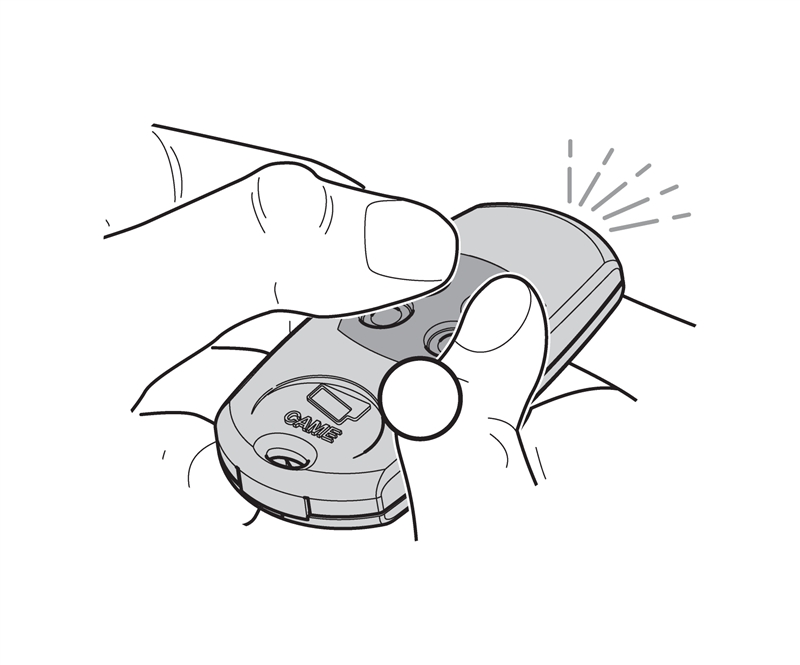

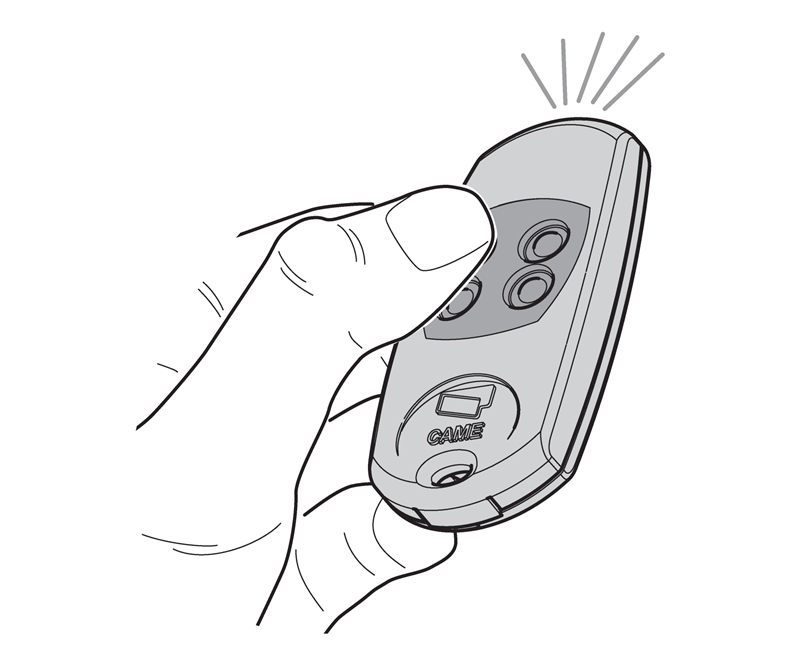

| 1. On the NEW remote control, press and hold the first two buttons simultaneously until the LED starts flashing faster, then release them. | 2. Next, press once (without holding) the button on the NEW remote control that you want to copy. The LED will light up and stay on. | 3. Within 10 seconds, place the OLD remote control against the back of the new one and hold down the button you want to copy. If pairing is successful, the LED on the NEW remote control will flash three times. |
 |
 |
 |

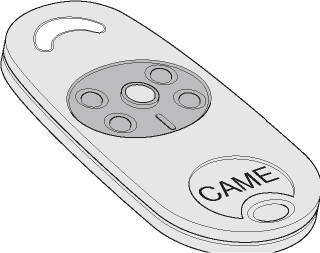

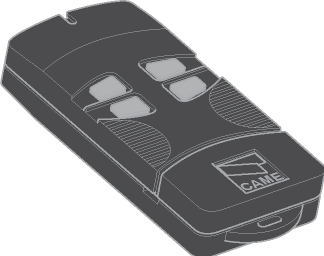

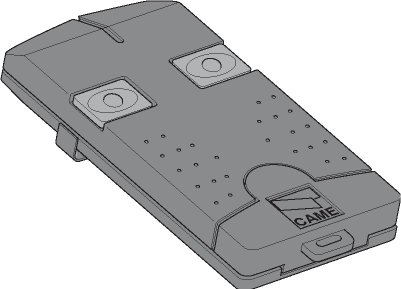

This duplication procedure can be used with the following remote controls from the CAME Top:
| TOP-432A | TOP-434M | TOP-432S | TOP-434NA | TOP-432NA |
|---|---|---|---|---|
 |
 |
 |
 |
 |

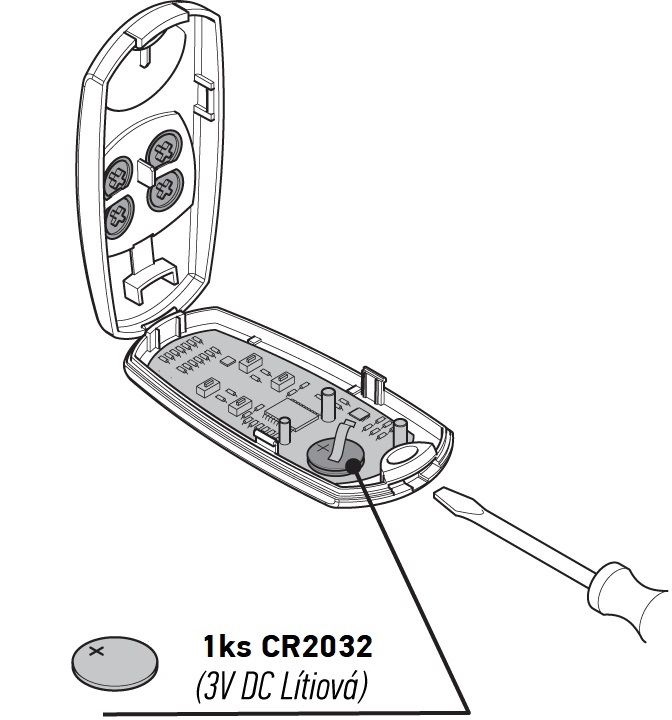

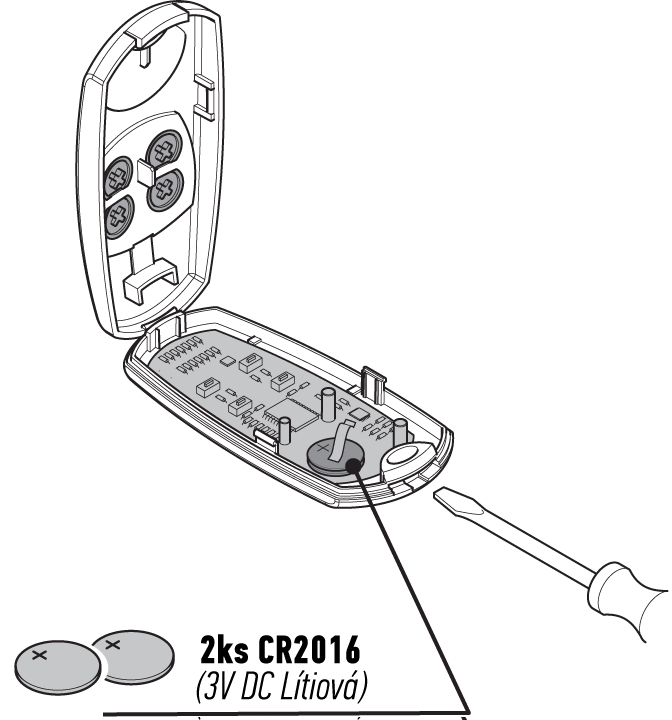

Replacing the battery in the remote control CAME Top TOP-432EE
