Aluminium fence slat 60x16 mm, rectangular, anthracite RAL7016, textured
NEW| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€66.58 including VAT
| Length [m] | Weight |
|---|---|
| 6m +- 5mm | 2,86 kg |
in stock
€34.57 including VAT
| Length [m] | Weight |
|---|---|
| 3m +- 5mm | 1,43 kg |
in stock
€23.79 including VAT
| Length [m] | Weight |
|---|---|
| 2m +- 5mm | 0,95 kg |
Description of Aluminium fence slat 60x16 mm, rectangular, anthracite RAL7016, textured
Aluminum slat, with a surface finish in anthracite with a textured matte finish, can be used as infill for a fence, gate, or any other structure. The slat has a rectangular shape with a height of 60 mm and a width of 16 mm, and is supplied in lengths of 2 m, 3 m, or 6 m.
- Patterns
- Installation method
- Surface finish
- Suitable screws
- Realistic photos
- Technical specifications

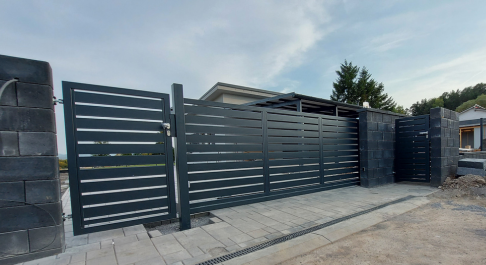

Example of an anthracite aluminum slat pedestrian gate and driveway gate:
The slat is hollow and has guide grooves on the sides for the fastening screws. The simplest installation method is to use fastening profiles with pre-routed grooves for accurate drilling and screw fastening.
Patterns for the rectangular aluminum slat:
In combination with a fastening profile, you can create a vertical pattern:
- in combination with a fastening profile 20.5 mm wide
 |
 |
Installation methods for a rectangular aluminum fence slat:
How to fasten slats vertically into a U-profile (20.5 mm wide):
 |
 |
How to fasten slats vertically into a UT-profile (20.5 mm wide):
SURFACE FINISH:
Aluminum is generally an excellent material with corrosion and weather resistance, and a long service life. The slat is made from EN AW-6060 T66 aluminum and supplied with an anthracite RAL 7016 finish.
The profile is powder-coated with a textured, matte finish. After application, the powder coating is cured in an oven. This surface finish is characterized by a long service life and resistance to UV radiation and yellowing.. It is intended for use in construction, where lasting color and gloss are essential.
Please note
The manufacturing process requires that at the ends of profiles with a powder-coated finish approximately 1 cm of the profile be left on each end for securing it during painting. There is a small hole at the end of the profile, which should be taken into account. If necessary, the end can easily be cut off or concealed inside a fastening profile.
Difference between a smooth finish and a textured finish:
Textured anthracite Anthracite with a smooth finish
SUITABLE FASTENING SCREWS:
Screws with countersunk heads DIN 7982 3.5x19 mm
Realistic photos:

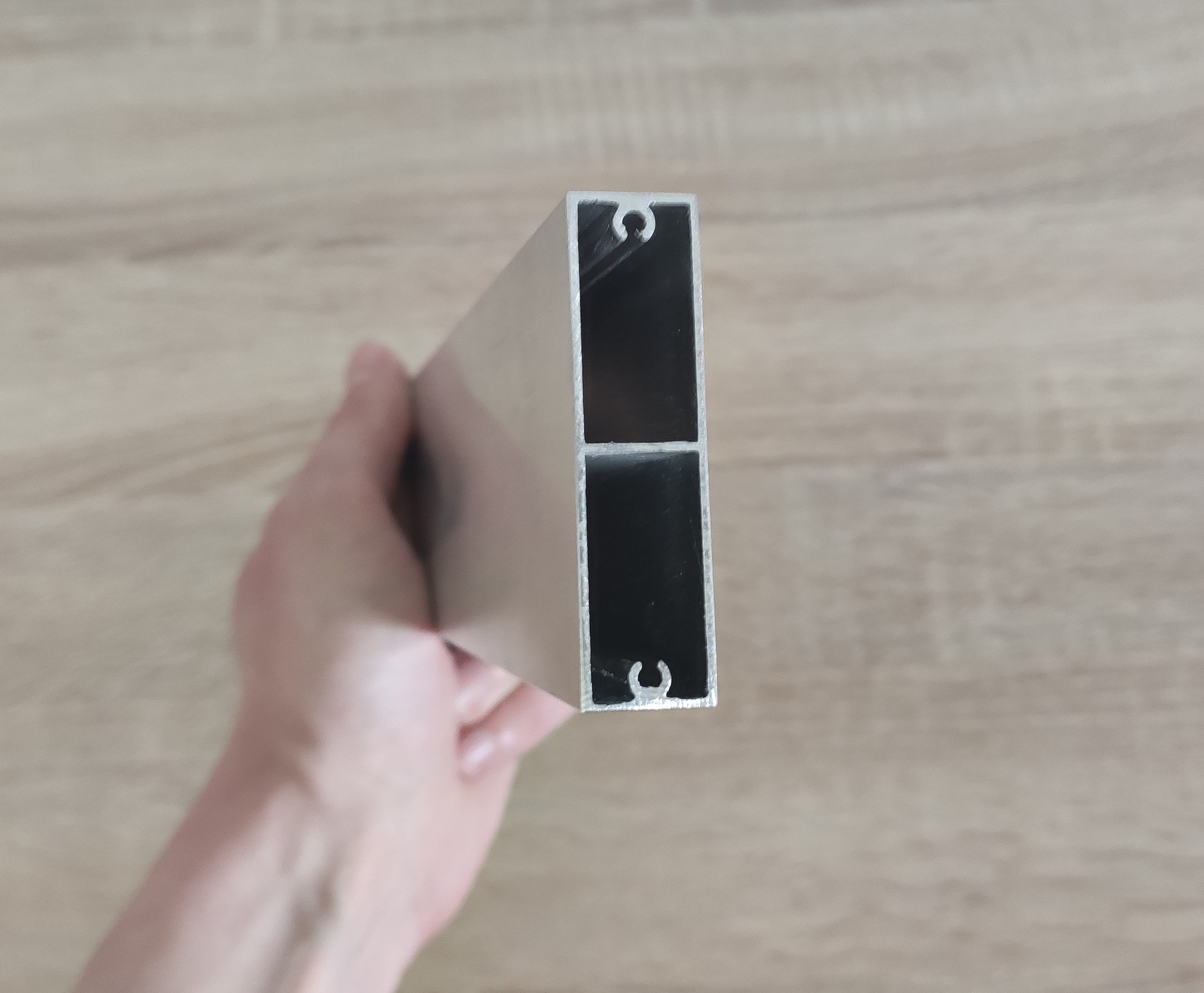

(We will add realistic photos soon. In the temporary illustrative photo, the slat with the same dimensions of 60 x 16 mm and no surface finish shows the internal reinforcement of the slat and the channels for fastening the screws.)
Technical specifications of the aluminum slat for gate and fence infill:
Material: natural aluminum (EN AW-6060 T66)
Surface finish: Anthracite - textured matte finish (RAL 7016)
Dimensions: 60x16 mm
Length: 2,000 mm, 3,000 mm, 6,000 mm
Weight: 0.95 kg, 1.43 kg, 2.86 kg
