DIY uphill sliding gate - Stará Turá
Components used:
CP-80-6 C-profile 80x80x5 mm, length 6 m
V-02-01 Adjustable swing carriage with 5 rollers and nylon mounting plate
DK-2-90 Roller end pocket – lower stop
SN-1-80 Bottom guide

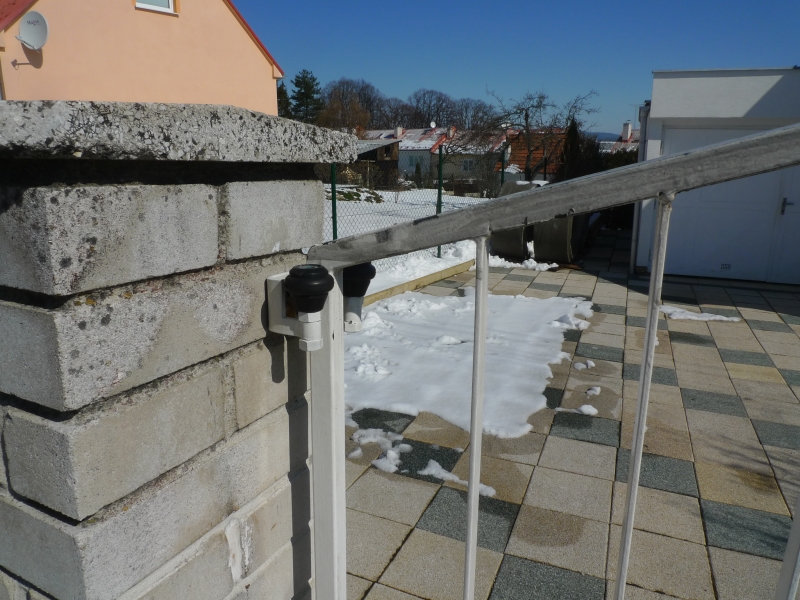

UB-1-40G Top gate stop with rollers
ZC-19 Black square end cap
R-2 Guide roller

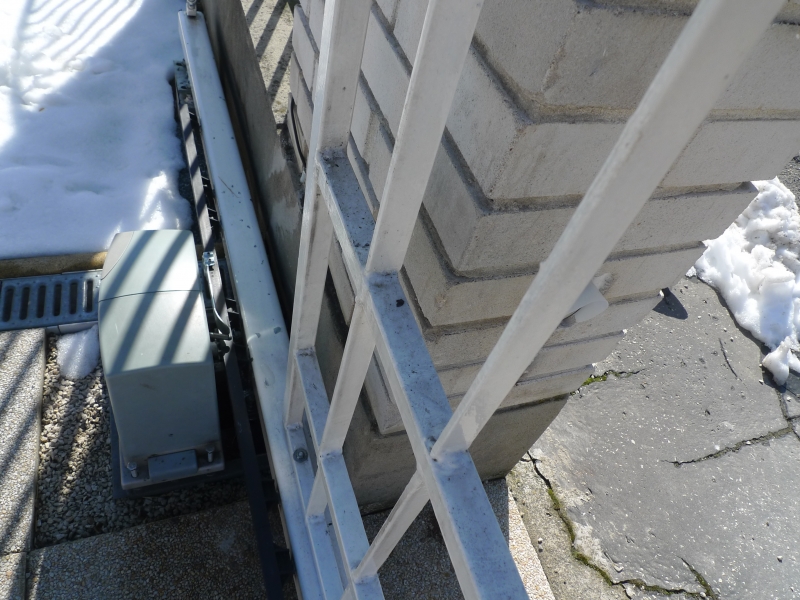

NICE-RB600-KIT Drive kit for sliding gates up to 600 kg, NICE Robus
LZ-1 Rack with metal reinforcement

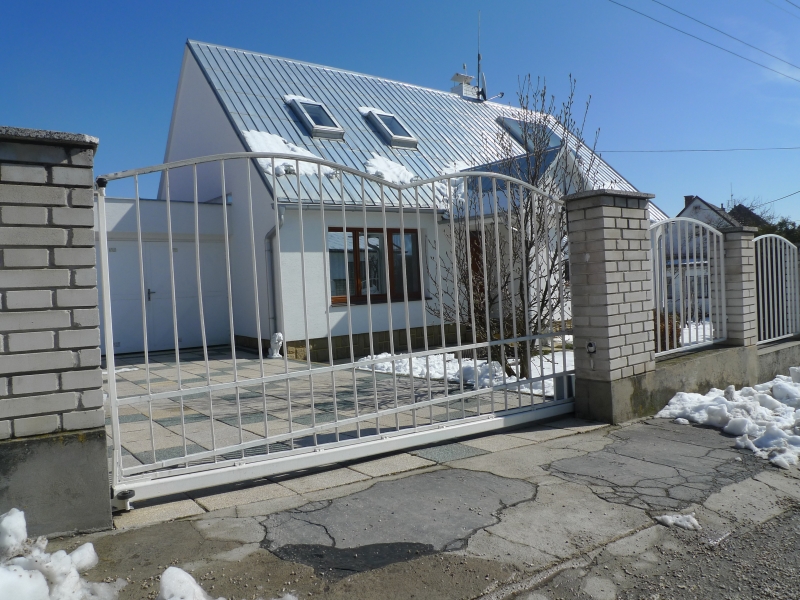

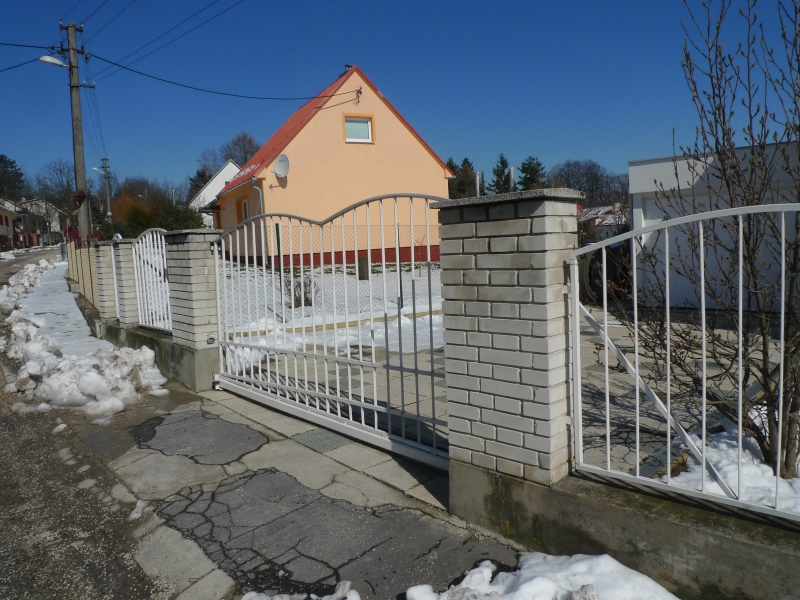

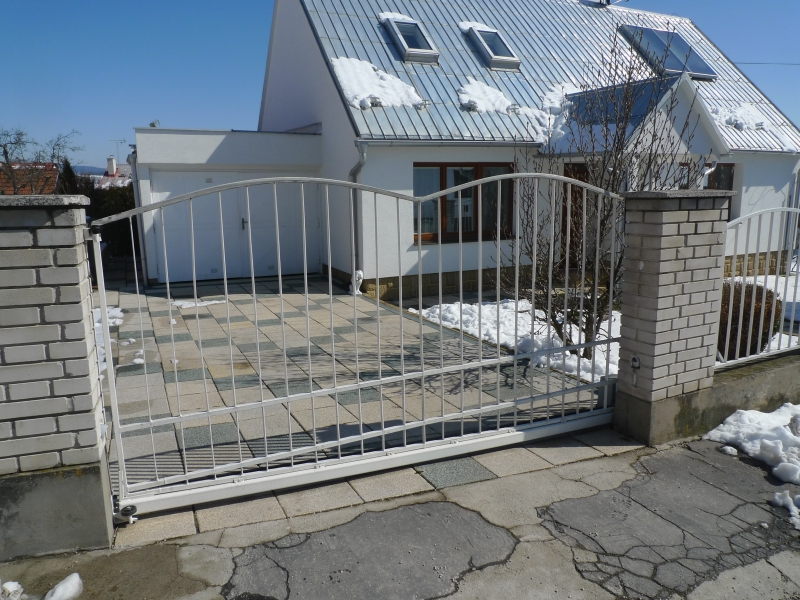

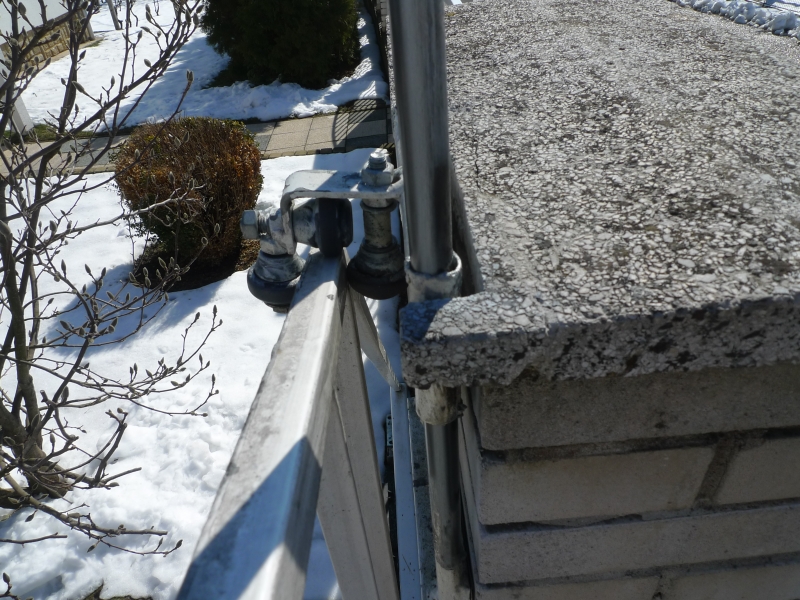

Up-slope cantilever sliding gate. The gate frame is not an exact rectangle; it is shaped so that the top of the gate is level. The gate frame is not welded to the C-profile; it is bolted on. Another interesting feature is the top guide for the gate, which the customer installed themselves. The R-2 rollers move up and down, following the curves along the top of the gate.
