DIY sliding gate installation - Obišovce
Components used:
CP-70-6 C-profile 70x70x4 mm, length 6 m
V-02-3 Adjustable swivel carriage, 5 rollers with nylon mounting plate
V-07-3 Adjustable swivel carriage, 8 rollers with nylon mounting plate
SN-1-70 Bottom guide
DK-1-80 Receiver pocket

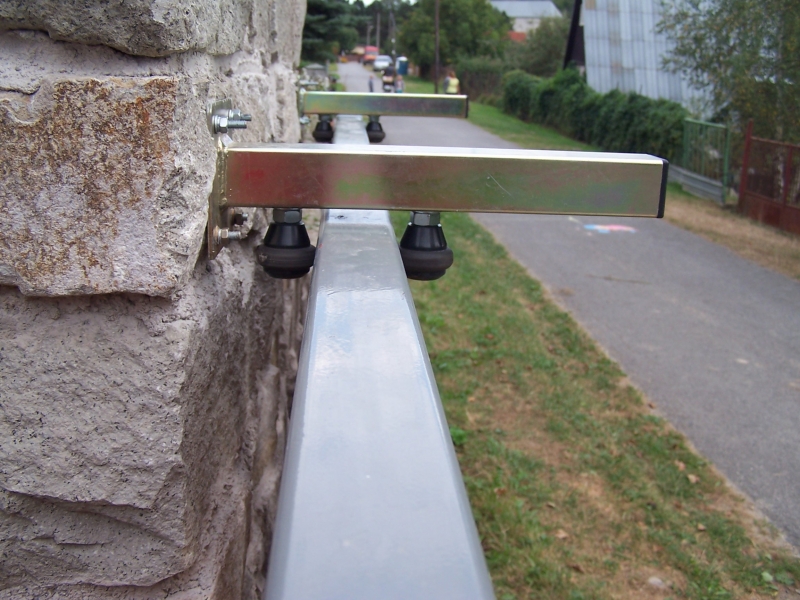

VVR-3-G Top guide with two adjustable rollers (2 pcs)
UB-1-60G Top gate stop with rollers
ZC-18 Black square end cap

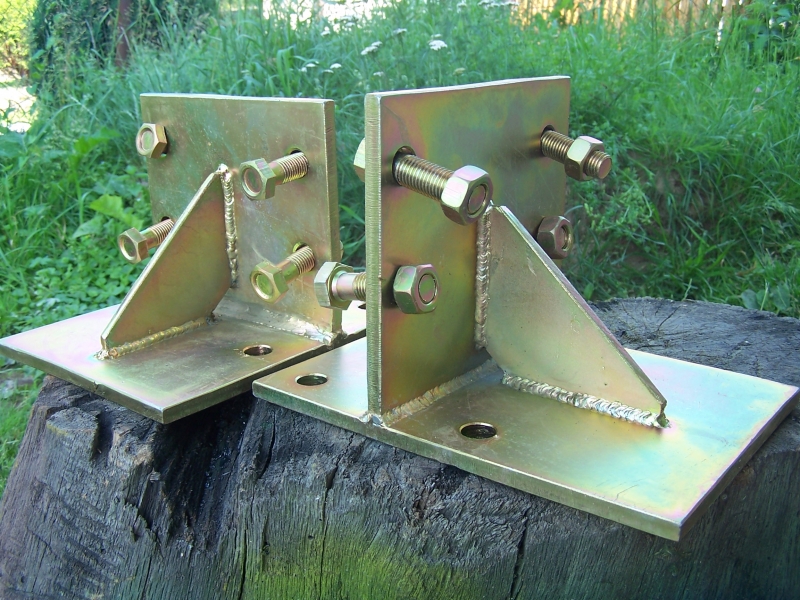

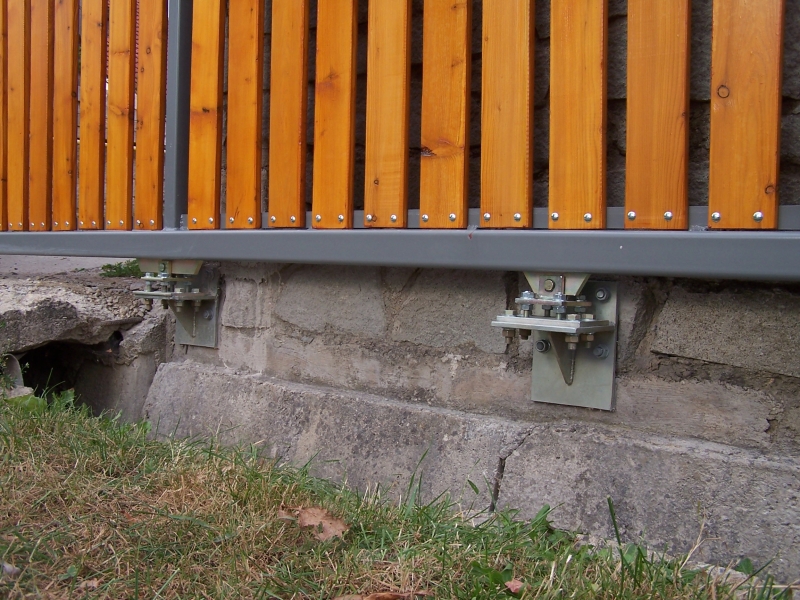

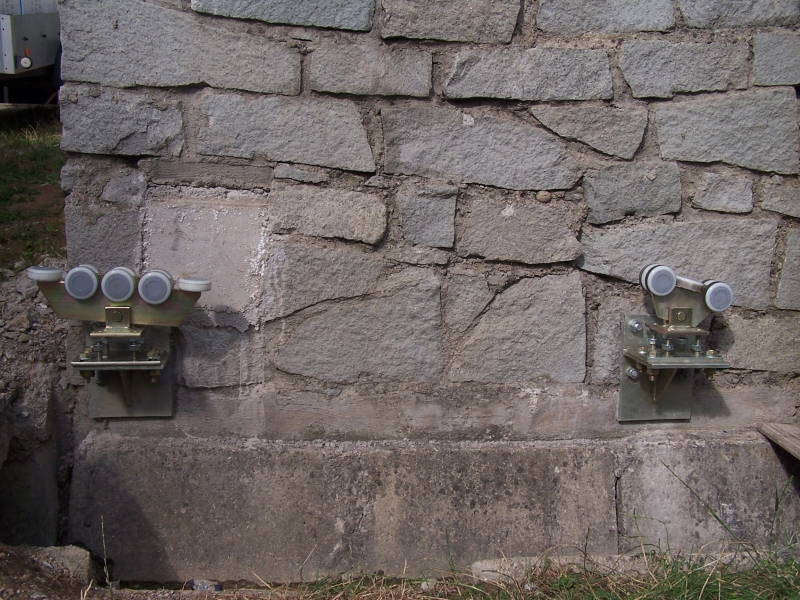

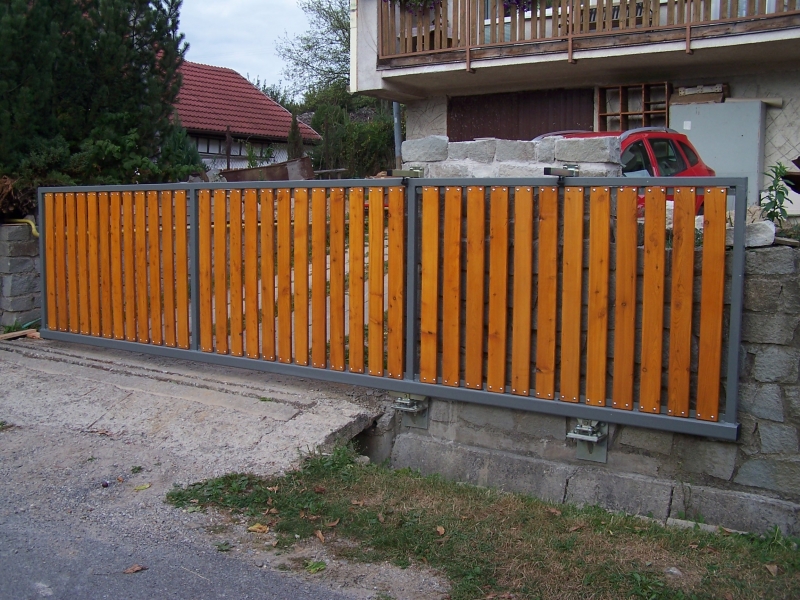

A cantilever gate installed in a space where it is not possible to run the gate "behind the fence" due to lack of space. The carriages are not anchored in a concrete foundation, but on metal bases anchored to a stone fence. The disadvantage of this solution is that fitting the drive is complicated. With such a lightweight structure, there was no need to use a reinforcing profile (a profile welded above the C-profile).
