Round anchor spike


Product availability: In stock

We normally dispatch goods within 24 hours.

Round anchor spike Round anchor spike
TK-81HK080
in stock
€9.68 excluding VAT
€11.91 including VAT

 pcs
Ød
[mm]		 L
[mm]		 F
[mm]		 With
[mm]		 Weight
80 600 150 2 1,73 kg
TK-81HK100
in stock
€14.30 excluding VAT
€17.59 including VAT

 pcs
Ød
[mm]		 L
[mm]		 F
[mm]		 With
[mm]		 Weight
100 600 150 2 2,28 kg
TK-81HK120
in stock
€14.77 excluding VAT
€18.16 including VAT

 pcs
Ød
[mm]		 L
[mm]		 F
[mm]		 With
[mm]		 Weight
120 750 150 2 2,97 kg

Description of Round anchor spike

Round-sleeve anchor base with spike is used to anchor round posts driven into the ground, or pillars in clay soil. This keeps the wood from coming into contact with damp soil, significantly reducing moisture absorption.



A timber structure or wooden fence can therefore be built without additional costs for excavation and concreting, and the timber structure can also be dismantled at any time and moved to another location.



For beams, you can use the square anchor spike.

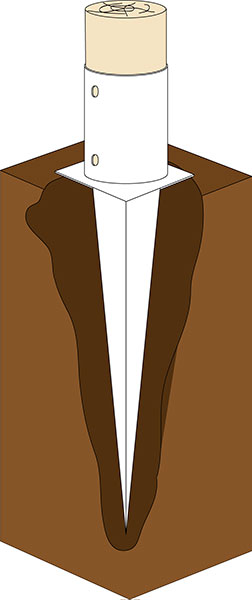

Visualisation of a round-sleeve anchor spike used with a log Round-sleeve anchor base with spike is used to anchor round posts driven into the ground, or pillars, in clay soil. This keeps the wood from coming into contact with damp soil, significantly reducing moisture absorption. A timber structure or wooden fence can therefore be built without additional costs for excavation and concreting, and the timber structure can also be dismantled at any time and moved to another location.



Installing anchor bases with spikes and round sleeves — anchor spikes

  1. Ideally, check the soil hardness by driving in a thick reinforcing bar or rod. The soil should not be waterlogged and should not have a high clay or sand content.
  2. Before driving in the anchor spike you can drill small pilot holes to make driving it in easier and to keep the spike vertical.
  3. Drive in the spikes using a small wooden block; otherwise, the metal profile may become deformed.
  4. After installing the anchor spike and log, secure the wood through the mounting holes using a bolt or threaded rod.

Technical specifications of the round drive-in anchor spike

Material: S235JR steel
Surface finish: hot-dip galvanised, min. 275g/m2
Sleeve wall thickness: 2 mm
Sleeve height: 150 mm
Sleeve holes:
  • 4x10 mm for size 80x750 (TK-81HK080) and 100x750 (TK-81HK100)
  • 4x12 mm for size 120x900 (TK-81HK120)
Load capacity:  for timber structures without concrete roof tiles

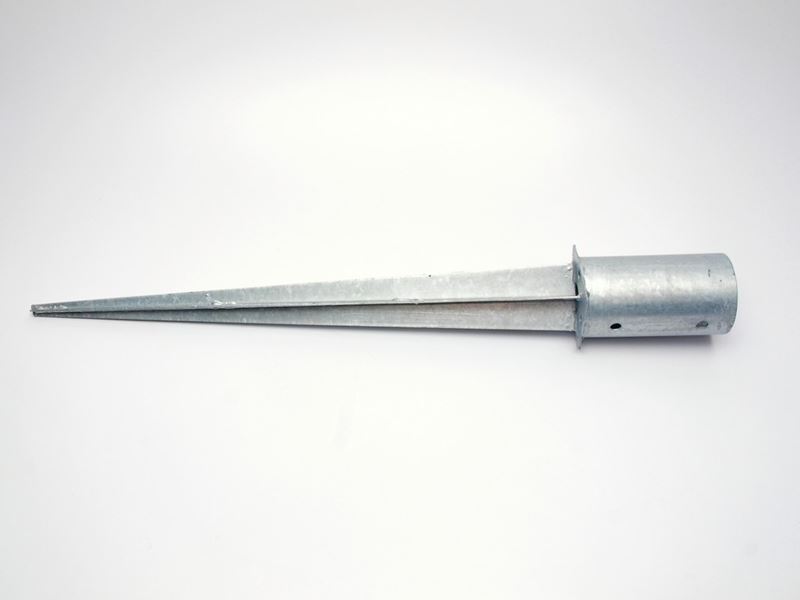

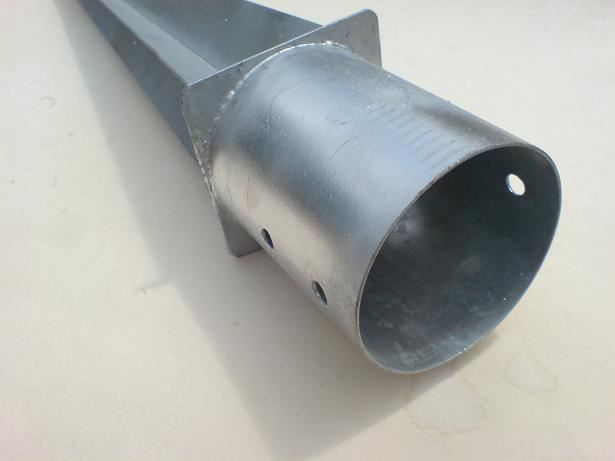

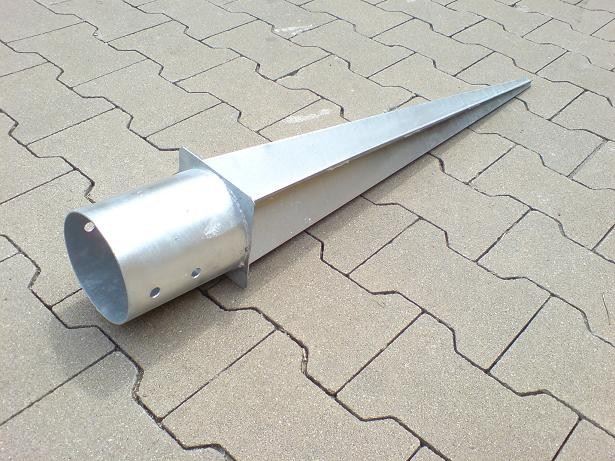

Photo gallery of the anchor spike

Round drive-in anchor spike Round drive-in anchor spike Round drive-in anchor spike

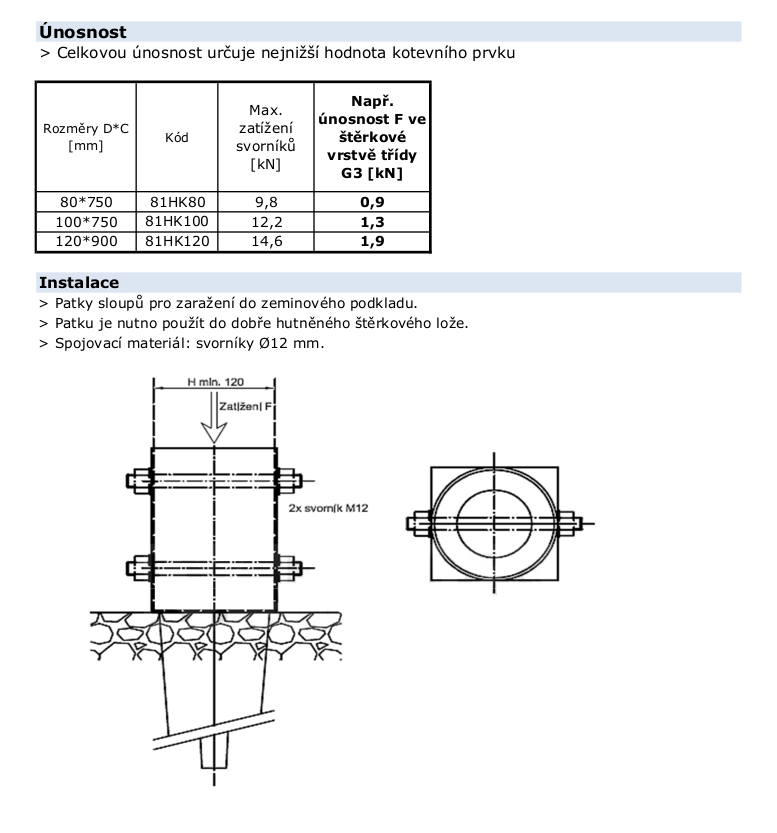

Load capacity and installation

Round anchor spike
