VIRO V09 - electric lock for a sliding gate, VIRO-V09
Zn| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€287.69 including VAT
| Weight |
|---|
| 2,53 kg |
Description of VIRO V09 - electric lock for a sliding gate, VIRO-V09
VIRO V09 electric lock is the only extremely reliable lock designed for outdoor use to secure a sliding gate.
The patented rotary latch allows for thermal expansion of the gate of up to 9.6 mm, equivalent to a 100°C temperature change on an 8 m-long gate. The lock is also suitable for manually operated sliding gates when used with a double-sided cylinder, so it can be unlocked from the outside as well.
Unlike conventional security methods such as padlocks, chains, hasps, etc., the VIRO V09 electric lock offers a new, more effective way to secure your gate. It is easy and practical to use, has an attractive design, and cannot be tampered with from the outside. It is water-resistant.

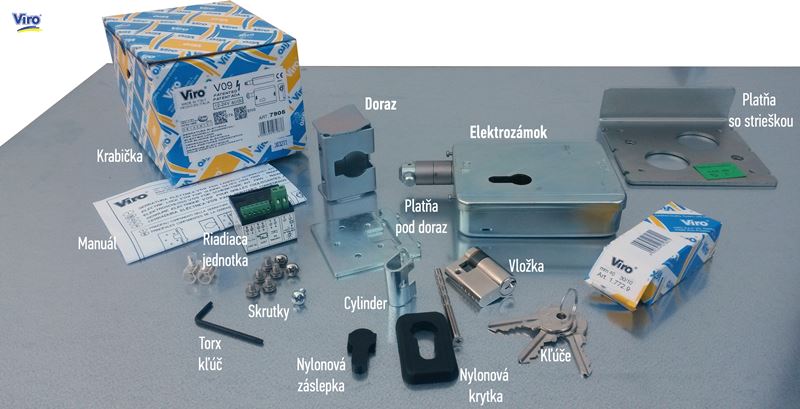

VIRO V09 electric lock package contents
VIRO V09 electric lock specifications
- Installation: fixed horizontally, usually next to the drive.
- Offset: 50 mm.
- Pulse duration: determined by the control unit, which can be connected to the gate drive.
- Replaceable coil.
- Power supply: 12 V/24 V DC/AC (24 V recommended).
- Lock body: one-piece galvanized steel, with a cable entry at the back for maximum security, or at the side by punching out the pre-scored hole.
- Cover: galvanized steel, with automatic locking when the lock is closed
- Rotary latch: highly resistant, reinforced with hardened and galvanized rotating rings to prevent forced prying. It is set in a nickel-plated steel guide, and its movement is controlled by stainless steel springs.
- Cylinder: 40 mm half cylinder (30+10), with brass pins, mushroom security pins to resist picking, and phosphor bronze springs. Includes 3 keys, a galvanized cylinder, a nylon plug, and a nylon cover.
- Strike plate: horizontal, galvanized steel, easy to install using the template.
- Supplied with accessories:
- - galvanized lock plate with hood
- - galvanized strike plate
- - control unit that can be connected to the drive
- - mounting screws
Packed in an original one-piece VIRO box.
How to connect to the RBA3R10 control unit (NICE ROBUS)
- Reprogram the OGI output for the electric lock (Programming level 2). Programming level)
- Run the accessory-learning procedure (this activates the OGI output for the electric lock).
- The gate is partially open.
- Start the gate-position learning command (the lock is open).
- The gate opens and reaches the limit switch (the open position opening has been learned).
- The gate closes; when it reaches the limit switch, close the lock at the same time (the lock should be pressed in/locked when the gate is at its end position); the closed position When it reaches the limit switch, close the lock at the same time (the lock should be pressed in/locked when the gate is at its end position); the closed position closing has been learned. The limit switch is pressed in while the lock is locked; when the gate opens, the limit switch is released and the lock opens.

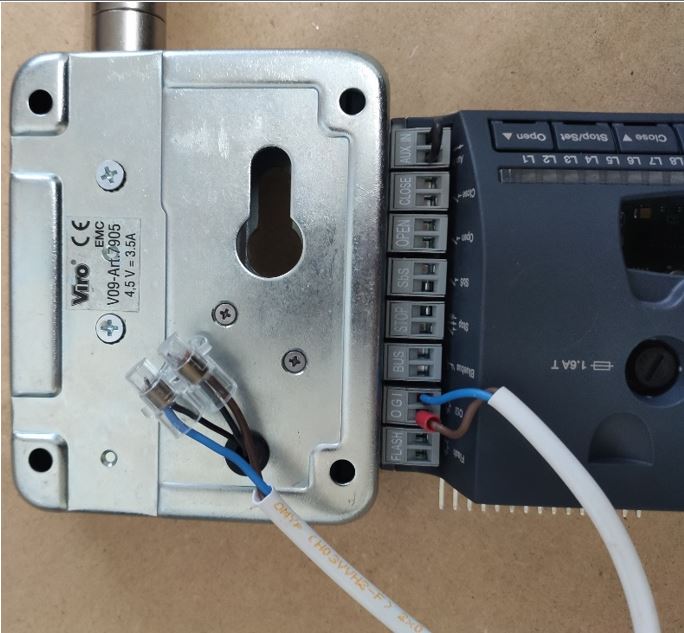

Connecting the VIRO V09 to the RBA3R10 control unit (NICE ROBUS):
Download the VIRO V09 manual
| VIRO V09 manual, Czech version (scan) |
Original VIRO V09 manual |
|---|---|
 |
 |
VIRO V09 electric lock video
VIRO V09 electric lock photo gallery
 |
 |

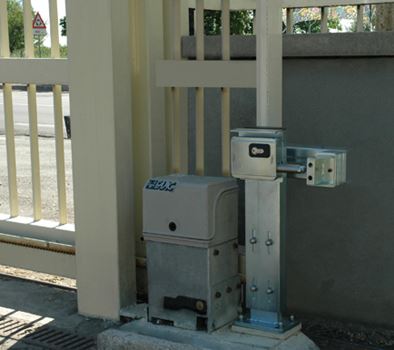

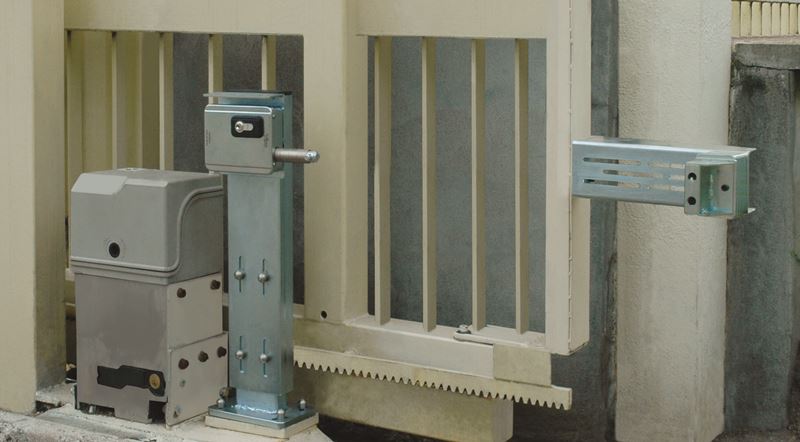

| Installation example | Installation example |
|---|---|
 |
 |

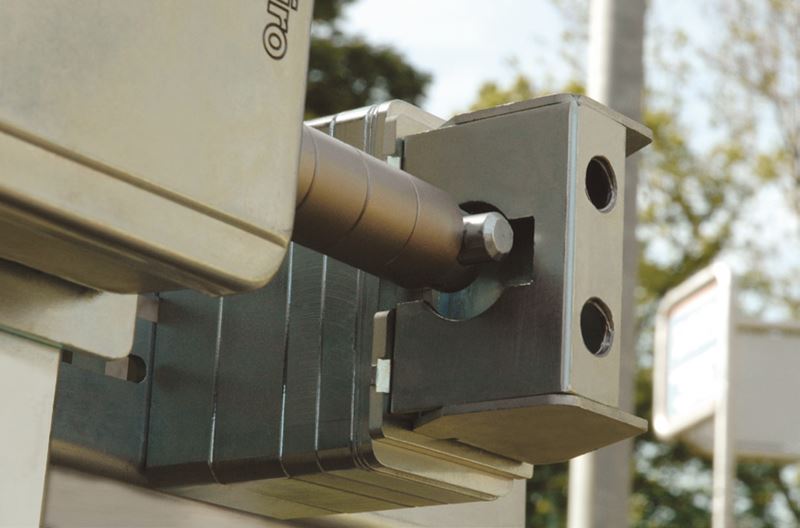

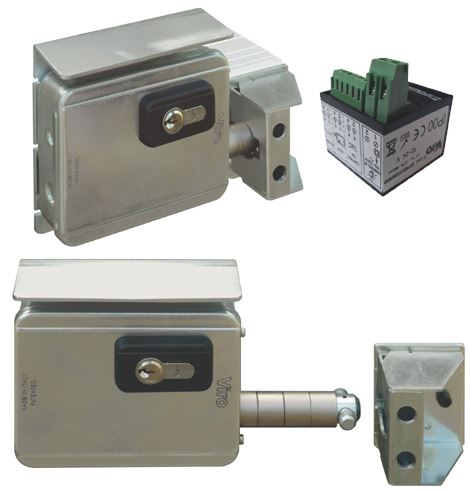

| Close-up of the electric lock | Strike plate detail |
VIRO V09 electric lock brochure
VIRO V09 electric lock certificate
