Trolley with 8 bearings for 100x120x5mm aluminium C-profile
| Product availability: | within 7 days | We usually dispatch goods within 7 days. |
|---|
within 7 days
€1,152.89 including VAT
| Weight |
|---|
| 6,00 kg |
Description of Trolley with 8 bearings for 100x120x5mm aluminium C-profile
The trolley body consists of a two-piece hot-dip galvanized body and a stainless steel mounting plate.
The trolley is secured to the concrete foundation using two anchors, which pass through the holes in the base and the holes in the stainless steel mounting plate, so only the stainless steel mounting plate is in direct contact with the concrete foundation.
There are adjustment screws in each corner of the base, which allow the trolley base to be adjusted relative to the stainless steel mounting plate in both the longitudinal and transverse directions. This makes it easy to compensate for unevenness in the concrete foundation.
On the hot-dip galvanized trolley body are 8 polyamide bearing rollers with a diameter of 60mm with cutouts for the guide projections of the C-profile. Four rollers are at the top, where they contact the upper guide projections in the C-profile, and four rollers are positioned slightly lower and contact the lower guide projections in the C-profile.
During installation, the trolleys are positioned as mirror images of each other, i.e. the first trolley has its upper rollers on the outer side, and the second trolley has them on the opposite side—also the outer side.

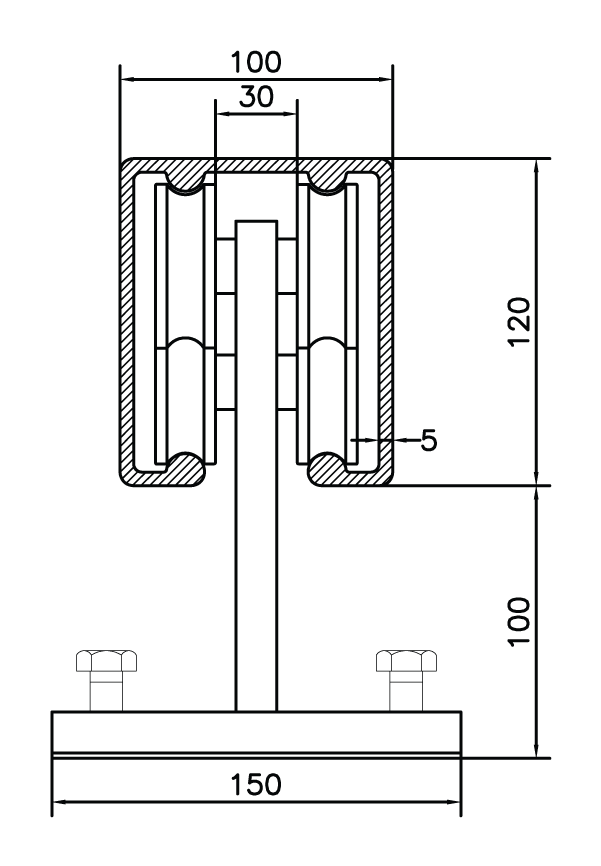

Example of use in an aluminum C-profile 100x120x5:
