Trolley with 6 bearings for 280x250x8mm aluminum C-profile
| Product availability: | within 7 days | We usually dispatch goods within 7 days. |
|---|
within 7 days
€2,430.40 including VAT
| Weight |
|---|
| 25 kg |
Description of Trolley with 6 bearings for 280x250x8mm aluminum C-profile
The carriage body consists of a two-piece hot-dip galvanized body and a stainless steel mounting plate.
The carriage is fastened to the concrete foundation using two anchors, which pass through the holes in the base and the holes in the stainless steel mounting plate. As a result, only the stainless steel mounting plate is in direct contact with the concrete foundation.
There are adjustment screws in each corner of the base, which can be used to adjust the angle of the carriage base relative to the stainless steel mounting plate, both lengthwise and crosswise. This makes it easy to compensate for unevenness in the concrete foundation.
On the hot-dip galvanized the hot-dip galvanized carriage body has 6 polyamide bearing rollers with a diameter of 120mm with cutouts for the C-profile guide lugs. Four rollers are at the top, where they contact the upper guide lugs in the C-profile, and two rollers are positioned slightly lower and contact the lower guide lugs in the C-profile.
During installation, the carriages are positioned as mirror images of one another: the first carriage has its upper rollers on the outside, and the second has them on the opposite side—also on the outside.

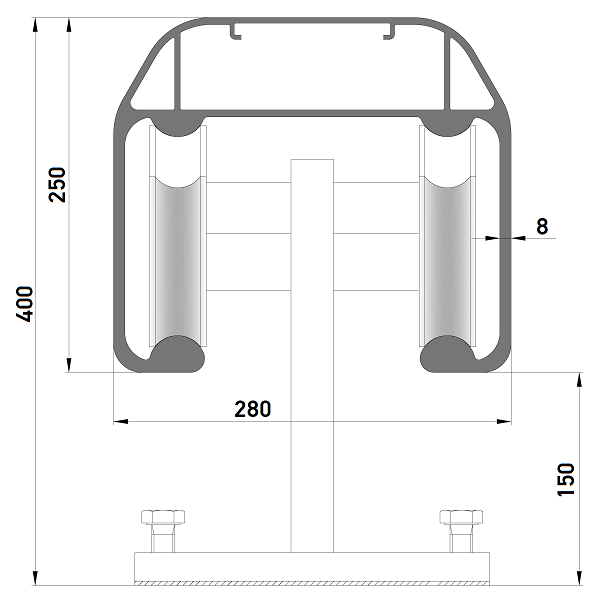

Example of use in an aluminum C-profile 280x250x8:
