Three-part hinge with tabs for welding

Product availability:	In stock	We normally dispatch goods within 24 hours.

P105-080
in stock

€1.05 excluding VAT
€1.30 including VAT

A [mm]	B [mm]	C [mm]	Ød [mm]	E [mm]	L [mm]	With [mm]	t [mm]	Weight
17	36	10	8	4,5	80	2	2	72,00 g

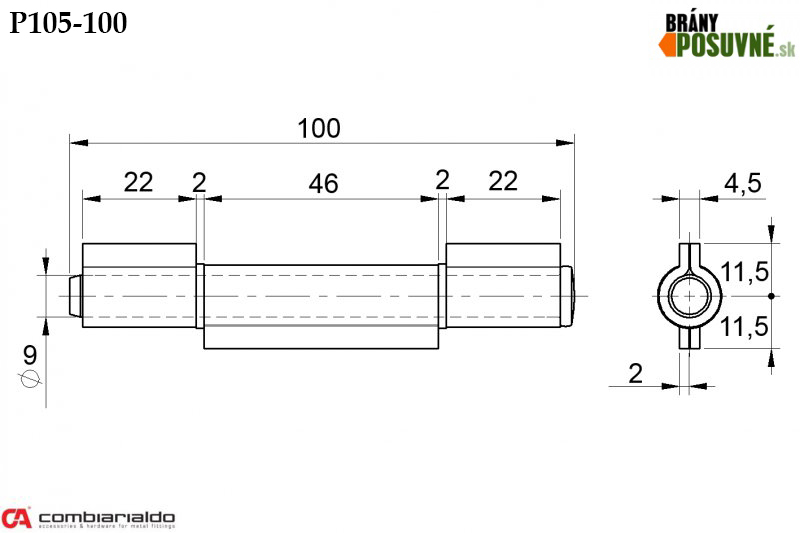

P105-100
in stock

€1.20 excluding VAT
€1.47 including VAT

A [mm]	B [mm]	C [mm]	Ød [mm]	E [mm]	L [mm]	With [mm]	t [mm]	Weight
22	46	11,5	9	4,5	100	2	2	0,15 kg

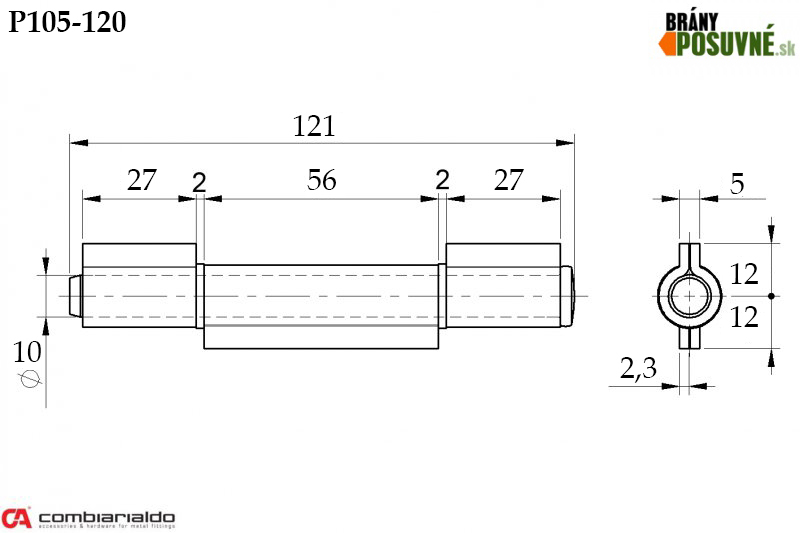

P105-120
in stock

€1.51 excluding VAT
€1.85 including VAT

A [mm]	B [mm]	C [mm]	Ød [mm]	E [mm]	L [mm]	With [mm]	t [mm]	Weight
27	56	12	10	5	121	2	2,3	0,15 kg

P105-140
in stock

€1.99 excluding VAT
€2.45 including VAT

A [mm]	B [mm]	C [mm]	Ød [mm]	E [mm]	L [mm]	With [mm]	t [mm]	Weight
32	66	13	11	5,5	142	2	2,5	0,25 kg

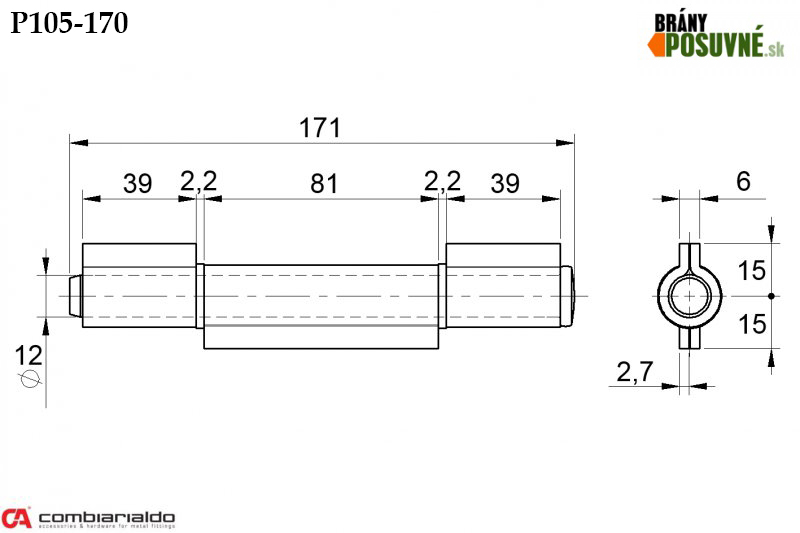

P105-170
in stock

€2.92 excluding VAT
€3.60 including VAT

A [mm]	B [mm]	C [mm]	Ød [mm]	E [mm]	L [mm]	With [mm]	t [mm]	Weight
39	81	15	12	6	171	2,2	2,7	0,34 kg

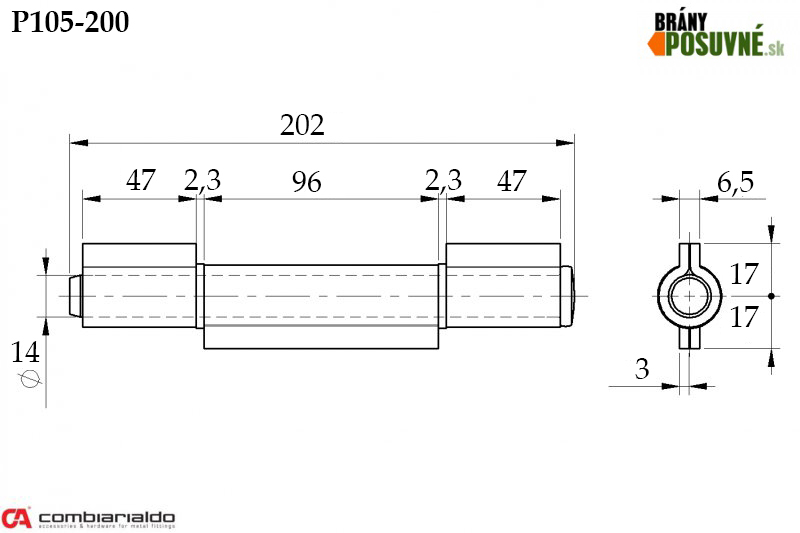

P105-200
in stock

€3.86 excluding VAT
€4.75 including VAT

A [mm]	B [mm]	C [mm]	Ød [mm]	E [mm]	L [mm]	With [mm]	t [mm]	Weight
47	96	17	14	6,5	202	2,3	3	0,53 kg

Description of Three-part hinge with tabs for welding

Choose the option that suits you:

order online: use the buy button to add the goods to your shopping cart (you will find the buy button here in the product variants table).
order by email: place your order at [email protected]

Product:	Three-part hinge with tabs for welding
