Straight fence panel bracket for chemical anchors
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€1.77 including VAT
| Thread | A [mm] |
B [mm] |
C [mm] |
Weight |
|---|---|---|---|---|
| M12 | 185 | 80 | 30 | 0,15 kg |
in stock
€3.92 including VAT
| Thread | A [mm] |
B [mm] |
C [mm] |
Weight |
|---|---|---|---|---|
| M16 | 225 | 100 | 40 | 0,25 kg |
Description of Straight fence panel bracket for chemical anchors

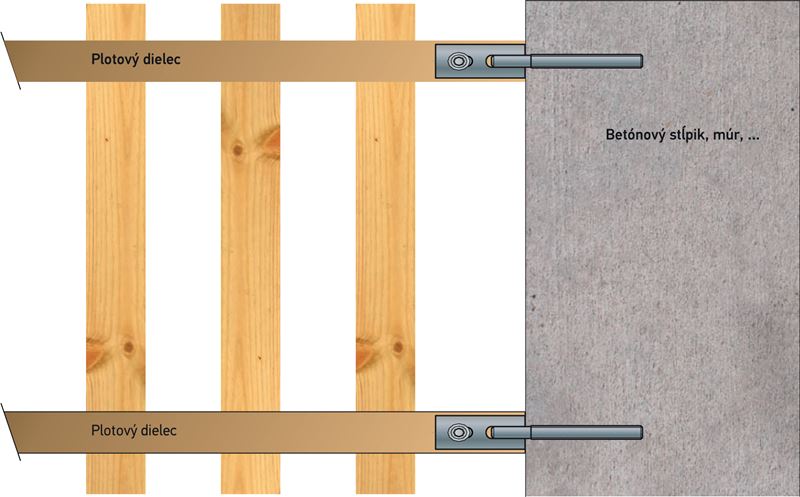

Fence panel bracket is used to fasten the horizontal parts of fence panels to concrete posts, walls or masonry using chemical anchor, or mortar. It can be used with metal, wooden and plastic profiles, as well as other types.
- The brackets are made from Grade 11 steel and are electrogalvanized..
- They are available with threaded rods in two diameters: M12 and M16.
Using the brackets
The elongated mounting hole allows you to compensate for any inaccuracies in the spacing of fence posts or panels. It is also suitable for use with metal profiles as a sliding joint, allowing the material to expand and contract in response to temperature fluctuations throughout the year. In this case, we recommend using a self-locking nut or a locknut for the joint (i.e. do not fully tighten it).
Bracket load capacity

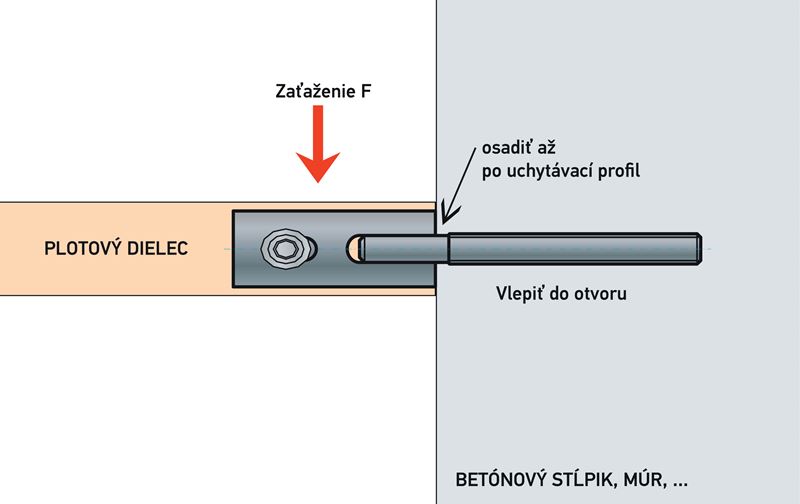

Refer to the table below and the image beneath it for the load capacities of the individual fence panel brackets.
| Code | Diameter | Installation depth | Load capacity |
|---|---|---|---|
| DP-01 | 12 mm | 100 mm | 0.4 kN |
| DP-02 | 16 mm | 125 mm | 0.7 kN |
