Stainless steel post for wire-rope netting, intermediate, side-mounted, flat top, brushed AISI 304, 2 x M8 fittings, height 100 cm
NEW| Product availability: | within 3 days | We usually ship the goods within 3 days. |
|---|
NSZ-BLSS-1-B304
within 3 days
within 3 days
€46.68 excluding VAT
€57.42 including VAT
€57.42 including VAT
| Weight |
|---|
| 3,19 kg |
Description of Stainless steel post for wire-rope netting, intermediate, side-mounted, flat top, brushed AISI 304, 2 x M8 fittings, height 100 cm
Intermediate and end stainless steel post for wire-rope infill in one, with side mounting, designed for wall mounting. It features a fixed horizontal handrail bracket for a 42.4 mm diameter handrail, and is 100 cm high. Material: brushed stainless steel, K320 / AISI304.

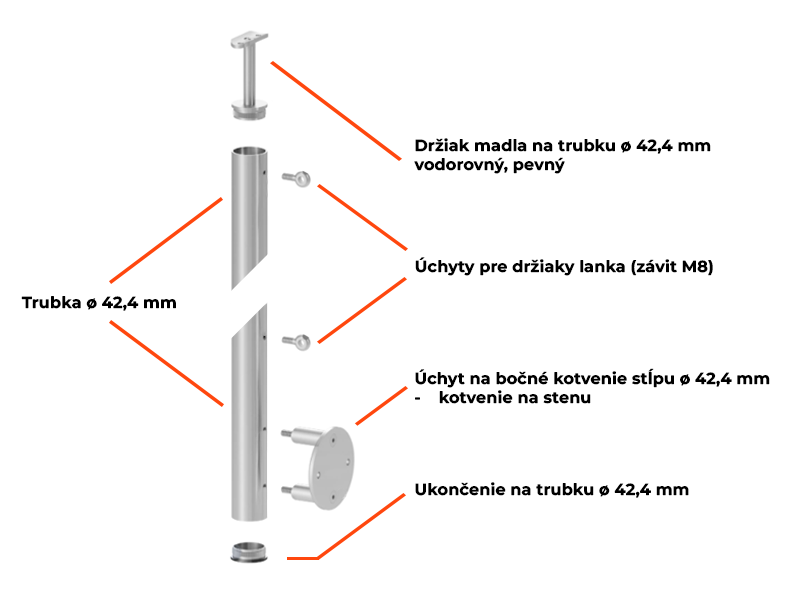

Package contents:
- 1x post tube with a diameter of Ø 42.4 mm and a thickness of 2 mm
- 1x handrail bracket with a diameter of Ø 42.4 mm, fixed, horizontal
- 2 x wire-rope holder fittings with an eye diameter of Ø 7 mm, with M8
- 1x side-mounting bracket for post Ø 42.4 mm – for wall mounting
- 1x tube end cap Ø 42.4 mm
Installation

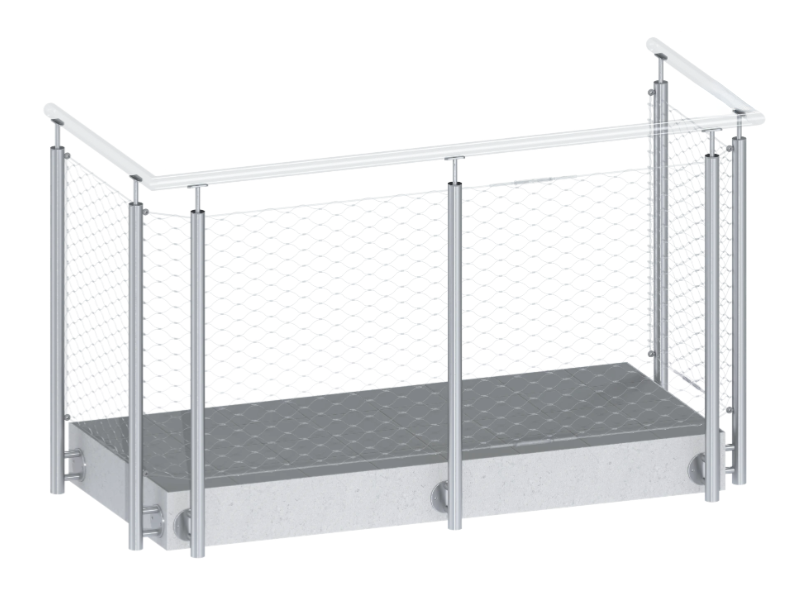

The post is designed for railings with wire-rope infill and can be used as either an intermediate or end post, with fittings for stainless steel wire-rope infill. Side-mounted to the wall.
Technical specifications
| Mounting | side-mounted to the wall |
|---|---|
| Post dimensions | diameter: 42.4 mm wall thickness: 2 mm height: 100 cm |
| Handrail bracket diameter | 42.4 mm |
| Fittings | horizontal, fixed, intermediate / end |
| Number of wire-rope fittings | 2 pcs / M8 |
| Fitting eye diameter | 7 mm |
| Material | brushed stainless steel, K320 / AISI304 |
