Stainless steel post for wire-rope nets, 90° corner, flat top, AISI 304 brushed finish, 4 × M8 fittings, height 100 cm
NEW| Product availability: | within 3 days | We usually ship the goods within 3 days. |
|---|
NSZ-VLSU-1-B304
within 3 days
within 3 days
€49.98 excluding VAT
€61.48 including VAT
€61.48 including VAT
| Weight |
|---|
| 2,67 kg |
Description of Stainless steel post for wire-rope nets, 90° corner, flat top, AISI 304 brushed finish, 4 × M8 fittings, height 100 cm
Corner stainless steel post for wire-rope infill in one, designed for ground anchoring. It features a fixed corner 90° horizontal handrail bracket, 42.4 mm in diameter and 100 cm high. Material: brushed stainless steel K320 / AISI304.

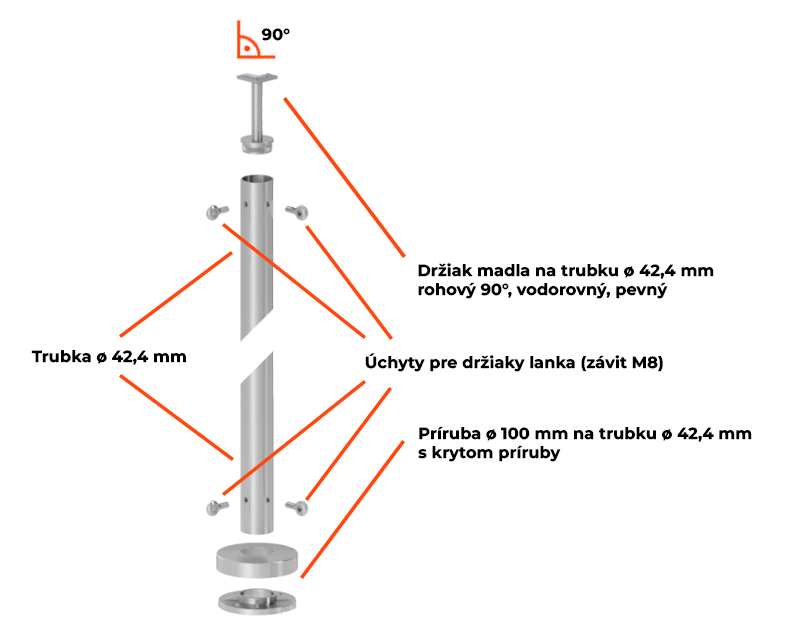

Package contents:
- 1x post tube with a diameter of Ø 42.4 mm and a wall thickness of 2 mm
- 1x corner handrail bracket with Ø 42.4 mm, fixed, horizontal
- 4 x cable-holder fittings with an eye diameter of Ø 7 mm, with an M8 thread
- 1x flange with a diameter of Ø 100 mm for a tube ø 42.4 mm
- 1x flange cover Ø 105 mm
Installation

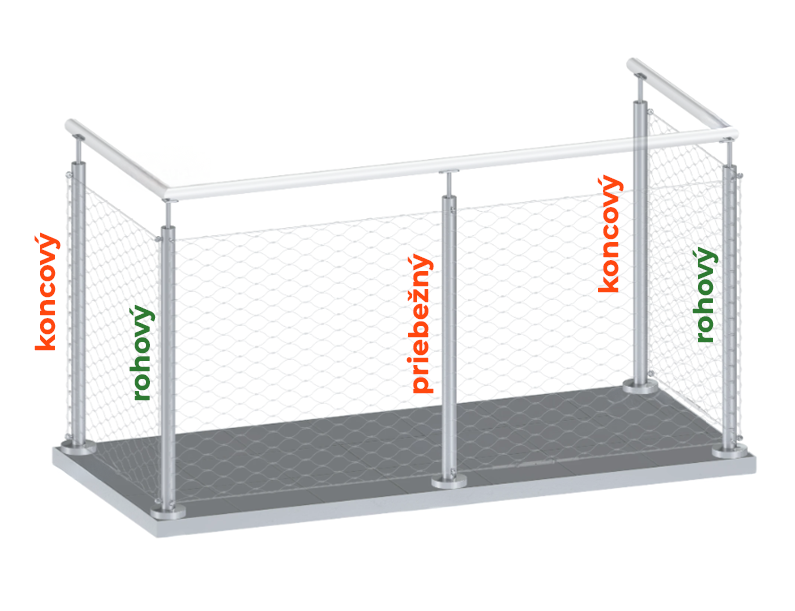

The post is designed for a railing with mesh infill, as a corner post with fittings for stainless steel wire-rope infill. Top-mounted anchoring – into the ground.
Technical specifications
| Anchoring | top-mounted – into the ground |
|---|---|
| Post dimensions | diameter: 42.4 mm wall thickness: 2 mm height: 100 mm |
| Handrail bracket diameter | 42.4 mm |
| Fittings | horizontal, fixed, corner |
| Number of mesh fittings | 4 pcs / M8 |
| Fitting eye diameter | 7 mm |
| Flange diameter | 100 mm |
| Material | brushed stainless steel K320 / AISI304 |
