Stainless steel post for cable railing systems, intermediate or end post, flat top, AISI 304 finish, 2 x M8 fittings, height 100 cm
NEW| Product availability: | within 3 days | We usually ship the goods within 3 days. |
|---|
NSZ-VLSS-1-B304
within 3 days
within 3 days
€42.21 excluding VAT
€51.92 including VAT
€51.92 including VAT
| Weight |
|---|
| 2,60 kg |
Description of Stainless steel post for cable railing systems, intermediate or end post, flat top, AISI 304 finish, 2 x M8 fittings, height 100 cm
Intermediate and end stainless steel post for wire-rope mesh combining intermediate and end post designs, designed for anchoring into the ground. It features a fixed horizontal handrail bracket with a diameter of 42.4 mm and a height of 100 cm. Material: brushed stainless steel K320 / AISI304.

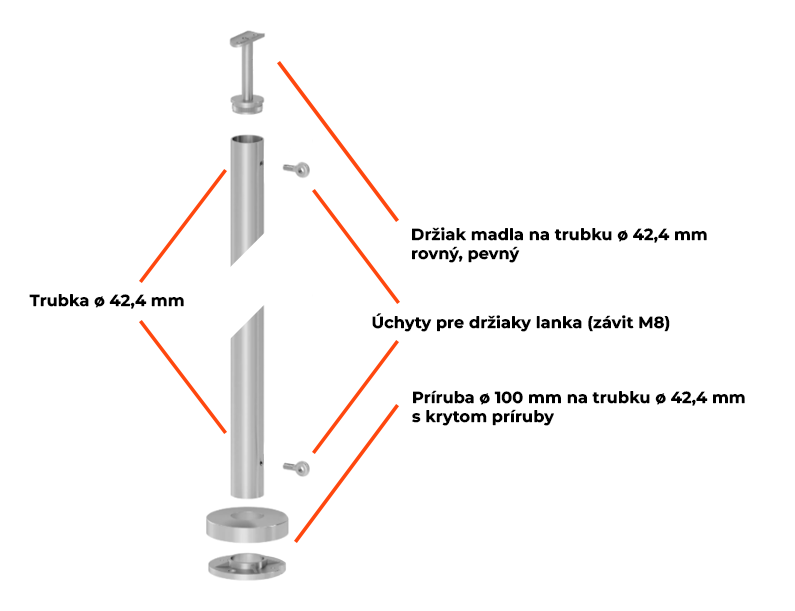

Package contents:
- 1x post tube with a diameter of Ø 42.4 mm and a thickness of 2 mm
- 1x intermediate / end handrail holder with Ø 42.4 mm, fixed, horizontal
- 2 x wire-rope holder fittings with an eye diameter of Ø 7 mm, with thread M8
- 1x flange with a diameter of Ø 100 mm for tube ø 42.4 mm
- 1x flange cover Ø 105 mm
Installation
The post is designed for a railing with mesh infill, as an intermediate or end post with fittings for stainless steel mesh. Top anchoring – into the ground.
Technical specifications
| Anchoring | top – into the ground |
|---|---|
| Post dimensions | diameter: 42.4 mm wall thickness: 2 mm height: 100 mm |
| Handrail bracket diameter | 42.4 mm |
| Fittings | horizontal, fixed, intermediate / end |
| Number of mesh fittings | 2 pcs / M8 |
| Fitting eye diameter | 7 mm |
| Flange diameter | 100 mm |
| Material | brushed stainless steel K320 / AISI304 |
