Stainless steel cable mesh with 60x104 mm openings, ø 2 mm cable, 1.2 m x 25 m

Product availability:	within 3 days	We usually ship the goods within 3 days.

NL-S60x104-02-25-1-2
within 3 days

€982.41 excluding VAT
€1,208.36 including VAT

Weight
22 kg

Description of Stainless steel cable mesh with 60x104 mm openings, ø 2 mm cable, 1.2 m x 25 m

Stainless steel infill mesh, woven from 2 mm stainless steel cable with a mesh size of 60 x 104 mm, made of AISI316 stainless steel.

The unrolled mesh is 25 m long and 1.2 m high.

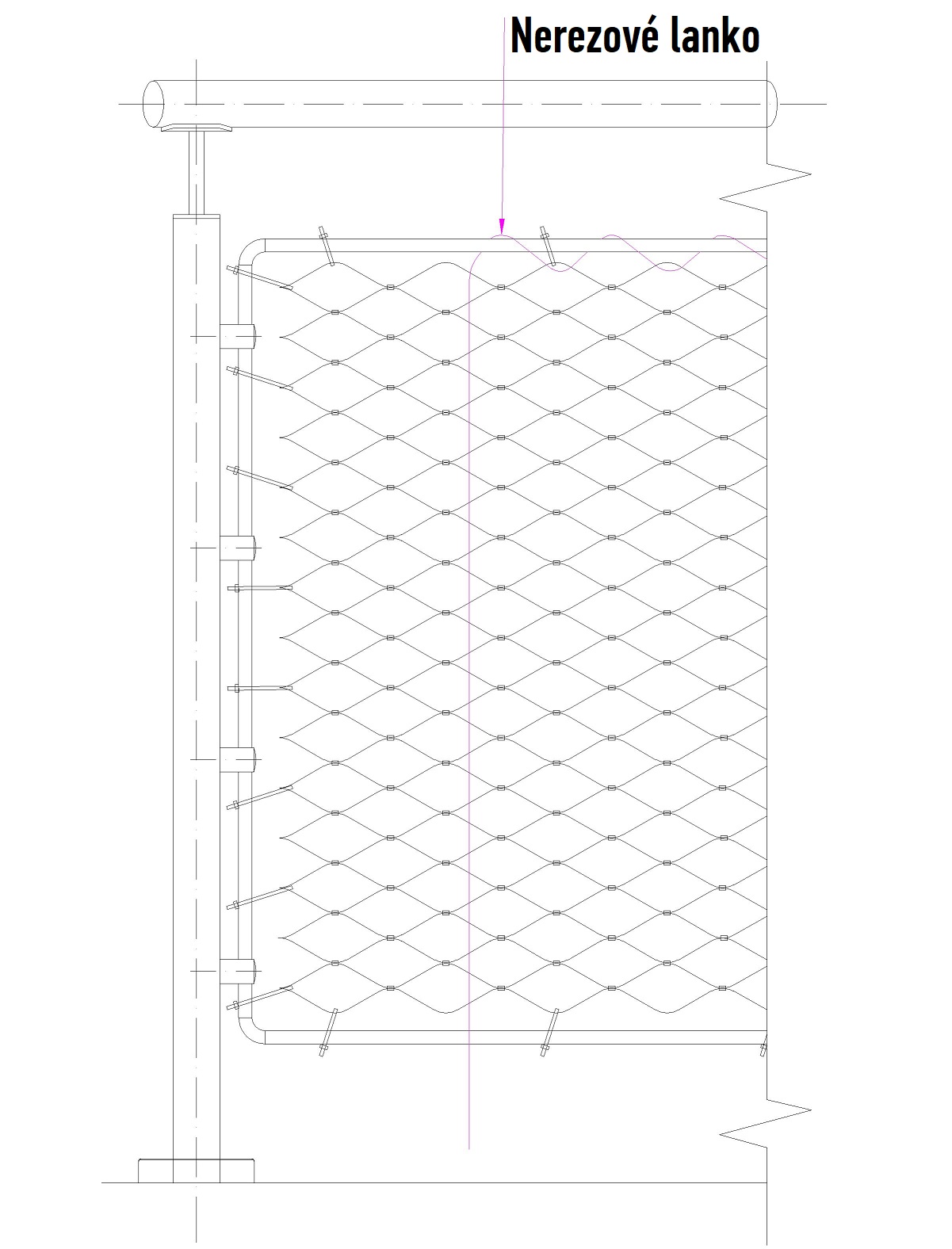

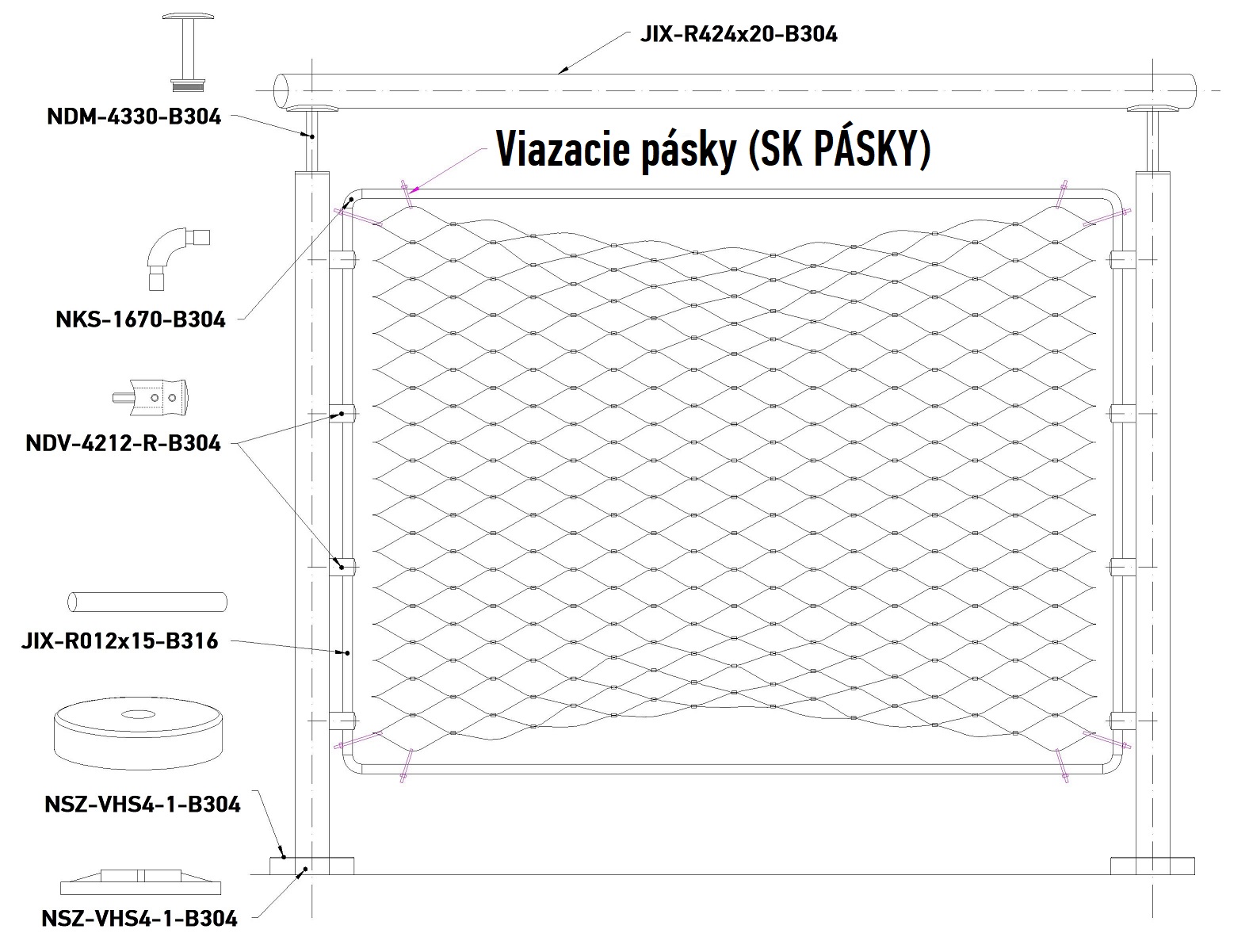

1. Secure the stainless steel mesh as shown using cable ties.	2. Once the mesh is secured with cable ties, continue by weaving in the stainless steel tensioning cable.

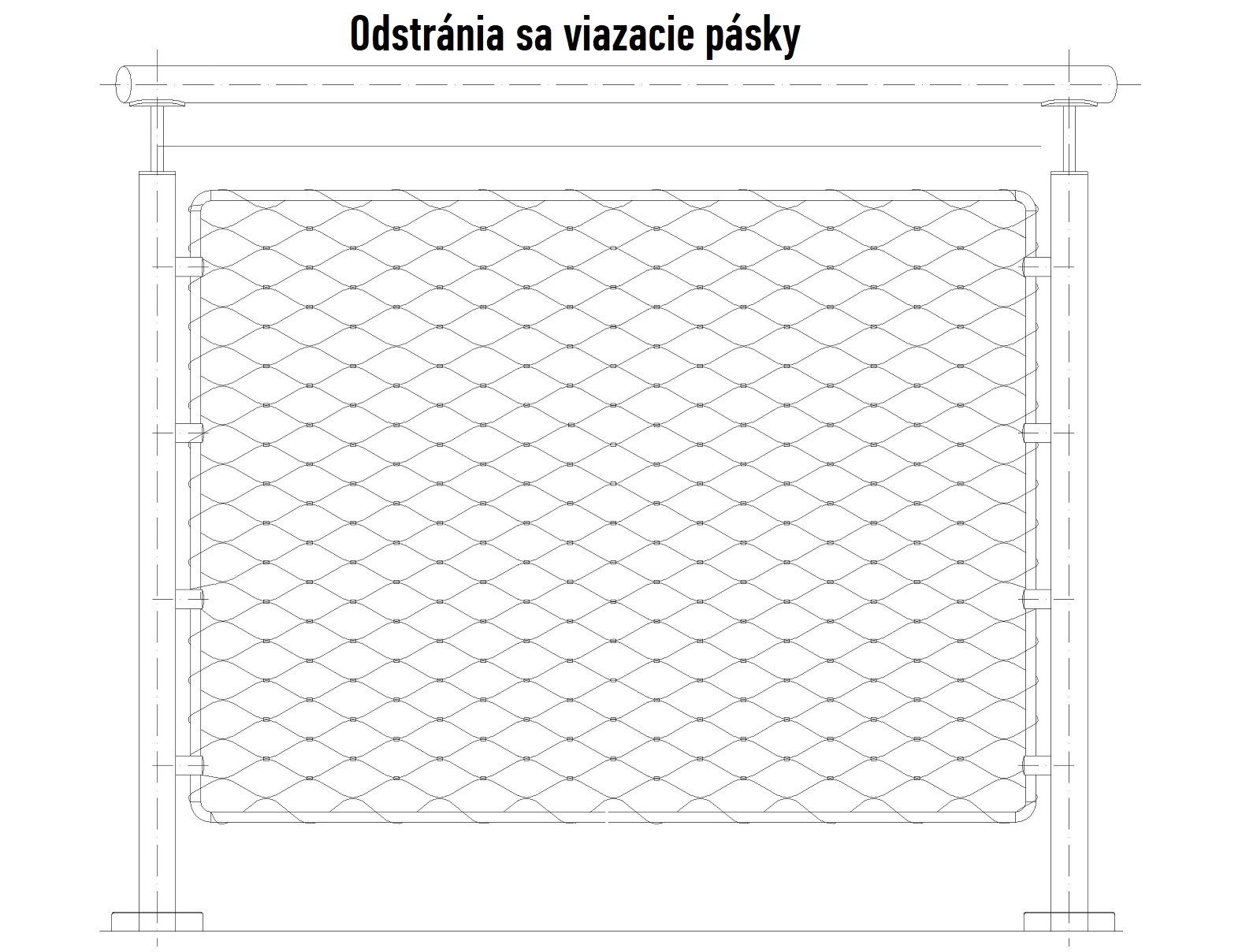

3. Crimp the tensioning cable, then remove the cable ties. The mesh will then remain tensioned:

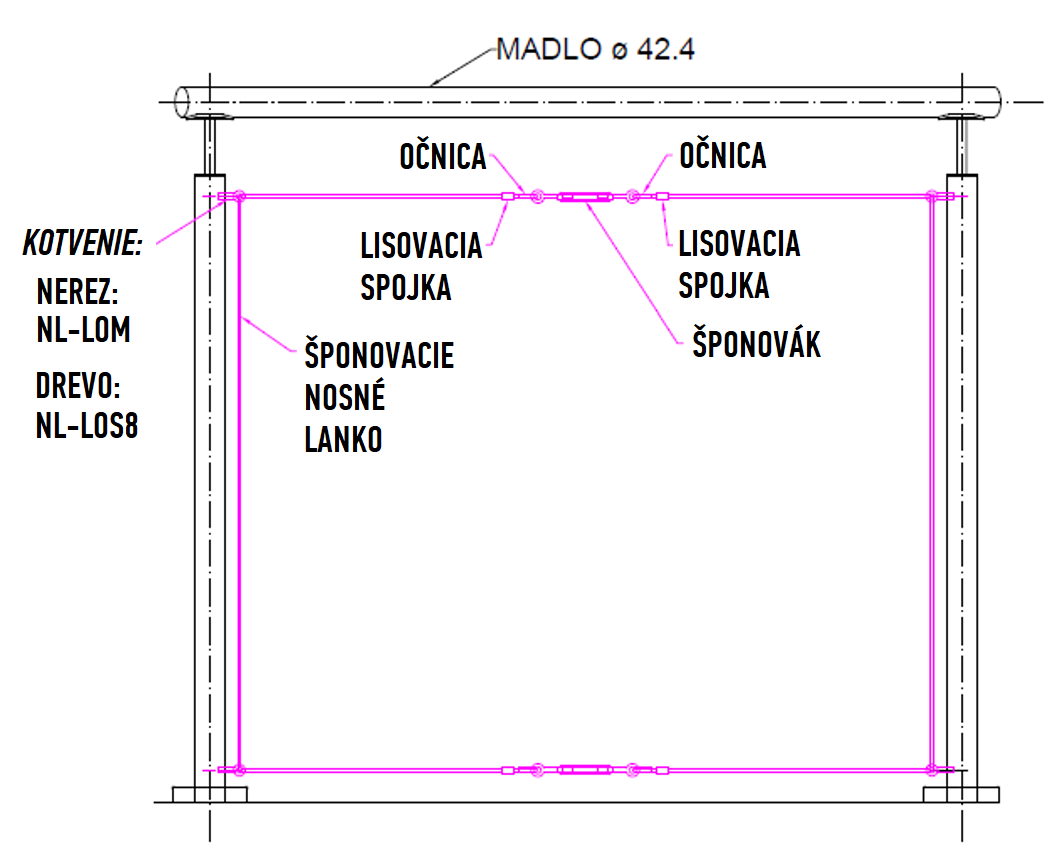

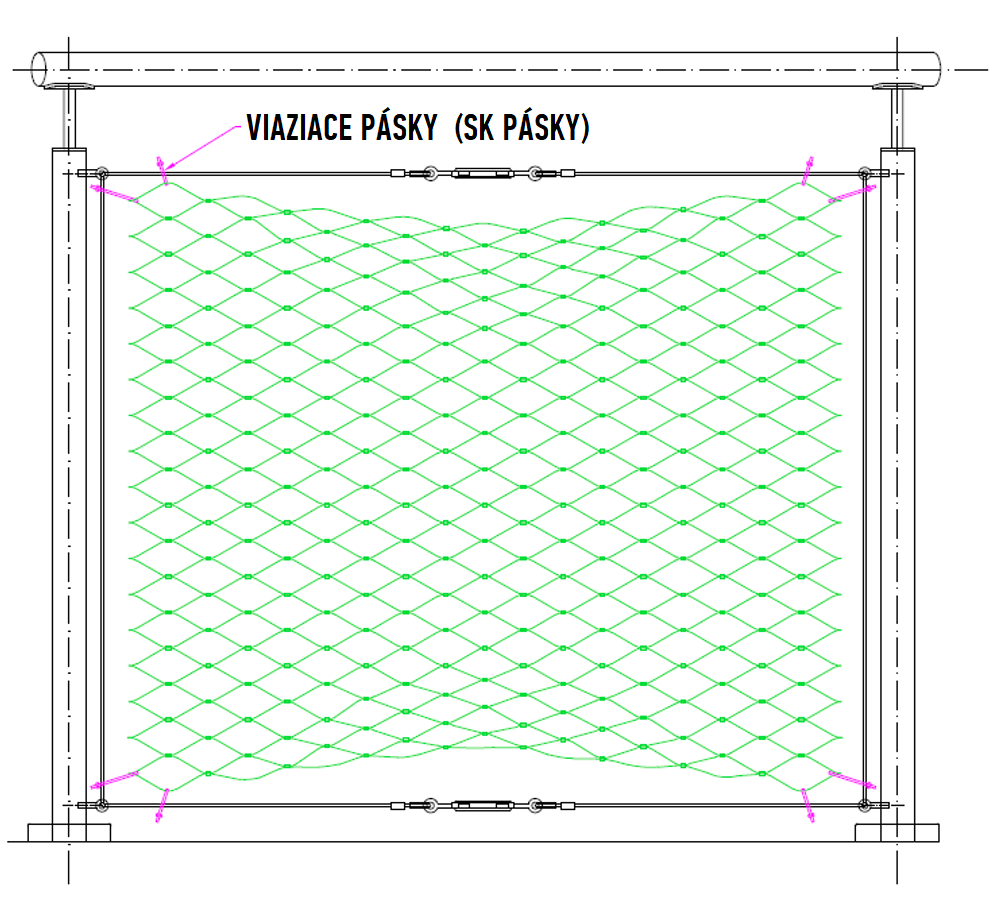

1. Set up a frame of the required length and width for tensioning the stainless steel cable mesh, then tension it using turnbuckles.	2. Using cable ties, secure the mesh around the perimeter of the tensioned frame:

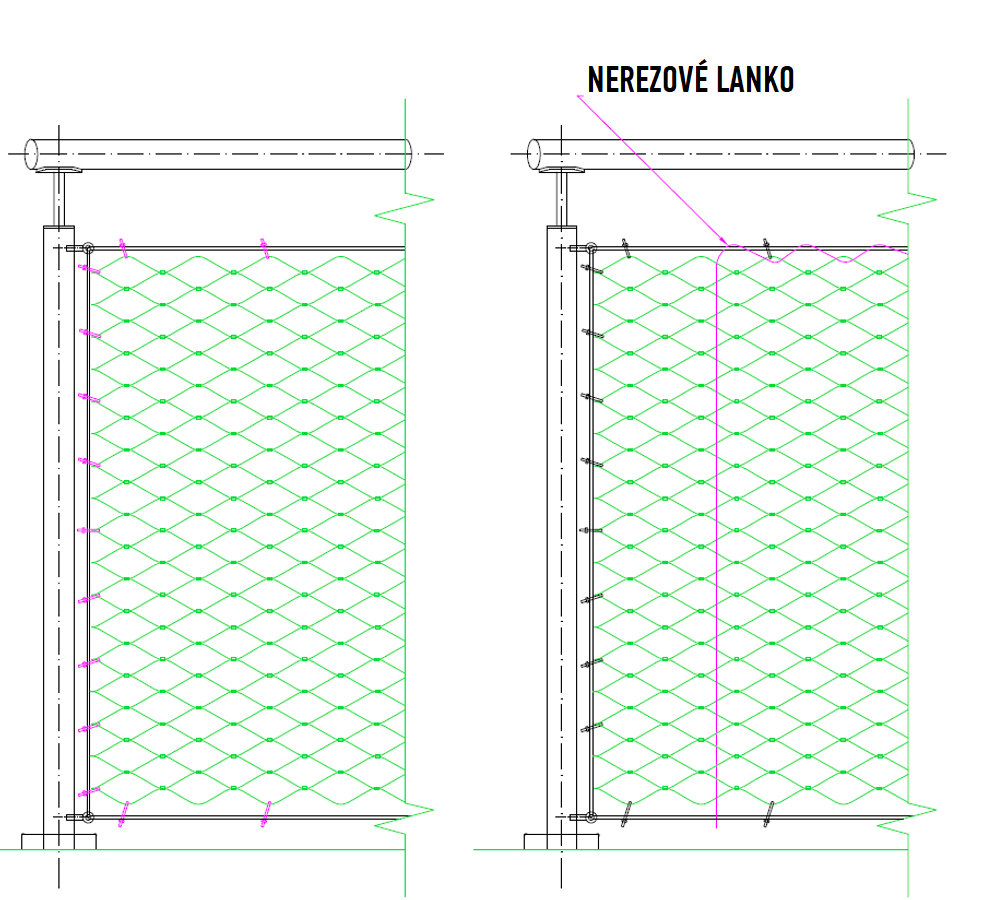

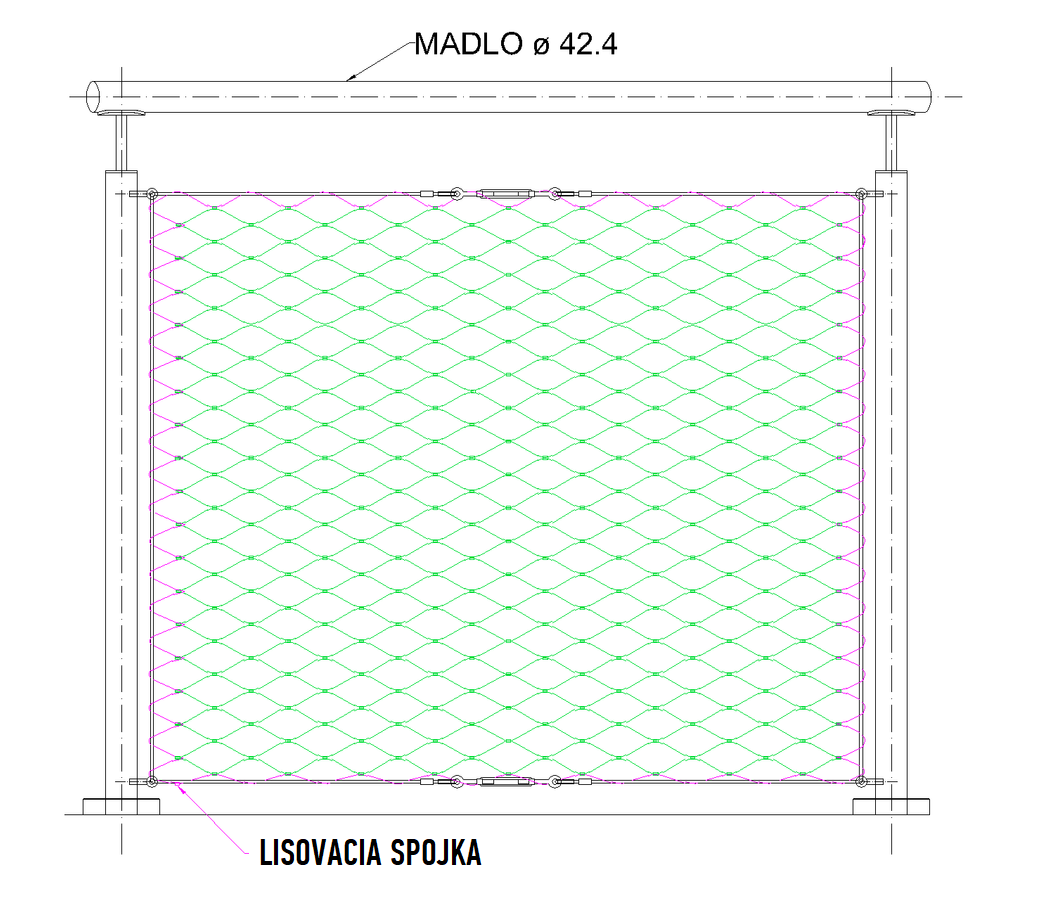

3. Once the mesh is secured with cable ties, continue by weaving in the stainless steel tensioning cable:	4. Crimp the tensioning cable, then remove the cable ties. The mesh will then remain tensioned:

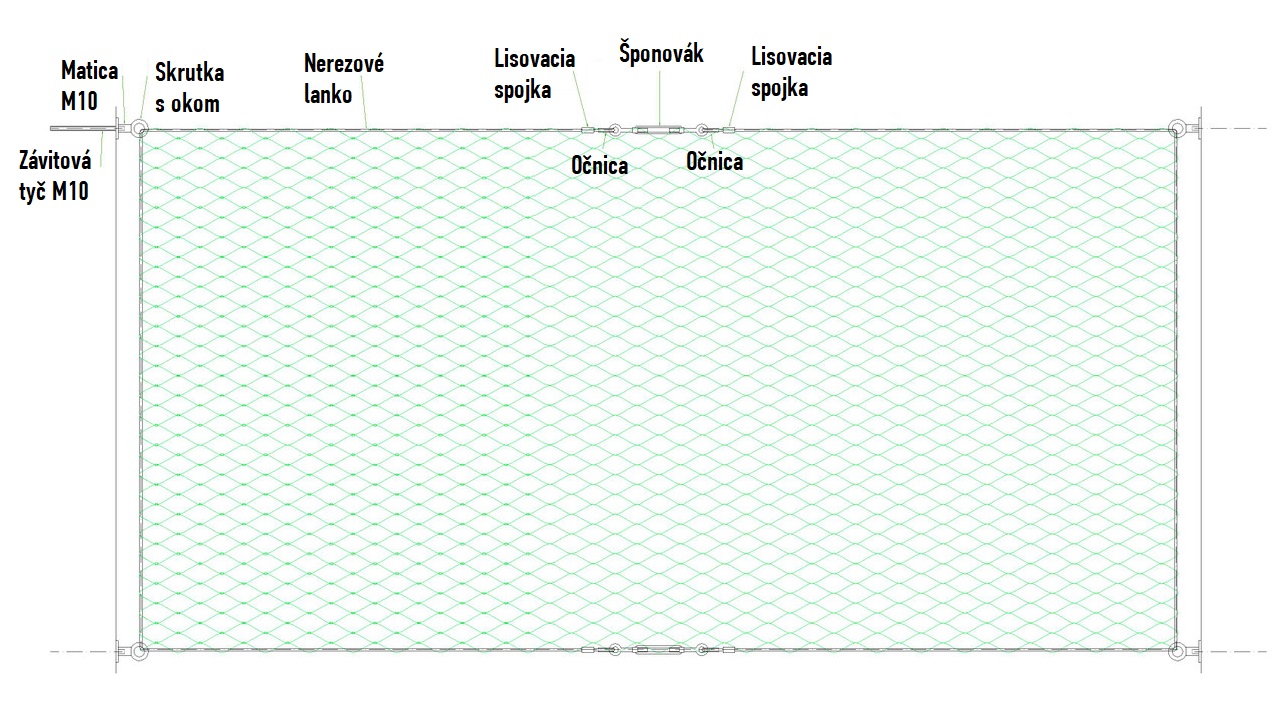

1. Installation using threaded rods for fastening

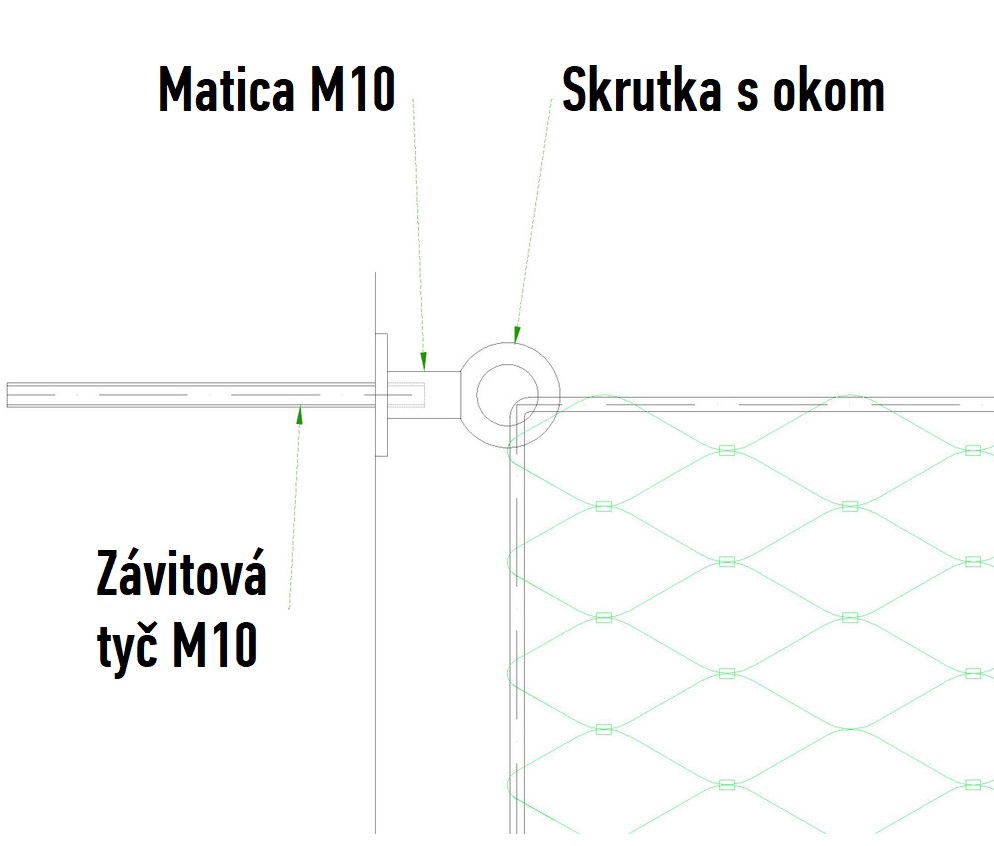

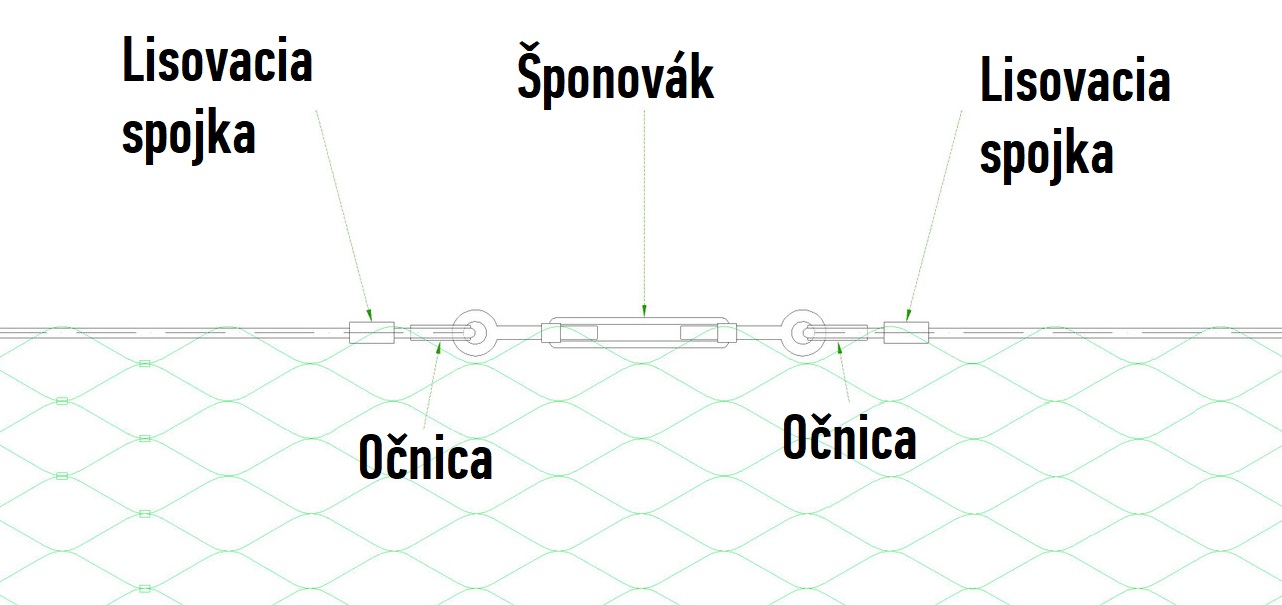

2. Turnbuckle detail	3. Anchoring detail
