Stainless steel cable mesh with 60x104 mm mesh opening, 1.5 mm cable, 1 m x 10 m


Product availability: within 3 days

We usually ship the goods within 3 days.

Stainless steel cable mesh with 60x104 mm mesh opening, 1.5 mm cable, 1 m x 10 m Stainless steel cable mesh with 60x104 mm mesh opening, 1.5 mm cable, 1 m x 10 m
NL-S60x104-1.5-10-1
within 3 days
€221.25 excluding VAT
€272.13 including VAT

 pcs
Weight
4,30 kg

Description of Stainless steel cable mesh with 60x104 mm mesh opening, 1.5 mm cable, 1 m x 10 m

Stainless steel infill mesh, woven from 1.5 mm stainless steel wire rope, with a mesh size of 60 x 104 mm. It is made from AISI 316 stainless steel, which ensures high strength and long-lasting corrosion resistance.

The 1 x 10 m mesh is ideal for use as:

Mesh installation method 1:

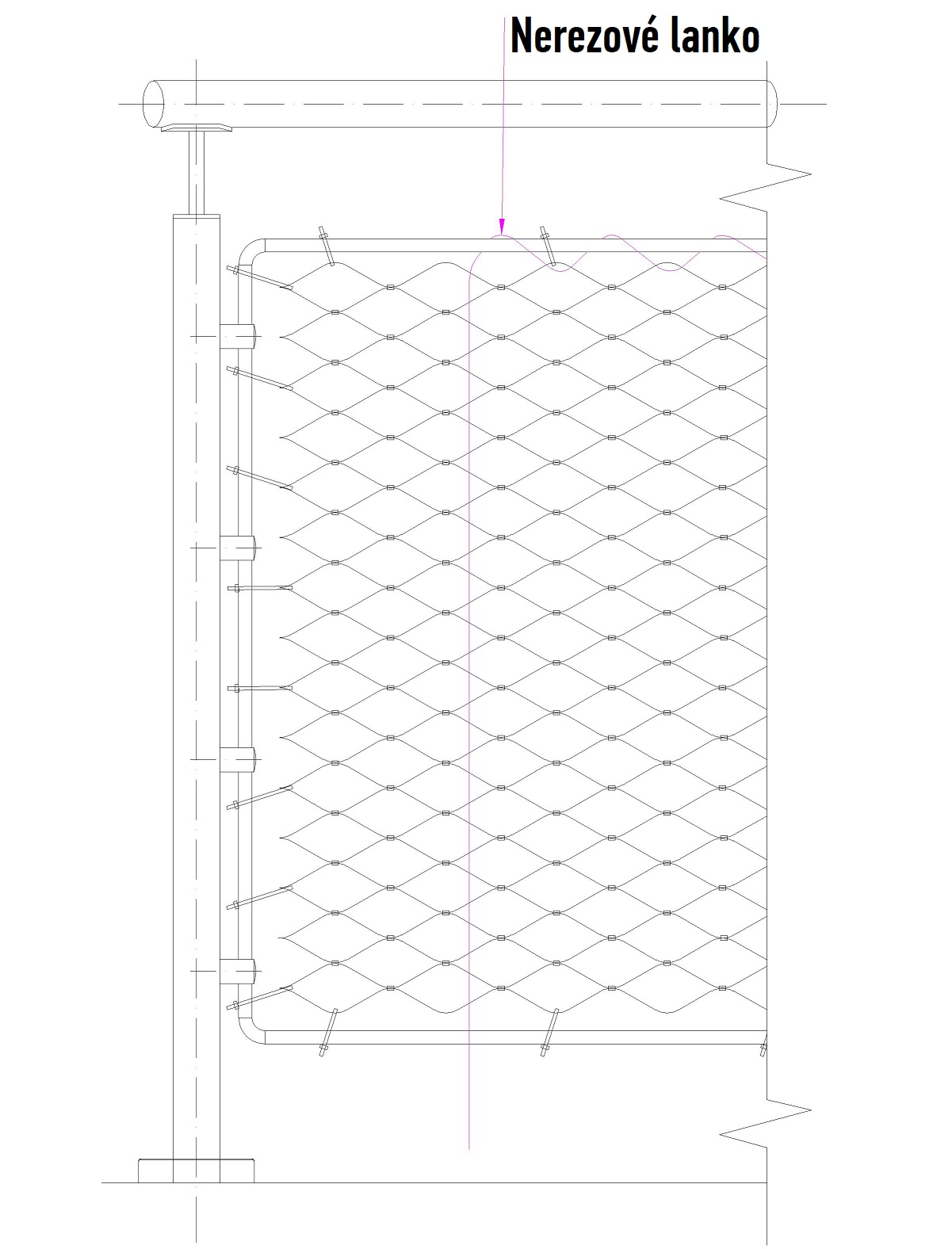

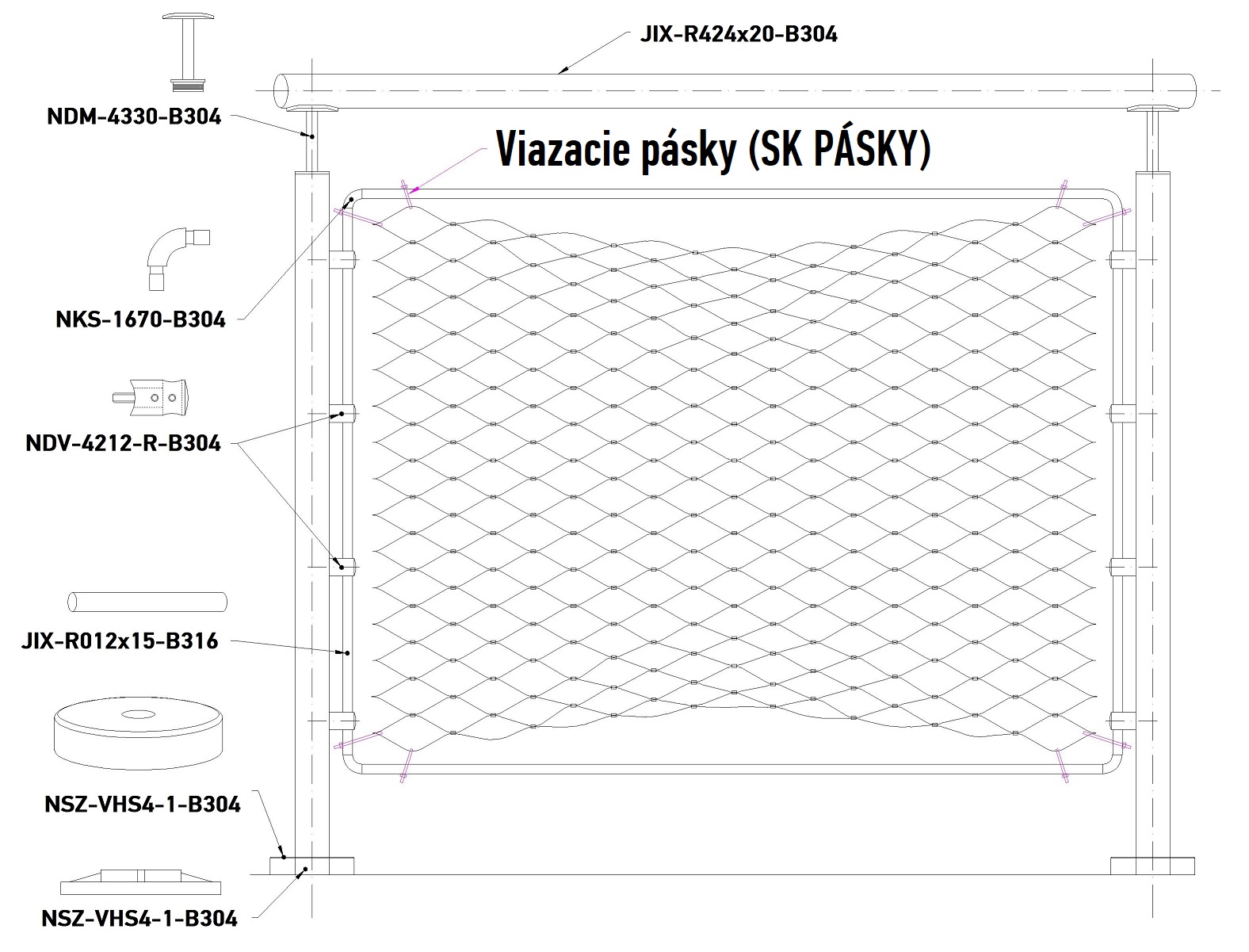

1. Attach the stainless steel mesh as shown using cable ties 2. Once the mesh is secured with cable ties, continue by weaving in the stainless steel tensioning wire rope

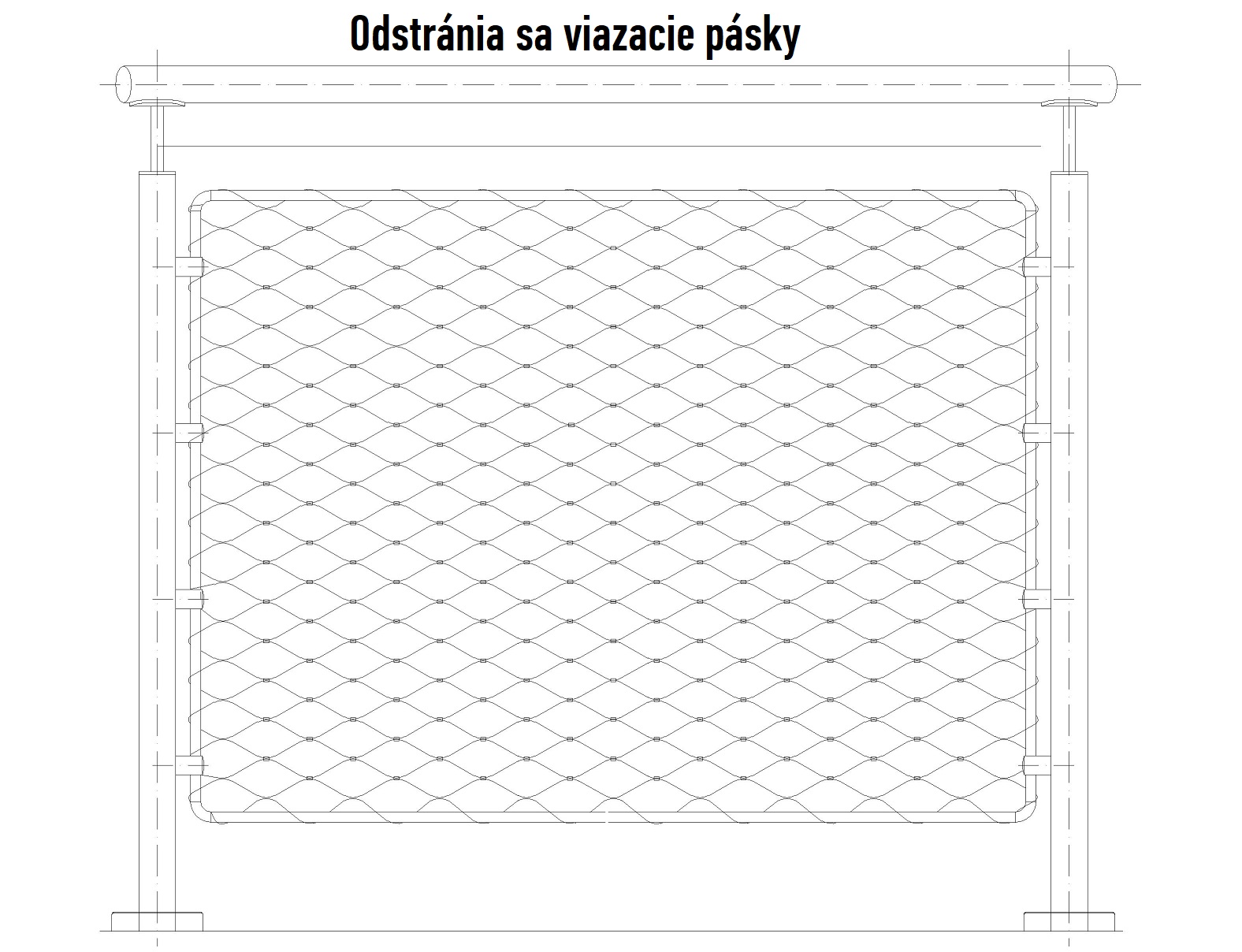

3. Crimp the tensioning wire rope, then remove the cable ties. The mesh will then remain taut:

Mesh installation method 2:

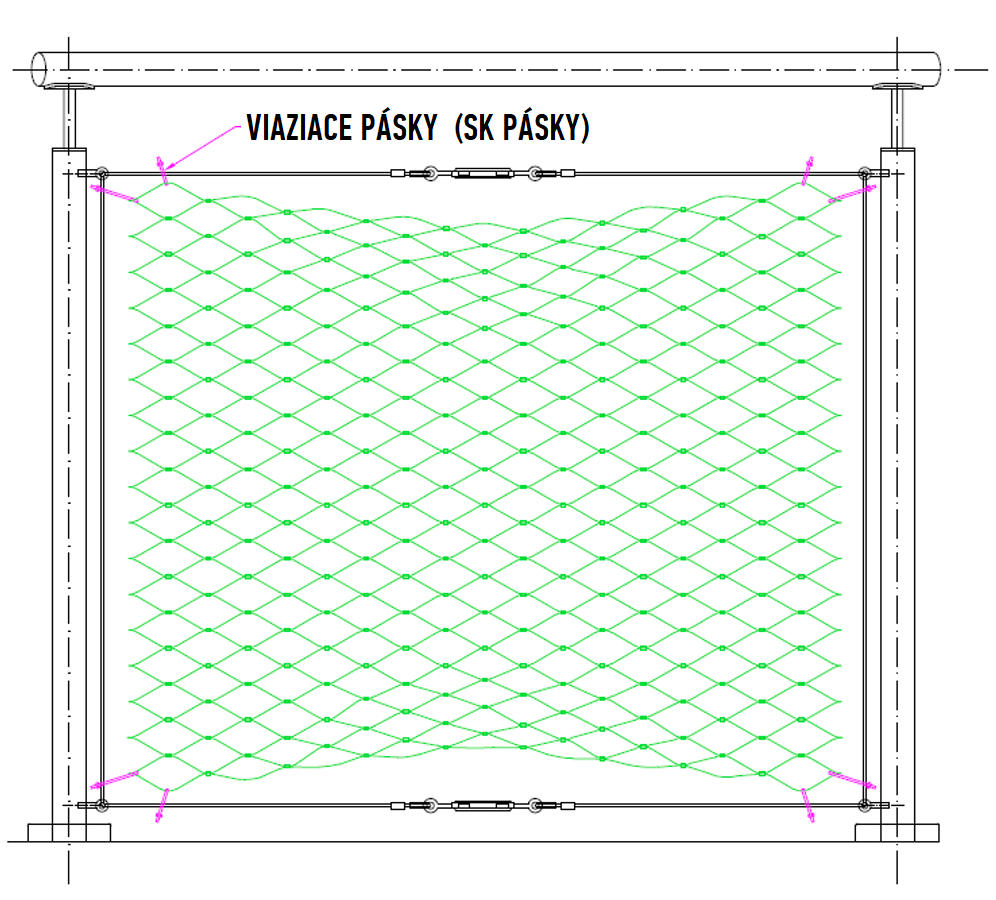

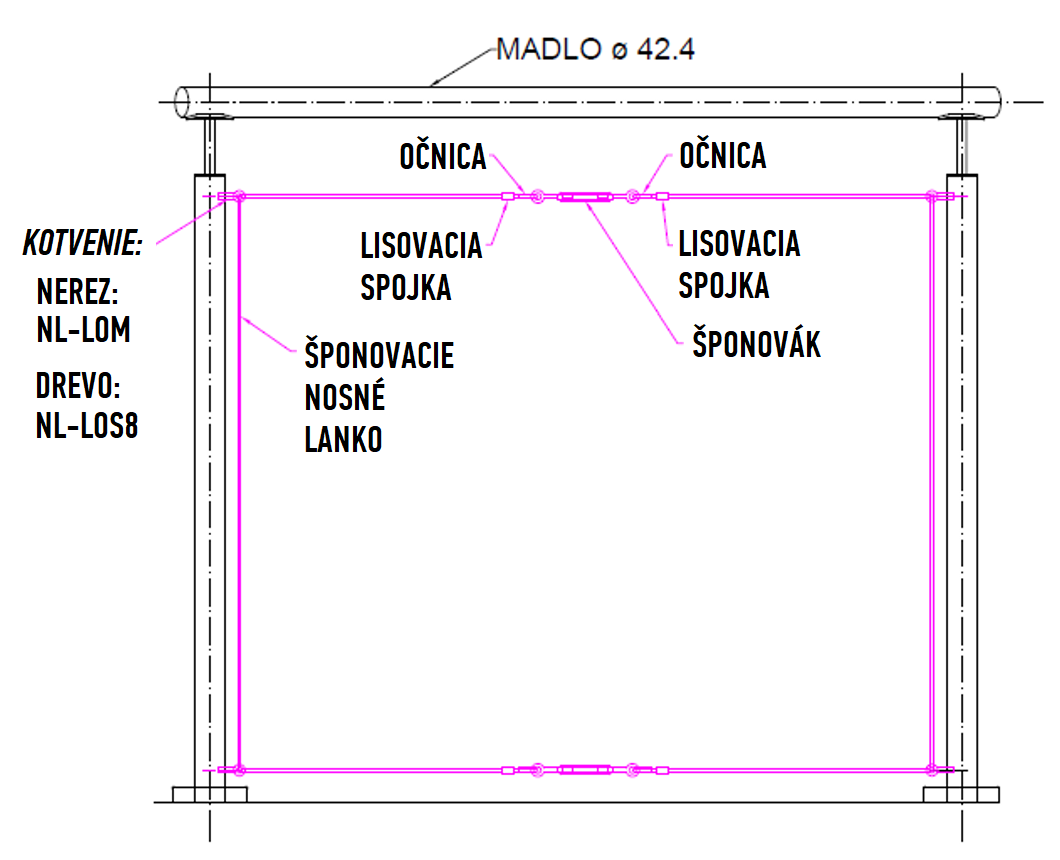

1. Make a frame of the required length and width for tensioning the stainless steel wire mesh, then use turnbuckles to tension it. 2. Use cable ties to secure the mesh around the perimeter of the tensioned mesh:

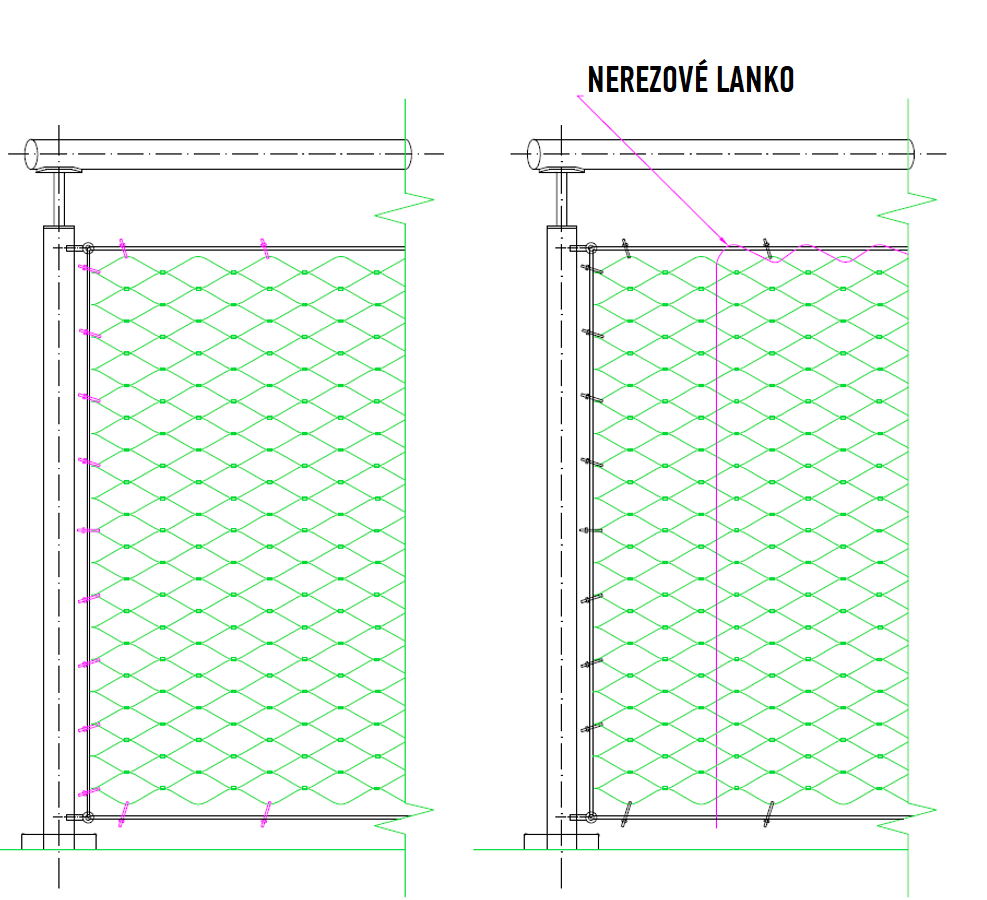

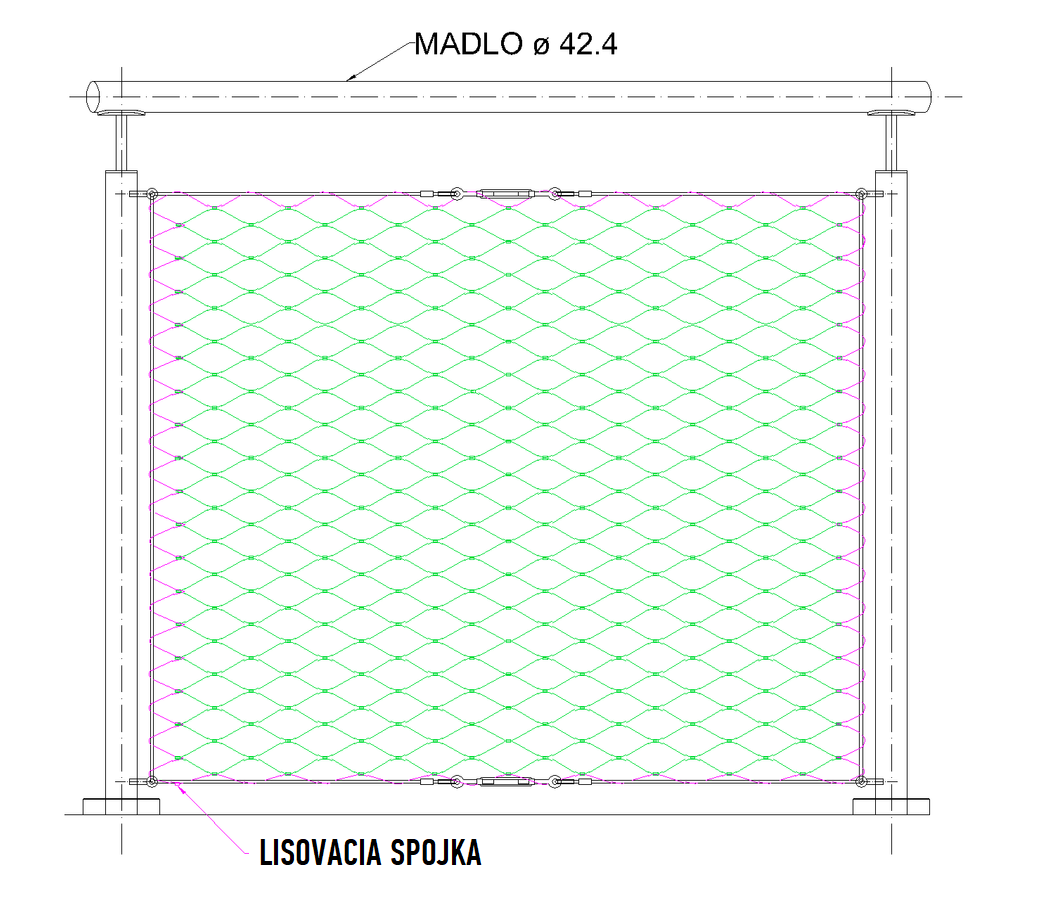

3. Once the mesh is secured with cable ties, continue by weaving in the stainless steel tensioning wire rope: 4. Crimp the tensioning wire rope, then remove the cable ties. The mesh will then remain taut:

Mesh installation method 3:

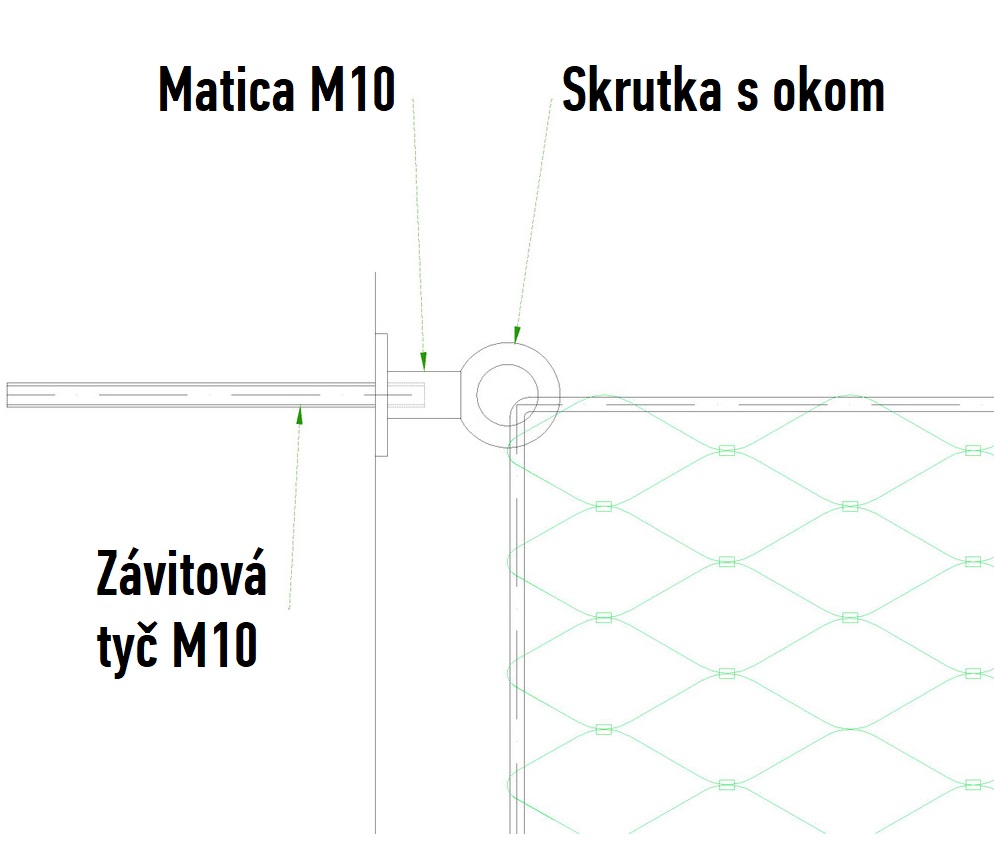

1. Installation using threaded rods for fixing

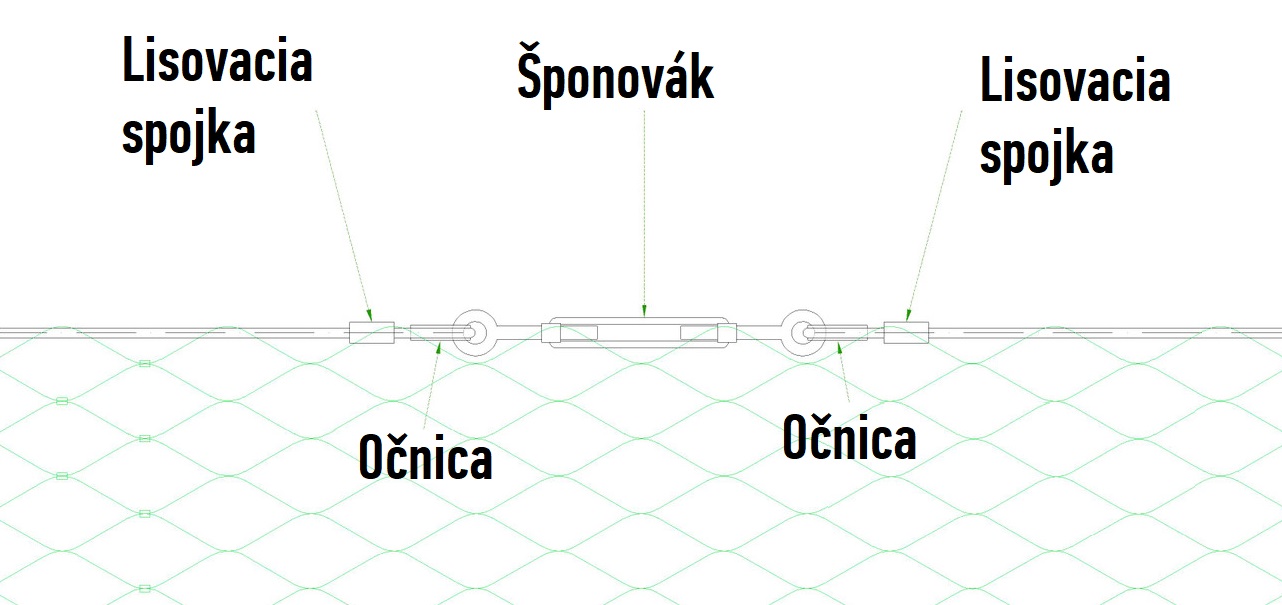

2. Detail of the turnbuckle 3. Anchor fixing detail
