SOMFY Axovia MultiPro 3s io – articulated-arm drive kit for a double-leaf gate – one leaf 2.5 m/300 kg
| Product availability: | Sale ended | Unfortunately, the product is no longer available for delivery. This does not mean it will never be available again, but at present, it is not expected to be offered for sale again. |
|---|
Description of SOMFY Axovia MultiPro 3s io – articulated-arm drive kit for a double-leaf gate – one leaf 2.5 m/300 kg
Drive kit SOMFY Axovia MultiPro 3s io is designed to automate swing gates up to a single gate leaf length of 2.5 m / 300kg. The operator has built-in end stops. The operator is based on 24V. Download the manual ».
| The set includes: | ||||
|---|---|---|---|---|
 |
2 × |

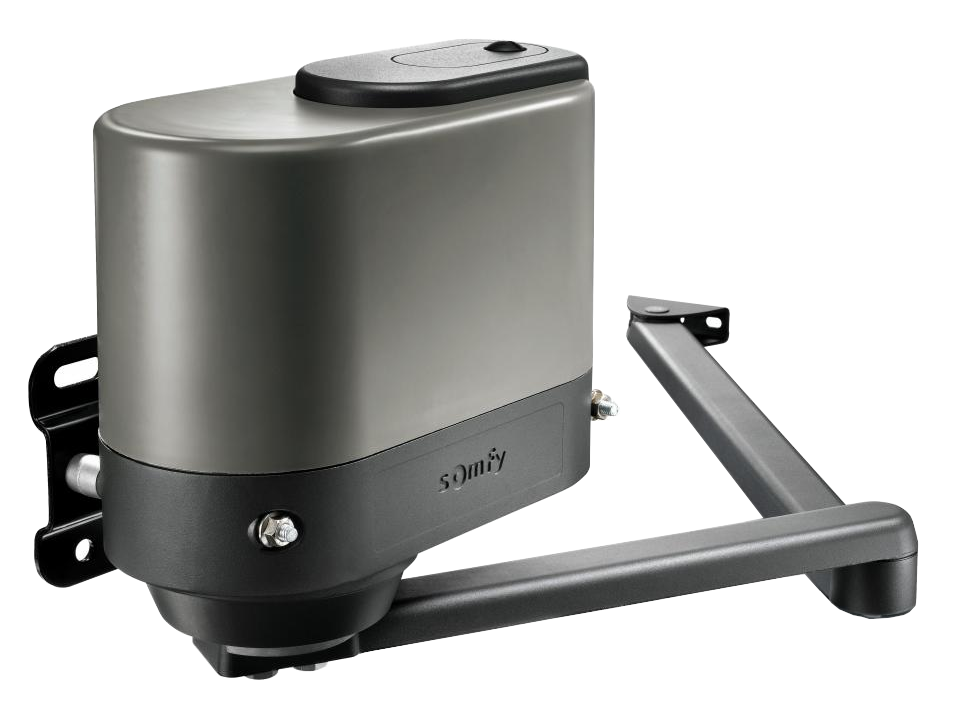

SOMFY Axovia MultiPro 3s io opener |
||
|
Electromechanical gate opener SOMFY Axovia MultiPro 3s io is designed to automate swing gates with a leaf length of 2.5 m / 300 kg. The opener is based on 24V.
|
||||
 |
1 × |

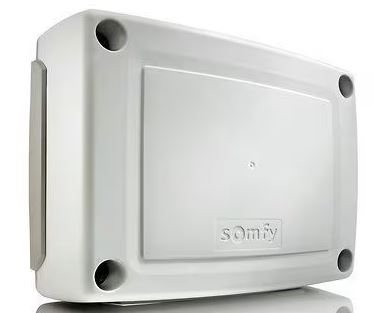

SOMFY CONTROL BOX 3S io - control unit |
Manual  |
|
|
Control unit for operating and programming SOMFY Axovia MultiPro 3s io gate openers.
|
||||
 |

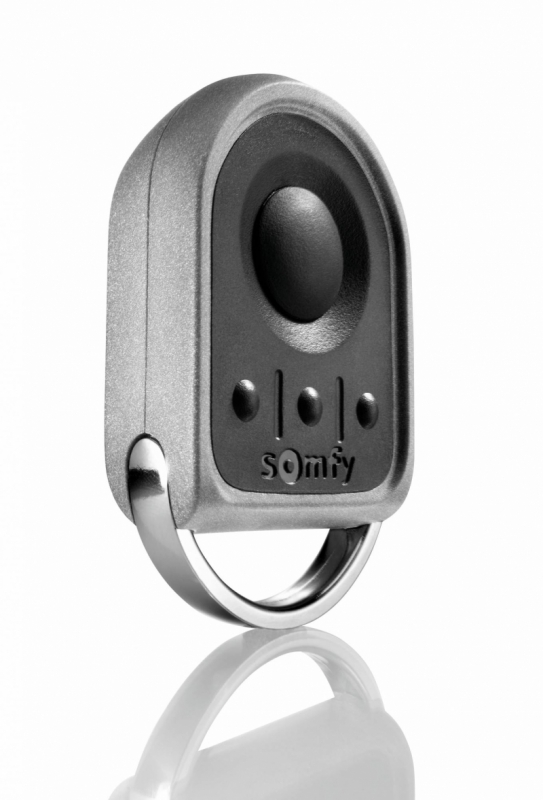

2 × | SOMFY KeyGo io - remote control | SFY-KEYGO-IO | |
|
The pocket-sized, unidirectional SOMFY KeyGo io remote control can operate up to 4 io-homecontrol® devices. |
Details |
|||
 |
1 × | SFY-FB-01 | ||
|

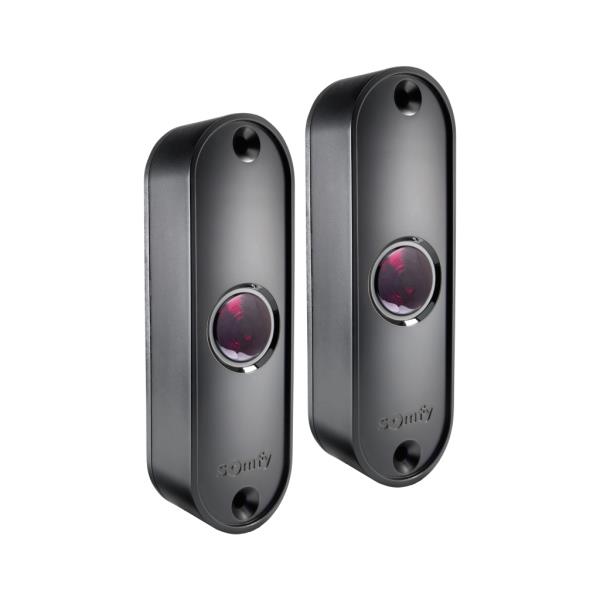

The photocell set can stop or reverse the motorised opener if it detects an obstacle. |
Details |
|||
 |

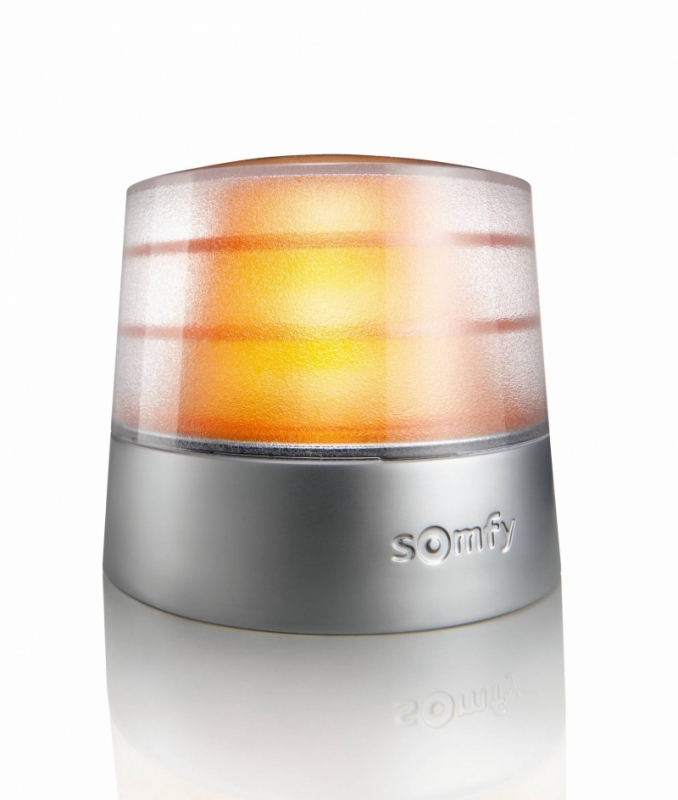

1 × | SOMFY Master Pro 24V io - flashing light | SFY-MJK-01 | |
|
The warning light is a safety device that flashes to indicate gate movement (opening/closing). The built-in antenna extends the range of the remote controls. |
Details |
|||
 |

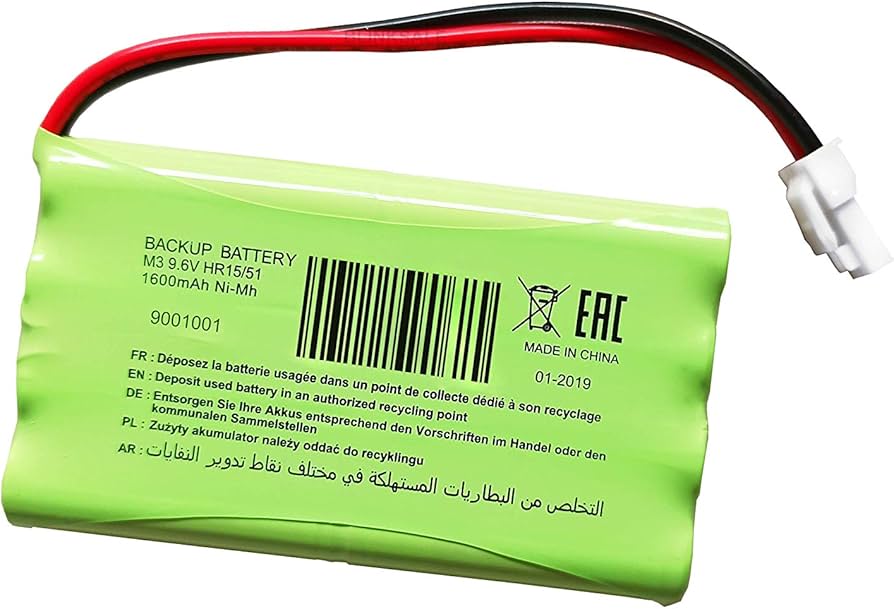

1 × | SOMFY backup battery | ||
|
The backup battery powers the opener in the event of a power failure. |
||||
 |
1 × | SOMFY AXOVIA installation manual | ||
|
Installation manual with illustrative diagrams to help ensure successful installation of the opener. |
Download |
|||
| 1 × | Installation accessories | |||
|
Components for installing the opener |
||||
Somfy AXOVIA MULTIPRO 3S io opener uses io-homecontrol technology, which is compatible with all devices in the Somfy iorange, enables two-way radio communication and provides feedback on the gate's status and position.
The opener offers a wide selection of arms, that allow the gate to open outwards (left-hand side, right-hand side), limited space behind the gate leaf, opening up to 150°. Opening uphill on slopes of up to 20%.
The external Control Box 3S control unit ensures easy installation and setup, while the built-in limit stops eliminate the need to install additional ground stops.
The gate opens quicklywith a 90° opening taking approximately 15 seconds. Safety is enhanced by obstacle detection, which stops the opener or reverses its direction if an obstacle is detected in its path. The opener also features an emergency release, allowing the gate to be opened manually from inside when necessary.
The opener is compatible with the TaHomaplatform, enabling smart home integration, including remote control and automation.
Special arms for extended opening functions:
The SOMFY Axovia MultiPro opener offers additional arms for handling unusual gate automation requirements.
| Situation | Solution | ||
|---|---|---|---|
 |

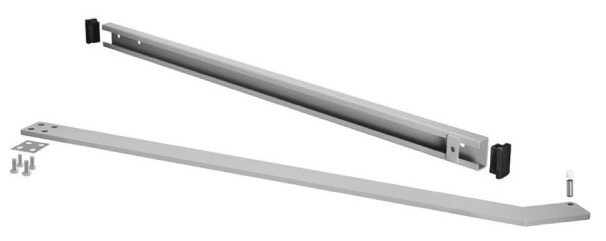

Gate opening up to 150°
|
||
 |
Gate opening where space behind the gate leaf is limited
|
||
 |

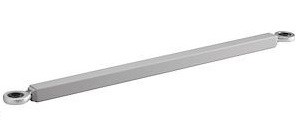

Gate opening on an incline of up to 20%
|
||
 |
Gate opening outwards - left-hand side
|
||
|
Gate opening outwards - right-hand side
|
Technical specifications of the SOMFY Axovia MultiPro 3s io opener:
| Opener power supply: | 220-230 V - 50-60 Hz |
|---|---|
| Motor power supply: | 24 VDC |
| Accessory power supply: | 24V DC / 1200mA |
| Radio frequency: | 433.42 MHz |
| Max. number of remote controls: | 40 |
| Opening time: | 90° - 15s |
| Operating temperature: | -20°C / +60°C |
| Ingress protection rating: | IP44 |
