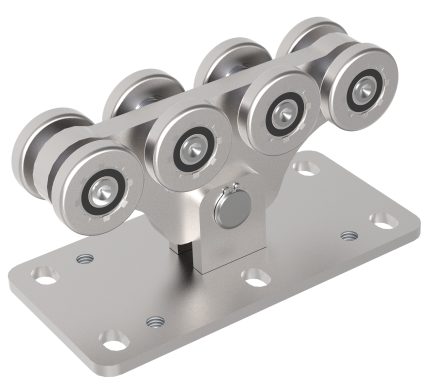

Sliding gate trolley with 8 rollers for 94x85x5mm C-channel
Zn| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
V-94-85-7
in stock
in stock
€86.58 excluding VAT
€106.49 including VAT
€106.49 including VAT
| A [mm] |
B [mm] |
C [mm] |
D | d2 [mm] |
E [mm] |
F | G [mm] |
In [mm] |
Weight |
|---|---|---|---|---|---|---|---|---|---|
| 298 | 72 | 300 | 125 | 68 | 100 | 18 | 150 | 170 | 3,00 kg |
Description of Sliding gate trolley with 8 rollers for 94x85x5mm C-channel
All-metal trolley with a galvanized finish for cantilever sliding gates.
- Variant V-94-85-7 fits the C-profile 94x85x5mm
The trolley's pivoting action ensures the gate's weight/load is evenly distributed across all the trolley's bearing rollers at every point during gate movement.
Trolley hole and bolt dimensions
| Code | Hole dimensions | Bolt dimensions |
|---|---|---|
| V-94-85-7 | 6 pcs. 18×25 | 4 pcs. M16 |
ANCHORING THE CANTILEVER GATE SUPPORT CARRIAGES:
The support carriages can be anchored:
- using threaded rods which you cast directly into the foundation
- using threaded rods chemically bonded into an already cured concrete foundation
- using hammer-in anchors into an already cured concrete foundation
The mounting plate holes have a minimum width of 18mm, and are anchored with M16. All methods are suitable; it depends on which one you have more experience with.

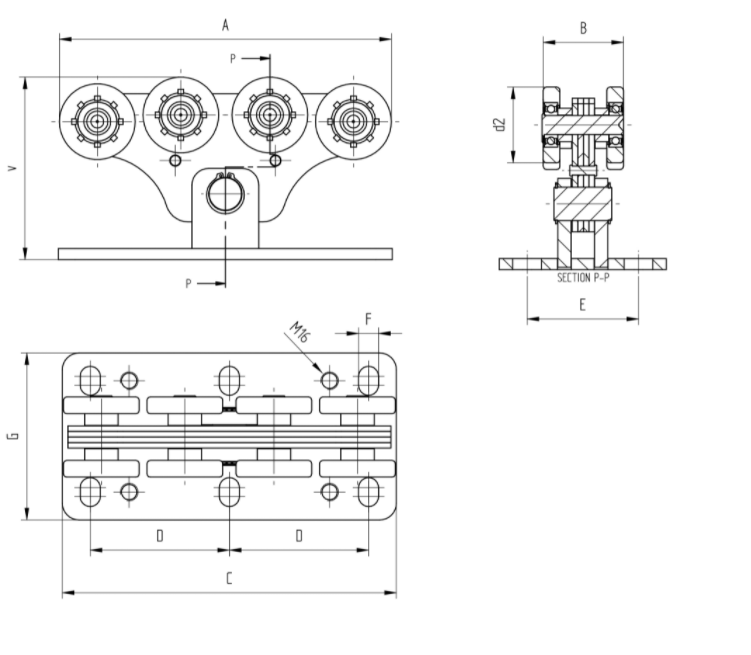

Drawing of trolley V-94-85-7:
