Sliding gate carriage with 8 rollers for 70x60x3.5 C-profile
| Product availability: | within 7 days | We usually dispatch goods within 7 days. |
|---|
V-70-60-3
within 7 days
within 7 days
€51.65 excluding VAT
€63.53 including VAT
€63.53 including VAT
| Weight |
|---|
| 3,00 kg |
Description of Sliding gate carriage with 8 rollers for 70x60x3.5 C-profile

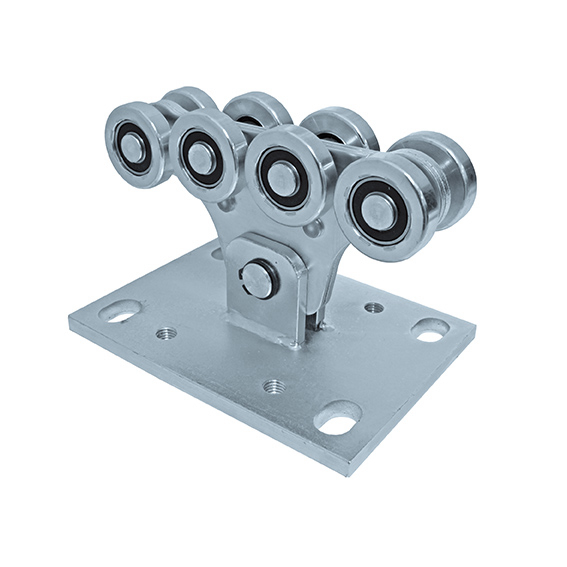

All-metal trolley with a galvanised finish for cantilever sliding gates.
- Variant V-70-60-3 fits a 70x60x3.5mm C-channel
The trolley's pivoting action ensures the gate's weight/load is evenly distributed across all the trolley's bearing rollers at every point during gate movement.
Trolley hole and bolt dimensions
| Code | Hole dimensions | Bolt dimensions |
|---|---|---|
| V-94-85-7 | 4 pcs. 17×25 17×25 | 4 pcs. M16 |
ANCHORING CANTILEVER GATE SUPPORT CARRIAGES:
The support carriages can be anchored:
- to threaded rods which you cast directly into the foundation
- to threaded rods chemically bonded into an existing, cured concrete foundation
- to hammer-in anchors into an existing, cured concrete foundation
The mounting plate holes have a minimum width of 17mm, and are anchored using an M16. All methods are suitable; choose the one you have the most experience with.

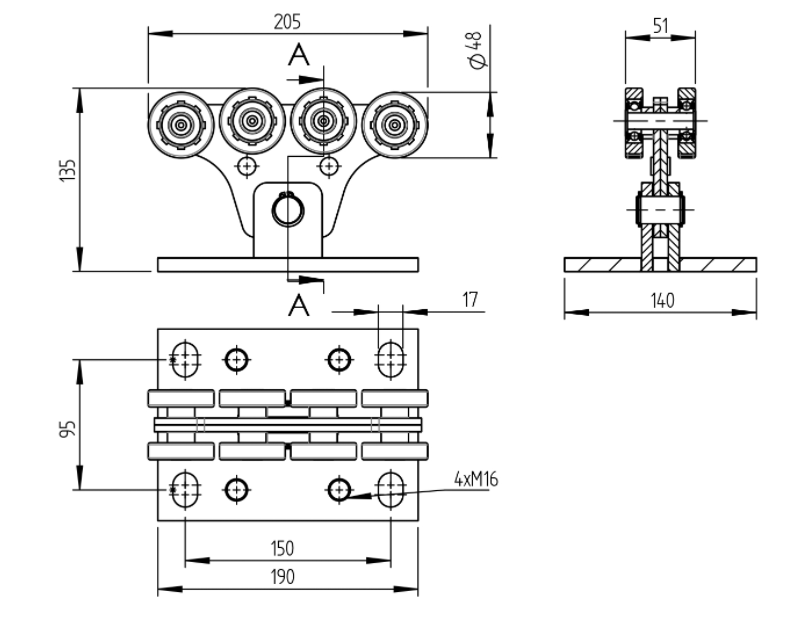

Drawing of trolley V-70-60-3:
