Sliding gate carriage with 5 rollers for C-profile 140x140x6
Zn| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
In stock
€289.36 including VAT
| Weight |
|---|
| 43 kg |
Description of Sliding gate carriage with 5 rollers for C-profile 140x140x6
All-metal trolley for cantilever sliding gates with a weight of up to 1000kg and a passage width of up to 13m.
- Variant C395-3G fits C-profile 140x140x6 mm Fe and C-profile 140x140x6 mm Zn.
The option to adjust the trolley allows you to fine-tune the gate's angle and ensure smooth operation (including in relation to the terrain or slope across the entrance).
The trolley's rocking movement ensures the gate's weight/pressure is evenly distributed across all the trolley's bearing rollers at every point in the gate's movement. The trolley includes an M12 nut for adjusting the rocking movement.
Option to purchase trolleys at a discounted price in a kit for making a cantilever gate. All discounted kits for cantilever gates.
Trolley hole and bolt dimensions
| Code | Mounting holes | Bolts | Adjustment bolt |
|---|---|---|---|
| C395-3G |
6 pcs. 22×30 | M16×35 | M12 |

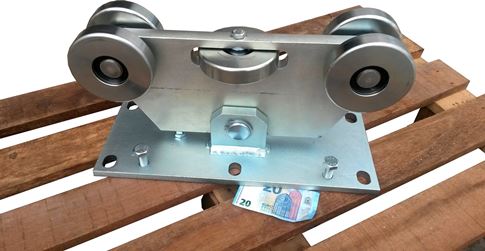

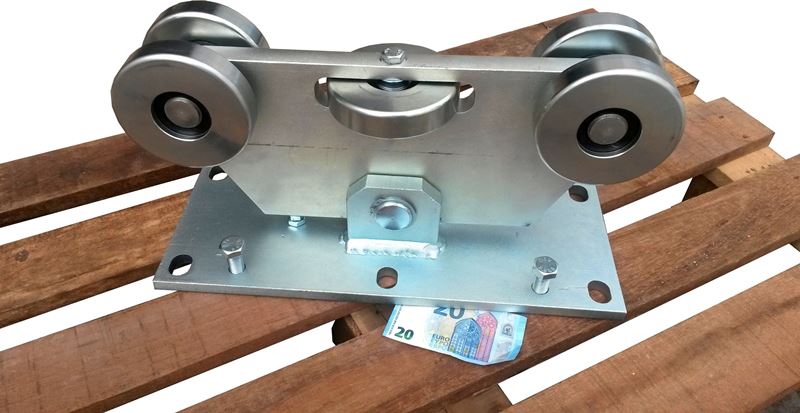

C395-3G trolley shown at actual size
ANCHORING THE SUPPORT TROLLEYS OF A CANTILEVER GATE:
The support trolleys can be anchored:
- to threaded rods that you cast directly into the foundation
- to threaded rods chemically bonded into an already cured concrete foundation
- to hammer-in anchors into an already cured concrete foundation
The narrowest dimension of the holes in the mounting plates is 22mm, and they are anchored using M20 threads. All methods are suitable; it depends on which one you have more experience with.

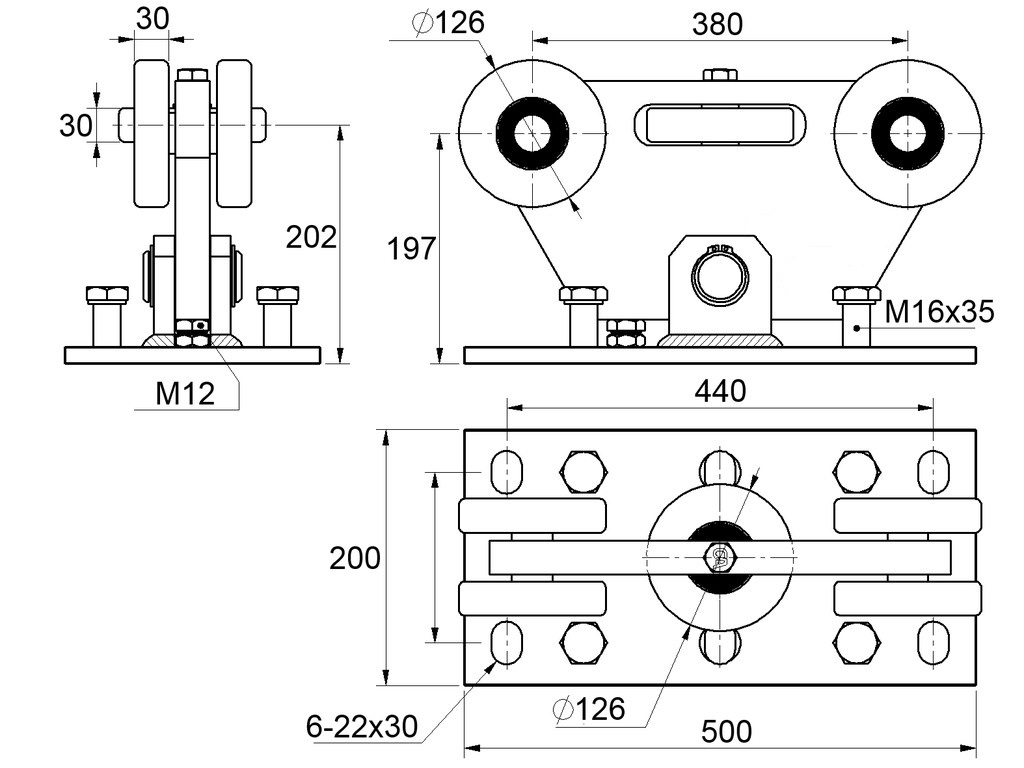

Drawing of trolley C395-3G:
360°:
