Photocells with conventional wiring, adjustable through 180° horizontally and 10° vertically
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
S-AFAP20
in stock
in stock
€60.20 excluding VAT
€74.05 including VAT
€74.05 including VAT
| Weight |
|---|
| 0,20 kg |
Description of Photocells with conventional wiring, adjustable through 180° horizontally and 10° vertically
Photocells AFAP20 have a conventional relay connection, so they can in principle be connected to almost any control unit, provided it supplies 24V and has a relay-type safety photocell input.
The photocell beam is horizontally adjustable up to 180° and vertically up to 10°, providing enhanced protection and making it easy to install gates and doors in places where it was previously very difficult.
They consist of two synchronized components: a TX transmitter and an RX receiver.
Photocell range, the maximum distance between the photocells, is 20m.
Technical specifications:
| Power supply: | 12/24V AC/DC |
|---|---|
| Range: | 20m |
| Operating temperature: | -20°C / +60°C |
| Indicator: | red LED |

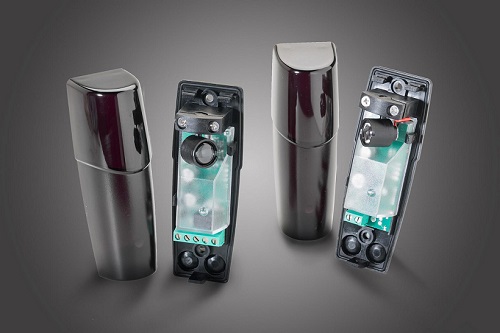

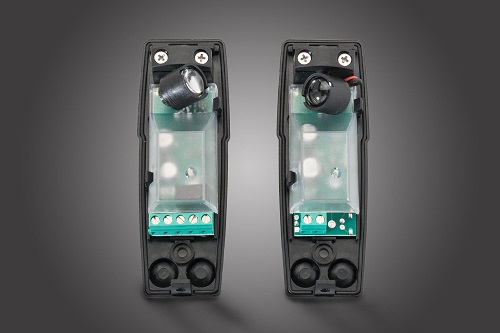

Inside view of the photocells:
 |
 |

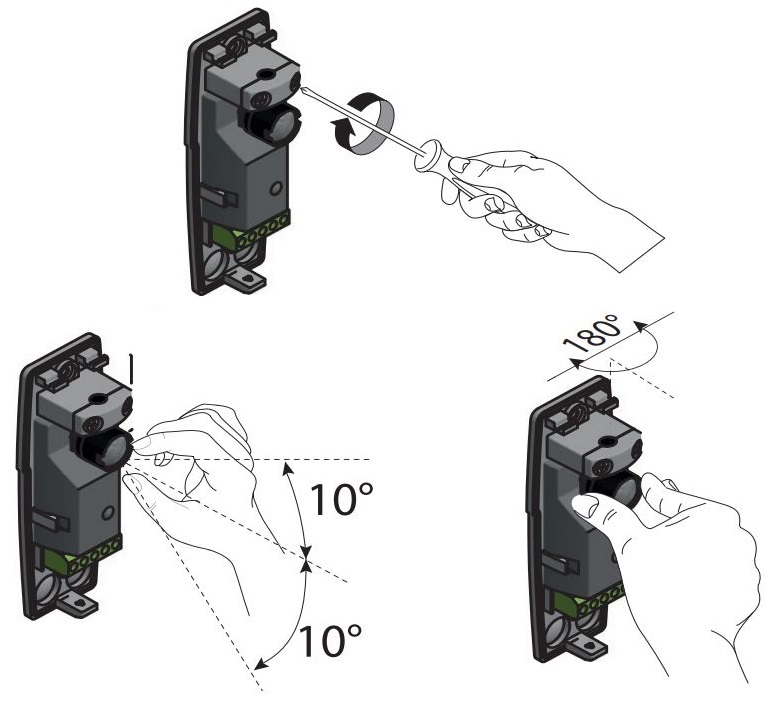

PHOTOCELL ANGLE ADJUSTMENT:

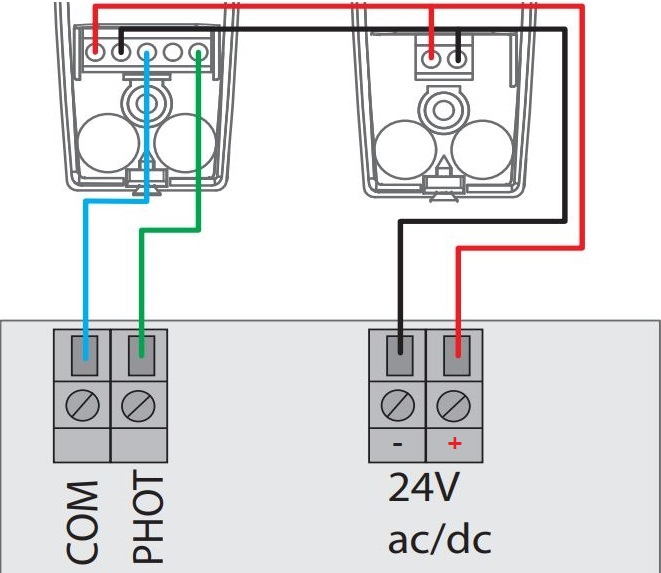

HOW TO CONNECT THE PHOTOCELLS TO THE CONTROL UNIT:
