NICE MC200 – control unit for one 230 V motor, successor to Mindy A01 and A02
| Product availability: | within 3 days | We usually ship the goods within 3 days. |
|---|
within 3 days
€118.50 including VAT
| Weight |
|---|
| 0,25 kg |
Description of NICE MC200 – control unit for one 230 V motor, successor to Mindy A01 and A02
New NICE MC200 control unit for one 230 V single-phase asynchronous motor. The NICE MC200 control unit replaces the older models NICE Mindy A01 and NICE Mindy A02. The receiver built into the control unit is compatible with FLOR, O-CODE and SMILO transmitters.
Technical specifications of the NICE MC200 control unit
| Power supply: | from: 120 V 50/60 Hz to: 230 V 50/60 Hz |
|---|---|
| Maximum motor power: | 450 W (with a 120 V power supply); 950 W (with a 230 V power supply) |
| Control signal voltage: | approximately 24 V |
| Accessories (terminals 8-9): | voltage approximately 24 V; max. current 100 mA |
| Safety device input: | in the constant-resistance configuration, it must be 8.2 kΩ |
| Operating temperature: | -20 °C... +55 °C |
| Dimensions (mm): | 127 x 111 x 45 |
| Weight (g): | 300 |
| IP protection rating: | 44 |

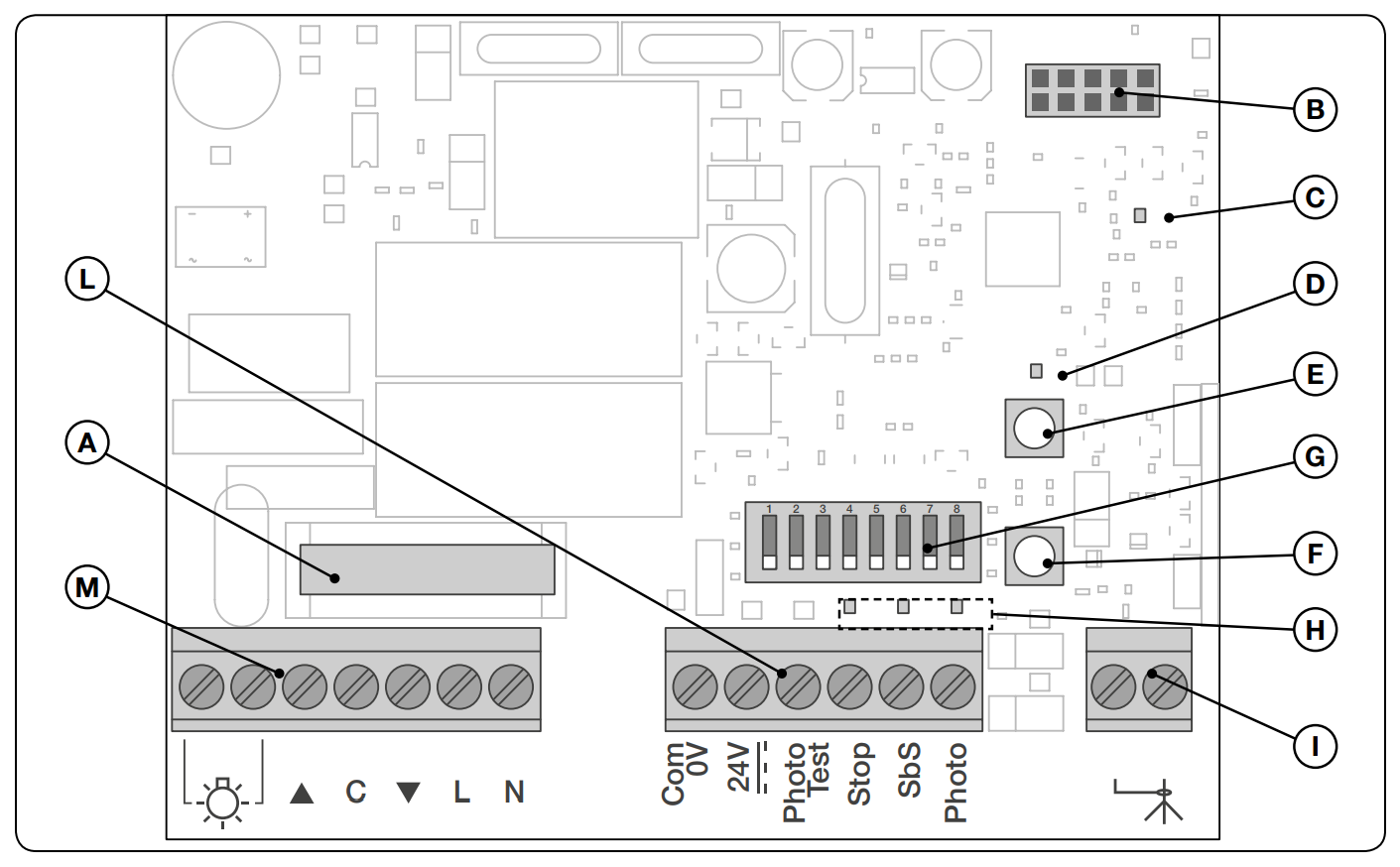

List of parts comprising the control unit
A - Supply fuse (6.3 A)
B - Connector for the IBT4N interface
C - OK LED
D - Radio LED
E - T2 button for storing a transmitter in memory and deleting one transmitter or the entire control unit memory
F - T1 button for programming and issuing Step-by-Step commands
G - DIP switch for programming functions
H - Input LEDs (Stop, SbS, Photo)
I - Radio antenna terminals
L - Low-voltage input terminals
M - Terminals for connecting the power supply and motor

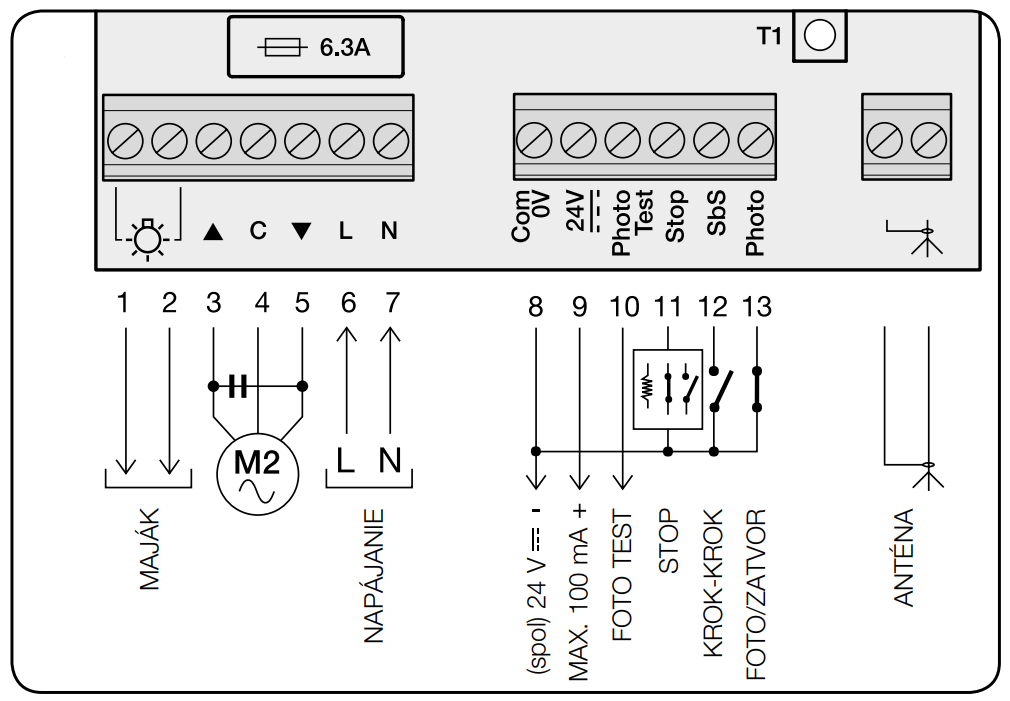

Connecting compatible accessories
1 - 2 - Output for one mains-voltage warning light
3 - 4 - 5 - Motor control output (open, common, close)
6 - 7 - Input for mains power supply connection (live, neutral)
8 - 0 V common wire for devices connected to terminals 9, 10, 11, 12 and 13
9 - 24 V output for accessories (e.g. photocells) operating on 24 V (low voltage): maximum current draw 100 mA
10 - 24 V Photo Test output for one photocell transmitter (TX) or an open-gate indicator light; maximum current draw 50 mA
11 - Stop input for safety devices with a constant resistance of 8.2 kΩ (safety edges, etc.)
12 - SbS input for one NO (normally open) button for sending commands in Step-by-Step mode
13 - Photo input for one NC (normally closed) photocell receiver (RX) or one NO (normally open) button
14 - 15 - Radio receiver antenna input
