LOCINOX stainless steel mortise lock for sliding gates, 60 mm backset, 77 mm mortise depth, 92 mm center-to-center distance, EIGHTYLOCK-S
| Product availability: | within 7 days | We usually dispatch goods within 7 days. |
|---|
within 7 days
€93.65 including VAT
| Weight |
|---|
| 0,52 kg |
Description of LOCINOX stainless steel mortise lock for sliding gates, 60 mm backset, 77 mm mortise depth, 92 mm center-to-center distance, EIGHTYLOCK-S
Mortise lock for sliding gates with a stainless steel mechanism and a rotating head Twistfinger with a height of 33 mm. It is designed for the SFKS mortise lock keeper, which catches the rotating head when the gate is closed.
The lock is suitable for profiles with a depth of at least 80 mm. The 60 mm backset is the distance from the faceplate to the centreline of the cylinder and handle. The depth the lock is recessed into the profile is 77 mm and the distance between the handle and cylinder centre lines is 92 mm.
The design is adjustable for left- or right-hand sliding gates. The faceplate protects the mechanism from dirt and small metal particles.
Installation in the prepared cut-out UNIWING is made easier by the Click-It system (see manual). The lock is suitable for steel, aluminium, wooden and PVC gates. Prepare the cut-out and fixing points according to the installation instructions.
The lock is designed for a Euro-profile cylinder and a handle with an 8 × 8 mm square spindle. The handle and cylinder are ordered separately. Choose the cylinder length according to the gate profile depth and the hardware used. Choose the keep according to the design of the rotating latch.

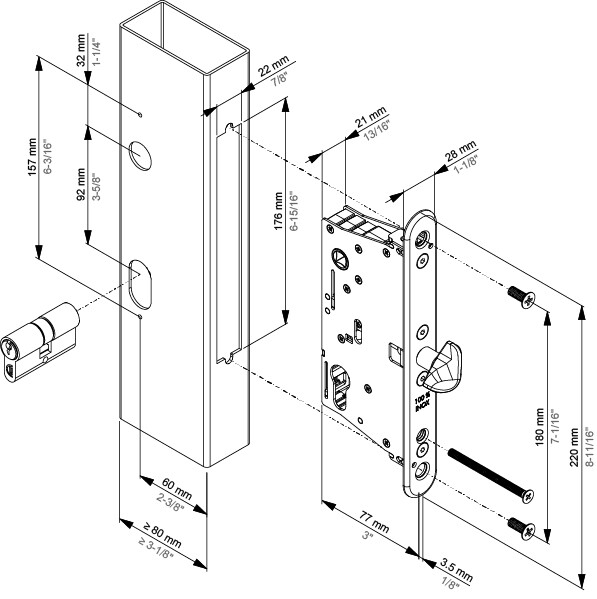

Installation drawing:
Approximate shipping weight: 0.52 kg.
